NISSAN NOTE 2016 Service Repair Manual WCS-30 < WIRING DIAGRAM > WARNING CHIME SYSTEM ABNIA8038GB Revision: August 20152016 Versa Note cardiagn.com

Page 3546 of 3641

NISSAN NOTE 2016 Service Repair Manual WCS WARNING CHIME SYSTEMWCS-31 < WIRING DIAGRAM > C DE F G H I J K L M B A O P ABNIA8039GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 3547 of 3641

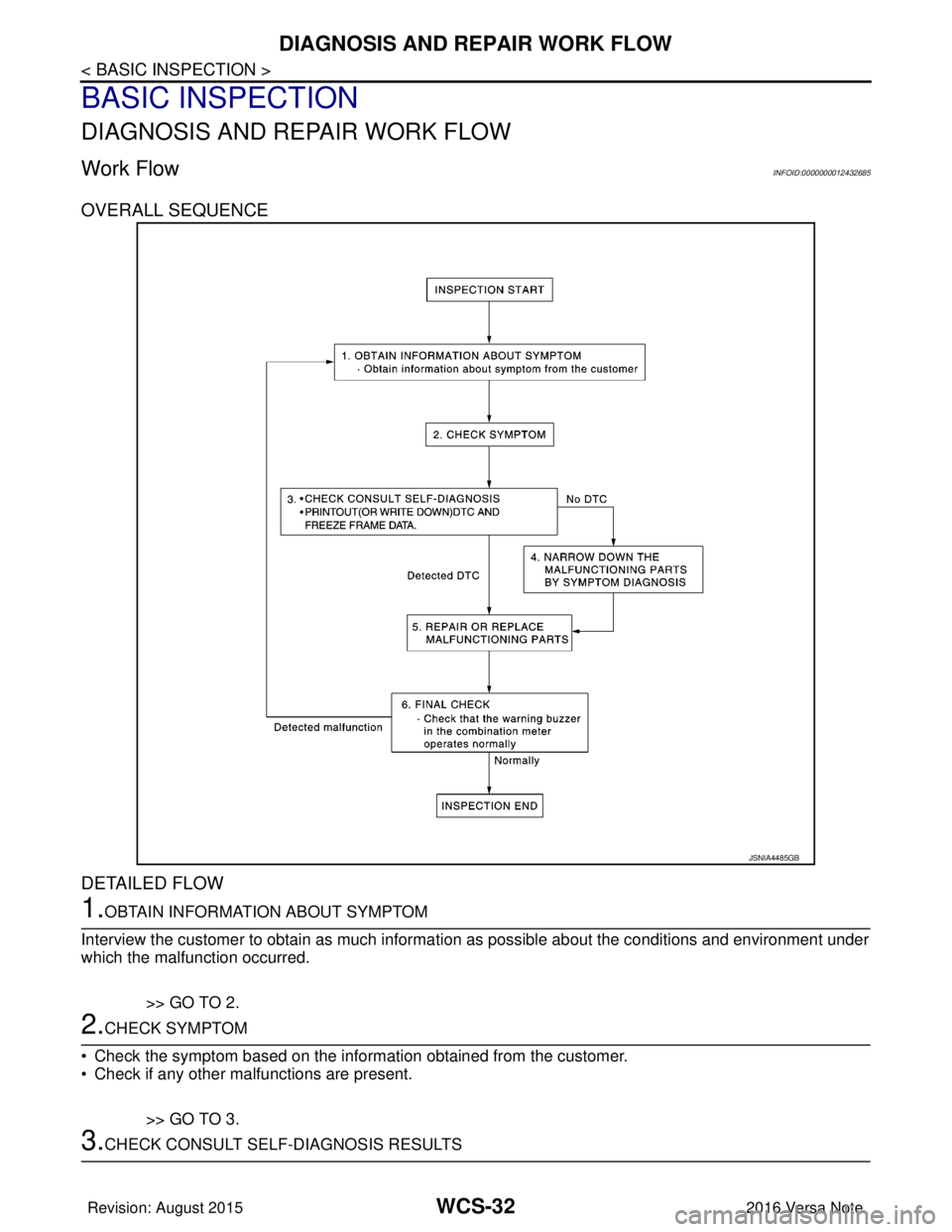

NISSAN NOTE 2016 Service Repair Manual WCS-32 < BASIC INSPECTION > DIAGNOSIS AND REPAIR WORK FLOW BASIC INSPECTION DIAGNOSIS AND REPAIR WORK FLOW Work FlowINFOID:0000000012432685 OVERALL SEQUENCE DETAILED FLOW 1.OBTAIN INFORMATION ABOUT SY

Page 3548 of 3641

NISSAN NOTE 2016 Service Repair Manual WCS DIAGNOSIS AND REPAIR WORK FLOWWCS-33 < BASIC INSPECTION > C DE F G H I J K L M B A O P 1. Connect CONSULT and perform self-diagnosis. Refer to MWI-24, "DTC Index" (Type A) or MWI-77, "DTC Index"

Page 3549 of 3641

NISSAN NOTE 2016 Service Repair Manual WCS-34 < DTC/CIRCUIT DIAGNOSIS > POWER SUPPLY AND GROUND CIRCUIT DTC/CIRCUIT DIAGNOSIS POWER SUPPLY AND GROUND CIRCUIT COMBINATION METER (TYPE A) COMBINATION METER (TYPE A) : Diagnosis ProcedureINFOID

Page 3550 of 3641

NISSAN NOTE 2016 Service Repair Manual WCS POWER SUPPLY AND GROUND CIRCUITWCS-35 < DTC/CIRCUIT DIAGNOSIS > C DE F G H I J K L M B A O P COMBINATION METER (TYPE B) : Diagnosis ProcedureINFOID:0000000012542991 Regarding Wiring Diagram infor

Page 3551 of 3641

NISSAN NOTE 2016 Service Repair Manual WCS-36 < DTC/CIRCUIT DIAGNOSIS > POWER SUPPLY AND GROUND CIRCUIT 1.CHECK FUSES AND FUSIBLE LINK Check that the following fuses and fusible link are not blown. Is the fuse blown? YES >> Replace the blo

Page 3552 of 3641

NISSAN NOTE 2016 Service Repair Manual WCS POWER SUPPLY AND GROUND CIRCUITWCS-37 < DTC/CIRCUIT DIAGNOSIS > C DE F G H I J K L M B A O P Is the fuse blown? YES >> Replace the blown fuse or fusible link after repairing the affected circuit.
