Page 841 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-152
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
FRONT DOOR
2. Adjust door striker so that it becomes parallel with front door lock
insertion direction.
3. Tighten door striker bolts

Page 842 of 3641

NISSAN NOTE 2016 Service Repair Manual FRONT DOORDLK-153
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
• Check door check link rotating point for poor lubrication. If
necessary, apply a mul

Page 843 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-154
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
REAR DOOR
REAR DOOR
Exploded ViewINFOID:0000000012430102
DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and InstallationINFOID:0000000012430103

Page 844 of 3641

NISSAN NOTE 2016 Service Repair Manual REAR DOORDLK-155
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
2. Disconnect the harness connector (A) from rear door.
3. Remove door check link bolt (bo

Page 845 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-156
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
REAR DOOR
DOOR ASSEMBLY : Adjustment
INFOID:0000000012430104
Check the clearance and surface height between rear door and each part by

Page 846 of 3641

NISSAN NOTE 2016 Service Repair Manual REAR DOORDLK-157
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
2. Loosen door hinge nuts (door side).
3. Adjust the surface height of rear door accordin

REAR DOORDLK-157
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
2. Loosen door hinge nuts (door side).
3. Adjust the surface height of rear door according to the specifications provided.
4. Temporarily tighten door hinge nuts (door side).
5. Loosen door hinge nuts and bolts (body side).
6. Raise rear door at rear end to adjust clearance of rear door according to the specifications provided.
7. After adjustment tighten bolts and nuts to the specified torque. CAUTION:
• Apply touch-up paint (body color) to the head of hinge bolts and nuts.
• Check door hinge rotating point for poor lubricat ion. If necessary, apply a suitable multi-purpose
grease.
8. Install center pillar lower finisher. Refer to INT-25, "
CENTER PILLAR LOWER FINISHER : Removal and
Installation".
DOOR STRIKER
DOOR STRIKER : Removal and InstallationINFOID:0000000012430105
REMOVAL
Remove bolts and rear door striker.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse door striker bolts.
• Tighten door striker bolts to specification. Refer to DLK-154, "
Exploded View".
• After installation, check front do or open/close operation. If necessary, adjust the door striker. Refer
to DLK-157, "
DOOR STRIKER : Adjustment".
DOOR STRIKER : AdjustmentINFOID:0000000012430106
DOOR STRIKER ADJUSTMENT
1. Loosen door striker bolts.
2. Adjust door striker so that it becomes parallel with rear door lock
insertion direction.
3. Tighten door striker bolts to specification. Refer to DLK-154, "
Exploded View".
DOOR HINGE
DOOR HINGE : Removal and InstallationINFOID:0000000012430107
REMOVAL
CAUTION:
• Use two people when removing or inst alling front door due to its heavy weight
• When removing and installing front door assembl y, support the door using a suitable tool.
• Use shops cloths to protect surro unding components from damage during removal and installation
of front door assembly.
1. Remove rear door assembly. Refer to DLK-154, "
DOOR ASSEMBLY : Removal and Installation".
2. Remove center pillar lower finisher. Refer to INT-25, "
CENTER PILLAR LOWER FINISHER : Removal
and Installation".
PIIB2804J
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 847 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-158
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
REAR DOOR
3. Remove rear door hinge bolts and nuts (body side) and rear door hinge.
INSTALLATION
Installation is in the reverse order

Page 848 of 3641

NISSAN NOTE 2016 Service Repair Manual BACK DOORDLK-159
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

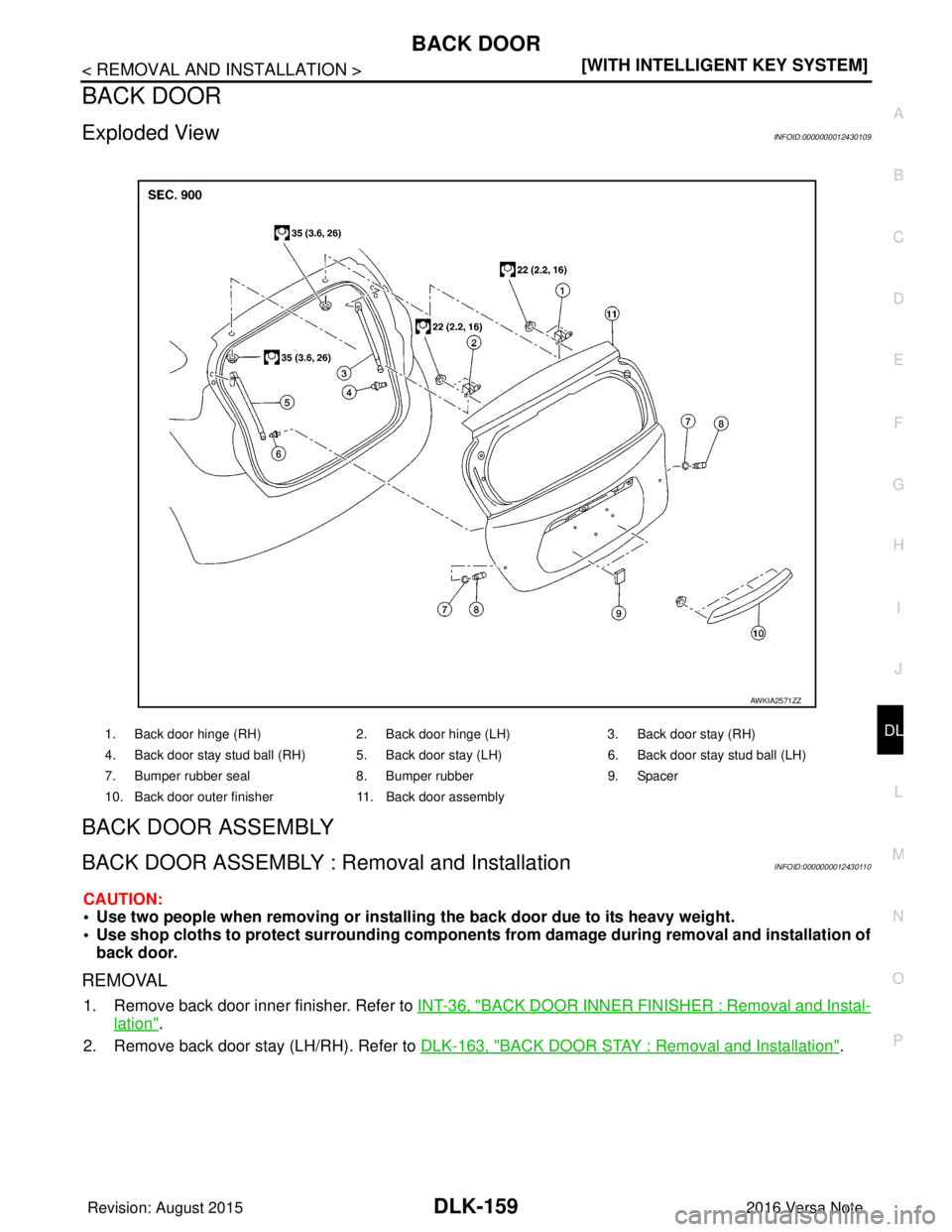

BACK DOOR
Exploded ViewINFOID:0000000012430109
BACK DOOR ASSEMBLY
BACK DOOR ASSEMBLY : Re
