NISSAN NOTE 2016 Service Repair Manual BACK-UP LAMPEXL-69 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P ABLIA8088GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1722 of 3641

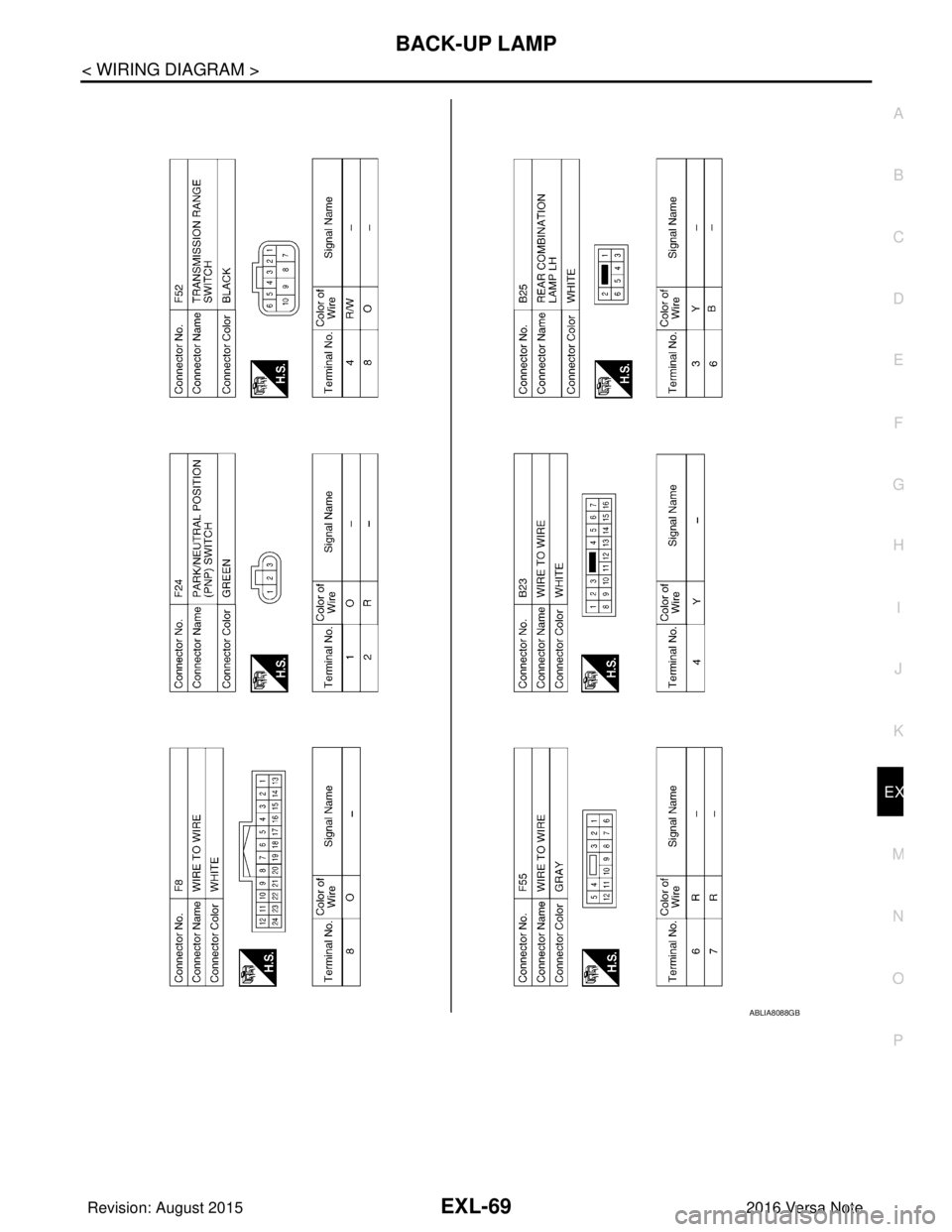

NISSAN NOTE 2016 Service Repair Manual EXL-70 < WIRING DIAGRAM > BACK-UP LAMP ABLIA8089GB Revision: August 20152016 Versa Note cardiagn.com

Page 1723 of 3641

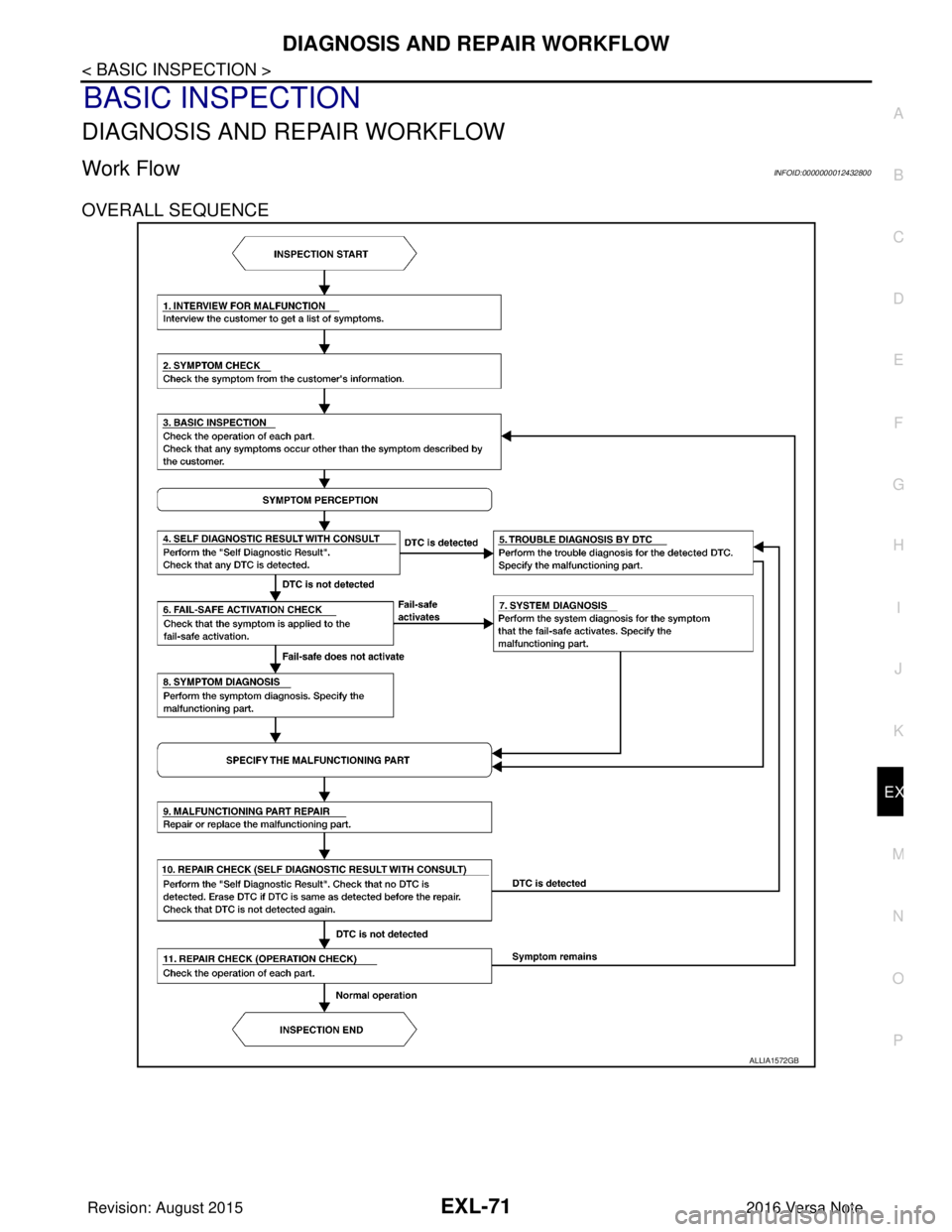

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOWEXL-71 < BASIC INSPECTION > C DE F G H I J K M A B EXL N O P BASIC INSPECTION DIAGNOSIS AND REPAIR WORKFLOW Work FlowINFOID:0000000012432800 OVERALL SEQUENCE ALLIA1572GB R

Page 1724 of 3641

NISSAN NOTE 2016 Service Repair Manual EXL-72 < BASIC INSPECTION > DIAGNOSIS AND REPAIR WORKFLOW DETAILED FLOW 1.INTERVIEW FOR MALFUNCTION Find out what the customers concerns are. >> GO TO 2. 2.SYMPTOM CHECK Verify the symptom from the c

Page 1725 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOWEXL-73 < BASIC INSPECTION > C DE F G H I J K M A B EXL N O P YES >> GO TO 5. NO >> GO TO 11. 11 .REPAIR CHECK (OPERATION CHECK) Check the operation of each part. Does it o

Page 1726 of 3641

NISSAN NOTE 2016 Service Repair Manual EXL-74 < DTC/CIRCUIT DIAGNOSIS > POWER SUPPLY AND GROUND CIRCUIT DTC/CIRCUIT DIAGNOSIS POWER SUPPLY AND GROUND CIRCUIT BCM (BODY CONTROL SYSTEM) (WITH INTELLIGENT KEY SYSTEM) BCM (BODY CONTROL SYSTEM)

Page 1727 of 3641

NISSAN NOTE 2016 Service Repair Manual POWER SUPPLY AND GROUND CIRCUITEXL-75 < DTC/CIRCUIT DIAGNOSIS > C DE F G H I J K M A B EXL N O P 1.CHECK FUSES AND FUSIBLE LINK Check that the following fuses and fusible link are not blown. Is the fu

Page 1728 of 3641

NISSAN NOTE 2016 Service Repair Manual EXL-76 < DTC/CIRCUIT DIAGNOSIS > POWER SUPPLY AND GROUND CIRCUIT Is the fuse blown? YES >> Replace the blown fuse or fusible link after repairing the affected circuit. NO >> GO TO 2. 2. CHECK BATTERY
