Page 2177 of 3641
INT-26
< REMOVAL AND INSTALLATION >
BODY SIDE TRIM
When releasing molded in clip, follow the steps as shown to prevent finisher or clip damage.
7. Release center pillar upper finisher lower clip using a suitable tool (A) and remove.
: Clip
CAUTION:
Do not reuse center pillar upper finisher.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse center pillar upper finisher. Replace with new part for installation.
• When installing center pillar upper finisher, check that clips are securely placed in body panel holes.
PIIB2600J
AWJIA1094ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2178 of 3641

FLOOR TRIMINT-27
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
INT
N
O P
FLOOR TRIM
Exploded ViewINFOID:0000000012431871
Removal and InstallationINFOID:0000000012431872
WARNING:
• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals then wait at
least three minutes.
• Do not drop the seat belt retractor. Always handle it with care.
• Always point pretensioner cylinder away from body when handling.
REMOVAL
1. Remove front seats. Refer to SE-20, "DRIVER SIDE : Removal and Installation" (Driver side) and SE-22,
"PASSENGER SIDE : Removal and Installation" (Passenger side).
2. Remove rear seatback hinge. Refer to SE-27, "
SEATBACK HINGE : Removal and Installation".
3. Remove center console lower. Refer to IP-20, "
Removal and Installation".
4. Remove dash side finishers (LH/RH). Refer to INT-24, "
DASH SIDE FINISHER : Removal and Installa-
tion".
5. Remove center pillar lower finishers (LH/RH). Refer to INT-25, "
CENTER PILLAR LOWER FINISHER :
Removal and Installation".
1. Harness clip A2. Harness clip B3. Floor trim
4. Carpet hook 5. Front floor spacer (RH) 6. Front floor spacer (LH)
7. Rear floor spacer (LH) 8. Rear floor spacer (RH) Front
Clip
AWJIA1142ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2179 of 3641

INT-28
< REMOVAL AND INSTALLATION >
FLOOR TRIM
6. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
WARNING:
Before servicing the SRS, turn th e ignition switch off, disconnect both battery terminals then wait
at least three minutes.
7. Disconnect the harness connector (A ) from the seat belt retrac-
tor (1).
WARNING:
• Do not drop the seat belt retractor. Always handle it with care.
• Always point pretensioner cylinder away from body when handling.
CAUTION:
• For removing/installing the shoulder belt pre-tensioner harness connector, insert a thin screwdriver wrapped in
tape into the notch, then lift the lock and remove the har-
ness connector as shown.
• Install the harness connector with the lock raised, and push the lock into the harness connector as shown.
• After installing the harness connector, check that the lock
is pushed in securely.
8. Remove seat belt lower anchor bolt. CAUTION:
Before removing the seat belt lower anchor bolt , note the positions of washers and spacers for
correct installation.
9. Remove diagnosis sensor unit. Refer to SR-30, "
Removal and Installation".
10. Remove shift selector. Refer to TM-20, "
Exploded View" (5MT) or TM-231, "Removal and Installation"
(CVT).
11. Remove A/C unit assembly bolt (C) and bracket (1) from vehicle.
12. Remove instrument panel lower bracket bolt (B) and screw (A) and reposition bracket as necessary to remove floor trim.
ALHIA0316ZZ
PHIA0953J
ALJIA0712ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2180 of 3641
FLOOR TRIMINT-29
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
INT
N
O P
13. Release carpet hook clips with a suitable tool (A) and remove. : Clip
14. Release pawls using a suitable tool (A) and open the harness clips.
: Pawl
15. Remove floor trim.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Replace harness protector B with a new part af ter removal. Do not reuse harness protector B.
AWJIA0736ZZ
AWJIA0737ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2181 of 3641
INT-30
< REMOVAL AND INSTALLATION >
HEADLINING

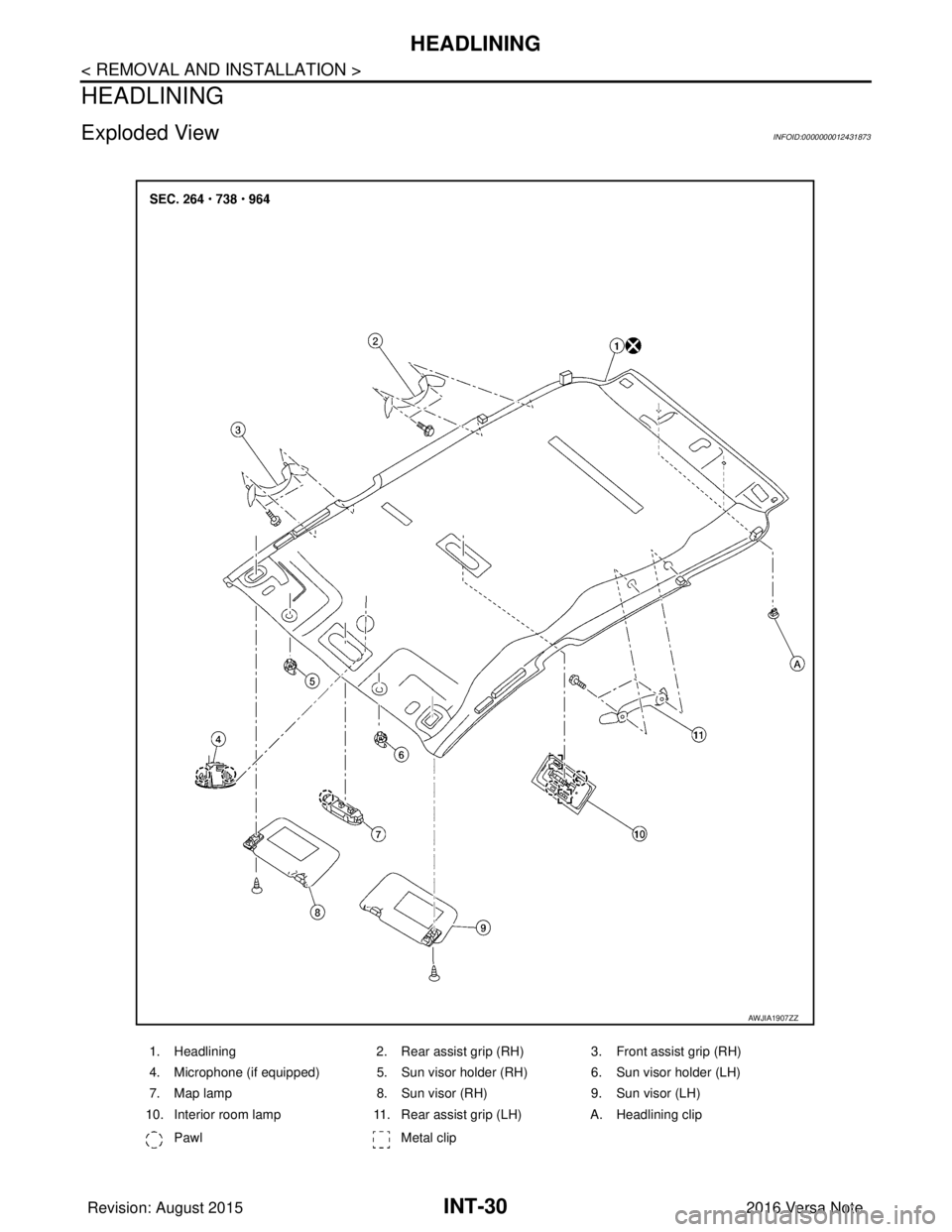

HEADLINING
Exploded ViewINFOID:0000000012431873
1. Headlining2. Rear assist grip (RH)3. Front assist grip (RH)
4. Microphone (if equipped) 5. Sun visor holder (RH) 6. Sun visor holder (LH)
7. Map lamp 8. Sun visor (RH)9. Sun visor (LH)
10. Interior room lamp 11. Rear assist grip (LH)A. Headlining clip
Pawl Metal clip
AWJIA1907ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2182 of 3641

HEADLININGINT-31
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
INT
N
O P
Removal and InstallationINFOID:0000000012431874
REMOVAL
1. Remove front pillar finishers (LH/RH). Refer to INT-21, "FRONT PILLAR FINISHER : Removal and Instal-
lation".
2. Remove sun visor screws and sun visors (LH/RH).
3. Remove map lamp. Refer to INL-51, "
Removal and Installation".
4. Remove interior room lamp. Refer to INL-53, "
Removal and Installation".
5. Remove microphone (if equipped). Refer to AV-59, "
Removal and Installation".
6. Remove center pillar upper finishers (LH/RH). Refer to INT-25, "
CENTER PILLAR UPPER FINISHER :
Removal and Installation".
7. Remove luggage side upper finishers (LH/RH). Refer to INT-35, "
LUGGAGE SIDE UPPER FINISHER :
Removal and Installation".
8. Insert a suitable tool (A) at approximately a 30 degree angle into the sun visor holder notch on the front of the sun visor holder (1)
and press in the locking tab (B) to release it. While holding in
lock tab (B), rotate the sun visor holder (1) 90 degrees to release
it from the headlining.
: Front
CAUTION:
Do not force the sun visor ho lder when removing as the
locking tab may be damaged if the suitable tool is not posi-
tioned correctly.
NOTE:
If the sun visor holder (1) does not fully rotate, make sure that
the suitable tool (A) is pressing in on the locking tab (B) and is
not positioned under locking tab (B). Reinsert the suitable tool
(A) as necessary to release the locking tab (B).
9. Release assist grip pawls and remove bolt (A) using a suitable tool and remove all assist grips.
:Pawl
10. Remove headlining clips.
11. Remove headlining through the back door. CAUTION:
• Do not reuse headlining.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Remove all remaining adhesive from roof panel.
• Do not reuse headlini ng. Replace with new part after removal.
ALJIA0537ZZ
AWJIA1126ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2183 of 3641
INT-32
< REMOVAL AND INSTALLATION >
HEADLINING
• Apply adhesive (NISSAN P/N 999MP-57302NP or equivalent) as shown before installing headlining.
• Do not bend headlining when installing.
• When installing headlining, start by installing bo th sun visor holders and headlining clips to hold
headlining in position.
• Be careful that the surface is not wrinkled when installing.
1. Headlining A. Adhesive application location
B. NISSAN P/N 999MP-57302NP or equivalent C. 8 mm
D. 5 mm
AWJIA1102ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2184 of 3641
LUGGAGE TRIMINT-33
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
INT
N
O P

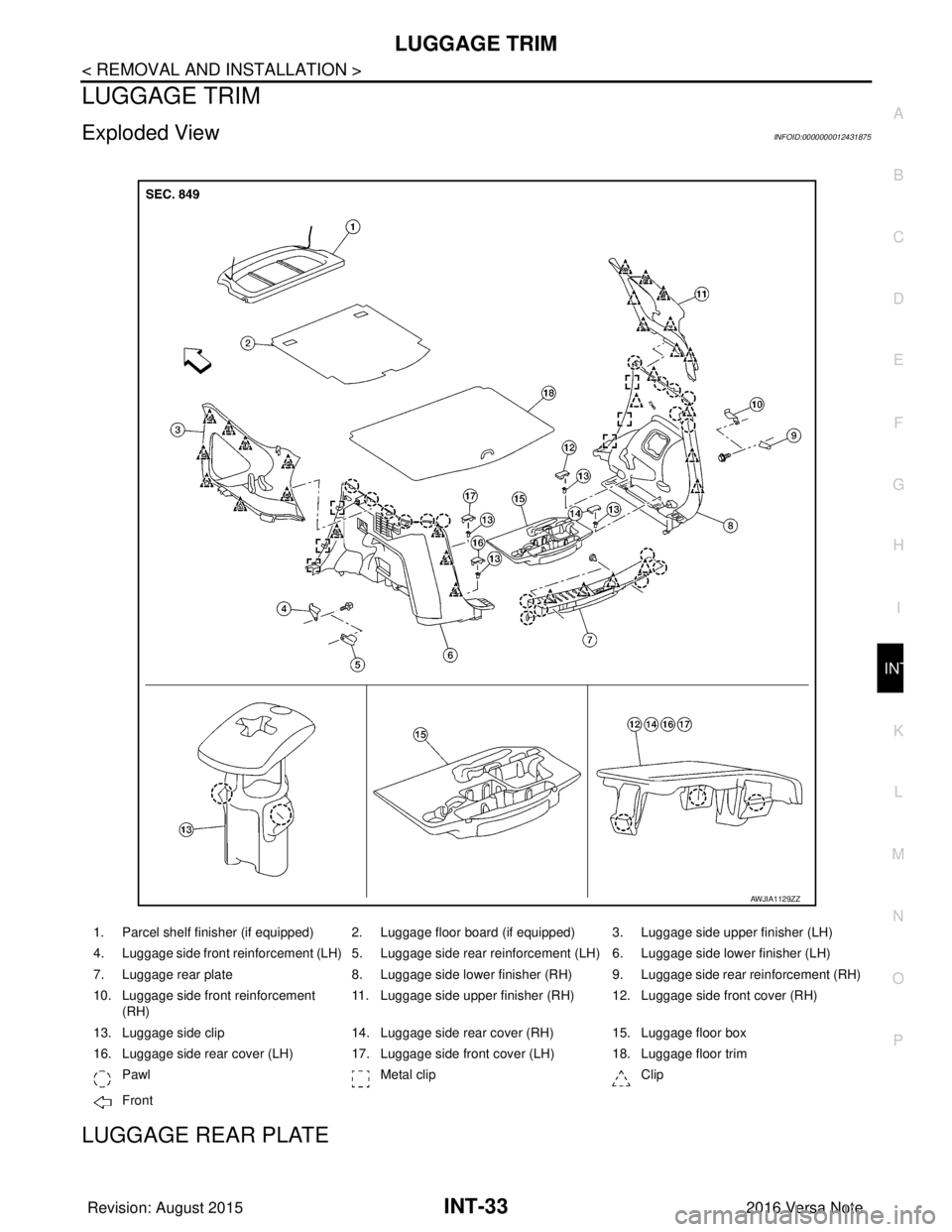

LUGGAGE TRIM
Exploded ViewINFOID:0000000012431875
LUGGAGE REAR PLATE
1. Parcel shelf finisher (if equipped) 2. Luggage floor board (if equipped) 3. Luggage side upper finisher (LH)
4. Luggage side front reinforcement (LH) 5. Luggage side rear reinforcement (LH) 6. Luggage side lower finisher (LH)
7. Luggage rear plate 8. Luggage side lower finisher (RH) 9. Luggage side rear reinforcement (RH)
10. Luggage side front reinforcement (RH) 11. Luggage side upper finisher (RH) 12. Luggage side front cover (RH)
13. Luggage side clip 14. Luggage side rear cover (RH) 15. Luggage floor box
16. Luggage side rear cover (LH) 17. Luggage side front cover (LH) 18. Luggage floor trim
Pawl Metal clip Clip
Front
AWJIA1129ZZ
