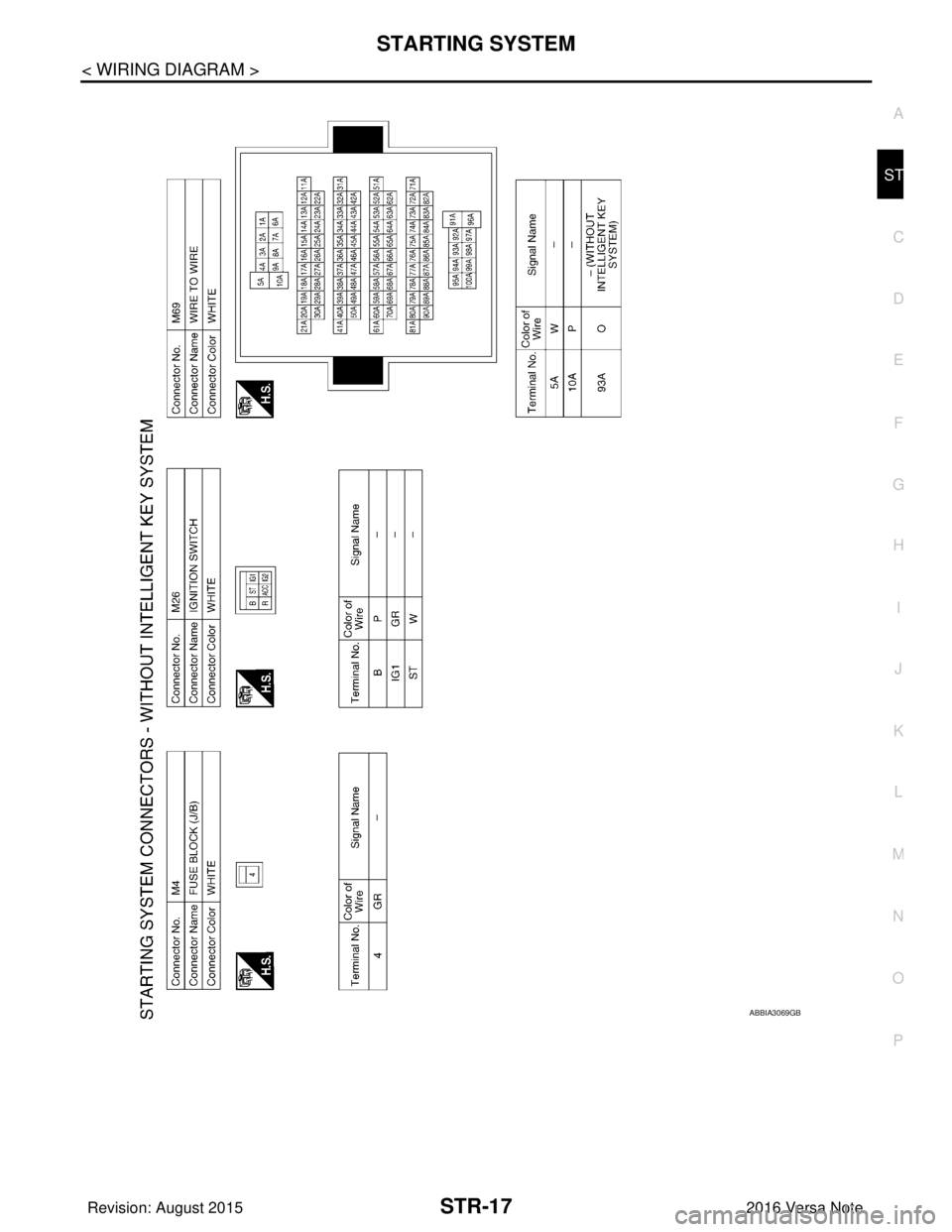

NISSAN NOTE 2016 Service Repair Manual STARTING SYSTEMSTR-17
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
M A
STR
NP
O
ABBIA3069GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 3170 of 3641

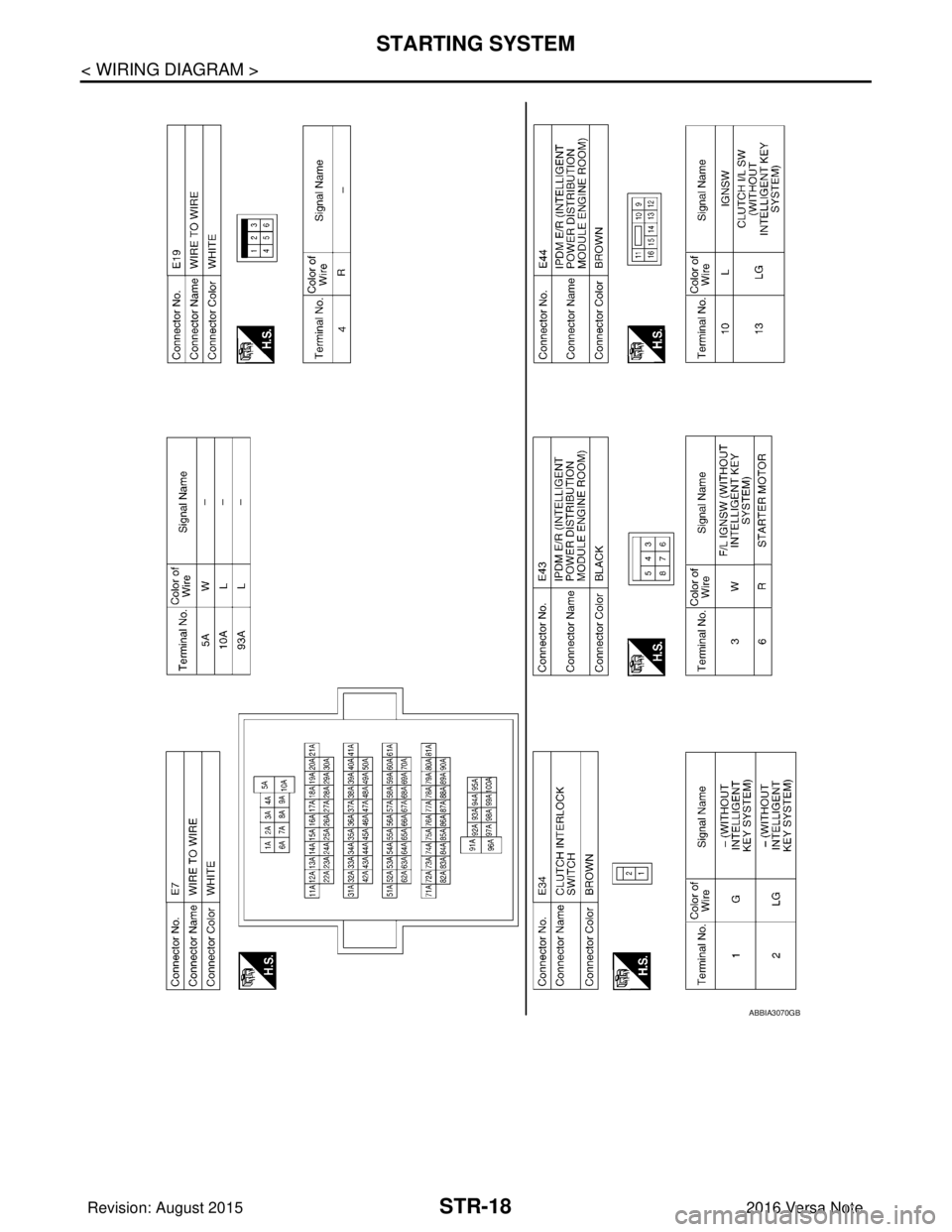

NISSAN NOTE 2016 Service Repair Manual STR-18
< WIRING DIAGRAM >
STARTING SYSTEM
ABBIA3070GB
Revision: August 20152016 Versa Note

cardiagn.com

Page 3171 of 3641

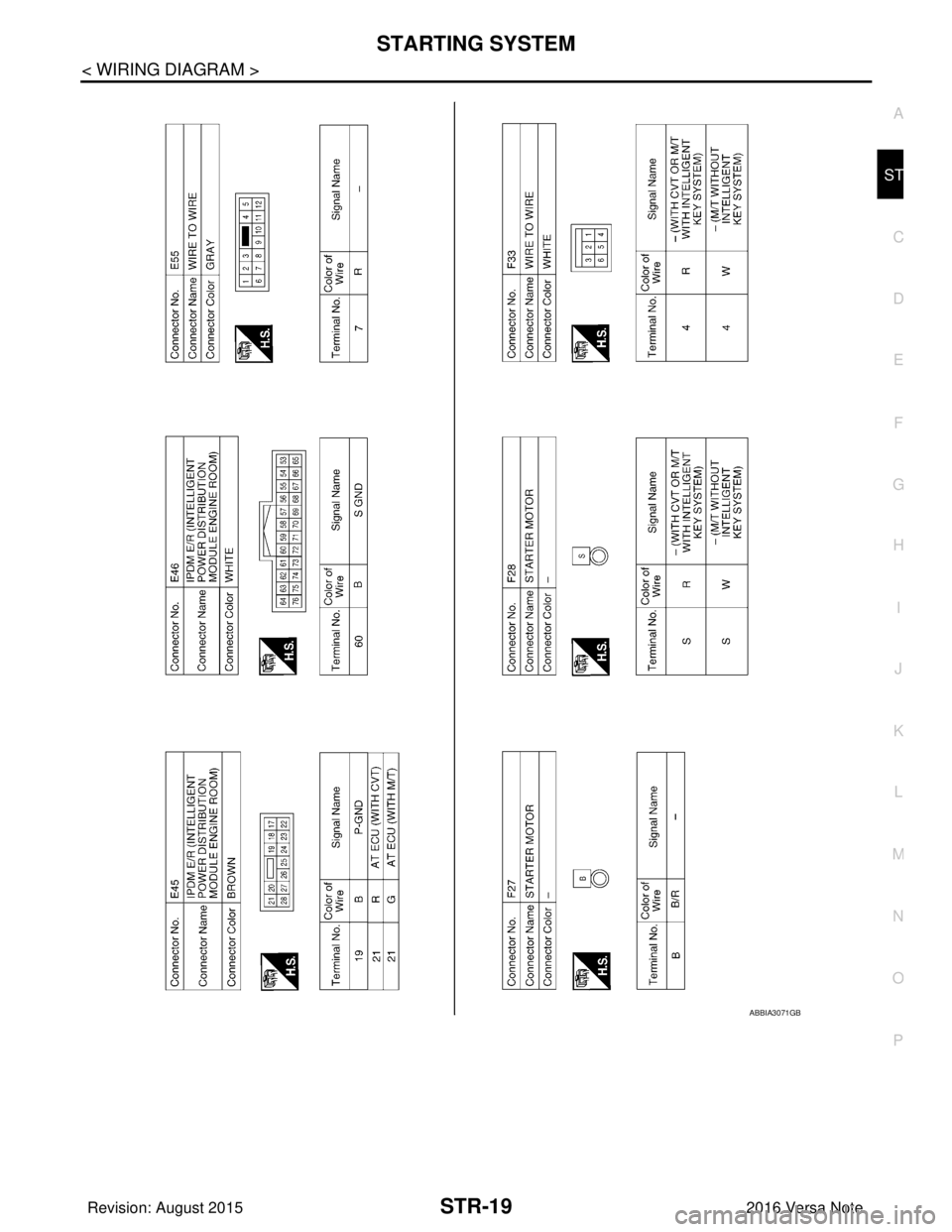

NISSAN NOTE 2016 Service Repair Manual STARTING SYSTEMSTR-19
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
M A
STR
NP
O
ABBIA3071GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 3172 of 3641

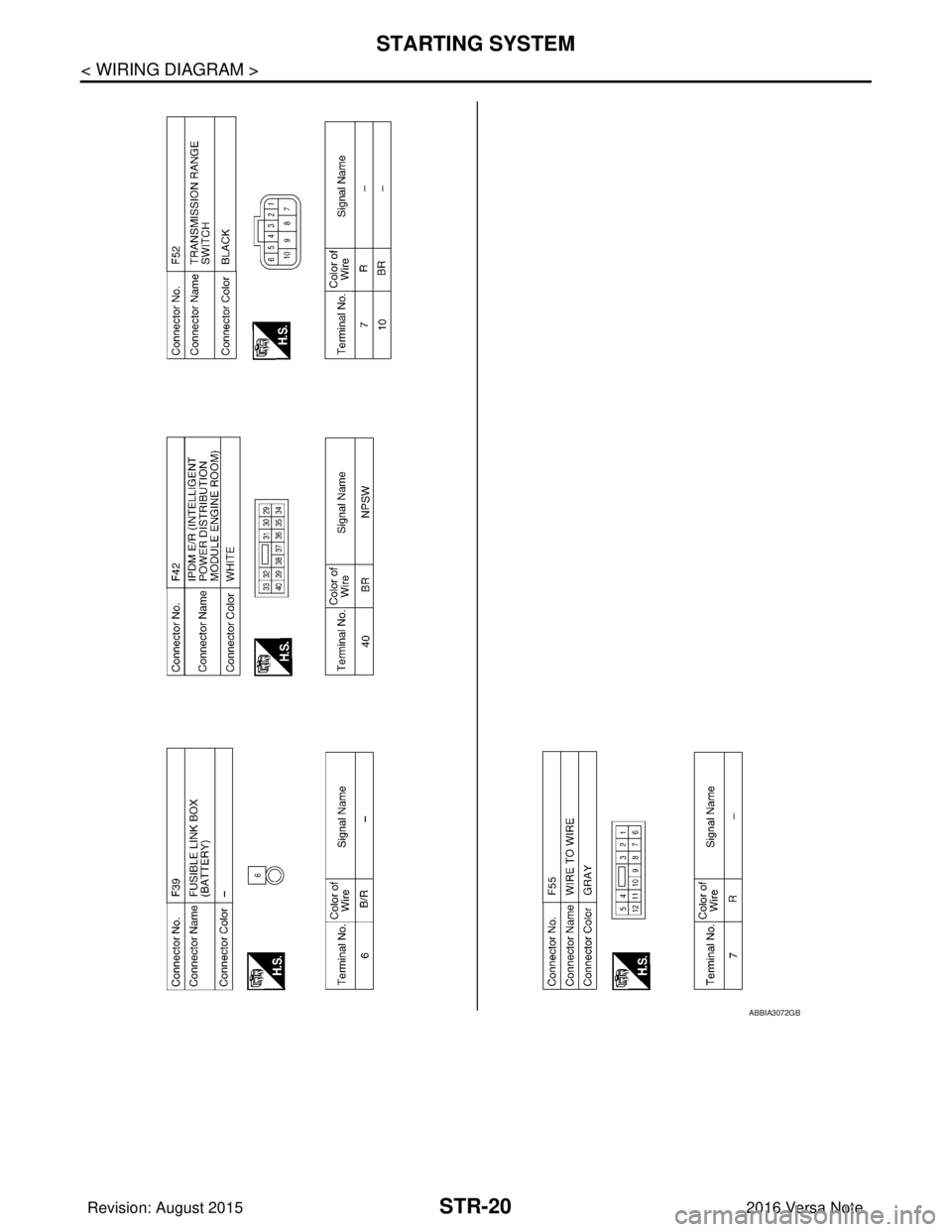

NISSAN NOTE 2016 Service Repair Manual STR-20
< WIRING DIAGRAM >
STARTING SYSTEM
ABBIA3072GB
Revision: August 20152016 Versa Note

cardiagn.com

Page 3173 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOWSTR-21
< BASIC INSPECTION >
C
DE
F
G H
I
J
K L
M A
STR
NP
O
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work Flow (With GR8-1200 NI)INFOID:0000000012432070
STARTING SYS

Page 3174 of 3641

NISSAN NOTE 2016 Service Repair Manual STR-22
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW

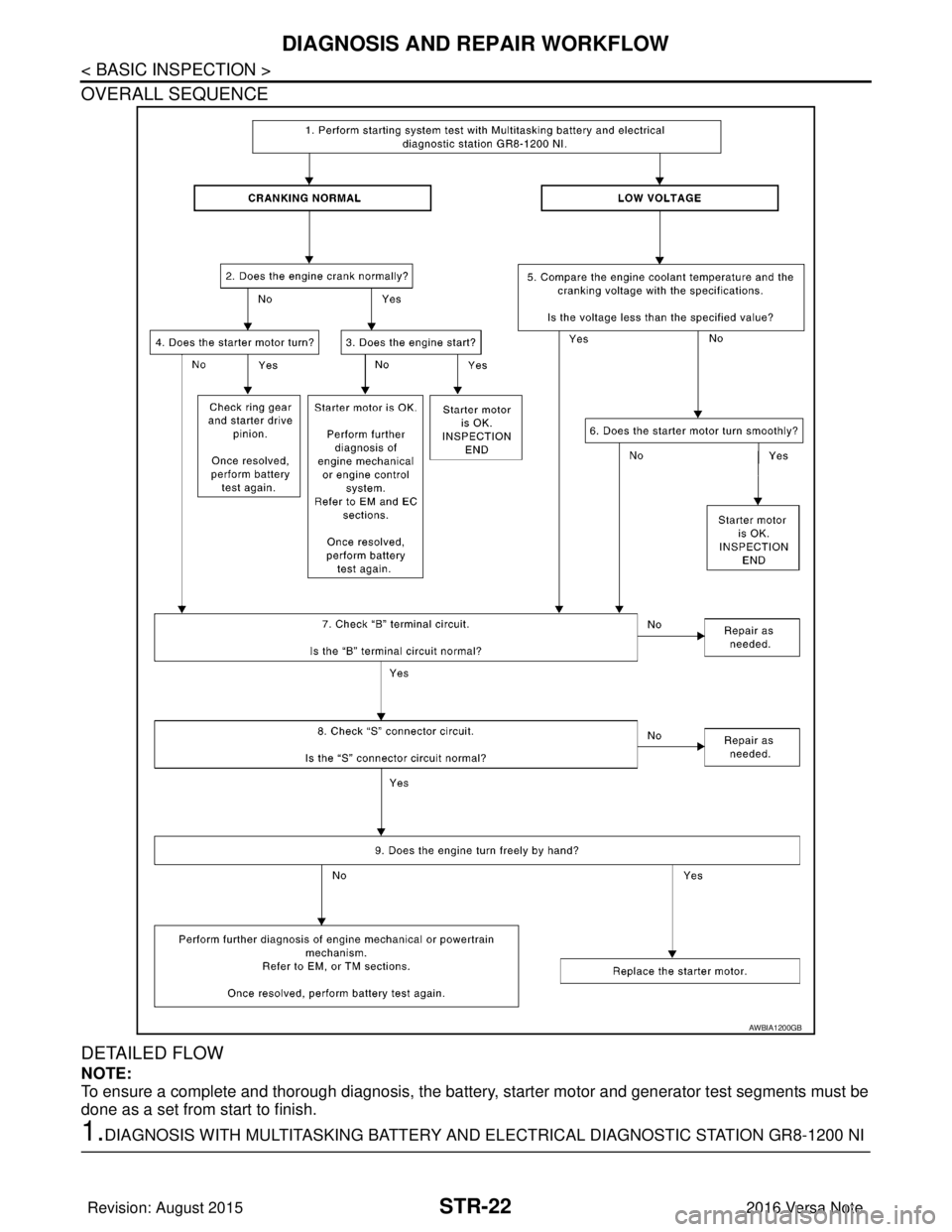

OVERALL SEQUENCE
DETAILED FLOW
NOTE:
To ensure a complete and thorough diagnosis, the battery, starter motor and generator test segments must

Page 3175 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOWSTR-23
< BASIC INSPECTION >
C
DE
F
G H
I
J
K L
M A
STR
NP
O
Perform the starting system test with Multitasking bat
tery and electrical diagnostic station GR8-1200 NI. For

DIAGNOSIS AND REPAIR WORKFLOWSTR-23
< BASIC INSPECTION >
C
DE
F
G H
I
J
K L
M A
STR
NP
O
Perform the starting system test with Multitasking bat
tery and electrical diagnostic station GR8-1200 NI. For
details and operating instructions, refer to diagnostic station Instruction Manual.
Test result
CRANKING NORMAL>>GO TO 2.
LOW VOLTAGE>>GO TO 5.
CHARGE BATTERY>>Perform the slow battery charging procedure. (Initial rate of charge is 10A for 12
hours.) Perform battery test again. Refer to diagnostic station instruction manual.
REPLACE BATTERY>>Before replacing battery, clean the battery cable clamps and battery posts. Perform battery test again. Refer to diagnostic station instruction manual. If second test result is
“REPLACE BATTERY”, then do so. Perform battery test again to confirm repair.
2.CRANKING CHECK
Check that the starter motor operates properly.
Does the engine crank normally?
YES >> GO TO 3.
NO >> GO TO 4.
3.ENGINE START CHECK
Check that the engine starts.
Does the engine start?
YES >> Inspection End.
NO >> Perform further diagnosis of engine mechanical or engine control system.\
Refer to EM and EC sections. Once resolved, perform battery test again.
4.STARTER MOTOR ACTIVATION
Check that the starter motor operates.
Does the starter motor turn?
YES >> Check ring gear and starter motor drive pinion. Once resolved, perform battery test again.
NO >> GO TO 7.
5.COMPARISON BETWEEN ENGINE C OOLANT AND CRANKING VOLTAGE
Compare the engine coolant temperature and verify the cranking voltage is within specifications.
Minimum Specification of Cranking Voltage Referencing Coolant Temperature
Is the voltage less than the specified value?
YES >> GO TO 7.
NO >> GO TO 6.
6.STARTER OPERATION
Check the starter operation.
Does the starter motor turn smoothly?
YES >> Inspection End.
NO >> GO TO 7.
7.“B” TERMINAL CIRCUIT INSPECTION
Check “B” terminal circuit. Refer to STR-27, "
Diagnosis Procedure".
Is
“B” terminal circuit normal?
YES >> GO TO 8.
NO >> Repair as needed.
8.“S” CONNECTOR CIRCUIT INSPECTION
Check “S” connector circuit. Refer to STR-29, "
Diagnosis Procedure".
Engine coolant temperature [°C ( °F)] Voltage [V]
− 30 to −20 ( −22 to − 4) 8.6
− 19 to − 10 (−2 to 14) 9.1
− 9 to 0 (16 to 32) 9.5
More than 1 (More than 34) 9.9
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 3176 of 3641

NISSAN NOTE 2016 Service Repair Manual STR-24
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
Is “S” connector circuit normal?
YES >> GO TO 9.
NO >> Repair as needed.
9.ENGINE ROTATION STATUS
Check that the engine can be rotated by
