VDC/TCS/ABS : System DiagramINFOID:0000000012430835
VDC/TCS/ABS : Syst em DescriptionINFOID:0000000012430836
• The system switches fluid pressure of each brake caliper and each wheel cylinder to increase, to hold, or to
decrease according to signals from control unit in ABS actuator and electric unit (control unit). This control
system is applied to VDC, TCS, ABS and EBD functions.
• Fail-safe function is available for each function and is activated by each function when system malfunction
occurs.
INPUT SIGNAL AND OUTPUT SIGNAL
Major signal transmission between each unit via communication lines is shown in the following table.
ALFIA0331GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMBRC-23
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
• Brake force control function at braking hard detects driver ′s brake operations with the pressure sensor,
judges a brake booster ′s maximum brake power function by using information from the vacuum sensor, and
enhances more powerful braking force by controlling brakes of four wheels.
• VDC warning lamp blinks while VDC function is in operat ion and indicates to the driver that the function is in
operation.
• CONSULT can be used to diagnose the system.
• Fail-safe function is adopted. When a malfunction occurs in VDC function, the control is suspended for VDC
function and TCS function. However, ABS function and EBD function operate normally. Refer to BRC-39,
"Fail-safe".
INPUT SIGNAL AND OUTPUT SIGNAL
Major signal transmission between each unit via communication lines is shown in the following table.
OPERATION CHARACTERISTICS
VDC Function That Prevents Oversteer Tendency
• During cornering, brake force (brake fluid pressure) is applied on front wheel and rear wheel on the outer
side of turn. Momentum is generated directing the vehicle toward the outer side of the turn. Oversteer is pre-
vented.
• Changing driving lane on a slippery road, when there may be a tendency to oversteer, engine output is con-
trolled as well as brake force (brake fluid pr essure) of 4 wheels. Oversteer tendency decreases.
Component Signal description
ECM Transmits the following signals to ABS actuator an
d electric unit (control unit) via CAN commu-
nication:
• Acceleration pedal position signal
• Engine speed signal
• Target throttle position signal
TCM Transmits the current gear positi
on signal to ABS actuator and electric unit (control unit) via
CAN communication.
Steering angle sensor Transmits the steering an
gle sensor signal to ABS actuator an d electric unit (control unit) via
CAN communication.
Combination meter Transmits the following signals to ABS actuator an
d electric unit (control unit) via CAN commu-
nication:
• Brake fluid level switch signal
• parking brake switch signal
Receives the following signals from ABS actuator and electric unit (control unit) via CAN com-
munication:
• VDC OFF indicator lamp signal
• SLIP indicator lamp signal
ALFIA0339GB
ALFIA0340GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMBRC-25
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
• Wheel spin status of drive wheel is detected by wheel sensor of 4 wheels. Engine output and transmission shift status is controlled
so that slip rate of drive wheels is in appropriate level. When wheel
spin occurs on drive wheel, ABS ac tuator and electric unit (control
unit) perform brake force control of LH and RH drive wheels (apply
brake force by increasing brake fluid pressure of drive wheel) and
decrease engine torque by engine torque control. Wheel spin
amount decreases. Engine torque is controlled to appropriate
level.
• TCS function can be switched to non-operational status (OFF) by
operating VDC OFF switch. In this case, VDC OFF indicator lamp
turns ON.
• SLIP indicator lamp blinks while TCS function is in operation and
indicates to the driver that the function is in operation.
• CONSULT can be used to diagnose the system.
• Fail-safe function is adopted. When a malfunction occurs in TCS function, the control is suspended for VDC function and TCS func-
tion. However, ABS function and EBD function operate normally.
Refer to BRC-39, "
Fail-safe".

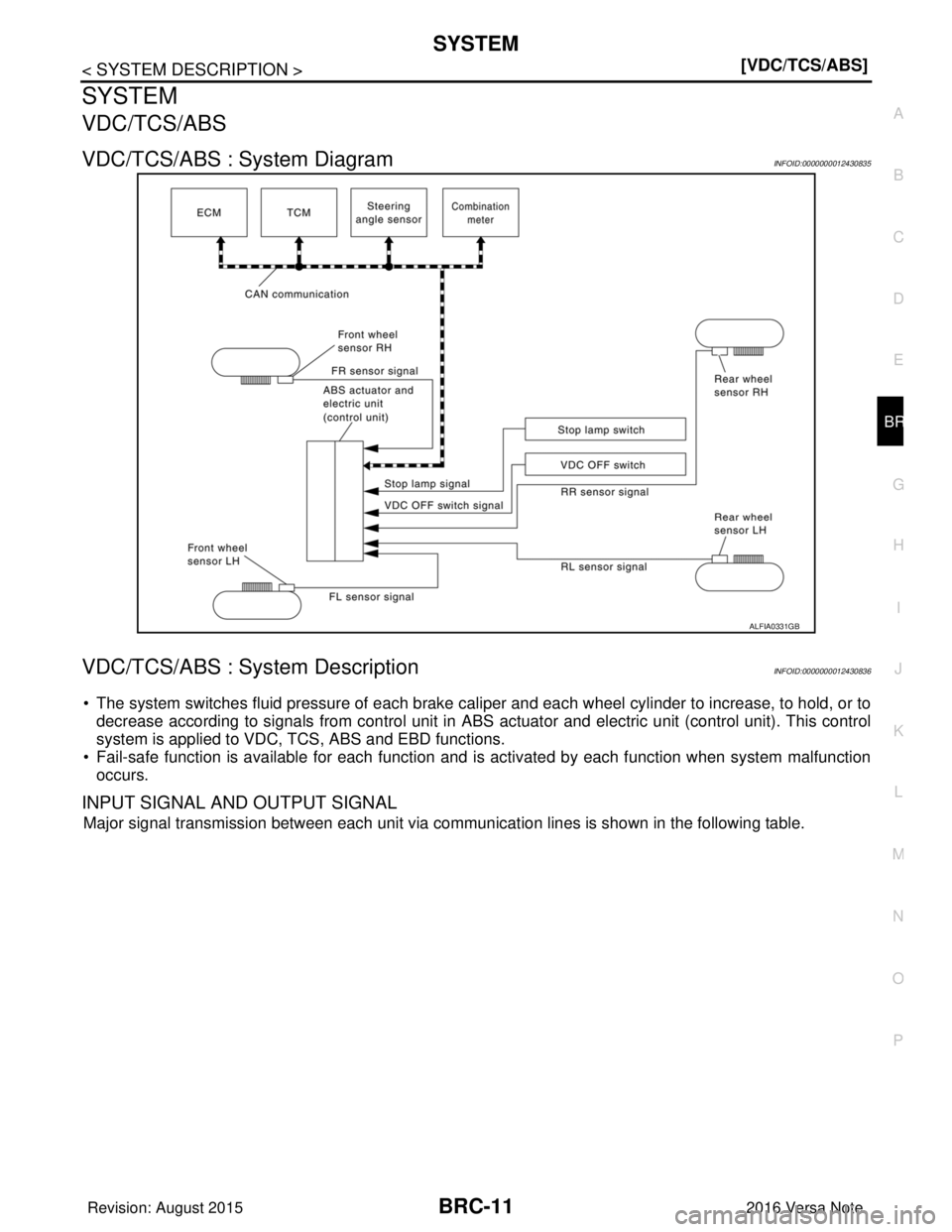

INPUT SIGNAL AND OUTPUT SIGNAL
Major signal transmission between each unit via communication lines is shown in the following table.
JPFIC0139GB
Component Signal description
ECM Transmits the following signals to ABS actuator an
d electric unit (control unit) via CAN commu-
nication:
• Accelerator pedal position signal
• Engine speed signal
• Target throttle position signal
TCM Transmits the current gear positi
on signal to ABS actuator and electric unit (control unit) via
CAN communication.
Steering angle sensor Transmits the steering an
gle sensor signal to ABS actuator an d electric unit (control unit) via
CAN communication.
Combination meter Transmits the following signals to ABS actuator an
d electric unit (control unit) via CAN commu-
nication:
• Brake fluid level switch signal
• Parking brake switch signal
Receives the following signals from ABS actuator and electric unit (control unit) via CAN com-
munication:
• VDC OFF indicator lamp signal
• SLIP indicator lamp signal
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMBRC-27
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
Major signal transmission between each unit via communication lines is shown in the following table.
VDC/TCS/ABS : EBD FunctionINFOID:0000000012430840

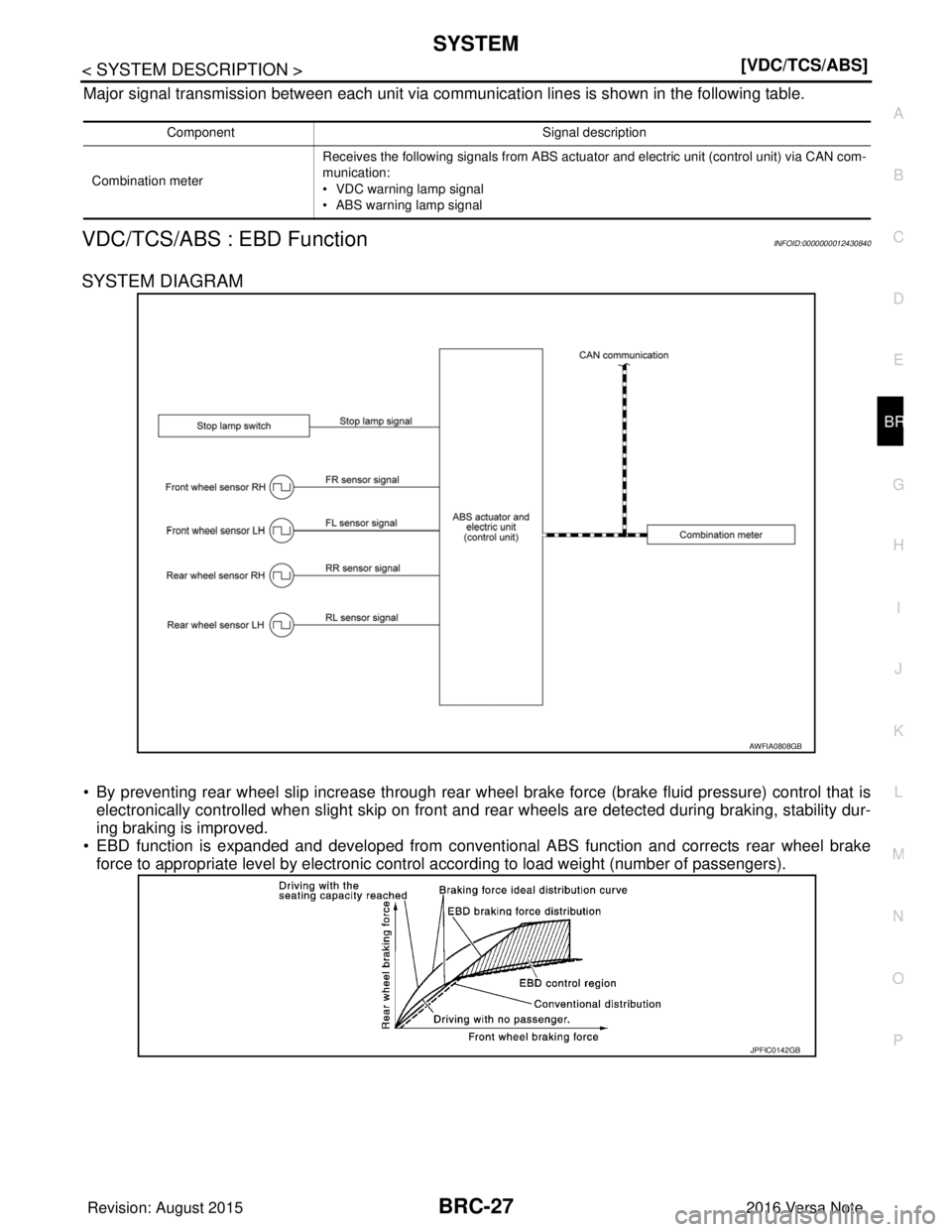

SYSTEM DIAGRAM
• By preventing rear wheel slip increase through rear wheel brake force (brake fluid pressure) control that is
electronically controlled when slight skip on front and rear wheels are detected during braking, stability dur-
ing braking is improved.
• EBD function is expanded and developed from conventional ABS function and corrects rear wheel brake force to appropriate level by electronic control according to load weight (number of passengers).
Component Signal description
Combination meter Receives the following signals from ABS actuator and electric unit (control unit) via CAN com-
munication:
• VDC warning lamp signal
• ABS warning lamp signal
AWFIA0808GB
JPFIC0142GB
Revision: August 2015
2016 Versa Note

cardiagn.com

BRC-28
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM
• During braking, control unit portion compares slight slip on front
and rear wheels by wheel speed sensor signal, transmits drive sig-
nal to actuator portion when rear wheel slip exceeds front wheel
slip for the specified value or more, and controls rear wheel brake
force (brake fluid pressure) so that increase of rear wheel slip is
prevented and slips on front wheel and rear wheel are nearly
equalized. ABS control is applied when slip on each wheel
increases and wheel speed is the threshold value of ABS control or
less.
• CONSULT can be used to diagnose the system.
• Fail-safe function is adopted. When a malfunction occurs in EBD function, the control is suspended for VDC function, TCS function,
ABS function and EBD function. Refer to BRC-28, "
VDC/TCS/ABS
: Fail-safe".
INPUT SIGNAL AND OUTPUT SIGNAL
Major signal transmission between each unit via communication lines is shown in the following table.
VDC/TCS/ABS : Fail-safeINFOID:0000000012430841
VDC AND TCS FUNCTIONS
VDC warning lamp in combination meter turns ON when a malfunction occurs in system [ABS actuator and
electric unit (control unit)]. The control is su spended for VDC and TCS functions. However, ABS and EBD
functions operate normally.
ABS FUNCTION
ABS warning lamp and SLIP indicator lamp in combi nation meter turn ON when a malfunction occurs in sys-
tem [ABS actuator and electric unit (control unit)]. The control is suspended for VDC, TCS and ABS functions.
However, EBD functions operate normally.
EBD FUNCTION
ABS warning lamp, brake warning lamp and SLIP indicator lamp in combination meter turn ON when a mal-
function occurs in system [ABS ac tuator and electric unit (control unit) ]. The control is suspended for VDC,
TCS, ABS and EBD functions.
JPFIC0143GB
Component Signal description
Combination meter Receives the following signals from ABS actuator
and electric unit (control unit) via CAN com-
munication:
• ABS warning lamp signal
• Brake warning lamp signal
• SLIP indicator lamp signal
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-38
< ECU DIAGNOSIS INFORMATION >[VDC/TCS/ABS]
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
N POSI SIGTransmission range switch signal ON/OFF
condition CVT shift position = N position
On
CVT shift position = other than N position Off
P POSI SIG Transmission range switch signal ON/OFF
condition CVT shift position = P position
On
CVT shift position = other than P position Off
CV1 ABS actuator cut valve 1 When the cut valve is active
On
When the cut valve is inactive Off
CV2 ABS actuator cut valve 2 When the cut valve is active
On
When the cut valve is inactive Off
SV1 ABS actuator suction valve When the suction valve is active
On
When the suction valve is inactive Off
SV2 ABS actuator suction valve 2 When the suction valve is active
On
When the suction valve is inactive Off
ACCEL POS SIG Throttle actuator opening/closing is dis-
played (linked with accelerator pedal) Accelerator pedal not depressed (ignition
switch is ON)
0 %
Depress accelerator pedal (ignition
switch is ON) 0 - 100 %
SIDE G-SENSOR Transverse G detected by side G sensor Vehicle stopped
Approx. 0 m/s
2
Vehicle turning rightNegative value
(m/s2)
Vehicle turning left Positive value
(m/s
2)
STR ANGLE SIG Steering angle detected by steering angle
sensor Straight-ahead
Approx. 0°
Steering wheel turned –720 to 720°
PRESS SENSOR Brake fluid pressure detected by pressure
sensor With ignition switch turned ON and brake
pedal released
Approx. 0 bar
With ignition switch turned ON and brake
pedal depressed –40 to 300 bar
EBD SIGNAL EBD operation EBD is active
On
EBD is inactive Off
ABS SIGNAL ABS operation ABS is active
On
ABS is inactive Off
TCS SIGNAL TCS operation TCS is active
On
TCS is inactive Off
VDC SIGNAL VDC operation VDC is active
On
VDC is inactive Off
EBD FAIL SIG EBD fail-safe signal In EBD fail-safe
On
EBD is normal Off
ABS FAIL SIG ABS fail-safe signal In ABS fail-safe
On
ABS is normal Off
TCS FAIL SIG TCS fail-safe signal In TCS fail-safe
On
TCS is normal Off
VDC FAIL SIG VDC fail-safe signal In VDC fail-safe
On
VDC is normal Off
Monitor item
Display content Data monitor
Condition Reference value in
normal operation
Revision: August 2015 2016 Versa Note

cardiagn.com

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)BRC-41
< ECU DIAGNOSIS INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
C1120 When a malfunction is detec ted in front LH ABS IN valve.
The following functions are sus-
pended:
•VDC
•TCS
• ABS
• EBD
C1121 When a malfunction is detected in front LH ABS OUT valve.
C1122 When a malfunction is detected in front RH ABS IN valve.
C1123 When a malfunction is det
ected in front RH ABS OUT valve.
C1124 When a malfunction is detected in rear LH ABS IN valve.
C1125 When a malfunction is detected in rear LH ABS OUT valve.
C1126 When a malfunction is det ected in rear RH ABS IN valve.
C1127 When a malfunction is detected in rear RH ABS OUT valve.
C1130 When a malfunction is detected in ECM system. The following functions are sus-
pended:
•VDC
•TCS
C1140 When a malfunction is detected in actuator relay. The following functions are sus-
pended:
•VDC
•TCS
• ABS
• EBD
C1142 When a malfunction is detected in VDC pressure sensor.
The following functions are sus-
pended:
•VDC
•TCS
C1143 When a malfunction is detected in steering angle sensor.
C1144 When neutral position adjustment of steering angle sensor is not complete.
C1145
When a malfunction is detected in yaw rate signal, or signal line of yaw rate/side/
decel G sensor is open or shorted.
C1146 When a malfunction is detected in side G signal, or signal line of yaw rate/side/decel
G sensor is open or shorted.
C1153 When ABS actuator and electric
unit (control unit) is malfunctioning. (Pressure in-
crease is too much or too little.) The following functions are sus-
pended:
•VDC
•TCS
• ABS
C1154 Transmission
range switch signal or communica tion line between the ABS actuator
and electric unit (control unit) and TCM is open or shorted. The following functions are sus-
pended:
•VDC
•TCS
• ABS
C1155 When brake fluid level low signal is detected. The following functions are sus-
pended:
•VDC
•TCS
C1164 When a malfunction is detected in cut valve 1. The following functions are sus-
pended:
•VDC
•TCS
• ABS
• EBD
C1165 When a malfunction is detected in cut valve 2.
C1166 When a malfunction is detected in suction valve 1.
C1167 When a malfunction is detected in suction valve 2.
C1170 When the informatio
n in ABS actuator and electric unit (control unit) is not the same.The following functions are sus-
pended:
•VDC
•TCS
• ABS
DTC
Malfunction detected condition Fail-safe condition
Revision: August 2015 2016 Versa Note

cardiagn.com
