NISSAN NOTE 2016 Service Repair Manual SRC-16
< SYSTEM DESCRIPTION >
DIAGNOSIS SYSTEM (AIR BAG)
Trouble Diagnosis with CONSULT
INFOID:0000000012430606
1. Connect CONSULT.
2. DTC is displayed on SELF-DIAG RESULTS.
NOTE:
If a malfunction is

SRC-16
< SYSTEM DESCRIPTION >
DIAGNOSIS SYSTEM (AIR BAG)
Trouble Diagnosis with CONSULT
INFOID:0000000012430606
1. Connect CONSULT.
2. DTC is displayed on SELF-DIAG RESULTS.
NOTE:
If a malfunction is not detected on “SELF-DIAG RESULTS [CURRENT]”, but a malfunction is detected during
SRS Operation Check, the following cases may exist:
• “SELF-DIAG [PAST]” memory might not be erased. Refer to SRC-14, "
On Board Diagnosis Function".
• SRS system malfunctions intermittently. Refer to SRC-41, "
InspectionProcedure".
DIAGNOSIS MODE
1. Connect CONSULT.
2. Confirm that zero point reset of OCS is complete.
3. If no DTCs are detected on “SELF-DIAG RESULTS [CURRE NT]”, repair of SRS is completed. Go to step
4.
If any DTCs are detected on “SELF-DIAG RESULT S [CURRENT]”, the malfunction has not been repaired
completely or another malfunction is being detected. Perform SRS Operation Check again. Refer to SRC-
14, "On Board Diagnosis Function".
4. Touch “ERASE”. NOTE:
Touching “ERASE” will clear the SRS memory of the malfunction (“SELF-DIAG [PAST]”). If “SELF-
DIAG [PAST]” is not erased, User Mode may sh ow the previous system malfunction even if the
malfunction has been repaired completely.
5. Check that no malfunction is det ected in “SELF-DIAG [PAST]”.
6. Exit Diagnosis Mode and disconnect the CONSULT.
7. Perform SRS Operation Check. Refer to SRC-14, "
On Board Diagnosis Function".
SRS HISTORY CHECK
1. Check repair history of the SRS. If no repairs have been made, perform SRC-14, "On Board Diagnosis
Function". If repairs have been made, GO TO step 2.
2. Erase ”SELF-DIAG [PAST]” after repair. Refer to SRC-14, "
On Board Diagnosis Function".
CONSULT Function (AIR BAG)INFOID:0000000012430607
CONSULT can display each diagnostic item using the diagnostic test modes shown following.
Diagnostic Test ModeDiagnostic Item Description
Self Diagnostic Result SEL F-DIAG RESULT [CURRENT]A current Self-diagnosis result (also indicated by the number of
warning lamp flashes in the Diagnosis mode) is displayed on the
CONSULT screen in real time. This refers to a malfunctioning part
requiring repairs.
Data Monitor DATA MONITOR Displays air bag diagnosis sensor unit input/output data in real time.
ECU Identification ECU DISCRIMINATED NO. Air bag diagnosis sensor unit ECU discriminated number (identifica-
tion number) or part number is displayed. Air bag diagnosis sensor
unit has individual ECU discriminated number (identification num-
ber) or part number based on model and equipment.
Trouble Diagnostic Record TR OUBLE DIAG RECORD [PAST] With TROUBLE DIAG RECORD, diagnosis results previously
erased by a reset operation can be displayed on the CONSULT
screen.
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 3034 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS SENSOR UNITSRC-17
< ECU DIAGNOSIS INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
ECU DIAGNOSIS INFORMATION
DIAGNOSIS SENSOR UNIT
DTC IndexINFOID:0000000012430608
DIAGNOSTIC CODE CHART
NOTE:

DIAGNOSIS SENSOR UNITSRC-17
< ECU DIAGNOSIS INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
ECU DIAGNOSIS INFORMATION
DIAGNOSIS SENSOR UNIT
DTC IndexINFOID:0000000012430608
DIAGNOSTIC CODE CHART
NOTE:
Follow the procedures in numerical order when repairi ng malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp or CONSULT each time repair is finished. If malfunction is still
observed, proceed to the next step. When malfunction is elim inated, further repair work is not required.
CONSULT nameDTCDTC detecting condition Repair order
DRIVER AIRBAG MODULE CIRCUIT [OPEN]
B0001Driver air bag module circuit (DR1) is open
(including the spiral cable).
Refer to SRC-43, "
Diag-
nosis Procedure".
DRIVER AIRBAG MODULE CIRCUIT [VB-SHORT] Driver air bag module circuit (DR1) is short-
ed to a power supply circuit
(including the spiral cable).
DRIVER AIRBAG MODULE CIRCUIT [GND-SHORT] Driver air bag module circuit (DR1) is short-
ed to ground
(including the spiral cable).
DRIVER AIRBAG MODULE CIRCUIT [SHORT] Driver air bag module circuits (DR1) are
shorted to each other
(including the spiral cable).
DRIVER AIRBAG MODULE 2ND CIRCUIT [OPEN]
B0002Driver air bag module circuit (DR2) is open
(including the spiral cable).
DRIVER AIRBAG MODULE 2ND CIRCUIT [VB-SHORT] Driver air bag module circuit (DR2) is short-
ed to a power supply circuit
(including the spiral cable).
DRIVER AIRBAG MODULE 2ND CIRCUIT [GND-SHORT] Driver air bag module circuit (DR2) is short-
ed to ground
(including the spiral cable).
DRIVER AIRBAG MODULE 2ND CIRCUIT [SHORT] Driver air bag module circuits (DR2) are
shorted to each other
(including the spiral cable).
ASSIST AIRBAG MODULE CIRCUIT [OPEN]
B0010Front passenger air bag module circuit
(AS1) is open.
Refer to SRC-45, "
Diag-
nosis Procedure".
ASSIST AIRBAG MODULE CIRCUIT [VB-SHORT] Front passenger air bag module circuit
(AS1) is shorted to a power supply circuit.
ASSIST AIRBAG MODULE CIRCUIT [GND-SHORT] Front passenger air bag module circuit
(AS1) is shorted to ground.
ASSIST AIRBAG MODULE CIRCUIT [SHORT] Front passenger air bag module circuits
(AS1) are shorted to each other.
ASSIST AIRBAG MODULE 2ND CIRCUIT [OPEN]
B0011Front passenger air bag module circuit
(AS2) is open.
ASSIST AIRBAG MODULE 2ND CIRCUIT [VB-SHORT] Front passenger air bag module circuit
(AS2) is shorted to a power supply circuit.
ASSIST AIRBAG MODULE 2ND CIRCUIT [GND-SHORT] Front passenger air bag module circuit
(AS2) is shorted to ground.
ASSIST AIRBAG MODULE 2ND CIRCUIT [SHORT] Front passenger air bag module circuits
(AS2) are shorted to each other.
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 3035 of 3641

NISSAN NOTE 2016 Service Repair Manual SRC-18
< ECU DIAGNOSIS INFORMATION >
DIAGNOSIS SENSOR UNIT
SIDE AIRBAG MODULE LH CIRCUIT [OPEN]
B0020Front LH side air bag module circuit is open. Refer to
SRC-47, "Diag-
nosis Procedure".
SIDE AIRBA

SRC-18
< ECU DIAGNOSIS INFORMATION >
DIAGNOSIS SENSOR UNIT
SIDE AIRBAG MODULE LH CIRCUIT [OPEN]
B0020Front LH side air bag module circuit is open. Refer to
SRC-47, "Diag-
nosis Procedure".
SIDE AIRBAG MODULE LH CIRCUIT [VB-SHORT] Front LH side air bag module circuit is short-
ed to a power supply circuit.
SIDE AIRBAG MODULE LH CIRCUIT [GND-SHORT] Front LH side air bag module circuit is short-
ed to ground.
SIDE AIRBAG MODULE LH CIRCUIT [SHORT] Front LH side air bag module circuits are
shorted to each other.
SIDE AIRBAG MODULE RH CIRCUIT [OPEN]
B0028Front RH side air bag module circuit is open. Refer to
SRC-49, "
Diag-
nosis Procedure".
SIDE AIRBAG MODULE RH CIRCUIT [VB-SHORT] Front RH side air bag module circuit is short-
ed to a power supply circuit.
SIDE AIRBAG MODULE RH CIRCUIT [GND-SHORT] Front RH side air bag module circuit is short-
ed to ground.
SIDE AIRBAG MODULE RH CIRCUIT [SHORT] Front RH side air bag module circuits are
shorted to each other.
CURTAIN AIRBAG MODULE LH CIRCUIT [OPEN]
B0021LH side curtain air bag module circuit is
open.
Refer to
SRC-51, "
Diag-
nosis Procedure".
CURTAIN AIRBAG MODULE LH CIRCUIT [VB-SHORT] LH side curtain air bag module circuit is
shorted to a power supply circuit.
CURTAIN AIRBAG MODULE LH CIRCUIT [GND-SHORT] LH side curtain air bag module circuit is
shorted to ground.
CURTAIN AIRBAG MODULE LH CIRCUIT [SHORT] LH side curtain air bag module circuits are
shorted to each other.
CURTAIN AIRBAG MODULE RH CIRCUIT [OPEN]
B0029RH side curtain air bag module circuit is
open.
Refer to
SRC-53, "
Diag-
nosis Procedure".
CURTAIN AIRBAG MODULE RH CIRCUIT [VB-SHORT] RH side curtain air bag module circuit is
shorted to a power supply circuit.
CURTAIN AIRBAG MODULE RH CIRCUIT [GND-SHORT] RH side curtain air bag module circuit is
shorted to ground.
CURTAIN AIRBAG MODULE RH CIRCUIT [SHORT] RH side curtain air bag module circuits are
shorted to each other.
FRONT PRE-TEN LH CIRCUIT [OPEN]
B1430LH seat belt pre-tensioner circuit is open. Refer to
SRC-55, "
Diag-
nosis Procedure".
FRONT PRE-TEN LH CIRCUIT [VB-SHORT] LH seat belt pre-tensioner circuit is shorted
to a power supply circuit.
FRONT PRE-TEN LH CIRCUIT [GND-SHORT] LH seat belt pre-tensioner circuit is shorted
to ground.
FRONT PRE-TEN LH CIRCUIT [SHORT] LH seat belt pre-tensioner circuits are short-
ed to each other.
FRONT PRE-TEN RH CIRCUIT [OPEN]
B1431RH seat belt pre-tensioner circuit is open. Refer to
SRC-57, "
Diag-
nosis Procedure".
FRONT PRE-TEN RH CIRCUIT [VB-SHORT] RH seat belt pre-tensioner circuit is shorted
to a power supply circuit.
FRONT PRE-TEN RH CIRCUIT [GND-SHORT] RH seat belt pre-tensioner circuit is shorted
to ground.
FRONT PRE-TEN RH CIRCUIT [SHORT] RH seat belt pre-tensioner circuits are short-
ed to each other.
CONSULT name
DTCDTC detecting condition Repair order
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 3036 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS SENSOR UNITSRC-19
< ECU DIAGNOSIS INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
SEAT BELT BUCKLE SW LH CIRCUIT [OPEN]
B1428LH seat belt buckle switch circuit is open. Refer to
SRC-59, "Di

DIAGNOSIS SENSOR UNITSRC-19
< ECU DIAGNOSIS INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
SEAT BELT BUCKLE SW LH CIRCUIT [OPEN]
B1428LH seat belt buckle switch circuit is open. Refer to
SRC-59, "Diag-
nosis Procedure".
SEAT BELT BUCKLE SW LH CIRCUIT [VB-SHORT] LH seat belt buckle switch circuit is shorted
to a power supply circuit.
SEAT BELT BUCKLE SW LH CIRCUIT [GND-SHORT] LH seat belt buckle switch circuit is shorted
to ground.
SEAT BELT BUCKLE SW LH CIRCUIT [UNDEFINED] LH seat belt buckle switch circuit malfunc-
tion.
SEAT BELT BUCKLE SW RH CIRCUIT [OPEN]
B1429RH seat belt buckle switch circuit is open. Refer to
SRC-61, "
Diag-
nosis Procedure".
SEAT BELT BUCKLE SW RH CIRCUIT [VB-SHORT] RH seat belt buckle switch circuit is shorted
to a power supply circuit.
SEAT BELT BUCKLE SW RH CIRCUIT [GND-SHORT] RH seat belt buckle switch circuit is shorted
to ground.
SEAT BELT BUCKLE SW RH CIRCUIT [UNDEFINED] RH seat belt buckle switch circuit malfunc-
tion.
CRASH ZONE SENSOR [SENSOR FAIL]
B0094Crash zone sensor has malfunctioned. Refer to
SRC-63, "
Diag-
nosis Procedure".
CRASH ZONE SENSOR [COMM FAIL] Crash zone sensor communication error.
CRASH ZONE SENSOR [DISCONNECT] Crash zone sensor is disconnected.
CRASH ZONE SENSOR [UNMATCH] Crash zone sensor is out of specification.
CRASH ZONE SENSOR [GND-SHORT] Crash zone sensor circuit is shorted to
ground.
DOOR SATELLITE SENSOR LH [SENSOR FAIL]
B0093Front door satellite sensor LH has malfunc-
tioned.
Refer to SRC-65, "
Diag-
nosis Procedure".
DOOR SATELLITE SENSOR LH [COMM FAIL] Front door satellite sensor LH communica-
tion error.
DOOR SATELLITE SENSOR LH [DISCONNECT] Front door satellite sensor LH is disconnect-
ed.
DOOR SATELLITE SENSOR LH [UNMATCH] Front door satellite sensor LH is out of spec-
ification.
DOOR SATELLITE SENSOR LH [GND-SHORT] Front door satellite sensor LH circuit is
shorted to ground.
DOOR SATELLITE SENSOR RH [SENSOR FAIL]
B0098Front door satellite sensor RH has malfunc-
tioned.
Refer to SRC-67, "
Diag-
nosis Procedure".
DOOR SATELLITE SENSOR RH [COMM FAIL] Front door satellite sensor RH communica-
tion error.
DOOR SATELLITE SENSOR RH [DISCONNECT] Front door satellite sensor RH is discon-
nected.
DOOR SATELLITE SENSOR RH [UNMATCH] Front door satellite sensor RH is out of spec-
ification.
DOOR SATELLITE SENSOR RH [GND-SHORT] Front door satellite sensor RH circuit is
shorted to ground.
DOOR SATELLITE SENSOR [LOWER LIMIT ERR]
B1500Lower limit value malfunction of front door
satellite sensor LH or RH.
Refer to SRC-69, "
Diag-
nosis Procedure".
DOOR SATELLITE SENSOR [UPPER LIMIT ERR] Upper limit value malfunction of front door
satellite sensor LH or RH.
DOOR SATELLITE SENSOR
[PERFRM ERR/INCRCT OPE] Malfunction of front door satellite sensor LH
or RH.
CONSULT name DTC DTC detecting condition Repair order
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 3037 of 3641

NISSAN NOTE 2016 Service Repair Manual SRC-20
< ECU DIAGNOSIS INFORMATION >
DIAGNOSIS SENSOR UNIT
B-PILLAR SATELLITE SENSOR LH[SENSOR FAIL]
B0091Front side air bag satellite sensor LH has
malfunctioned.
Refer to
SRC-72, "Diag-
nosis Proc

SRC-20
< ECU DIAGNOSIS INFORMATION >
DIAGNOSIS SENSOR UNIT
B-PILLAR SATELLITE SENSOR LH[SENSOR FAIL]
B0091Front side air bag satellite sensor LH has
malfunctioned.
Refer to
SRC-72, "Diag-
nosis Procedure".
B-PILLAR SATELLITE SENSOR LH [COMM FAIL] Front side air bag satellite sensor LH com-
munication error.
B-PILLAR SATELLITE SENSOR LH [DISCONNECT] Front side air bag satellite sensor LH is dis-
connected.
B-PILLAR SATELLITE SENSOR LH [UNMATCH] Front side air bag satellite sensor LH is out
of specification.
B-PILLAR SATELLITE SENSOR LH [GND-SHORT] Front side air bag satellite sensor LH circuit
is shorted to ground.
B-PILLAR SATELLITE SENSOR RH [SENSOR FAIL]
B0096Front side air bag satellite sensor RH has
malfunctioned.
Refer to
SRC-75, "
Diag-
nosis Procedure".
B-PILLAR SATELLITE SENSOR RH [COMM FAIL] Front side air bag satellite sensor RH com-
munication error.
B-PILLAR SATELLITE SENSOR RH [DISCONNECT] Front side air bag satellite sensor RH is dis-
connected.
B-PILLAR SATELLITE SENSOR RH [UNMATCH] Front side air bag satellite sensor RH is out
of specification.
B-PILLAR SATELLITE SENSOR RH [GND-SHORT] Front side air bag satellite sensor RH circuit
is shorted to ground.
C-PILLAR SATELLITE SENSOR LH [SENSOR FAIL]
B0092Rear side air bag satellite sensor LH has
malfunctioned.
Refer to
SRC-78, "
Diag-
nosis Procedure".
C-PILLAR SATELLITE SENSOR LH [COMM FAIL] Rear side air bag satellite sensor LH com-
munication error.
C-PILLAR SATELLITE SENSOR LH [DISCONNECT] Rear side air bag satellite sensor LH is dis-
connected.
C-PILLAR SATELLITE SENSOR LH [UNMATCH] Rear side air bag satellite sensor LH is out
of specification.
C-PILLAR SATELLITE SENSOR LH [GND-SHORT] Rear side air bag satellite sensor LH circuit
is shorted to ground.
C-PILLAR SATELLITE SENSOR RH [SENSOR FAIL]
B0097Rear side air bag satellite sensor RH has
malfunctioned.
Refer to
SRC-81, "
Diag-
nosis Procedure".
C-PILLAR SATELLITE SENSOR RH [COMM FAIL] Rear side air bag satellite sensor RH com-
munication error.
C-PILLAR SATELLITE SENSOR RH [DISCONNECT] Rear side air bag satellite sensor RH is dis-
connected.
C-PILLAR SATELLITE SENSOR RH [UNMATCH] Rear side air bag satellite sensor RH is out
of specification.
C-PILLAR SATELLITE SENSOR RH [GND-SHORT] Rear side air bag satellite sensor RH circuit
is shorted to ground.
CONSULT name DTC DTC detecting condition Repair order
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 3038 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS SENSOR UNITSRC-21
< ECU DIAGNOSIS INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
Flash Code IndexINFOID:0000000012430609
WARNING LAMP FLASH CODE CHART
OCCUPANT DETECTION SENSOR UNIT [UNIT FA

DIAGNOSIS SENSOR UNITSRC-21
< ECU DIAGNOSIS INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
Flash Code IndexINFOID:0000000012430609
WARNING LAMP FLASH CODE CHART
OCCUPANT DETECTION SENSOR UNIT [UNIT FAIL]
B00A0The OCS control unit is malfunctioning. Refer to
SRC-84, "Diag-
nosis Procedure".
OCCUPANT DETECTION SENSOR UNIT [NO DATA]
OCCUPANT DETECTION SENSOR UNIT [UNDEFINED]
OCCUPANT DETECTION SENSOR UNIT [RESET FAIL]
OCCUPANT DETECTION SENSOR UNIT [COMM FAIL] Communication between the OCS control
unit and the air bag diagnosis sensor unit is
interrupted.
OCCUPANT DETECTION SENSOR [UNIT FAIL] The OCS sensor is malfunctioning.
OCCUPANT DETECTION SENSOR [POWER FAIL] The OCS sensor circuit is malfunctioning.
CONTROL UNIT [UNIT FAIL] B14XX
Air bag diagnosis sensor unit is malfunction-
ing. Refer to SRC-86, "
Diag-
nosis Procedure".
PASS A/B INDCTR CKT [UNIT MALFUNC]
B00D2Malfunction in front passenger air bag ON
indicator circuit.
Refer to SRC-88, "
Diag-
nosis Procedure".
PASS A/B INDCTR CKT [GND-SHORT] Front passenger air bag ON indicator circuit
is shorted to ground.
PASS A/B INDCTR CKT [VB-SHORT] Front passenger air bag ON indicator circuit
is shorted to power supply circuit.
PASS A/B INDCTR CKT [OPEN] Front passenger air bag ON indicator circuit
is open.
PASS A/B INDCTR CKT [PWE-SHORT/OPEN] Front passenger air bag ON indicator circuit
is open or shorted to power supply circuit.
PASSENGER AIRBAG INDICATOR CIRCUIT [FAIL]
B00D5Front passenger air bag OFF indicator is
malfunctioning.
Refer to SRC-90, "
Diag-
nosis Procedure".
PASSENGER AIRBAG INDICATOR CIRCUIT [OPEN] Front passenger air bag OFF indicator cir-
cuit is open.
PASSENGER AIRBAG INDICATOR CIRCUIT [VB-SHORT] Front passenger air bag OFF indicator is
shorted to a power supply circuit.
PASSENGER AIRBAG INDICATOR CIRCUIT [GND-SHORT] Front passenger air bag OFF indicator is
shorted to ground.
IGN VOLTAGE [LOW] B142AIgnition voltage to the air bag diagnosis sen-
sor unit is low.
Refer to SRC-92, "
Diag-
nosis Procedure".
IGN VOLTAGE [HIGH] Ignition voltage to the air bag diagnosis sen-
sor unit is high.
CAN COMMUNICATION FAILURE U1000 CAN system communication failure. Refer to
SRC-94, "
Diag-
nosis Procedure".
CAN COMMUNICATION FAILURE [CONTROL UNIT] U1010
CAN system (control unit) failure.
Refer to SRC-95, "
Diag-
nosis Procedure".
FRONTAL COLLISION DETECTION B1421 Frontal collision detected. Driver and/or
front passenger air bag modules are de-
ployed.Refer to SR-5, "
For
Frontal Collision".
SIDE COLLISION DETECTION B1422Side collision detected. Curtain air bag mod-
ule and seat belt pre-tensioner are de-
ployed. Refer to SR-7, "
For Side
and Rollover Collision".
CONSULT name
DTCDTC detecting condition Repair order
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 3039 of 3641

NISSAN NOTE 2016 Service Repair Manual SRC-22
< ECU DIAGNOSIS INFORMATION >
DIAGNOSIS SENSOR UNIT

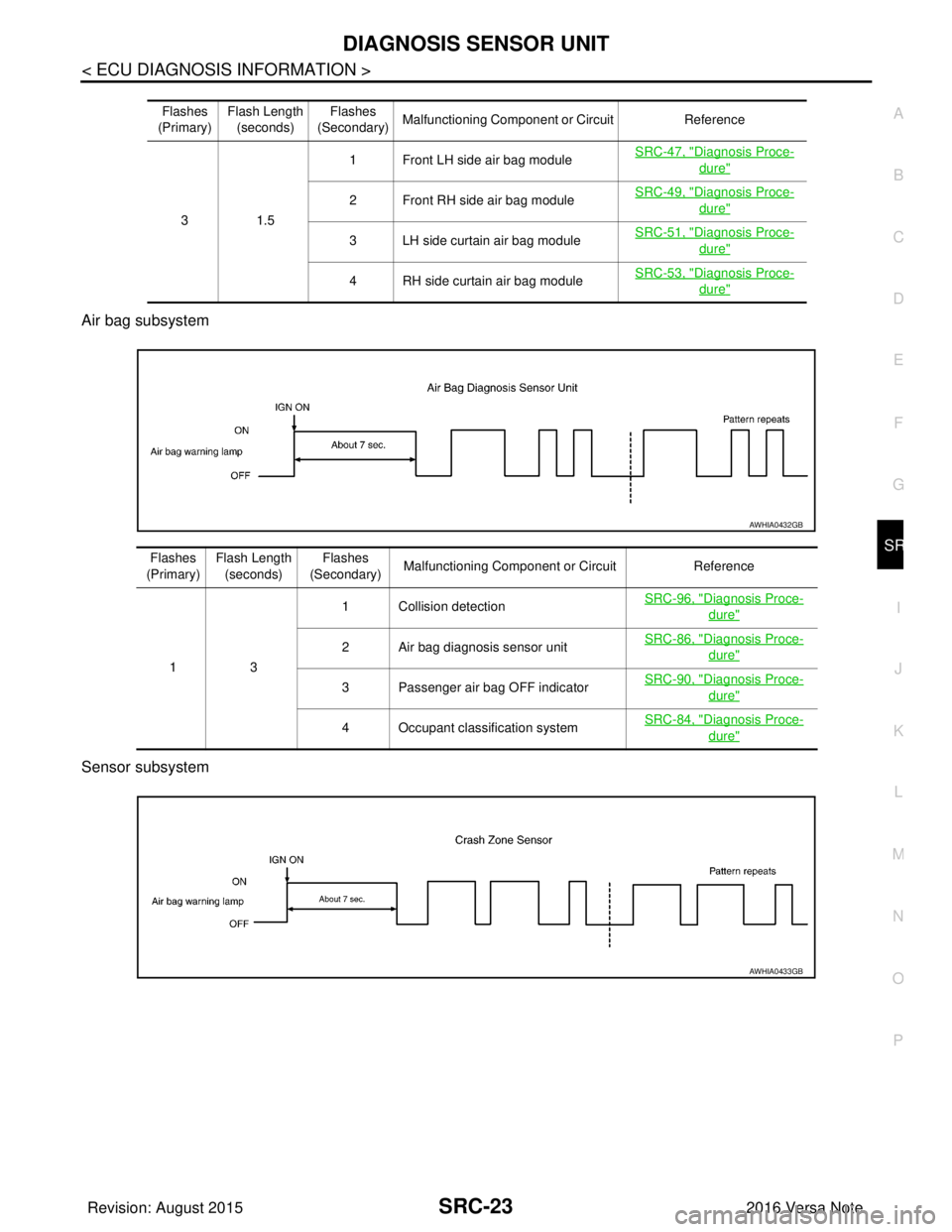

How to read flash codes
1. Put the vehicle in Diagnosis Mode. Refer to SRC-14, "On Board Diagnosis Function".
2. All codes are proceded by a

Page 3040 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS SENSOR UNITSRC-23
< ECU DIAGNOSIS INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
Air bag subsystem
Sensor subsystem
Flashes
(Primary) Flash Length
(seconds) Flashes
(Secondary) Malfunctionin

Load next 8 pages

Page: < prev 1-10 ... 3001-3008 3009-3016 3017-3024 3025-3032 3033-3040 3041-3048 3049-3056 3057-3064 3065-3072 ... 3648 next >

dashboard brake pads replacement light brake CD player tow bar
