Page 193 of 3641

NISSAN NOTE 2016 Service Repair Manual AV-188
< DTC/CIRCUIT DIAGNOSIS >[NAVIGATION]
U111A REAR CAMERA IMAGE SIGNAL CIRCUIT
U111A REAR CAMERA IMAGE SIGNAL CIRCUIT
DTC LogicINFOID:0000000012433048
DTC DETECTION LOGIC
Diagnosis ProcedureINFOI

AV-188
< DTC/CIRCUIT DIAGNOSIS >[NAVIGATION]
U111A REAR CAMERA IMAGE SIGNAL CIRCUIT
U111A REAR CAMERA IMAGE SIGNAL CIRCUIT
DTC LogicINFOID:0000000012433048
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000012433049
Regarding Wiring Diagram information, refer to
AV-155, "Wiring Diagram".
WITH AROUND VIEW MONITOR
1.CHECK REAR VIEW CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect around view monitor control unit and rear view camera connectors.
3. Check continuity between around view monitor control unit connector B54 and rear view camera connec- tor D501.
4. Check continuity between around view m onitor control unit connector B54 and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace harness or connectors.
2.CHECK REAR VIEW CAMERA POWER SUPPLY VOLTAGE
1. Connect around view monitor control unit and rear view camera connectors.
2. Turn ignition switch ON.
3. Check voltage between around view monitor control unit connector B54 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Replace around view monitor control unit. Refer to AV-249, "
Removal and Installation".
3.CHECK REAR VIEW CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect around view monitor control unit and rear view camera connectors.
CONSULT Display DTC Detection Condition Possible Cause
Rear display output signal diag-
nosis (Harness disconnection)
[ U 111 A ] Rear view camera image signal circuit open or
short.
Check rear view camera image signal circuit.
Around view monitor control unit
Rear view camera
Continuity
Connector TerminalsConnector Terminals
B54 26
D501 2
Ye s
25 1
Around view monitor control unit
GroundContinuity
Connector Terminal
B54 26 No
Around view monitor control unit
GroundCondition Vol tag e
(Approx.)
Connector Terminal
B54 26—CAMERA switch is ON or
selector lever in R (re-
verse).
6.0 V
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 194 of 3641

NISSAN NOTE 2016 Service Repair Manual AV
U111A REAR CAMERA IMAGE SIGNAL CIRCUITAV-189
< DTC/CIRCUIT DIAGNOSIS > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
3. Check continuity between around view monitor cont rol unit connector B54 and rea

Page 195 of 3641

NISSAN NOTE 2016 Service Repair Manual AV-190
< DTC/CIRCUIT DIAGNOSIS >[NAVIGATION]
U111A REAR CAMERA IMAGE SIGNAL CIRCUIT
2. Disconnect AV control unit connector M71 and rear view camera connector.
3. Check continuity between AV control u

Page 196 of 3641

NISSAN NOTE 2016 Service Repair Manual AV
U111A REAR CAMERA IMAGE SIGNAL CIRCUITAV-191
< DTC/CIRCUIT DIAGNOSIS > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
Is inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace harness or con

Page 197 of 3641

NISSAN NOTE 2016 Service Repair Manual AV-192
< DTC/CIRCUIT DIAGNOSIS >[NAVIGATION]
U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT
U111B SIDE CAMERA RH
IMAGE SIGNAL CIRCUIT
DTC LogicINFOID:0000000012433050
DTC DETECTION LOGIC
Diagnosis Procedu

Page 198 of 3641

NISSAN NOTE 2016 Service Repair Manual AV
U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUITAV-193
< DTC/CIRCUIT DIAGNOSIS > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
3. Check continuity between around view monitor c ontrol unit connector B54 and

Page 199 of 3641

NISSAN NOTE 2016 Service Repair Manual AV-194
< DTC/CIRCUIT DIAGNOSIS >[NAVIGATION]
U111C FRONT CAMERA IMAGE SIGNAL CIRCUIT
U111C FRONT CAMERA IMAGE SIGNAL CIRCUIT
DTC LogicINFOID:0000000012433052
DTC DETECTION LOGIC
Diagnosis ProcedureINF

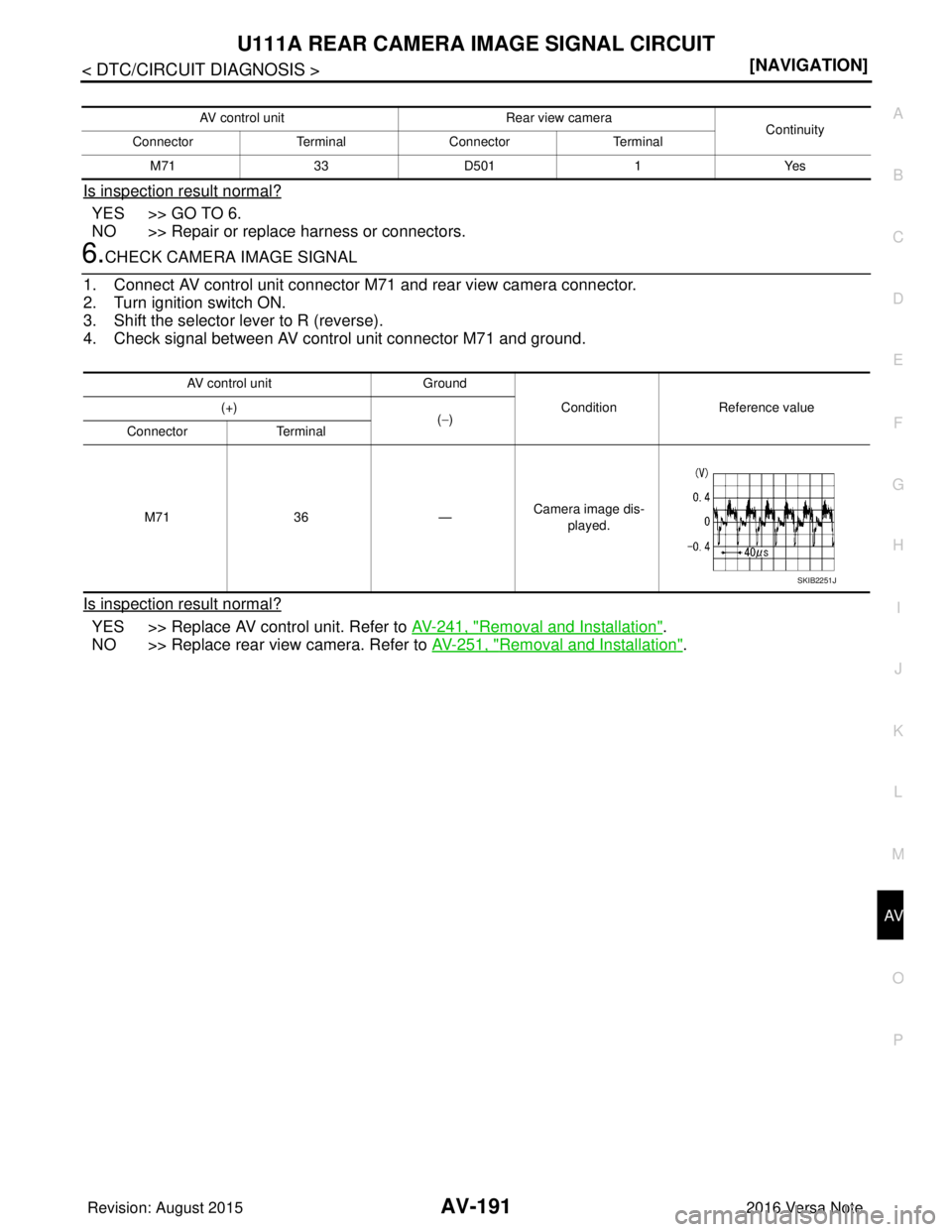

Page 200 of 3641

NISSAN NOTE 2016 Service Repair Manual AV
U111C FRONT CAMERA IMAGE SIGNAL CIRCUIT
AV-195
< DTC/CIRCUIT DIAGNOSIS > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
3. Check continuity between around view monitor control unit connector B54 and fr
