Page 2225 of 3641
LAN
CAN SYSTEMLAN-37
< WIRING DIAGRAM > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N
AAMIA2707GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2226 of 3641
LAN-38
< WIRING DIAGRAM >[CAN]
CAN SYSTEM
AAMIA2708GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2227 of 3641
LAN
DIAGNOSIS AND REPAIR WORKFLOWLAN-39
< BASIC INSPECTION > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N

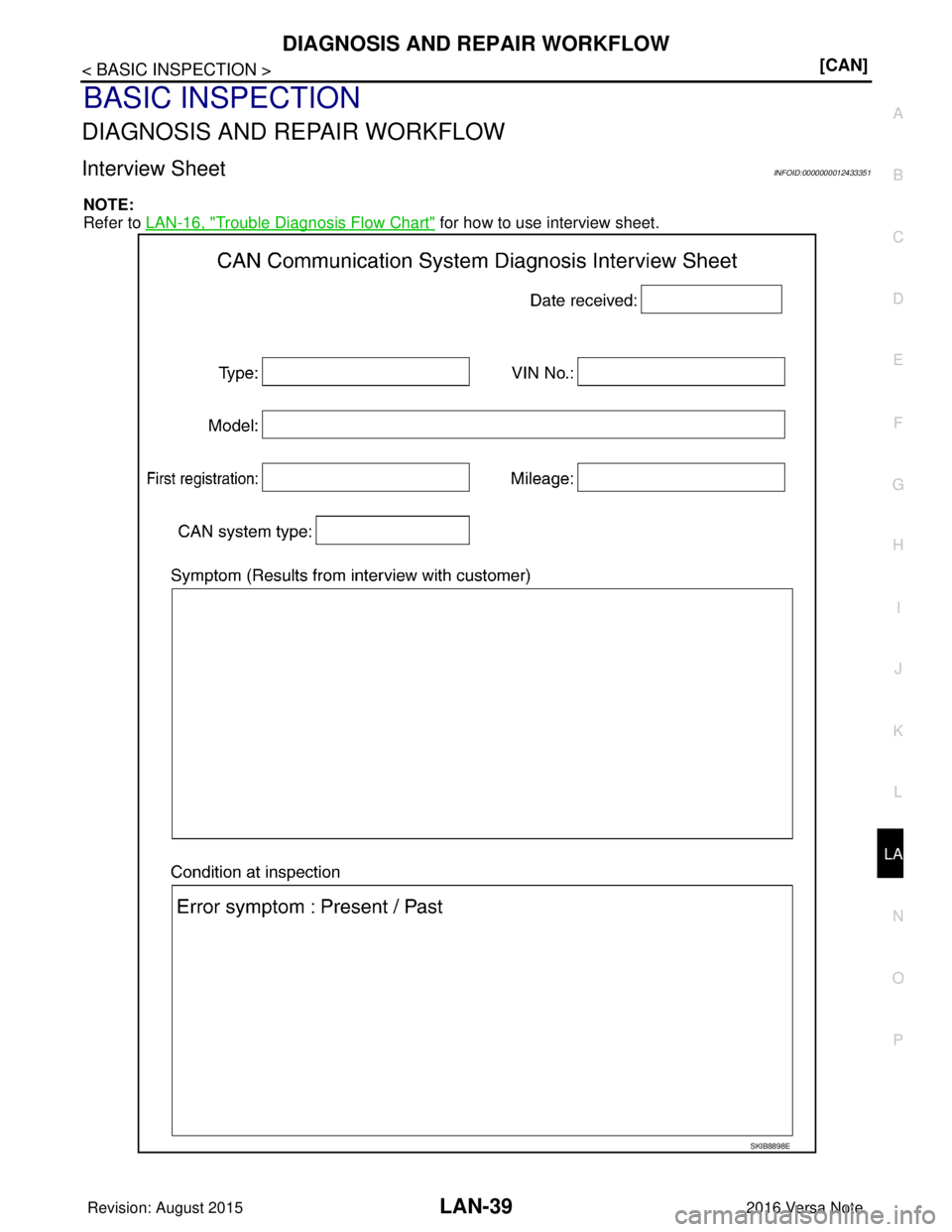

BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Interview SheetINFOID:0000000012433351
NOTE:
Refer to
LAN-16, "
Trouble Diagnosis Flow Chart" for how to use interview sheet.
SKIB8898E
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2228 of 3641
![NISSAN NOTE 2016 Service Repair Manual LAN-40
< DTC/CIRCUIT DIAGNOSIS >[CAN]
MALFUNCTION AREA CHART
DTC/CIRCUIT DIAGNOSIS
MALFUNCTION AREA CHART
Main LineINFOID:0000000012433352
Branch LineINFOID:0000000012433353
Short CircuitINFOID:000000 NISSAN NOTE 2016 Service Repair Manual LAN-40
< DTC/CIRCUIT DIAGNOSIS >[CAN]
MALFUNCTION AREA CHART
DTC/CIRCUIT DIAGNOSIS
MALFUNCTION AREA CHART
Main LineINFOID:0000000012433352
Branch LineINFOID:0000000012433353
Short CircuitINFOID:000000](/manual-img/5/57363/w960_57363-2227.png)
LAN-40
< DTC/CIRCUIT DIAGNOSIS >[CAN]
MALFUNCTION AREA CHART
DTC/CIRCUIT DIAGNOSIS
MALFUNCTION AREA CHART
Main LineINFOID:0000000012433352
Branch LineINFOID:0000000012433353
Short CircuitINFOID:0000000012433354
Malfunction area
Reference
Main line between IPDM E/R and data link connector LAN-41, "
Diagnosis Procedure"
Main line between IPDM E/R and around view monitor control unitLAN-42, "Diagnosis Procedure"
Main line between around view monitor control unit and data link connectorLAN-43, "Diagnosis Procedure"
Malfunction areaReference
ECM branch line circuit LAN-44, "
Diagnosis Procedure"
ABS actuator and electric unit (control unit) branch line circuit LAN-45, "Diagnosis Procedure"
IPDM E/R branch line circuit LAN-46, "Diagnosis Procedure"
TCM branch line circuitLAN-47, "Diagnosis Procedure"
Around view monitor control unit branch line circuitLAN-48, "Diagnosis Procedure"
Air bag diagnosis sensor unit branch line circuitLAN-49, "Diagnosis Procedure"
AV control unit branch line circuitLAN-50, "Diagnosis Procedure"
Data link connector branch line circuit LAN-51, "Diagnosis Procedure"
EPS control unit branch line circuitLAN-52, "Diagnosis Procedure"
Combination meter branch line circuit LAN-53, "Diagnosis Procedure"
Steering angle sensor branch line circuit LAN-54, "Diagnosis Procedure"
BCM branch line circuit LAN-55, "Diagnosis Procedure"
Malfunction area Reference
CAN communication circuit LAN-56, "
Diagnosis Procedure"
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2229 of 3641
![NISSAN NOTE 2016 Service Repair Manual LAN
MAIN LINE BETWEEN IPDM-E AND DLC CIRCUITLAN-41
< DTC/CIRCUIT DIAGNOSIS > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N
MAIN LINE BETWEEN IPDM-E AND DLC CIRCUIT
Diagnosis ProcedureINFOID:0000000012433355
1.C NISSAN NOTE 2016 Service Repair Manual LAN
MAIN LINE BETWEEN IPDM-E AND DLC CIRCUITLAN-41
< DTC/CIRCUIT DIAGNOSIS > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N
MAIN LINE BETWEEN IPDM-E AND DLC CIRCUIT
Diagnosis ProcedureINFOID:0000000012433355
1.C](/manual-img/5/57363/w960_57363-2228.png)
LAN
MAIN LINE BETWEEN IPDM-E AND DLC CIRCUITLAN-41
< DTC/CIRCUIT DIAGNOSIS > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N
MAIN LINE BETWEEN IPDM-E AND DLC CIRCUIT
Diagnosis ProcedureINFOID:0000000012433355
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cabl e from the negative terminal.
3. Check the following terminals and connectors for damage, bend and loose connection (connector side
and harness side).
- Harness connector E7
- Harness connector M69
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS CONTI NUITY (OPEN CIRCUIT)
1. Disconnect the following harness connectors.
- IPDM E/R
- Harness connectors E7 and M69
2. Check the continuity between the IPDM E/R harness connector and the harness connector.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair the main line between the IPDM E/R and the harness connector E7.
3.CHECK HARNESS CONTI NUITY (OPEN CIRCUIT)
Check the continuity between the harness connector and the data link connector.
Is the inspection result normal?
YES (Present error)>>Check CA N system type decision again.
YES (Past error)>>Error was detected in the main line between the IPDM E/R and the data link connector.
NO >> Repair the main line between the harness connector M69 and the data link connector.
IPDM E/R harness connector Harness connector
Continuity
Connector No. Terminal No.Connector No. Terminal No.
E46 62
E721A
Existed
61 20AExisted
Harness connector Data link connector
Continuity
Connector No. Terminal No.Connector No. Terminal No.
M69 21A
M22 6
Existed
20A 14Existed
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2230 of 3641
![NISSAN NOTE 2016 Service Repair Manual LAN-42
< DTC/CIRCUIT DIAGNOSIS >[CAN]
MAIN LINE BETWEEN IPDM-E AND AVM CIRCUIT
MAIN LINE BETWEEN IP
DM-E AND AVM CIRCUIT
Diagnosis ProcedureINFOID:0000000012433356
1.CHECK CONNECTOR
1. Turn the igniti NISSAN NOTE 2016 Service Repair Manual LAN-42
< DTC/CIRCUIT DIAGNOSIS >[CAN]
MAIN LINE BETWEEN IPDM-E AND AVM CIRCUIT
MAIN LINE BETWEEN IP
DM-E AND AVM CIRCUIT
Diagnosis ProcedureINFOID:0000000012433356
1.CHECK CONNECTOR
1. Turn the igniti](/manual-img/5/57363/w960_57363-2229.png)
LAN-42
< DTC/CIRCUIT DIAGNOSIS >[CAN]
MAIN LINE BETWEEN IPDM-E AND AVM CIRCUIT
MAIN LINE BETWEEN IP
DM-E AND AVM CIRCUIT
Diagnosis ProcedureINFOID:0000000012433356
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the following terminals and connectors for damage, bend and loose connection (connector side and harness side).
- Harness connector E7
- Harness connector M69
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS CONTI NUITY (OPEN CIRCUIT)
1. Disconnect the following harness connectors.
- IPDM E/R
- Harness connectors E7 and M69
2. Check the continuity between the IPDM E/R harness connector and the harness connector.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair the main line between the IPDM E/R and the harness connector E7.
3.CHECK HARNESS CONTI NUITY (OPEN CIRCUIT)
1. Disconnect the harness connectors M13 and B30.
2. Check the continuity bet ween the harness connectors.
Is the inspection result normal?
YES (Present error)>>Check CAN system type decision again.
YES (Past error)>>Error was detected in the main line between the IPDM E/R and the around view monitor
control unit.
NO >> Repair the main line between the harness c onnector M69 and around view monitor control unit.
IPDM E/R harness connector Harness connector
Continuity
Connector No. Terminal No.Connector No. Terminal No.
E46 62
E721A
Existed
61 20AExisted
Harness connector Harness connector
Continuity
Connector No. Terminal No.Connector No. Terminal No.
M69 21A
M13 5
Existed
20A 17Existed
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2231 of 3641
![NISSAN NOTE 2016 Service Repair Manual LAN
MAIN LINE BETWEEN AVM AND DLC CIRCUITLAN-43
< DTC/CIRCUIT DIAGNOSIS > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N
MAIN LINE BETWEEN AVM AND DLC CIRCUIT
Diagnosis ProcedureINFOID:0000000012433357
1.CHECK H NISSAN NOTE 2016 Service Repair Manual LAN
MAIN LINE BETWEEN AVM AND DLC CIRCUITLAN-43
< DTC/CIRCUIT DIAGNOSIS > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N
MAIN LINE BETWEEN AVM AND DLC CIRCUIT
Diagnosis ProcedureINFOID:0000000012433357
1.CHECK H](/manual-img/5/57363/w960_57363-2230.png)
LAN
MAIN LINE BETWEEN AVM AND DLC CIRCUITLAN-43
< DTC/CIRCUIT DIAGNOSIS > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N
MAIN LINE BETWEEN AVM AND DLC CIRCUIT
Diagnosis ProcedureINFOID:0000000012433357
1.CHECK HARNESS CONTI
NUITY (OPEN CIRCUIT)
1. Turn the ignition switch OFF.
2. Disconnect the battery cabl e from the negative terminal.
3. Disconnect the following harness connectors.
-ECM
- Around view monitor control unit
4. Check the continuity between the around view monitor control unit harness connector and the data link connector.
Is the inspection result normal?
YES (Present error)>>Check CA N system type decision again.
YES (Past error)>>Error was detected in the main line between the around view monitor control unit and the data link connector.
NO >> Repair the main line between the around view monitor control unit and the data link connector.
Around view monitor control unit harness connector Date link connector
Continuity
Connector No. Terminal No.Connector No. Terminal No.
B54 12
M22 6
Existed
10 14Existed
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2232 of 3641
![NISSAN NOTE 2016 Service Repair Manual LAN-44
< DTC/CIRCUIT DIAGNOSIS >[CAN]
ECM BRANCH LINE CIRCUIT
ECM BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000012433358
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the ba NISSAN NOTE 2016 Service Repair Manual LAN-44
< DTC/CIRCUIT DIAGNOSIS >[CAN]
ECM BRANCH LINE CIRCUIT
ECM BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000012433358
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the ba](/manual-img/5/57363/w960_57363-2231.png)
LAN-44
< DTC/CIRCUIT DIAGNOSIS >[CAN]
ECM BRANCH LINE CIRCUIT
ECM BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000012433358
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the ECM for damage, bend and loose connection (unit side and connector side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of ECM.
2. Check the resistance between the ECM harness connector terminals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the ECM branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the ECM. Refer to EC-159, "
Diagnosis Procedure".
Is the inspection result normal?
YES (Present error)>>Replace the ECM. Refer to EC-477, "Removal and Installation".
YES (Past error)>>Error was detected in the ECM branch line.
NO >> Repair the power supply and the ground circuit.
ECM harness connector Resistance (Ω)
Connector No. Terminal No.
E16 8483Approx. 108 – 132
