NISSAN NOTE 2016 Service Repair Manual AV-180
< BASIC INSPECTION >[NAVIGATION]
INSPECTION AND ADJUSTMENT
View in the incomplete calibration state is indicated by “ ” on the
around view monitor.
CALIBRATION PROCEDURE
1.AROUND VIEW MONIT

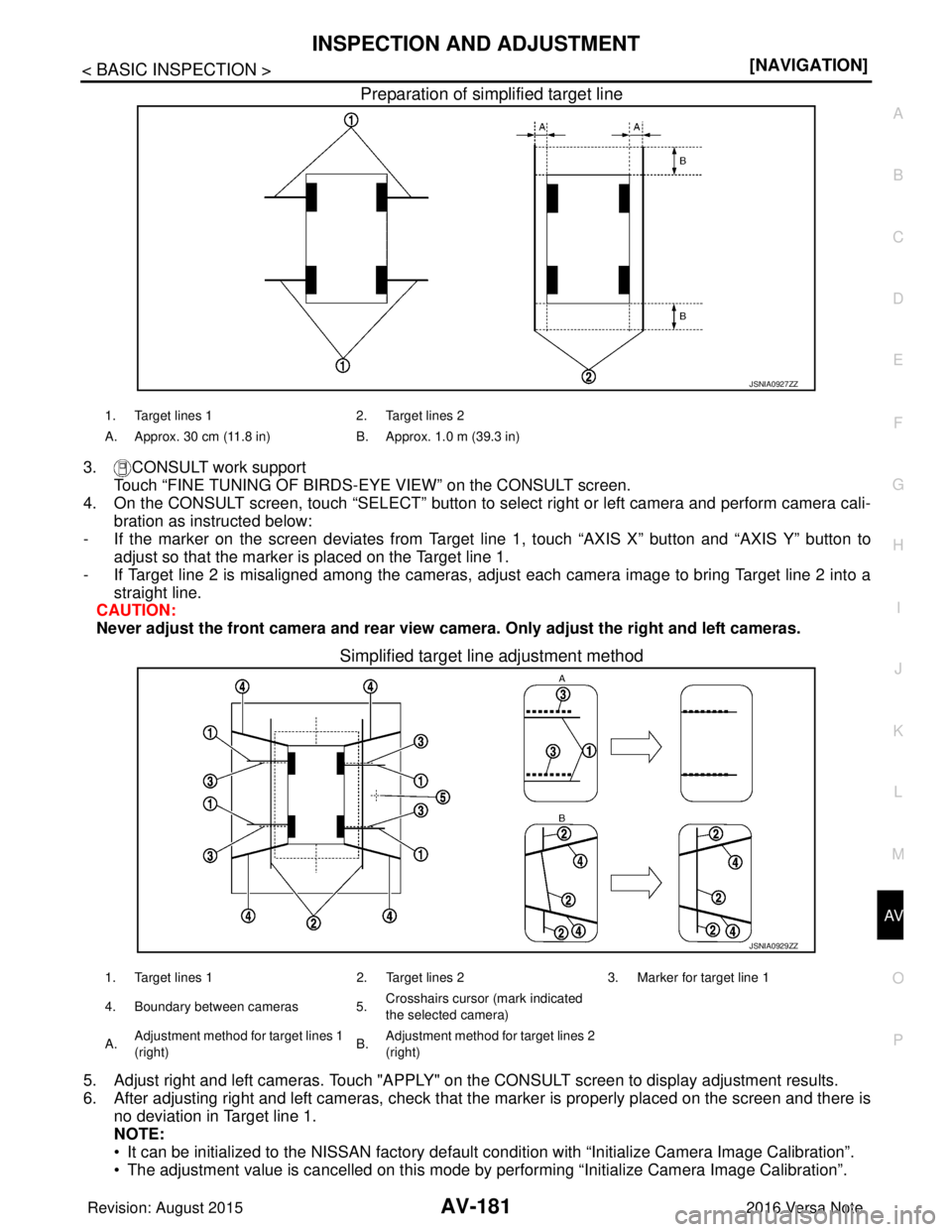

Page 186 of 3641

NISSAN NOTE 2016 Service Repair Manual AV
INSPECTION AND ADJUSTMENTAV-181
< BASIC INSPECTION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P

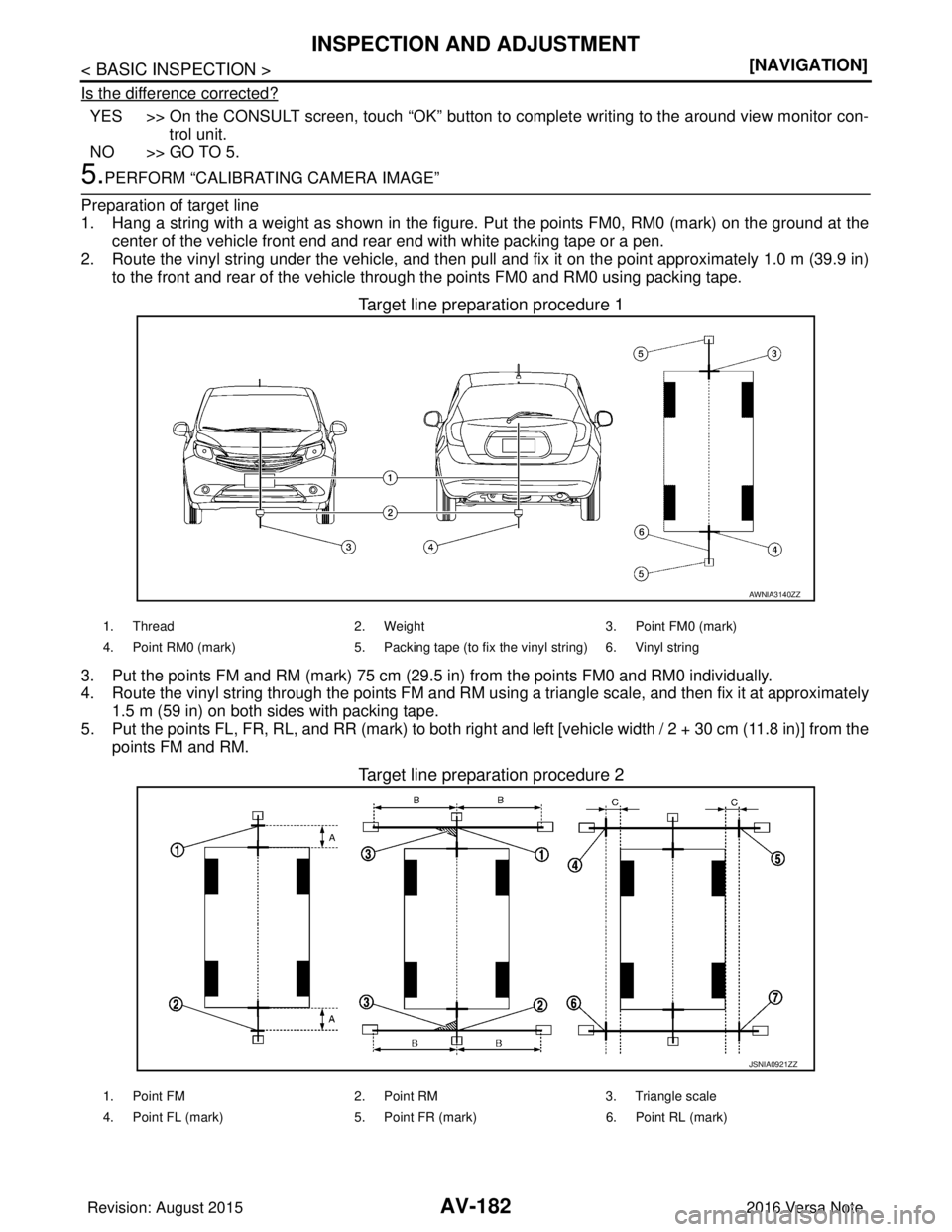

Preparation of simplified target line
3. CONSULT work support Touch “FINE TUNING OF BIRDS- EYE VIEW

Page 187 of 3641

NISSAN NOTE 2016 Service Repair Manual AV-182
< BASIC INSPECTION >[NAVIGATION]
INSPECTION AND ADJUSTMENT
Is the difference corrected?
YES >> On the CONSULT screen, touch “OK” button to complete writing to the around view monitor con-
t

Page 188 of 3641

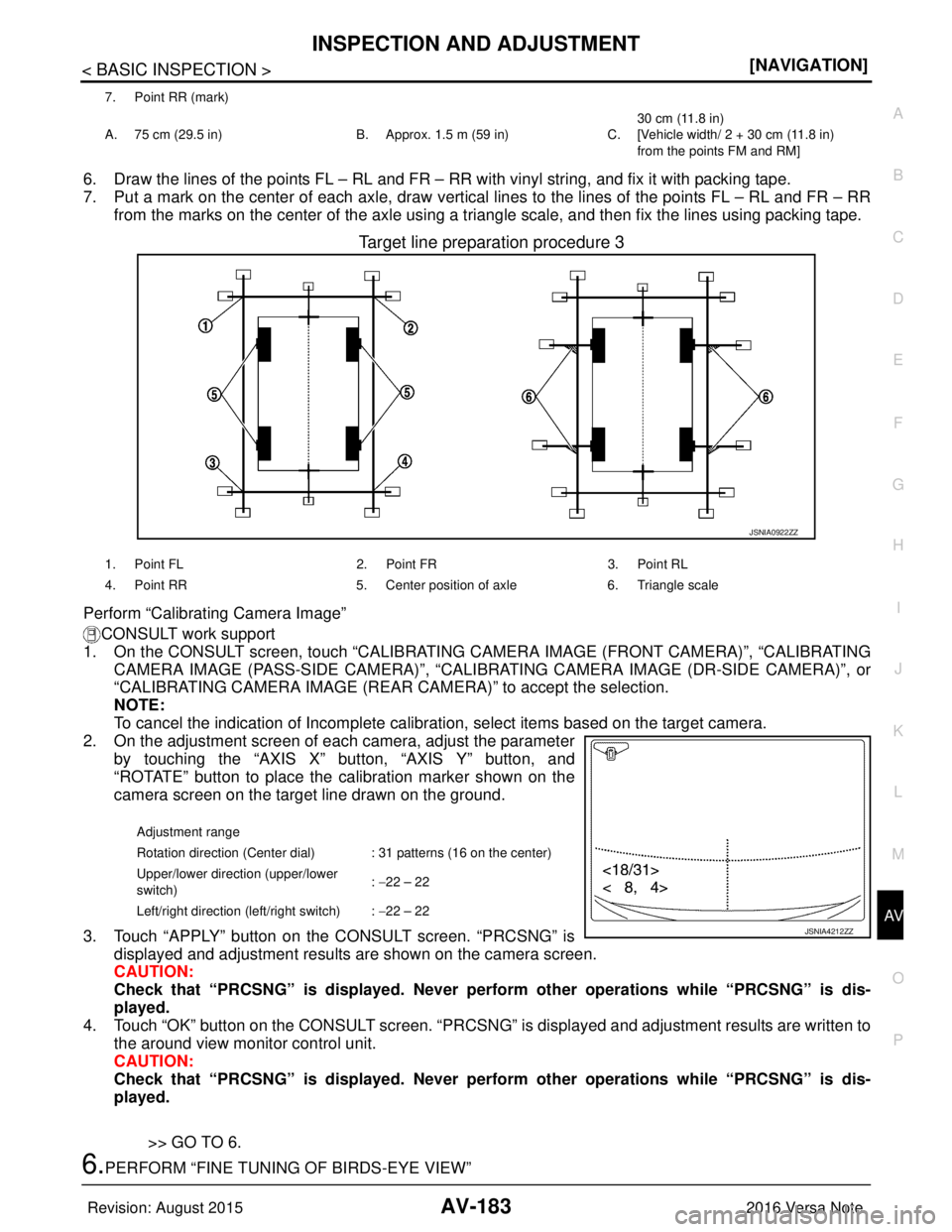

NISSAN NOTE 2016 Service Repair Manual AV
INSPECTION AND ADJUSTMENTAV-183
< BASIC INSPECTION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
6. Draw the lines of the points FL – RL and FR – RR with vinyl string, and fix it with packing ta

AV
INSPECTION AND ADJUSTMENTAV-183
< BASIC INSPECTION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
6. Draw the lines of the points FL – RL and FR – RR with vinyl string, and fix it with packing tape.
7. Put a mark on the center of each axle, draw vertical lines to the lines of the points FL – RL and FR – RR from the marks on the center of the axle using a triangle scale, and then fix the lines using packing tape.
Target line preparation procedure 3
Perform “Calibrating Camera Image”
CONSULT work support
1. On the CONSULT screen, touch “CALIBRATING CAMERA IMAGE (FRONT CAMERA)”, “CALIBRATING
CAMERA IMAGE (PASS-SIDE CAMERA)”, “CALIBRA TING CAMERA IMAGE (DR-SIDE CAMERA)”, or
“CALIBRATING CAMERA IMAGE (REAR CAMERA)” to accept the selection.
NOTE:
To cancel the indication of Incomplete calibration, select items based on the target camera.
2. On the adjustment screen of each camera, adjust the parameter by touching the “AXIS X” but ton, “AXIS Y” button, and
“ROTATE” button to place the calibration marker shown on the
camera screen on the target line drawn on the ground.
3. Touch “APPLY” button on the CONSULT screen. “PRCSNG” is
displayed and adjustment results are shown on the camera screen.
CAUTION:
Check that “PRCSNG” is displayed. Never perform other operations while “PRCSNG” is dis-
played.
4. Touch “OK” button on the CONSUL T screen. “PRCSNG” is displayed and adjustment results are written to
the around view monitor control unit.
CAUTION:
Check that “PRCSNG” is displayed. Never perform other operations while “PRCSNG” is dis-
played.
>> GO TO 6.
6.PERFORM “FINE TUNING OF BIRDS-EYE VIEW”
7. Point RR (mark)
A. 75 cm (29.5 in) B. Approx. 1.5 m (59 in)C.30 cm (11.8 in)
[Vehicle width/ 2 + 30 cm (11.8 in)
from the points FM and RM]
JSNIA0922ZZ
1. Point FL
2. Point FR3. Point RL
4. Point RR 5. Center position of axle6. Triangle scale
Adjustment range
Rotation direction (Center dial) : 31 patterns (16 on the center)
Upper/lower direction (upper/lower
switch) :
−22 – 22
Left/right direction (left/right switch) : −22 – 22
JSNIA4212ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 189 of 3641

NISSAN NOTE 2016 Service Repair Manual AV-184
< BASIC INSPECTION >[NAVIGATION]
INSPECTION AND ADJUSTMENT
This mode is designed to align the boundary between each camera image that could not be aligned in the
“Calibrating Camera Image”

Page 190 of 3641

NISSAN NOTE 2016 Service Repair Manual AV
U0428 STEERING ANGLE SENSORAV-185
< DTC/CIRCUIT DIAGNOSIS > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
DTC/CIRCUIT DIAGNOSIS
U0428 STEERING ANGLE SENSOR
DTC LogicINFOID:0000000012433040
DTC DETECTI

Page 191 of 3641

NISSAN NOTE 2016 Service Repair Manual AV-186
< DTC/CIRCUIT DIAGNOSIS >[NAVIGATION]
U1000 CAN COMM CIRCUIT
U1000 CAN COMM CIRCUIT
AV CONTROL UNIT
AV CONTROL UNIT : DTC LogicINFOID:0000000012433042
DTC DETECTION LOGIC
AV CONTROL UNIT : Diag

Page 192 of 3641

NISSAN NOTE 2016 Service Repair Manual AV
U1010 CONTROL UNIT (CAN)AV-187
< DTC/CIRCUIT DIAGNOSIS > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
U1010 CONTROL UNIT (CAN)
AV CONTROL UNIT
AV CONTROL UNIT : DTC LogicINFOID:0000000012433046
DTC D
