Page 793 of 3641
![NISSAN NOTE 2016 Service Repair Manual DLK-104
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY
INTELLIGENT KEY
Component Function CheckINFOID:0000000012430042
NOTE:
The Signal Tech II Tool [- (J-50190)] can be used t NISSAN NOTE 2016 Service Repair Manual DLK-104
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY
INTELLIGENT KEY
Component Function CheckINFOID:0000000012430042
NOTE:
The Signal Tech II Tool [- (J-50190)] can be used t](/manual-img/5/57363/w960_57363-792.png)
DLK-104
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY
INTELLIGENT KEY
Component Function CheckINFOID:0000000012430042
NOTE:
The Signal Tech II Tool [- (J-50190)] can be used to perform the following functions: Refer to the Signal Tech II
User Guide for additional information.
• Check Intelligent Key relative signal strength.
• Confirm vehicle Intelligent Key antenna signal strength.
1.CHECK FUNCTION
1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.
2. Select “RKE OPE COUN1” in “Data Monitor”.
3. Check that the function operates normall y according to the following conditions:
Is the inspection result normal?
YES >> Intelligent Key is OK.
NO >> Refer to DLK-104, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012430043
NOTE:
The Signal Tech II Tool [- (J-50190)] can be used to perform the following functions: Refer to the Signal Tech II
User Guide for additional information.
• Check Intelligent Key relative signal strength.
• Confirm vehicle Intelligent Key antenna signal strength.
1.CHECK INTELLIGENT KEY BATTERY
Check by connecting a resistance (approximately 300 Ω) so that the
current value becomes about 10 mA. Refer to DLK-188, "
Removal
and Installation".
Is the measurement value within the specification?
YES >> Replace Intelligent Key.
NO >> Replace Intelligent Key battery.
Monitor item Condition
RKE OPE COUN1 Check that the numerical value is changing while operating on the Intelligent Key.
Standard : Approx. 2.5 - 3.0V
OCC0607D
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 794 of 3641
KEY WARNING LAMPDLK-105
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
KEY WARNING LAMP
Component Function CheckINFOID:0000000012430044
1.CHECK FUNCTION
1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.
2. Select “INDICATOR” in “Active Test”.
3. Touch “KEY IND” or “KEY ON” to check that it works normally.
Is the inspection result normal?
YES >> Key warning lamp is OK.
NO >> Refer to DLK-105, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012430045
1.CHECK KEY WARNING LAMP
Refer to DLK-27, "
WARNING FUNCTION : System Description".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace harness.
2.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
>> Inspection End.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 795 of 3641
![NISSAN NOTE 2016 Service Repair Manual DLK-106
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
REMOTE KEYLESS ENTRY RECEIVER
REMOTE KEYLESS ENTRY RECEIVER
Component Function CheckINFOID:0000000012430046
1.CHECK FUNCTION
1. Select NISSAN NOTE 2016 Service Repair Manual DLK-106
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
REMOTE KEYLESS ENTRY RECEIVER
REMOTE KEYLESS ENTRY RECEIVER
Component Function CheckINFOID:0000000012430046
1.CHECK FUNCTION
1. Select](/manual-img/5/57363/w960_57363-794.png)
DLK-106
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
REMOTE KEYLESS ENTRY RECEIVER
REMOTE KEYLESS ENTRY RECEIVER
Component Function CheckINFOID:0000000012430046
1.CHECK FUNCTION
1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.
2. Select “RKE OPE COUN1” in “Data Monitor”.
3. Check that the function operates normall y according to the following conditions:
Is the inspection result normal?
YES >> Remote keyless entry receiver is OK.
NO for USA >>Refer to DLK-106, "
Diagnosis Procedure (For USA)".
NO for Canada>>Refer to DLK-107, "
Diagnosis Procedure (For Canada)".
Diagnosis Procedure (For USA)INFOID:0000000012430047
Regarding Wiring Diagram information, refer to DLK-46, "Wiring Diagram".
1.CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Check signal between BCM harness connector and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-74, "Removal and Installation".
NO >> GO TO 2.
2.CHECK REMOTE K EYLESS ENTRY RECEIVER CIRCUIT
1. Disconnect BCM and remote keyless entry receiver connectors.
2. Check continuity between BCM harness connector and remote keyless entry receiver harness connector.
3. Check continuity between BCM harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
Monitor item Condition
RKE OPE COUN1 Checks whether value changes when operating Intelligent Key.
(+)
(–)Condition Signal
(Reference value)
BCM
Connector Terminal
M97 38GroundPush-button igni-
tion OFF or ACC
0 – 0.5 V
Push-button igni-
tion ON Battery voltage
BCM
Remote keyless entry receiver
Continuity
Connector TerminalConnector Terminal
M 973 8M 94 2 Y es
(+) (–)Continuity
BCM
Connector Terminal
M97 38Ground No
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 796 of 3641
![NISSAN NOTE 2016 Service Repair Manual REMOTE KEYLESS ENTRY RECEIVERDLK-107
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
NO >> Repair or replace harness.
3.CHECK REMOTE KEYLESS ENTRY RECEIVER PO NISSAN NOTE 2016 Service Repair Manual REMOTE KEYLESS ENTRY RECEIVERDLK-107
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
NO >> Repair or replace harness.
3.CHECK REMOTE KEYLESS ENTRY RECEIVER PO](/manual-img/5/57363/w960_57363-795.png)
REMOTE KEYLESS ENTRY RECEIVERDLK-107
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
NO >> Repair or replace harness.
3.CHECK REMOTE KEYLESS ENTRY RECEIVER POWER SUPPLY
Check voltage between remote keyless entry receiver harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO-1 >> Check 10A fuse No. 10 located in fuse block J/B.
NO-2 >> Repair or replace harness between remote keyless entry receiver and 10A fuse No. 10.
4.CHECK REMOTE KEYLESS ENTR Y RECEIVER GROUND CIRCUIT
Check continuity between remote keyles s entry receiver harness connector and ground.
Is the inspection result normal?
YES >> Replace remote keyless entry receiver. Refer to DLK-187, "Removal and Installation".
NO >> Repair or replace harness.
Diagnosis Procedure (For Canada)INFOID:0000000012430048
Regarding Wiring Diagram information, refer to DLK-46, "Wiring Diagram".
1.CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Check signal between remote keyless entry receiver connector and ground with oscilloscope.
(+)
(–)Vo l ta g e
Approx.
Remote keyless entry receiver
Connector Terminal
M94 1Ground Battery voltage
Remote keyless entry receiver
GroundContinuity
Connector Terminal
M94 4 Yes
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 797 of 3641
![NISSAN NOTE 2016 Service Repair Manual DLK-108
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
REMOTE KEYLESS ENTRY RECEIVER
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 2.
2.CHECK REMOTE KEYLESS ENTRY RECEIVER POWER NISSAN NOTE 2016 Service Repair Manual DLK-108
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
REMOTE KEYLESS ENTRY RECEIVER
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 2.
2.CHECK REMOTE KEYLESS ENTRY RECEIVER POWER](/manual-img/5/57363/w960_57363-796.png)
DLK-108
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
REMOTE KEYLESS ENTRY RECEIVER
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 2.
2.CHECK REMOTE KEYLESS ENTRY RECEIVER POWER SUPPLY
1. Disconnect remote keyless entry receiver connector.
2. Check signal between remote keyless entry receiver connector and ground with oscilloscope.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.CHECK REMOTE K EYLESS ENTRY RECEIVER CIRCUIT 1
1. Disconnect BCM connector.
2. Check continuity between BCM connector and remote keyless entry receiver connector.
3. Check continuity between BCM connector and ground.
Te r m i n a l s
ConditionSignal
(Reference value)
(+)
(–)
Remote keyless entry re-
ceiver connector Te r m i n a l
M90 2Ground Waiting
(All doors closed.)
When signal is received. (All doors closed.)
JMKIA3838GB
JMKIA3841GB
Te r m i n a l s
Signal
(Reference value)
(+)
(–)
Remote keyless entry receiv-
er connector Te r m i n a l
M90 4Ground
JMKIA3838GB
BCM connector TerminalRemote keyless entry receiver
connector Terminal
Continuity
M97 19 M90 4Yes
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 798 of 3641
![NISSAN NOTE 2016 Service Repair Manual REMOTE KEYLESS ENTRY RECEIVERDLK-109
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Is the inspection result normal?
YES >> Reconnect BCM, GO TO 4.
NO >> Rep NISSAN NOTE 2016 Service Repair Manual REMOTE KEYLESS ENTRY RECEIVERDLK-109
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Is the inspection result normal?
YES >> Reconnect BCM, GO TO 4.
NO >> Rep](/manual-img/5/57363/w960_57363-797.png)
REMOTE KEYLESS ENTRY RECEIVERDLK-109
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Is the inspection result normal?
YES >> Reconnect BCM, GO TO 4.
NO >> Repair or replace harness between BCM and remote keyless entry receiver.
4.CHECK REMOTE KEYLESS ENTR Y RECEIVER GROUND CIRCUIT
Check continuity between remote keyless entry receiver connector and ground.
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 5.
5.CHECK REMOTE KEYLESS EN TRY RECEIVER CIRCUIT 2
Check continuity between BCM connector and re mote keyless entry receiver connector.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace harness between BCM and remote keyless entry receiver.
6.CHECK REMOTE KEYLESS EN TRY RECEIVER CIRCUIT 3
1. Check continuity between BCM connector and remote keyless entry receiver connector.
2. Check continuity between BCM connector and ground.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair or replace harness between BCM and remote keyless entry.
7.CHECK REMOTE KEYLESS ENTRY RE CEIVER RSSI SIGNAL CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector and remote keyless entry receiver harness connector.
3. Check continuity between BCM harness connector and ground.
BCM connector Terminal
GroundContinuity
M97 19 No
Remote keyless entry receiver
connector Te r m i n a l
GroundContinuity
M90 1 Yes
BCM
connector Te r m i n a l
Remote keyless entry receiver
connector Terminal
Continuity
M97 18 M90 1Yes
BCM
connector TerminalRemote keyless entry receiver
connector Terminal
Continuity
M97 20 M90 2Yes
BCM connector Terminal
GroundContinuity
M97 20 No
BCMRemote keyless entry receiver
Continuity
Connector TerminalConnector Terminal
M97 22M90 3Yes
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 799 of 3641
DLK-110
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
REMOTE KEYLESS ENTRY RECEIVER
Is the inspection result normal?
YES >> GO TO 8.
NO >> Repair or replace harness between BCM and remote keyless entry.

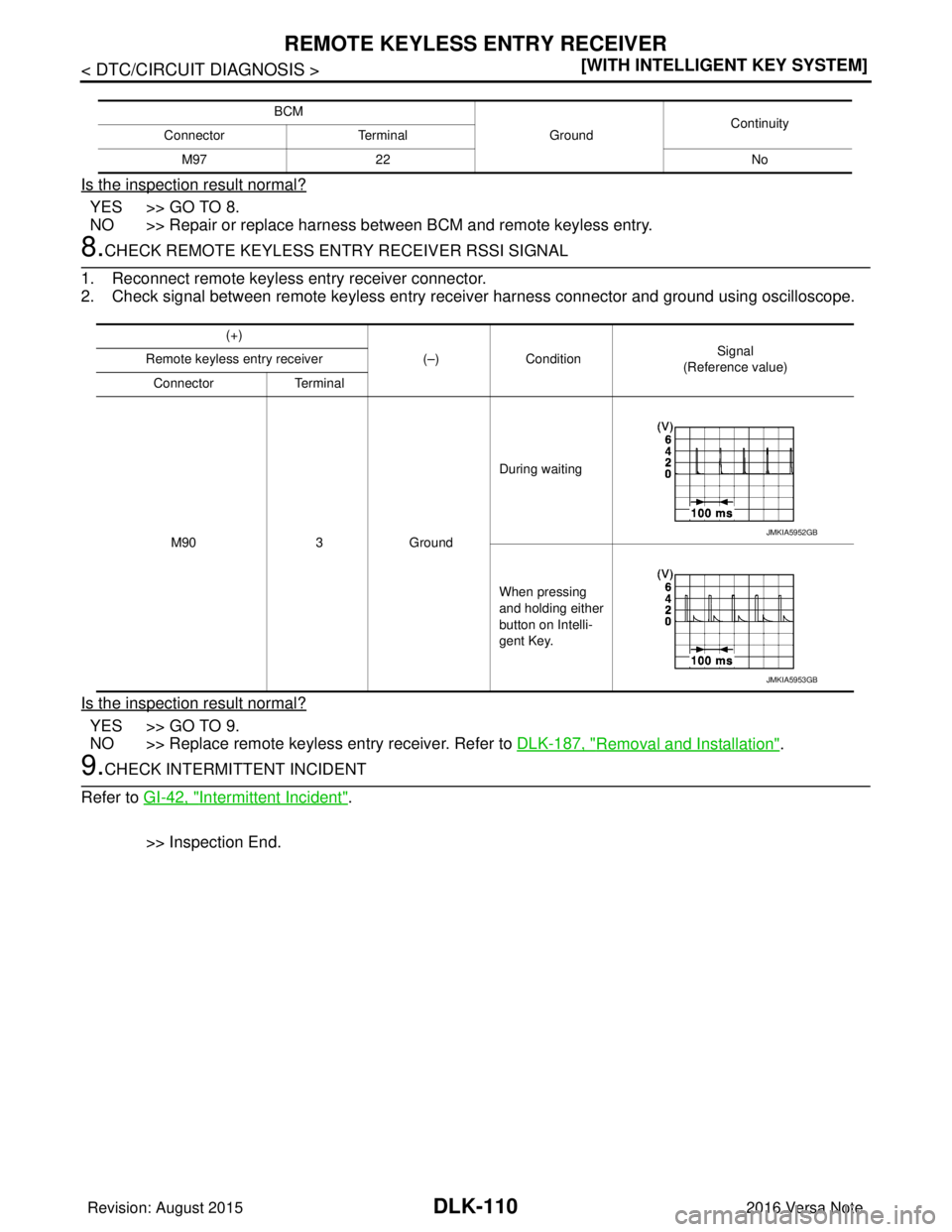

8.CHECK REMOTE KEYLESS ENTRY RECEIVER RSSI SIGNAL
1. Reconnect remote keyless entry receiver connector.
2. Check signal between remote keyless entry receiver harness connector and ground using oscilloscope.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Replace remote keyless entry receiver. Refer to DLK-187, "
Removal and Installation".
9.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
>> Inspection End.
BCM GroundContinuity
Connector Terminal
M97 22 No
(+)
(–)Condition Signal
(Reference value)
Remote keyless entry receiver
Connector Terminal
M90 3GroundDuring waiting
When pressing
and holding either
button on Intelli-
gent Key.
JMKIA5952GB
JMKIA5953GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 800 of 3641
SHIFT P WARNING LAMPDLK-111
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
SHIFT P WARNING LAMP
Component Function CheckINFOID:0000000012430049
1.CHECK FUNCTION
1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.
2. Select “LCD” in “Active Test”.
3. Touch “SET P” to chec k that it works normally.
Is the inspection result normal?
YES >> Shift P warning lamp is OK.
NO >> Refer to D L K - 111 , "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012430050
1.CHECK SHIFT P WARNING LAMP
Refer to TM-220, "
Component Parts Function Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace the malfunctioning parts.
2.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
>> Inspection End.
Revision: August 2015 2016 Versa Note
cardiagn.com
