Page 2121 of 3641

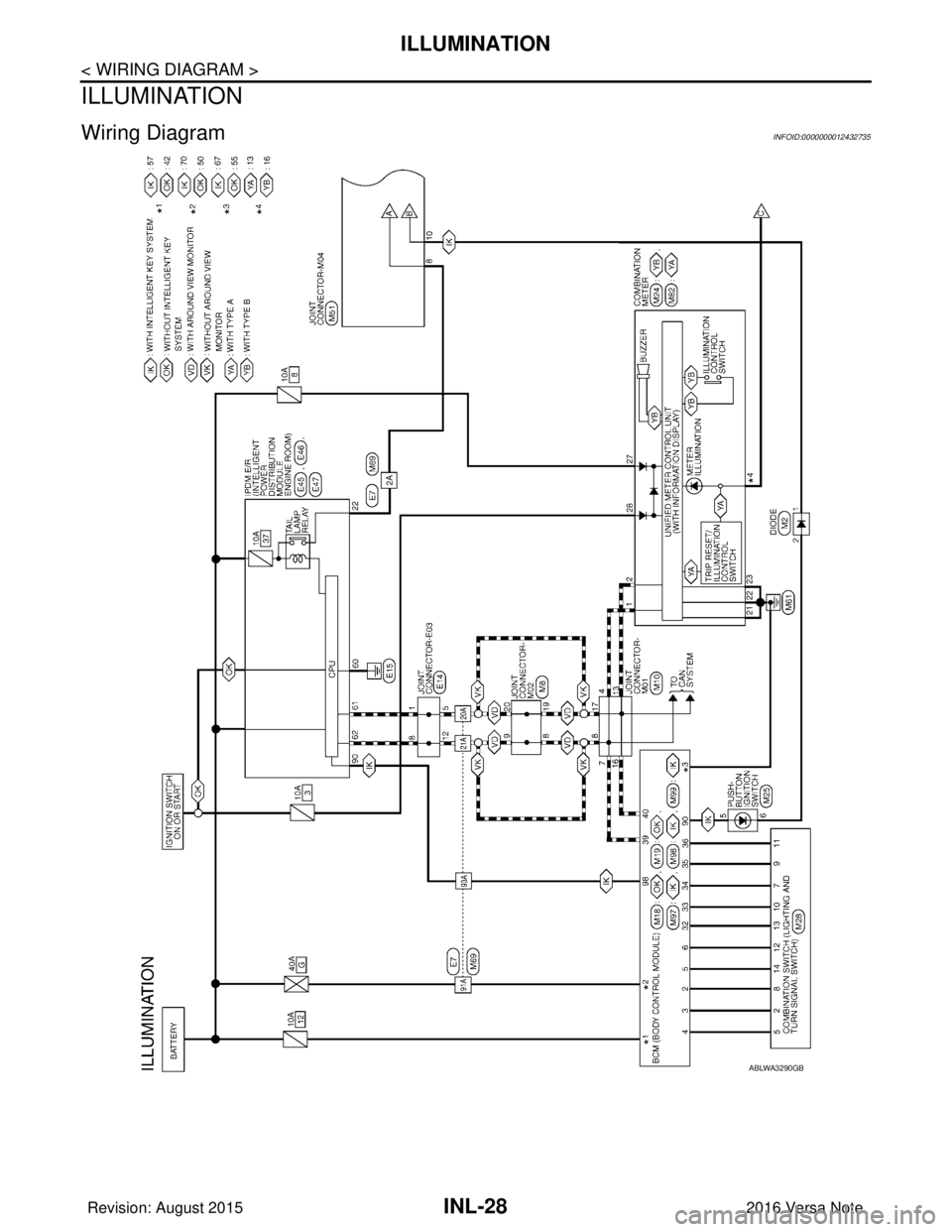

NISSAN NOTE 2016 Service Repair Manual INTERIOR ROOM LAMP CONTROL SYSTEMINL-27 < WIRING DIAGRAM > C DE F G H I J K M A B INL N O P AALIA1466GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 2122 of 3641

NISSAN NOTE 2016 Service Repair Manual INL-28 < WIRING DIAGRAM > ILLUMINATION ILLUMINATION Wiring DiagramINFOID:0000000012432735 ABLWA3290GB Revision: August 20152016 Versa Note cardiagn.com

Page 2123 of 3641

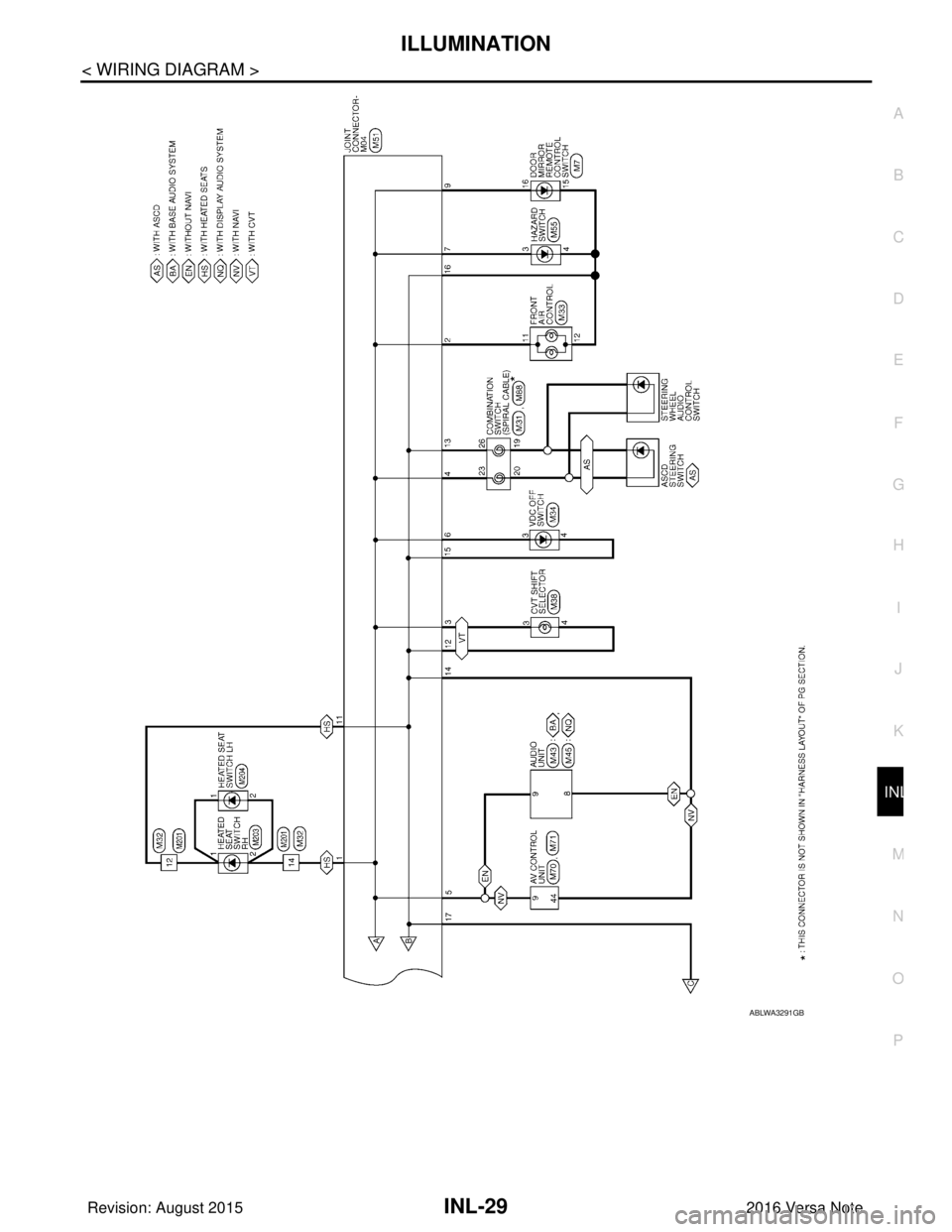

NISSAN NOTE 2016 Service Repair Manual ILLUMINATIONINL-29 < WIRING DIAGRAM > C DE F G H I J K M A B INL N O P ABLWA3291GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 2124 of 3641

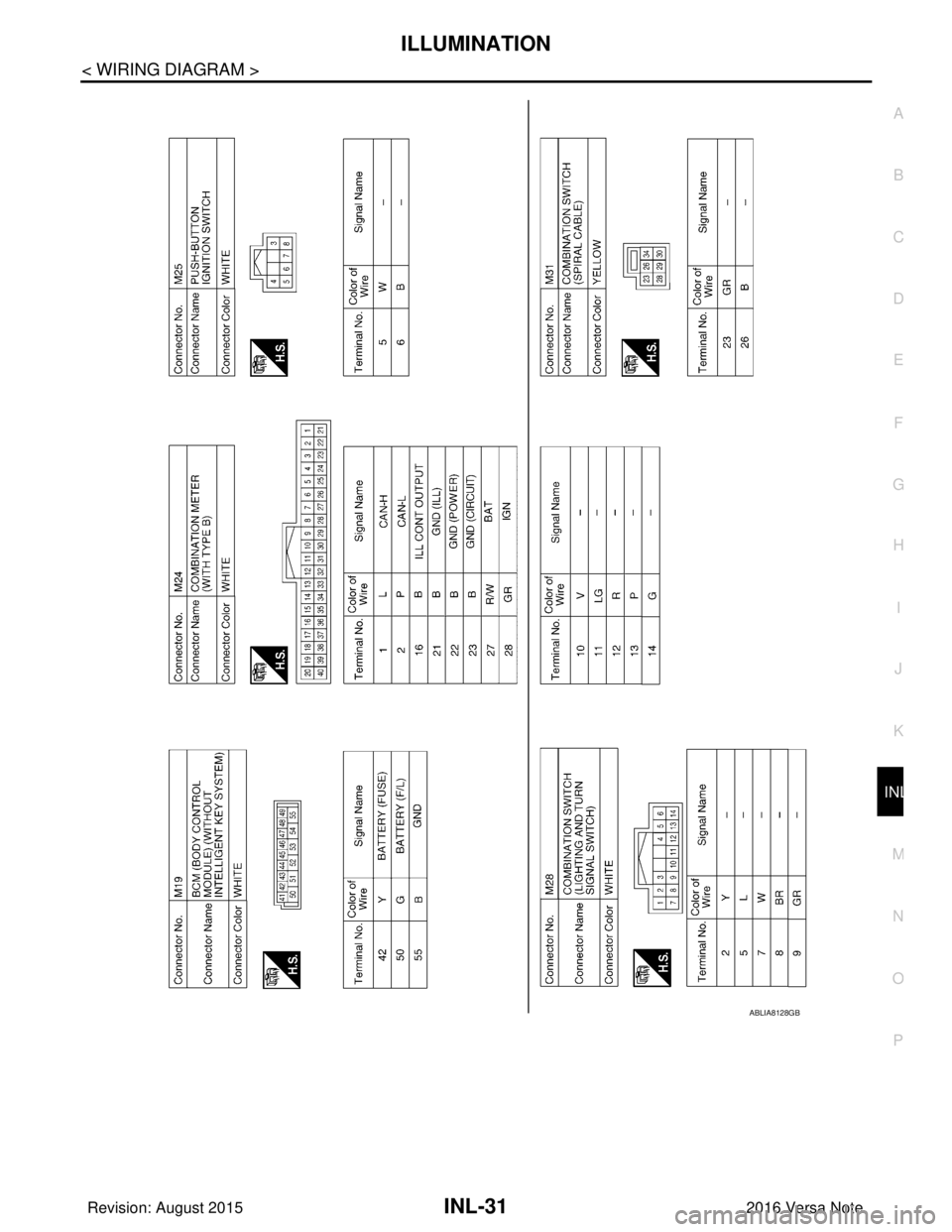

NISSAN NOTE 2016 Service Repair Manual INL-30 < WIRING DIAGRAM > ILLUMINATION ABLIA8119GB Revision: August 20152016 Versa Note cardiagn.com

Page 2125 of 3641

NISSAN NOTE 2016 Service Repair Manual ILLUMINATIONINL-31 < WIRING DIAGRAM > C DE F G H I J K M A B INL N O P ABLIA8128GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 2126 of 3641

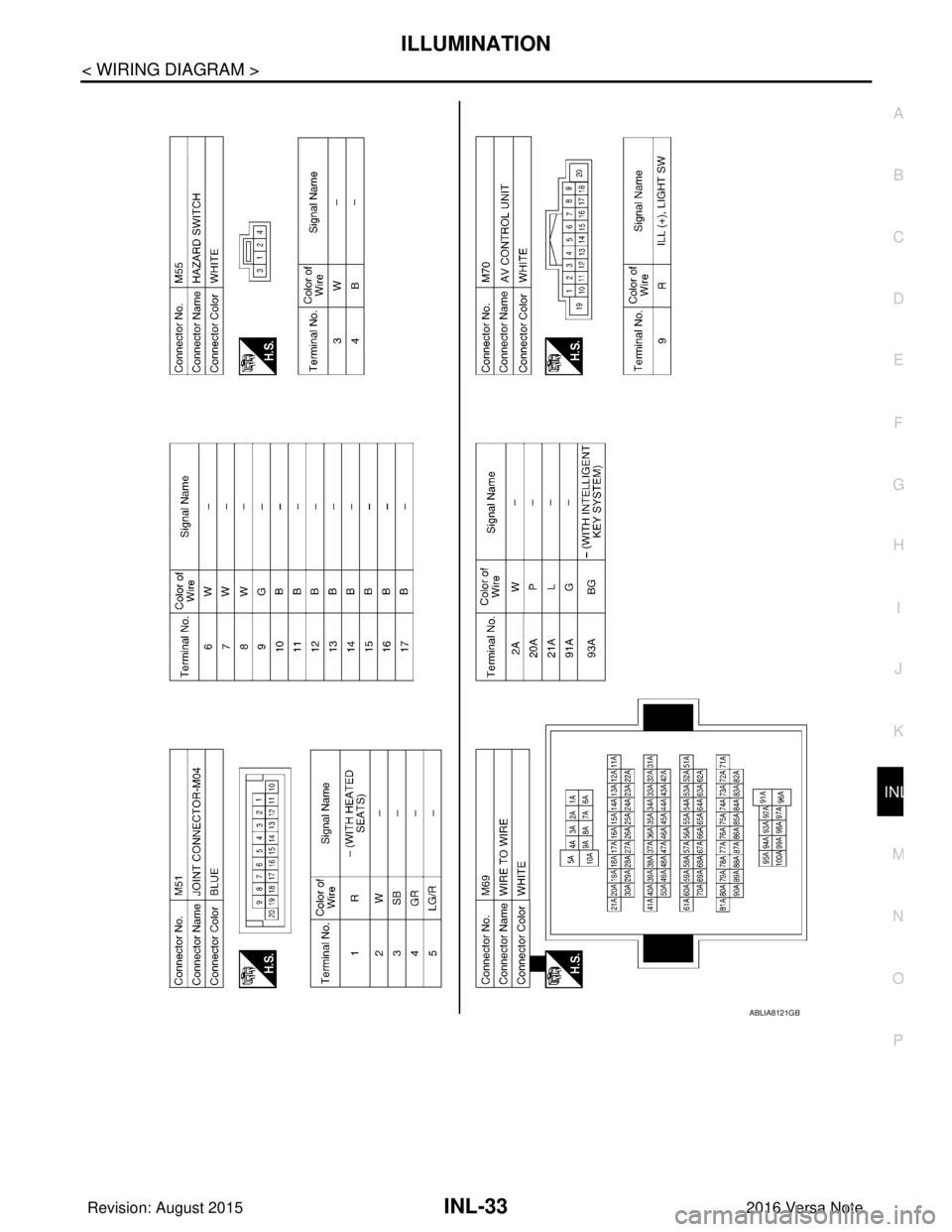

NISSAN NOTE 2016 Service Repair Manual INL-32 < WIRING DIAGRAM > ILLUMINATION ABLIA8120GB Revision: August 20152016 Versa Note cardiagn.com

Page 2127 of 3641

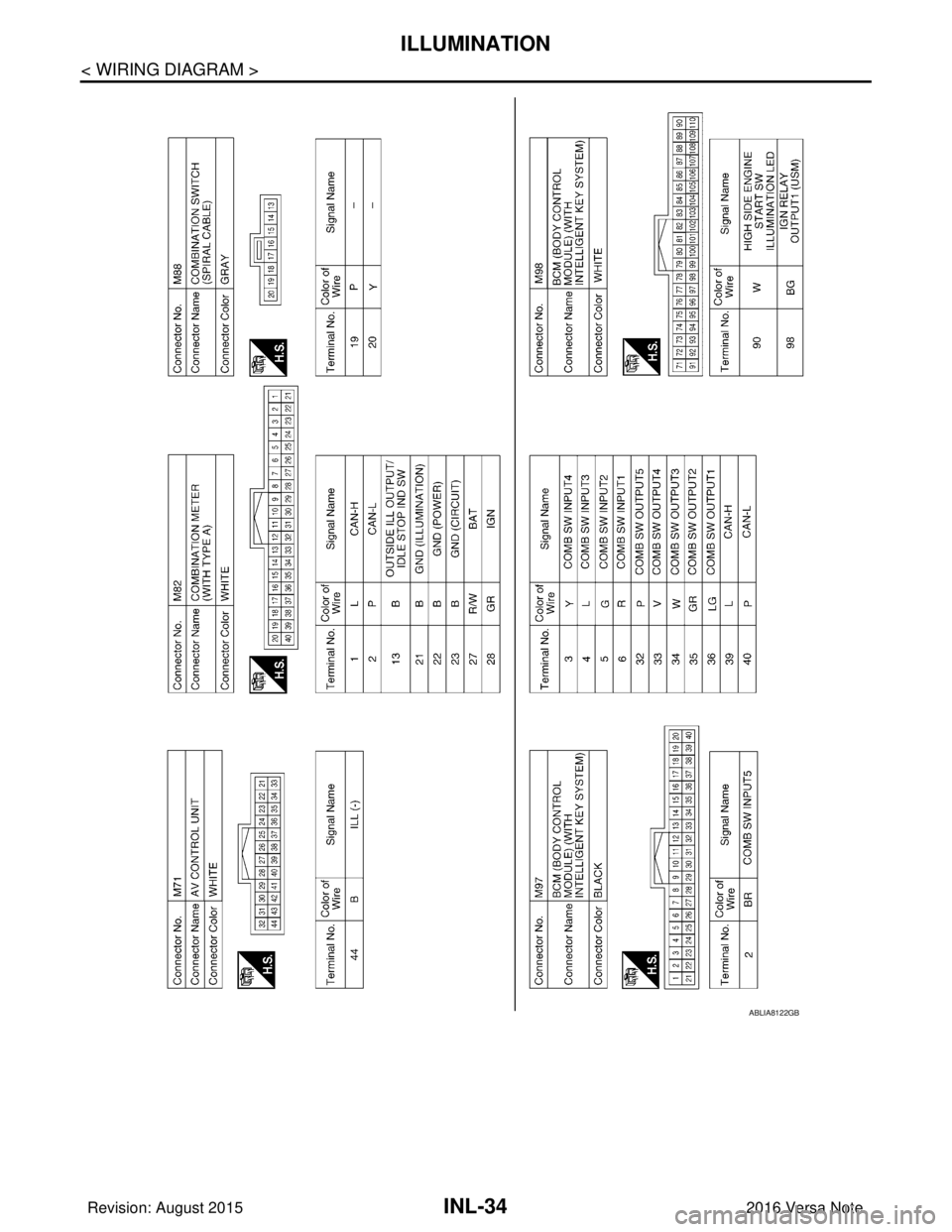

NISSAN NOTE 2016 Service Repair Manual ILLUMINATIONINL-33 < WIRING DIAGRAM > C DE F G H I J K M A B INL N O P ABLIA8121GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 2128 of 3641

NISSAN NOTE 2016 Service Repair Manual INL-34 < WIRING DIAGRAM > ILLUMINATION ABLIA8122GB Revision: August 20152016 Versa Note cardiagn.com
