Page 2593 of 3641

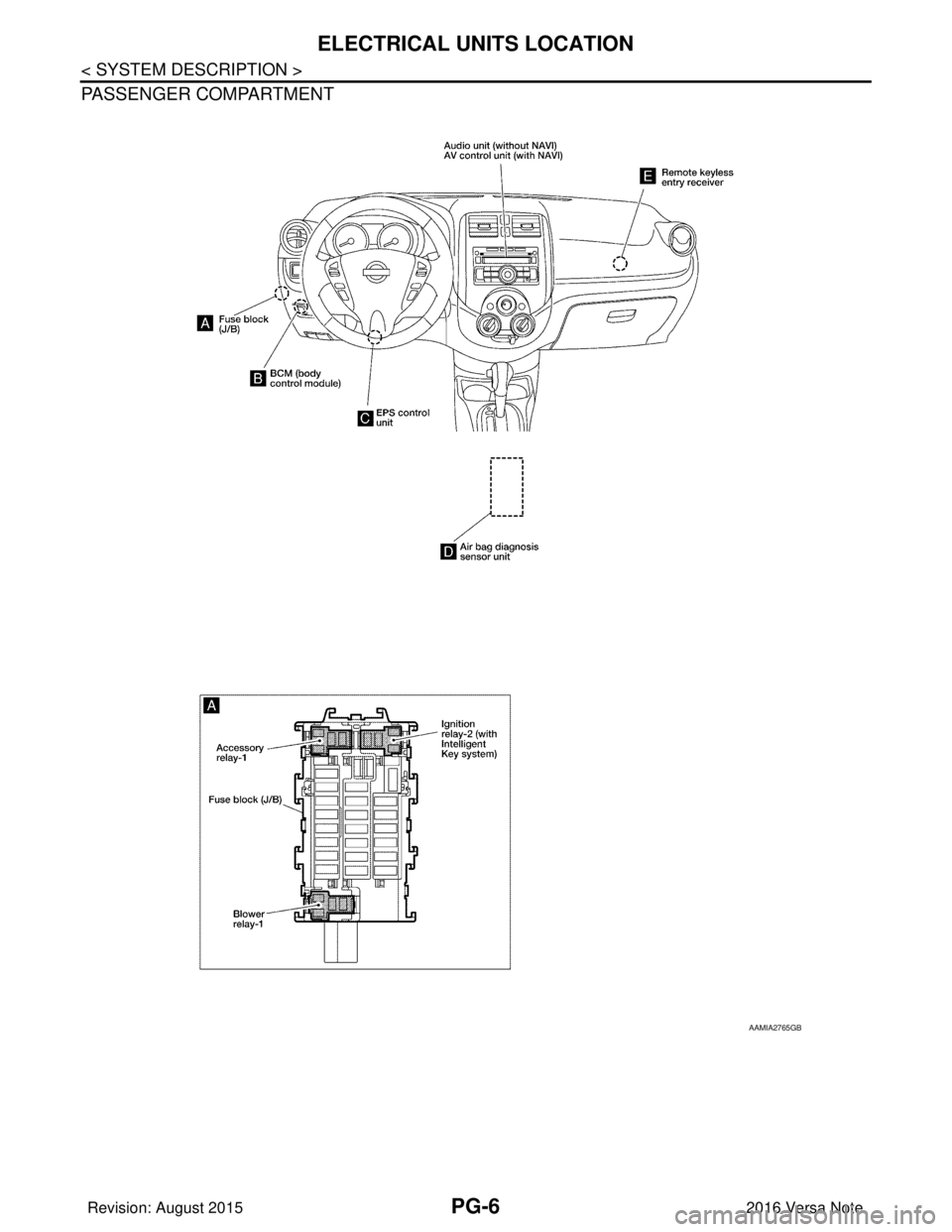

NISSAN NOTE 2016 Service Repair Manual PG-6 < SYSTEM DESCRIPTION > ELECTRICAL UNITS LOCATION PASSENGER COMPARTMENT AAMIA2765GB Revision: August 20152016 Versa Note cardiagn.com

Page 2594 of 3641

NISSAN NOTE 2016 Service Repair Manual PG ELECTRICAL UNITS LOCATIONPG-7 < SYSTEM DESCRIPTION > C DE F G H I J K L B A O P N AAMIA1786GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 2595 of 3641

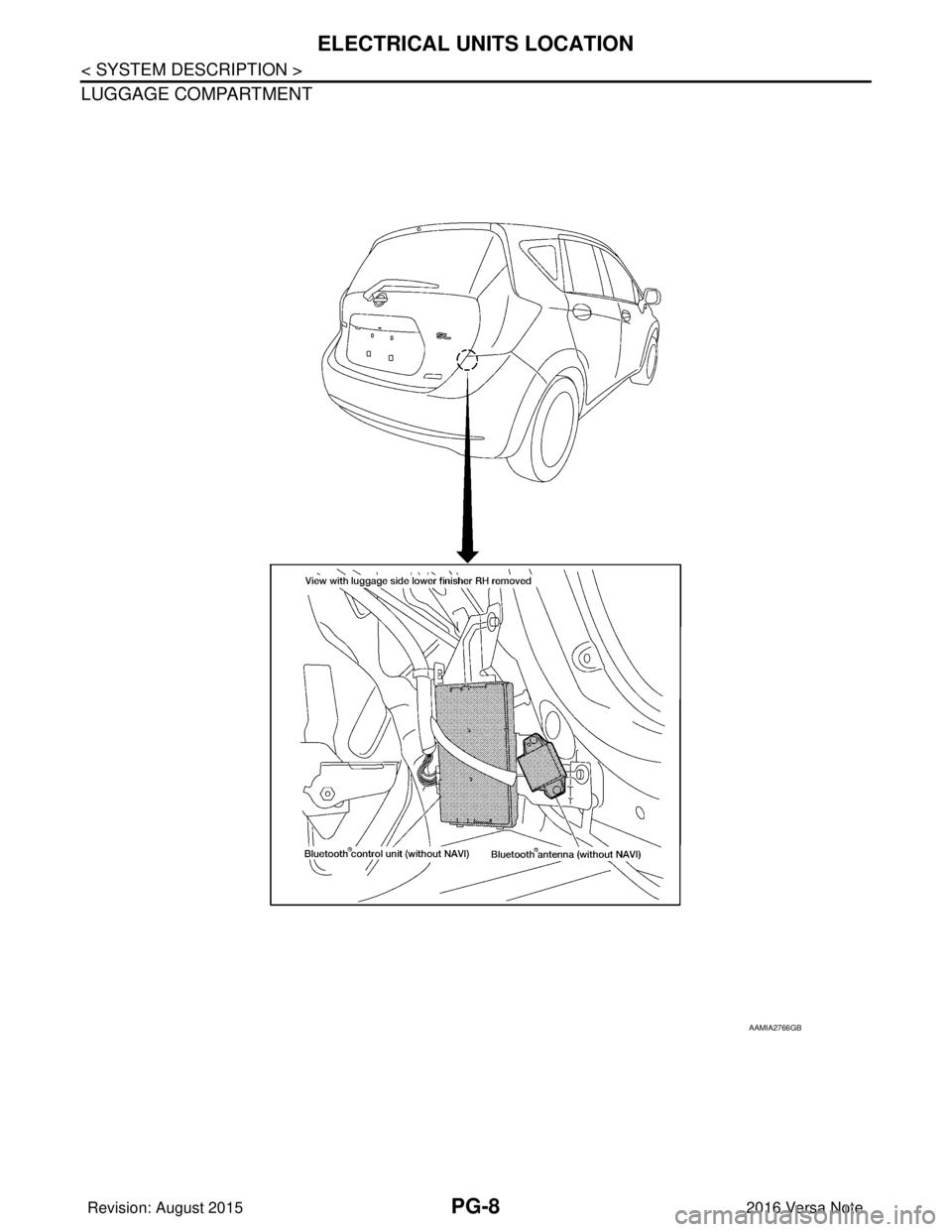

NISSAN NOTE 2016 Service Repair Manual PG-8 < SYSTEM DESCRIPTION > ELECTRICAL UNITS LOCATION LUGGAGE COMPARTMENT AAMIA2766GB Revision: August 20152016 Versa Note cardiagn.com

Page 2596 of 3641

NISSAN NOTE 2016 Service Repair Manual PG COMPONENT PARTSPG-9 < SYSTEM DESCRIPTION > C DE F G H I J K L B A O P N COMPONENT PARTS Circuit Breaker (Built Into BCM)INFOID:0000000012433116 For example, when current is 30A, the circuit is brok

Page 2597 of 3641

NISSAN NOTE 2016 Service Repair Manual PG-10 < SYSTEM DESCRIPTION > COMPONENT PARTS [Example] HARNESS CONNECTOR (SLIDE-LOCKING TYPE) • A new style slide-locking type connector is used on certain systems and components, especially those r

Page 2598 of 3641

NISSAN NOTE 2016 Service Repair Manual PG COMPONENT PARTSPG-11 < SYSTEM DESCRIPTION > C DE F G H I J K L B A O P N [Example] HARNESS CONNECTOR (LEVER LOCKING TYPE) • Lever locking type harness connectors are used on certain control units

Page 2599 of 3641

NISSAN NOTE 2016 Service Repair Manual PG-12 < SYSTEM DESCRIPTION > COMPONENT PARTS • Always confirm the lever is fully released (loosened) before attempting to disconnect or connect these connectors to avoid damage to the connector hou

Page 2600 of 3641

NISSAN NOTE 2016 Service Repair Manual PG COMPONENT PARTSPG-13 < SYSTEM DESCRIPTION > C DE F G H I J K L B A O P N Relays can mainly be divided into three types: normal open, normal closed and mixed type relays. TYPE OF STANDARDIZED RELAYS
