2016 NISSAN NOTE Service Repair Manual

gearbox CD player OBD port snow chains fog light bulb sat nav

Load previous 8 pages

Page 73 of 3641

NISSAN NOTE 2016 Service Repair Manual AV-68
< SYSTEM DESCRIPTION >[DISPLAY AUDIO]
COMPONENT PARTS

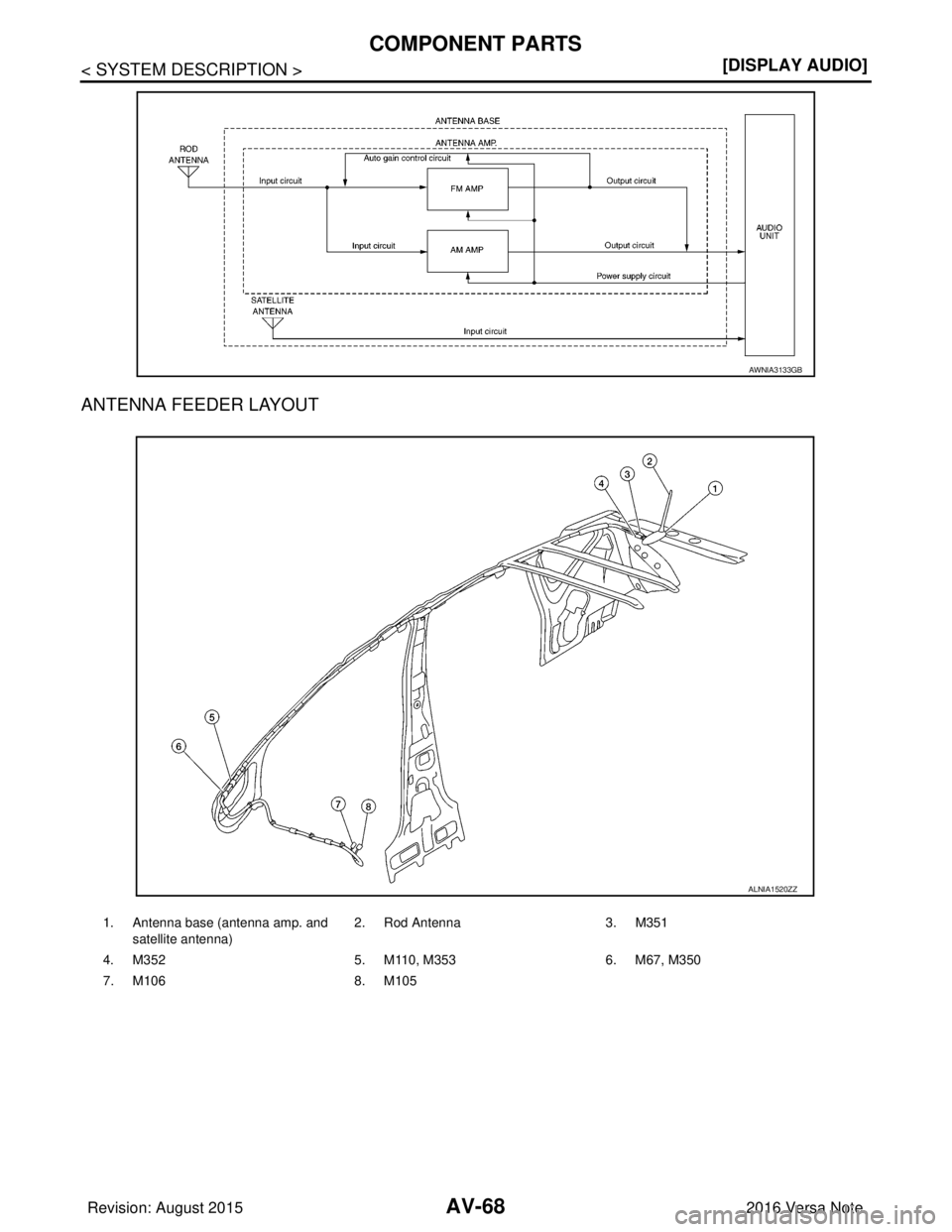

ANTENNA FEEDER LAYOUT
AWNIA3133GB
1. Antenna base (antenna amp. and
satellite antenna) 2. Rod Antenna
3. M351
4. M352 5. M110, M3536. M67,

Page 74 of 3641

NISSAN NOTE 2016 Service Repair Manual AV
SYSTEMAV-69
< SYSTEM DESCRIPTION > [DISPLAY AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
SYSTEM
System DescriptionINFOID:0000000012432959
SYSTEM DIAGRAM
AUDIO SYSTEM
The audio system consists of the follow

Page 75 of 3641

NISSAN NOTE 2016 Service Repair Manual AV-70
< SYSTEM DESCRIPTION >[DISPLAY AUDIO]
SYSTEM
SPEED SENSITIVE VOLUME SYSTEM
Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control
level can be

Page 76 of 3641

NISSAN NOTE 2016 Service Repair Manual AV
DIAGNOSIS SYSTEM (AUDIO UNIT)AV-71
< SYSTEM DESCRIPTION > [DISPLAY AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
DIAGNOSIS SYSTEM (AUDIO UNIT)
DescriptionINFOID:0000000012432960
The audio unit on board diag

Page 77 of 3641

NISSAN NOTE 2016 Service Repair Manual AV-72
< SYSTEM DESCRIPTION >[DISPLAY AUDIO]
DIAGNOSIS SYSTEM (AUDIO UNIT)
2. Self diagnosis screen is displayed. The bar graph vi
sible in center of screen indicates progress of self
diagnosis.
3. Dia

Page 78 of 3641

NISSAN NOTE 2016 Service Repair Manual AV
DIAGNOSIS SYSTEM (AUDIO UNIT)AV-73
< SYSTEM DESCRIPTION > [DISPLAY AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
2. Select each switch on the Confirmation/Adjustment screen to display the relevant trouble d

Page 79 of 3641

NISSAN NOTE 2016 Service Repair Manual AV-74
< SYSTEM DESCRIPTION >[DISPLAY AUDIO]
DIAGNOSIS SYSTEM (AUDIO UNIT)
Select Speaker Test to display the Speaker Diagnosis screen. Press
Start to generate a test tone in a speaker. Press Start aga

AV-74
< SYSTEM DESCRIPTION >[DISPLAY AUDIO]
DIAGNOSIS SYSTEM (AUDIO UNIT)
Select Speaker Test to display the Speaker Diagnosis screen. Press
Start to generate a test tone in a speaker. Press Start again to gener-
ate a test tone in the next speaker.
Press End to stop the test tones.
Error History
The self diagnosis results are judged depending on whether any error occurs from when Self Diagnosis is
selected until the self diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned
ON and then no error has occurred until the self diagnosis start. Check the Error Record to detect any error
that may have occurred before the self di agnosis start because of this situation.
The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending
on the error item.
Count up method A
• The counter is set to 40 if an error occurs. 1 is subtracted from the counter if the condition is normal at a next ignition ON cycle.
• The counter lower limit is 1. The counter can be reset (no error record display) with the Delete log switch.
Count up method B• The counter increases by 1 if an error occurs when i gnition switch is ON. The counter will not decrease even
if the condition is normal at the next ignition ON cycle.
• The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error
record display) with the Delete log switch.
Error item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed
simultaneously, the detection of the cause can be performed by the combination of display items
Camera System
Use this mode to adjust the guide line display position of the rear
view monitor if necessary after removing the rear view camera.
Delete Unit Connection Log
AWNIA2634GB
Display type of occurrence frequency Error history display item
Count up method A AV communication line, control unit (AV)
Count up method B Other than the above
Error item DescriptionPossible cause
CONTROL UNIT (AV) AV communication circuit initial diagnosis
malfunction is detected.Replace the audio unit if the malfunction
occurs constantly.
Refer to
AV- 11 3 , "
Removal and Installation"
JSNIA1876ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 80 of 3641

NISSAN NOTE 2016 Service Repair Manual AV
DIAGNOSIS SYSTEM (AUDIO UNIT)AV-75
< SYSTEM DESCRIPTION > [DISPLAY AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
Deletes any unit connection records and error records from the
audio unit memory (clears the

Load next 8 pages
