Page 1769 of 3641

EXT-2
FLOOR UNDER COVER ...........................................40
FLOOR UNDER COVER : Removal and Installa-
tion ..........................................................................
40
REAR WIND DEFLECTOR .................................... ...41
REAR WIND DEFLECTOR : Removal and Instal-
lation .......................................................................
41
ROOF SIDE MOLDING ......................................42
Exploded View ..................................................... ...42
Removal and Installation ........................................42
DOOR SASH TAPE ...........................................44
Exploded View ..................................................... ...44
Removal and Installation .........................................45
DOOR OUTSIDE MOLDING .............................46
Exploded View ..................................................... ...46
Removal and Installation .........................................47
BACK DOOR OUTER FINISHER ................... ...48
Exploded View ..................................................... ...48
Removal and Installation .........................................48
REAR SPOILER ............................................. ...49
Exploded View ..................................................... ...49
Removal and Installation .........................................49
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1770 of 3641

PRECAUTIONSEXT-3
< PRECAUTION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012432151
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Procedure without Cowl Top CoverINFOID:0000000012432152
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc. to prevent damage to
the windshield.
Precaution for WorkINFOID:0000000012432153
• When removing or disassembling each component, be ca reful not to damage or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a shop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusabl e part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
-Oily dirt:
PIIB3706J
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1771 of 3641
EXT-4
< PRECAUTION >
PRECAUTIONS
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirtyarea.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1772 of 3641
PREPARATIONEXT-5
< PREPARATION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000012432154
The actual shape of the tools may di ffer from those illustrated here.
Commercial Service ToolsINFOID:0000000012432155
Tool number
(TechMate No.)
Tool name Description
—
(J-39570)
Chassis Ear Locating the noise
—
(J-50397)
NISSAN Squeak and Rattle
Kit Repairing the cause of noise
—
(J-46534)
Trim Tool Set Removing trim components
SIIA0993E
ALJIA1232ZZ
AWJIA0483ZZ
(TechMate No.)
Tool name
Description
(J-39565)
Engine Ear Locating the noise
(—)
Power tool Loosening nuts, screws and bolts
SIIA0995E
PIIB1407E
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 1773 of 3641
EXT-6
< PREPARATION >
CLIP LIST
CLIP LIST

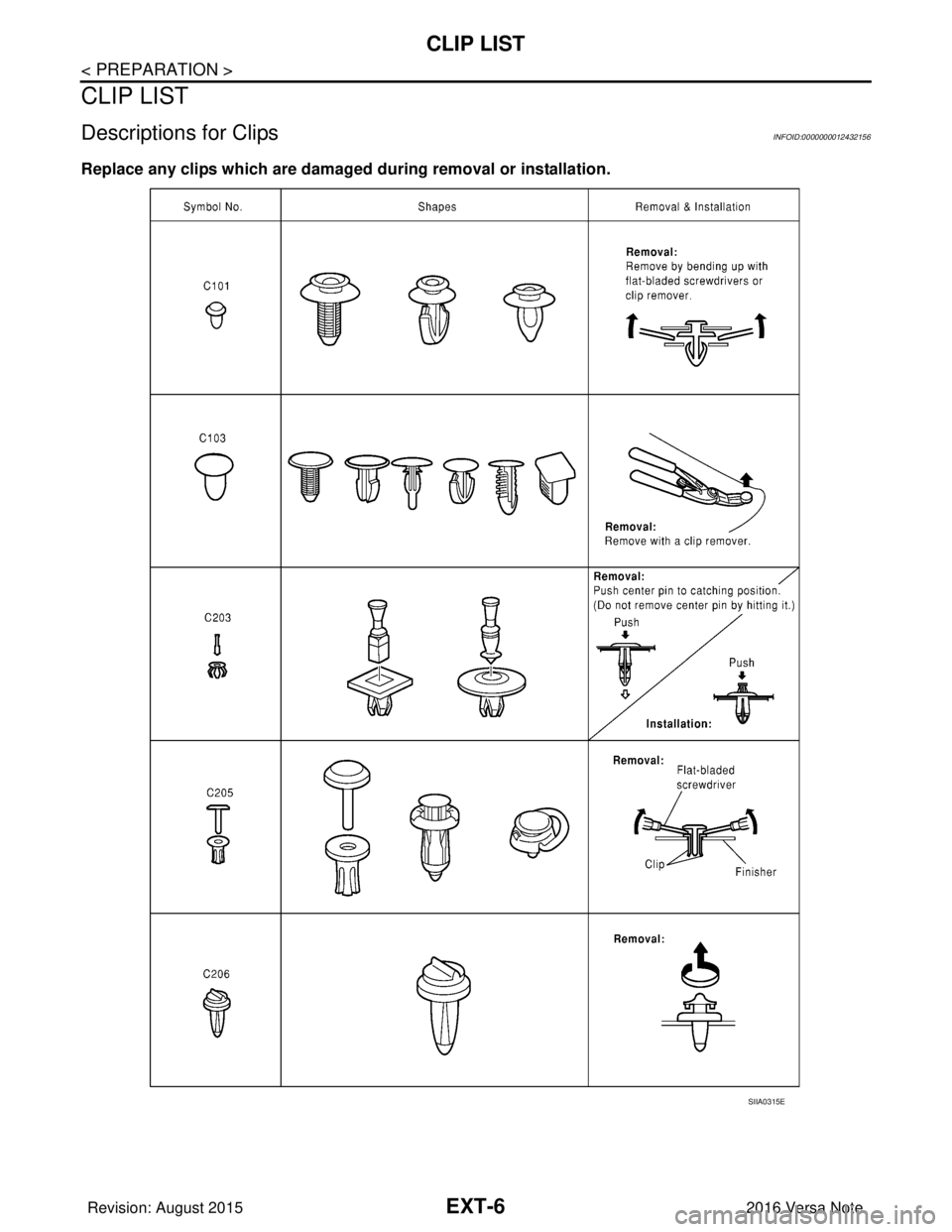

Descriptions for ClipsINFOID:0000000012432156
Replace any clips which are damaged during removal or installation.
SIIA0315E
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1774 of 3641
CLIP LISTEXT-7
< PREPARATION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P

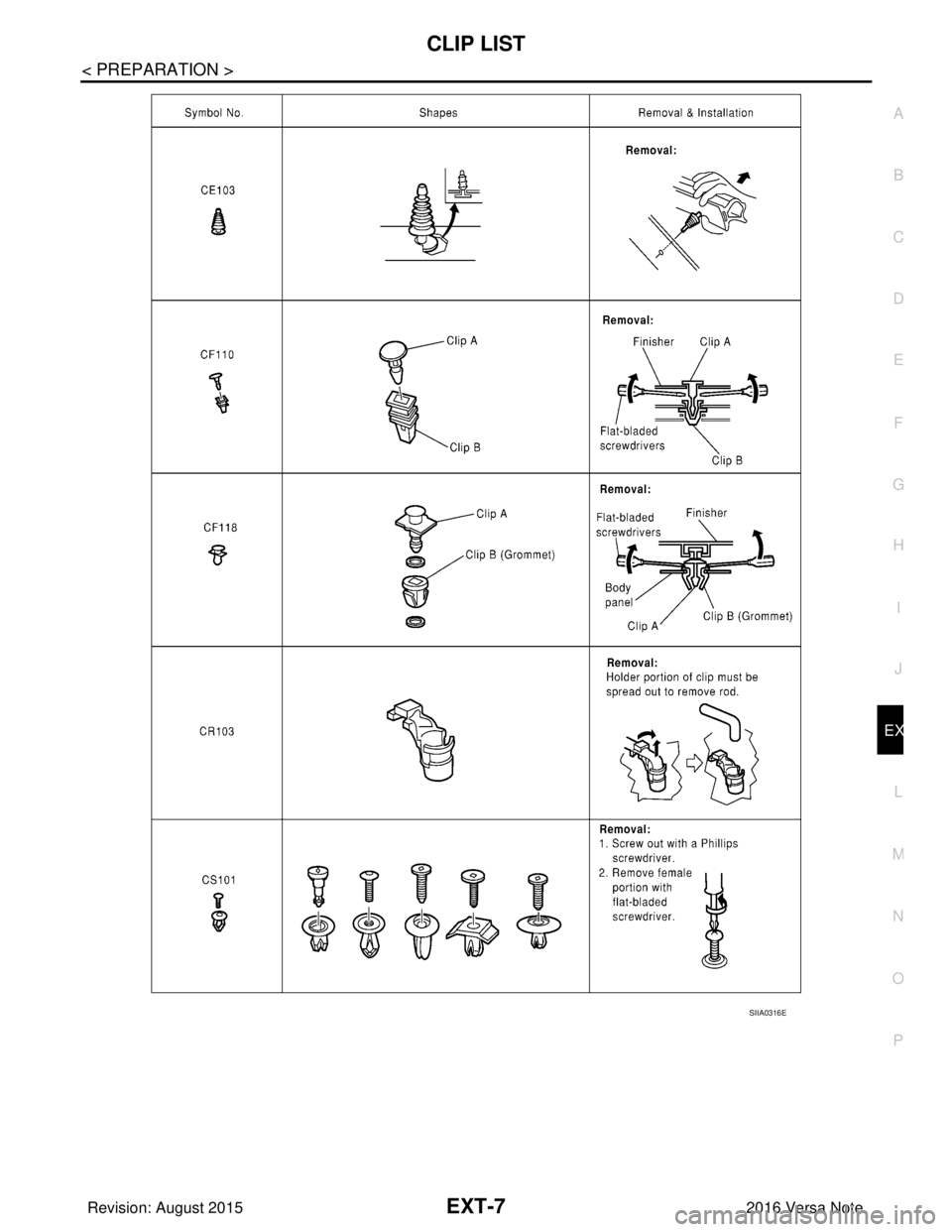

SIIA0316E
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1775 of 3641
EXT-8
< PREPARATION >
CLIP LIST

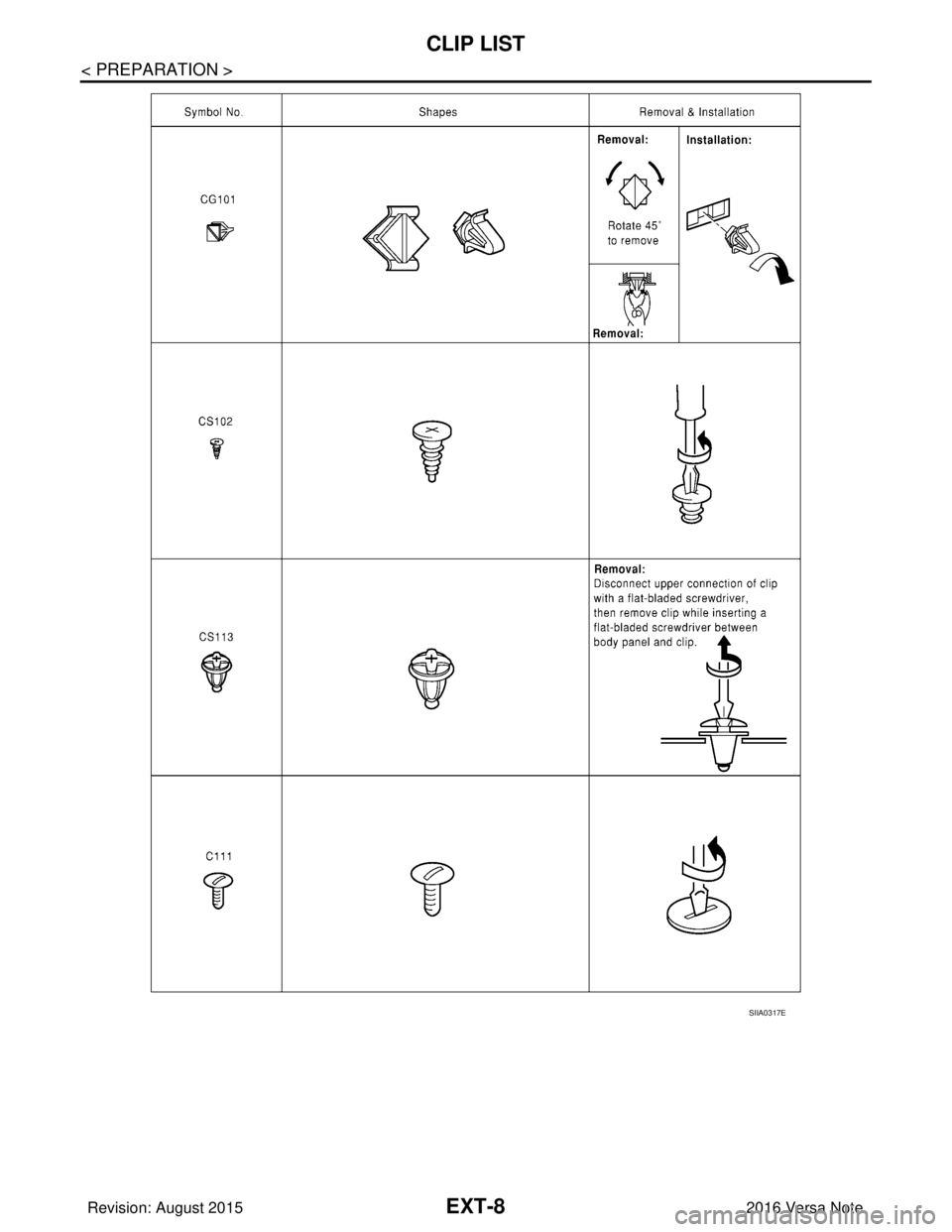

SIIA0317E
Revision: August 20152016 Versa Note
cardiagn.com
Page 1776 of 3641
CLIP LISTEXT-9
< PREPARATION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P

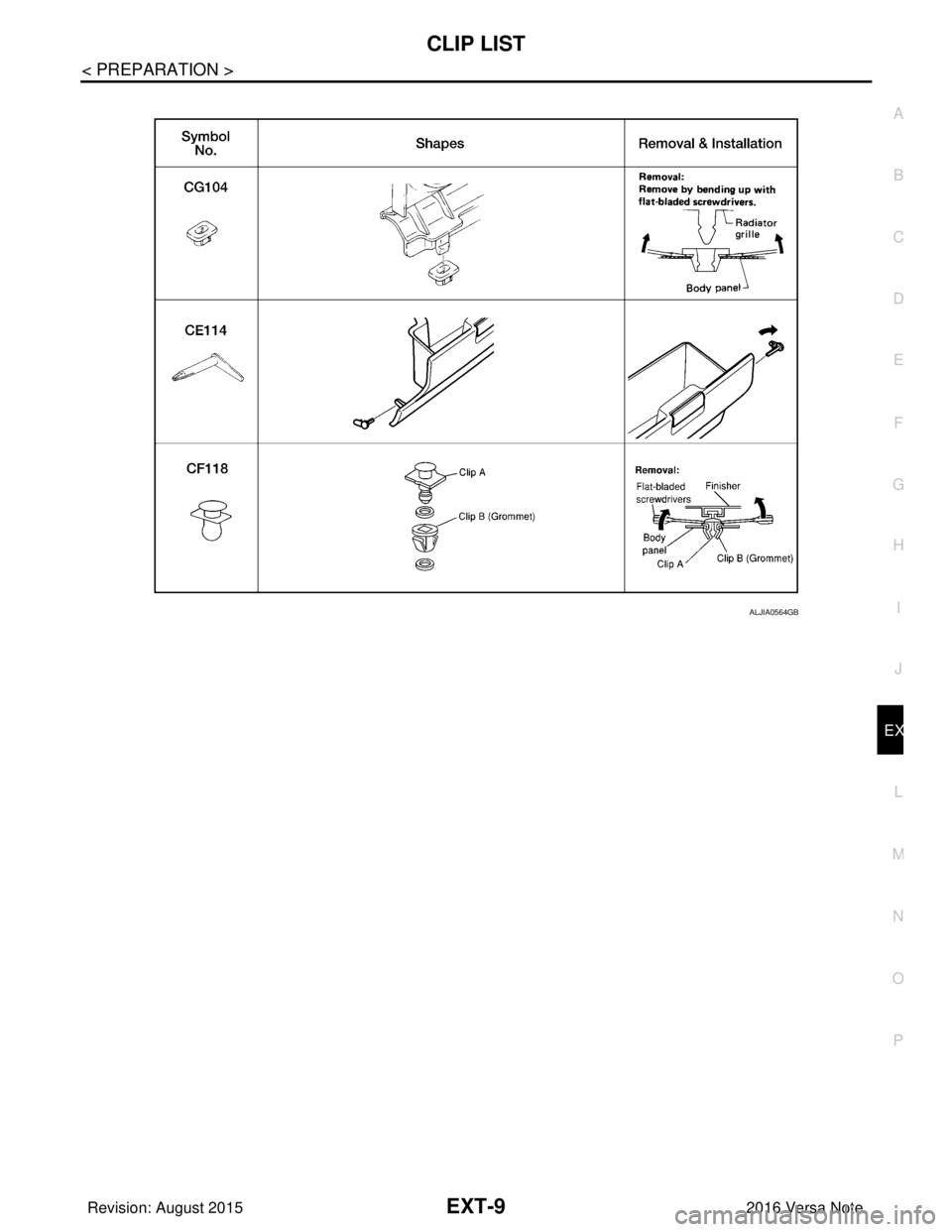

ALJIA0564GB
Revision: August 2015 2016 Versa Note
