Page 2645 of 3641
PG-58
< WIRING DIAGRAM >
FUSE BLOCK - JUNCTION BOX (J/B)
FUSE BLOCK - JUNCTION BOX (J/B)

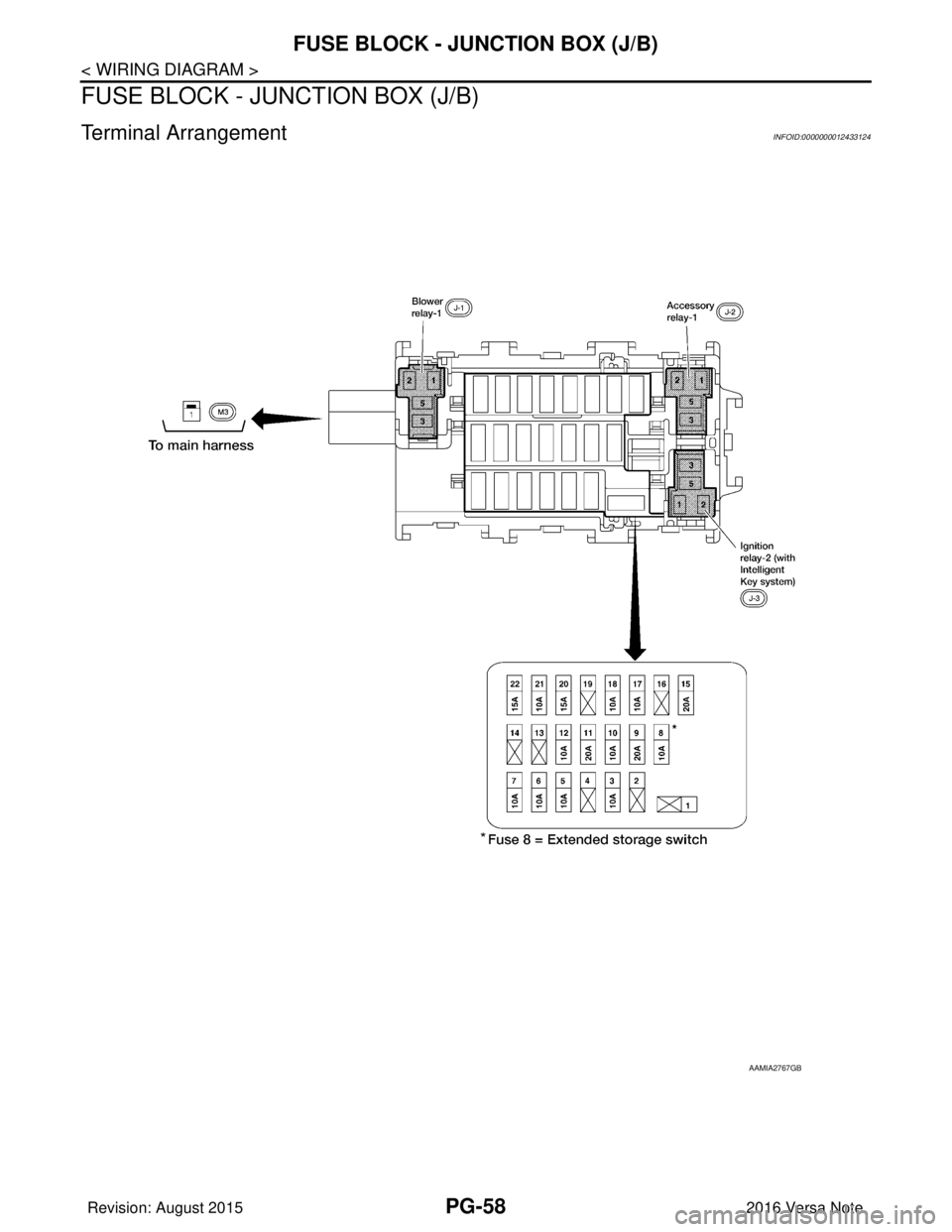

Terminal ArrangementINFOID:0000000012433124
AAMIA2767GB
Revision: August 20152016 Versa Note
cardiagn.com
Page 2646 of 3641
PG
FUSE AND FUSIBLE LINK BOXPG-59
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
B A
O P
N
FUSE AND FUSIBLE LINK BOX

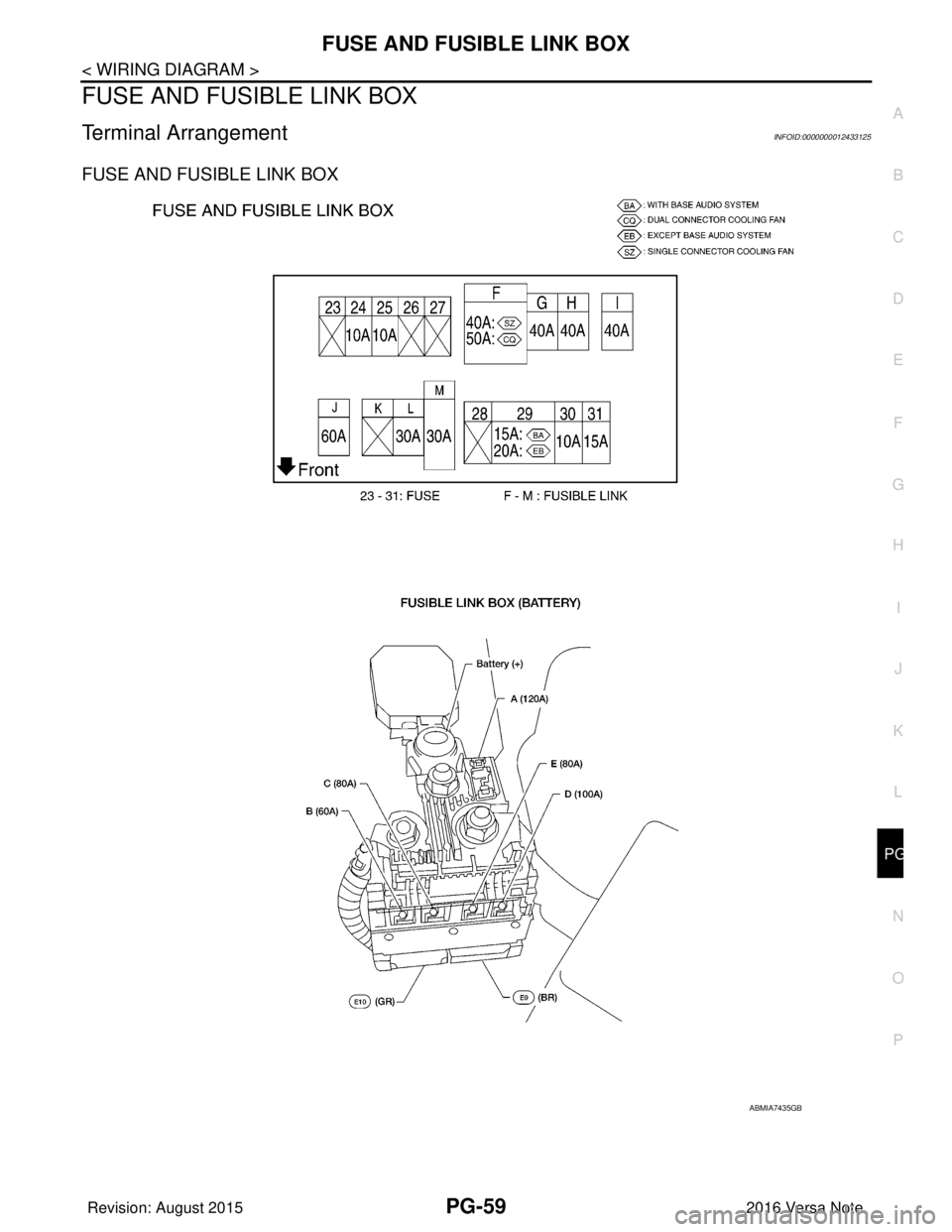

Terminal ArrangementINFOID:0000000012433125
FUSE AND FUSIBLE LINK BOX
ABMIA7435GB
Revision: August 2015
2016 Versa Note
