Page 889 of 3502
TROUBLE DIAGNOSIS FOR SYSTEM
BRC-29
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
CAN Communication SystemBFS000DB
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn ignition switch OFF, disconnect the ABS actuator and electric unit (control unit) connector, and check
terminal for deformation, disconnection, looseness, and so on. If there is a malfunction, repair or replace
the terminal.
2. Connect connectors securely and perform self-diagnosis again.
Is above displayed on self-diagnosis display?
YES >> Print out the self-diagnostic results and refer to LAN-49, "CAN System Specification Chart" .
NO >> Connector terminal connector is loose, damaged, open or shorted.
Self-diagnostic results
CAN COMM CIRCUIT
Page 890 of 3502
![NISSAN TEANA 2003 Service Manual BRC-30
[ABS]
TROUBLE DIAGNOSIS FOR SYMPTOMS
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Excessive ABS Function Operation FrequencyBFS000DC
1. CHECK START
Check front/rear brake force distribution using NISSAN TEANA 2003 Service Manual BRC-30
[ABS]
TROUBLE DIAGNOSIS FOR SYMPTOMS
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Excessive ABS Function Operation FrequencyBFS000DC
1. CHECK START
Check front/rear brake force distribution using](/manual-img/5/57392/w960_57392-889.png)
BRC-30
[ABS]
TROUBLE DIAGNOSIS FOR SYMPTOMS
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Excessive ABS Function Operation FrequencyBFS000DC
1. CHECK START
Check front/rear brake force distribution using a brake tester. Refer to BR-40, "
SERVICE DATA AND SPECIFI-
CATIONS (SDS)" .
OK or NG
OK >> GO TO 2.
NG >> Check brake system.
2. CHECK FRONT AND REAR AXLE
Check to make sure that there is no excessive play in the front and rear axles. Refer to Front: FAX-5, "
On-
Vehicle Inspection" , Rear: RAX-3, "On-Vehicle Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair.
3. CHECK WHEEL SENSOR AND SENSOR ROTOR
Check wheel sensor and sensor rotor for the following.
Sensor installation for damage
Sensor rotor installation for damage
Sensor connector connection
Sensor harness inspection
OK or NG
OK >> GO TO 4.
NG >>
Replace wheel sensor or sensor rotor.
Repair harness.
4. CHECK ABS WARNING LAMP DISPLAY
Make sure that the warning lamp turns off approximately 1 second after the ignition switch is turned ON or
when driving.
OK or NG
OK >> Normal
NG >> Perform self-diagnosis. Refer to BRC-17, "
Self-Diagnosis" .
Unexpected Pedal ActionBFS000DD
1. CHECK BRAKE PEDAL STROKE
Check brake pedal stroke. Refer to BR-6, "
Inspection and Adjustment" .
Is the stroke too big?
YES >>Bleed air from the brake piping. Refer to BR-10, "Bleeding Brake System" .
Check brake pedal, brake booster, and master cylinder for mount play, looseness, brake fluid
leakage, etc. Repair if necessary. Refer to Brake pedal: BR-7, "
COMPONENTS" , brake
booster and master cylinder: BR-22, "
COMPONENTS" .
NO >> GO TO 2.
Page 891 of 3502
![NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
BRC-31
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
2. CHECK FUNCTION
Disconnect ABS actuator and electric unit (control unit) connector to deactivate ABS. Check if braking force NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
BRC-31
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
2. CHECK FUNCTION
Disconnect ABS actuator and electric unit (control unit) connector to deactivate ABS. Check if braking force](/manual-img/5/57392/w960_57392-890.png)
TROUBLE DIAGNOSIS FOR SYMPTOMS
BRC-31
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
2. CHECK FUNCTION
Disconnect ABS actuator and electric unit (control unit) connector to deactivate ABS. Check if braking force is
normal in this condition. Connect connector after inspection.
OK or NG
OK >> GO TO 3. Check Wheel Sensor and Sensor Rotor. Refer to BRC-30, "Excessive ABS Function
Operation Frequency" .
NG >> Check brake system.
Longer Stopping DistanceBFS000DE
CAUTION:
The stopping distance on slippery road surfaces might be longer with the ABS operating than when
the ABS is not operating.
1. CHECK FUNCTION
Turn ignition switch OFF. Disconnect ABS actuator and electric unit (control unit) connectors to deactivate
ABS. In this condition, check stopping distance. After inspection, connect connectors.
OK or NG
OK >> GO TO 3. Check Wheel Sensor and Sensor Rotor. Refer to BRC-30, "Excessive ABS Function
Operation Frequency" .
NG >>
Bleed air from the brake piping. Refer to BR-10, "Bleeding Brake System" .
Check brake system.
ABS Function Does Not OperateBFS000DF
CAUTION:
ABS does not operate when speed is 10 km/h (6 MPH) or lower.
1. CHECK ABS WARNING LAMP DISPLAY
Make sure that the warning lamp turns off approximately 1 second after the ignition switch is turned ON or
when driving.
OK or NG
OK >> GO TO 3. Check Wheel Sensor and Sensor Rotor. Refer to BRC-30, "Excessive ABS Function
Operation Frequency" .
NG >> Perform self-diagnosis. Refer to BRC-17, "
Self-Diagnosis" .
Pedal Vibration and ABS Operation Sound OccursBFS000DG
CAUTION:
Under the following conditions, ABS is activated and vibration is felt when brake pedal is lightly
depressed (just place a foot on it). However, this is normal.
When shifting gears
When driving on slippery road
During cornering at high speed
When passing over bumps or grooves [at approximately 50 mm (1.97 in) or more]
When pulling away just after starting engine [at approximately 10 km/h (6 MPH) or more]
1. SYMPTOM CHECK 1
Check if there is pedal vibration and operation sound when the engine is started.
OK or NG
OK >> GO TO 2.
NG >> Perform self-diagnosis. Refer to BRC-17, "
Self-Diagnosis" .
Page 892 of 3502
BRC-32
[ABS]
TROUBLE DIAGNOSIS FOR SYMPTOMS
2. SYMPTOM CHECK 2
Check symptoms when electrical component (headlamps, etc.) switches are operated.
Do symptoms occur?
YES >> Check if there is a radio, antenna, antenna lead wire, or wiring close to the control unit. If there is,
move it farther away.
NO >> GO TO 3. Check Wheel Sensor and Sensor Rotor. Refer to BRC-30, "
Excessive ABS Function
Operation Frequency" .
Page 893 of 3502
![NISSAN TEANA 2003 Service Manual WHEEL SENSORS
BRC-33
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
WHEEL SENSORSPFP:47910
Removal and InstallationBFS000DH
COMPONENTS
REMOVAL
Be careful of the following:
CAUTION:
When removing the wheel sensor, NISSAN TEANA 2003 Service Manual WHEEL SENSORS
BRC-33
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
WHEEL SENSORSPFP:47910
Removal and InstallationBFS000DH
COMPONENTS
REMOVAL
Be careful of the following:
CAUTION:
When removing the wheel sensor,](/manual-img/5/57392/w960_57392-892.png)
WHEEL SENSORS
BRC-33
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
WHEEL SENSORSPFP:47910
Removal and InstallationBFS000DH
COMPONENTS
REMOVAL
Be careful of the following:
CAUTION:
When removing the wheel sensor, do not rotate it if possible, and do not forcibly pull the wheel sensor
harness.
INSTALLATION
Note the following, and tighten bolts to the specified torque.
Check the inside of the wheel sensor mounting hole for foreign materials, the rotor surface for iron chips
and other foreign materials. Clean both the wheel sensor mounting hole and the rotor surface before
installation. Replace the wheel sensor if there is any non-standard condition.
Completely push in rubber clamp of strut bracket and body bracket until they lock when installing front
wheel sensor so that the wheel sensor harness will not be twisted. Install grommet groove onto bracket
with yellow line on the harness facing bracket opening (mounting hole). There should be no twists in the
harness when installed.
When installing the rear sensor, securely install the harness mount of the rear suspension member so that
the wheel sensor harness is not twisted. In addition, there should be no twists in the harness when
installed.
SFIA2091E
Page 894 of 3502
BRC-34
[ABS]
SENSOR ROTOR
SENSOR ROTORPFP:47970
Removal and InstallationBFS000DI
FRONT
Sensor rotor cannot be disassembled. Replace wheel hub and bearing assembly and sensor rotor as a set.
Refer to FA X - 5 , "
Removal and Installation" in FAX section.
REAR
Sensor rotor cannot be disassembled. Replace wheel hub and bearing assembly and sensor rotor as a set.
Refer to RAX-3, "
Removal and Installation" in RAX section.
Page 895 of 3502
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
BRC-35
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)PFP:47660
Removal and InstallationBFS000DJ

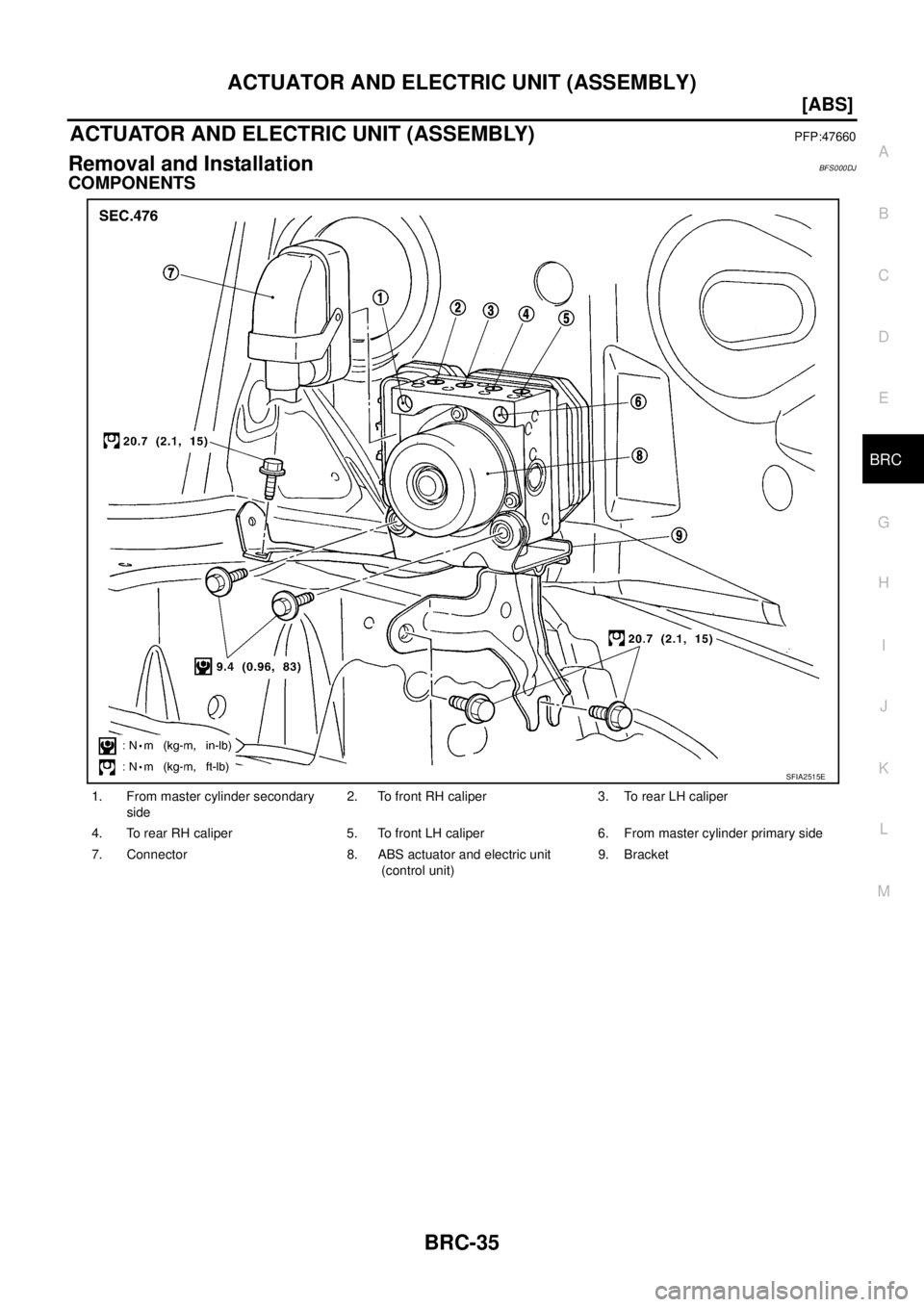

COMPONENTS
1. From master cylinder secondary
side2. To front RH caliper 3. To rear LH caliper
4. To rear RH caliper 5. To front LH caliper 6. From master cylinder primary side
7. Connector 8. ABS actuator and electric unit
(control unit)9. Bracket
SFIA2515E
Page 896 of 3502
![NISSAN TEANA 2003 Service Manual BRC-36
[ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
REMOVAL
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Loosen brake tube flare nuts, then remove brake tubes from ABS ac NISSAN TEANA 2003 Service Manual BRC-36
[ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
REMOVAL
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Loosen brake tube flare nuts, then remove brake tubes from ABS ac](/manual-img/5/57392/w960_57392-895.png)
BRC-36
[ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
REMOVAL
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Loosen brake tube flare nuts, then remove brake tubes from ABS actuator and electric unit (control unit).
3. Remove ABS actuator and electric unit (control unit) mounting bolts.
4. Remove ABS actuator and electric unit (control unit) from vehicle.
CAUTION:
Be careful of the following when removing ABS actuator and electric unit (control unit).
If the part number on the part number label (pasted on actuator upper surface) is the same, ABS
actuator and electric unit (control unit) cannot be used on another vehicle.
If it is used on another vehicle, ABS warning lamp, may turn ON or ABS may not operate normally.
When replacing ABS actuator and electric unit (control unit), must use new service parts.
Before servicing, disconnect both battery cables.
To remove brake tube, use a flare nut torque wrench to prevent flare nuts and brake tube from
being damaged. To install, use a flare nut torque wrench (commercial service tool) and tighten
with the specified torque.
Do not apply excessive impact to actuator, such as dropping it.
Do not remove and install ABS actuator and electric unit (control unit) by holding harness.
INSTALLATION
Install is in the reverse order of the removal.
CAUTION:
Be careful of the following when installing ABS actuator and electric unit (control unit).
Tighten the mounting bolts and nuts with the specified torque.
After the work, bleed air from brake piping. Refer to BR-10, "Bleeding Brake System" .
After installing body harness connector in the actuator, make sure connector is securely locked.
