Page 1057 of 3502

TROUBLE DIAGNOSIS
CVT-51
D
E
F
G
H
I
J
K
L
MA
B
CVT
DSTM STEP (step) — —
STM STEP (step) — X
LU PRS (MPa) — —
LINE PRS (MPa) — —
TGT SEC PRESS (MPa) — —
ISOLT1 (A) — XTorque converter clutch solenoid valve output
current
ISOLT2 (A) — XPressure control solenoid valve A (line pressure
solenoid valve) output current
ISOLT3 (A) — XPressure control solenoid valve B (secondary
pressure solenoid valve) output current
SOLMON1 (A) X XTorque converter clutch solenoid valve monitor
current
SOLMON2 (A) X XPressure control solenoid valve A (line pressure
solenoid valve) monitor current
SOLMON3 (A) X XPressure control solenoid valve B (secondary
pressure solenoid valve) monitor current
INH SW3M (ON/OFF) X — PNP switch 3 ON-OFF status monitor
INH SW4 (ON/OFF) X — PNP switch 4 ON-OFF status
INH SW3 (ON/OFF) X — PNP switch 3 ON-OFF status
INH SW2 (ON/OFF) X — PNP switch 2 ON-OFF status
INH SW1 (ON/OFF) X — PNP switch 1 ON-OFF status
BRAKE SW (ON/OFF) X XStop lamp switch (Signal input with CAN commu-
nication)
FULL SW (ON/OFF) X X
Signal input with CAN communication
IDLE SW (ON/OFF) X X
SPORT MODE SW (ON/OFF) X X
Not mounted but displayed STRDWNSW (ON/OFF) X —
STRUPSW (ON/OFF) X —
DOWNLVR (ON/OFF) X —
UPLVR (ON/OFF) X —
NON MMODE (ON/OFF) X —
MMODE (ON/OFF) X —
INDLRNG (ON/OFF) — —
INDDRNG (ON/OFF) — — “D” position indicator output
INDNRNG (ON/OFF) — — “N” position indicator output
INDRRNG (ON/OFF) — — “R” position indicator output
INDPRNG (ON/OFF) — — “P” position indicator output
CVTLAMP (ON/OFF) — —Monitored item (Unit)Monitor item selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU
Page 1058 of 3502

CVT-52
TROUBLE DIAGNOSIS
CAN DIAGNOSTIC SUPPORT MONITOR MODE
Operation Procedure
1. Touch “CAN DAIG SUPPORT MNTR” on “SELECT DIAG
MODE” screen. Refer to LAN-44, "
CAN Diagnostic Support
Monitor" .
SPORT MODE IND (ON/OFF) — — Not mounted but displayed.
MMODE IND (ON/OFF) — —
SMCOIL D (ON/OFF) — — Step motor coil “D” energizing status
SMCOIL C (ON/OFF) — — Step motor coil “C” energizing status
SMCOIL B (ON/OFF) — — Step motor coil “B” energizing status
SMCOIL A (ON/OFF) — — Step motor coil “A” energizing status
LUSEL SOL OUT (ON/OFF) — —
REV LAMP (ON/OFF) — X
STRTR RLY OUT (ON/OFF) — — Starter relay
LUSEL SOL MON (ON/OFF) — —
STRTR RLY MON (ON/OFF) — — Starter relay
VDC ON (ON/OFF) X — ESP (Electronic Stability Program)
TCS ON (ON/OFF) X —
ABS ON (ON/OFF) X —
ACC ON (ON/OFF) X — Not mounted but displayed
RANGE — XIndicates position is recognized by TCM. Indi-
cates a specific value required for control when
fail-safe function is activated
M GEAR POS — X
Voltage (V) — —Displays the value measured by the voltage
probe
Frequency (Hz) — —
The value measured by the pulse probe is dis-
played DUTY-HI (high) (%) — —
DUTY-LOW (low) (%) — —
PLS WIDTH-HI (ms) — —
PLS WIDTH-LOW (ms) — —Monitored item (Unit)Monitor item selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU
BCIA0031E
Page 1059 of 3502

DTC U1000 CAN COMMUNICATION LINE
CVT-53
D
E
F
G
H
I
J
K
L
MA
B
CVT
DTC U1000 CAN COMMUNICATION LINEPFP:23710
DescriptionBCS001GS
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicle, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicBCS001GT
Diagnostic trouble code “U1000 CAN COMM CIRCUIT” with CONSULT-II is detected when TCM cannot com-
municate to other control units.
Possible CauseBCS001GU
Harness or connectors
(CAN communication line is open or shorted.)
DTC Confirmation ProcedureBCS001GV
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine and wait for at least 6 seconds.
4. If DTC is detected, go to CVT-55, "
Diagnostic Procedure" .
BCIA0031E
Page 1060 of 3502
CVT-54
DTC U1000 CAN COMMUNICATION LINE

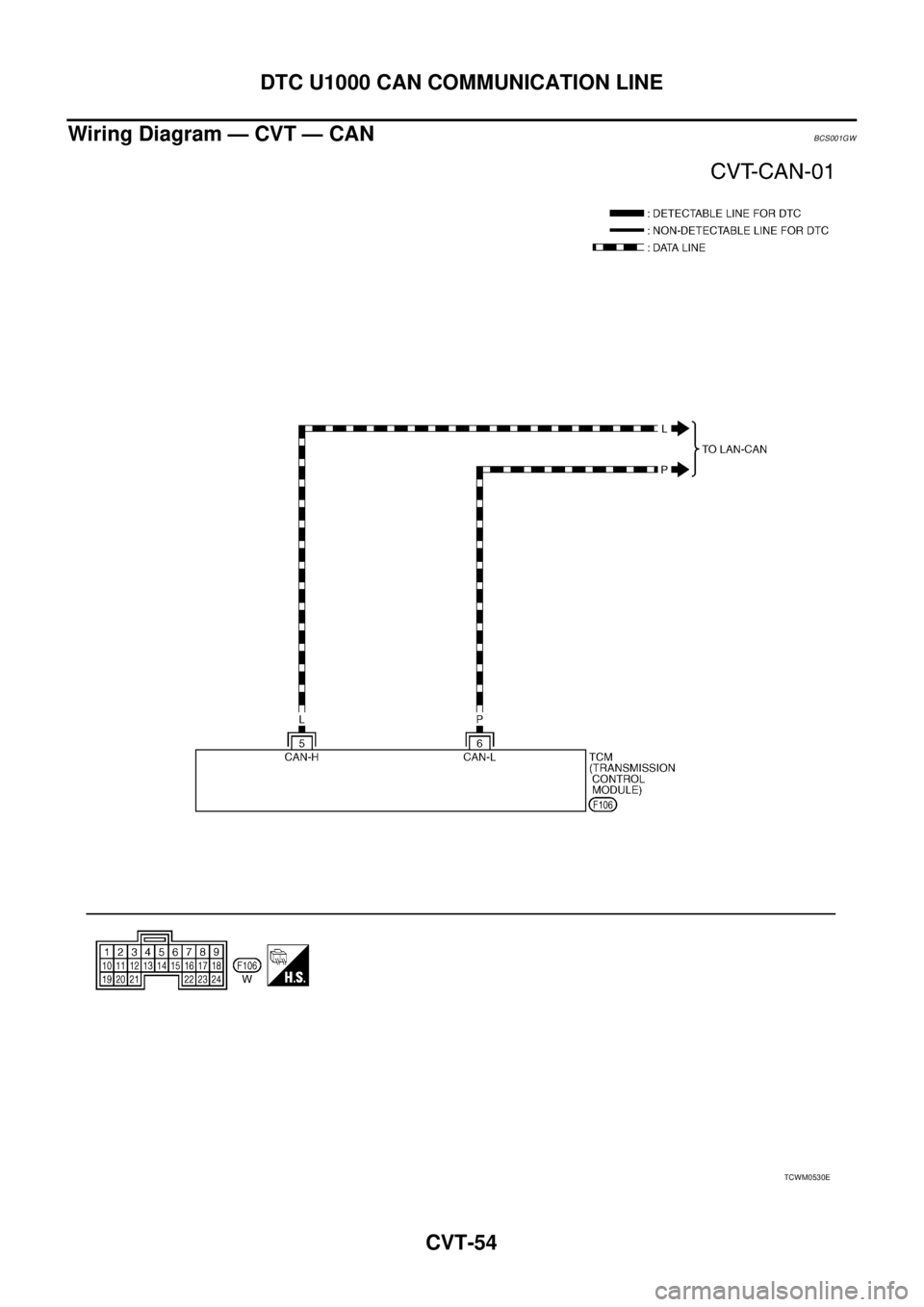

Wiring Diagram — CVT — CANBCS001GW
TCWM0530E
Page 1061 of 3502
DTC U1000 CAN COMMUNICATION LINE
CVT-55
D
E
F
G
H
I
J
K
L
MA
B
CVT
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureBCS001GX
1. CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch ON and start engine.
2. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION”
with CONSULT-II.
Is any malfunction of the
“U1000 CAN COMM CIRCUIT” indicated?
YES >> Print out CONSULT-II screen, Go to LAN section. Refer
to LAN-49, "
CAN System Specification Chart" .
NO >>INSPECTION END
TerminalWire
colorItem Condition Data (Approx.)
5 L CAN-H — —
6 P CAN-L — —
SCIA5982E
Page 1062 of 3502

CVT-56
DTC P0615 START SIGNAL CIRCUIT
DTC P0615 START SIGNAL CIRCUITPFP:25230
DescriptionBCS001GY
TCM controls starter relay in IPDM E/R.
TCM switches starter relay ON at “P” or “N” position and allows to crank engine.
Then it prohibits cranking other than at “P” or “N” position.
CONSULT-II Reference ValueBCS001GZ
On Board Diagnosis LogicBCS001H0
Diagnostic trouble code “P0615 STARTER RELAY/CIRC” with CONSULT-II is detected when starter relay
switched ON other than at “P” or “N” position. (Or when switched OFF at “P” or “N” position).
Possible CauseBCS001H1
Harness or connectors
(Starter relay and TCM circuit is open or shorted.)
Starter relay
DTC Confirmation ProcedureBCS001H2
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine.
4. Drive vehicle for at least 2 consecutive seconds.
5. If DTC is detected, go to CVT-58, "
Diagnostic Procedure" .
Item name Condition Display value
STRTR RLY OUTSelector lever in “P”, “N” positions. ON
Selector lever in other positions. OFF
STRTR RLY MONSelector lever in “P”, “N” positions. ON
Selector lever in other positions. OFF
BCIA0031E
Page 1063 of 3502
DTC P0615 START SIGNAL CIRCUIT
CVT-57
D
E
F
G
H
I
J
K
L
MA
B
CVT

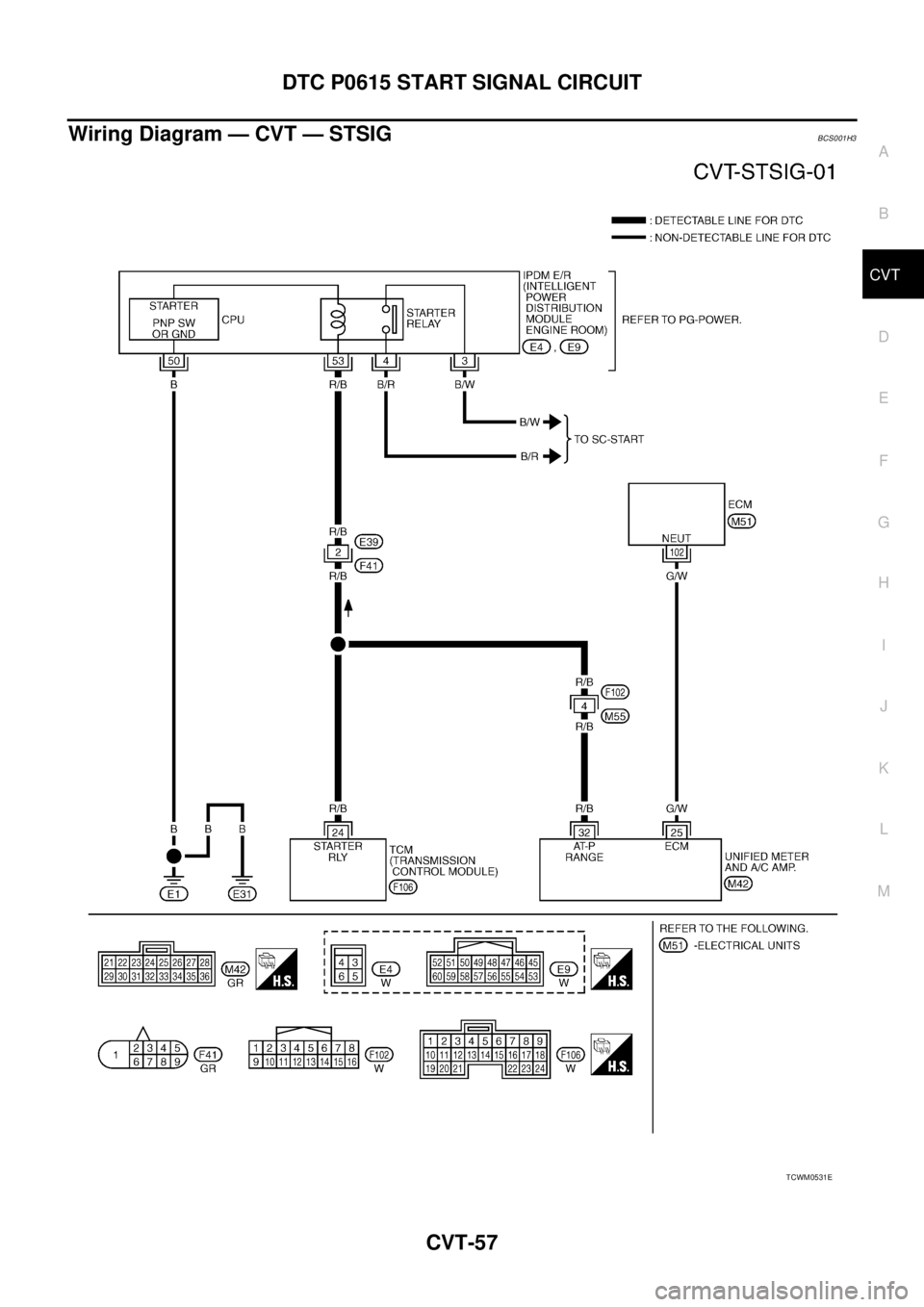

Wiring Diagram — CVT — STSIGBCS001H3
TCWM0531E
Page 1064 of 3502

CVT-58
DTC P0615 START SIGNAL CIRCUIT
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureBCS001H4
1. CHECK STARTER RELAY
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “TRANSMISSION” with CONSULT-II and check monitor
“STRTR RLY OUT”, “STRTR RLY MON”(PNP relay) ON/OFF.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between the TCM connector terminal and
ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING ITEM
Check the following:
Starter relay. Refer to PG-77, "STANDARDIZED RELAY" .
Open or short-circuit in the harness between TCM and the stater relay. Refer to CVT-57, "Wiring Diagram
— CVT — STSIG" .
Ground circuit for the starter relay. Refer to SC-15, "Wiring Diagram — START —" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to CVT-56, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
TerminalWire
colorItem Condition Data (Approx.)
24 R/B Starter relaySelector lever in “N”, “P” positions. Battery voltage
Selector lever in other positions. 0 V
Item name Condition Display value
STRTR RLY OUTSelector lever in “P”, “N” positions. ON
Selector lever in other positions. OFF
STRTR RLY MONSelector lever in “P”, “N” positions. ON
Selector lever in other positions. OFF
Terminal Item Condition Data (Approx.)
24Starter
relaySelector lever in “N”, “P”
positions.Battery voltage
Selector lever in other posi-
tions.0 V
SCIA2274E
SCIA2022E
