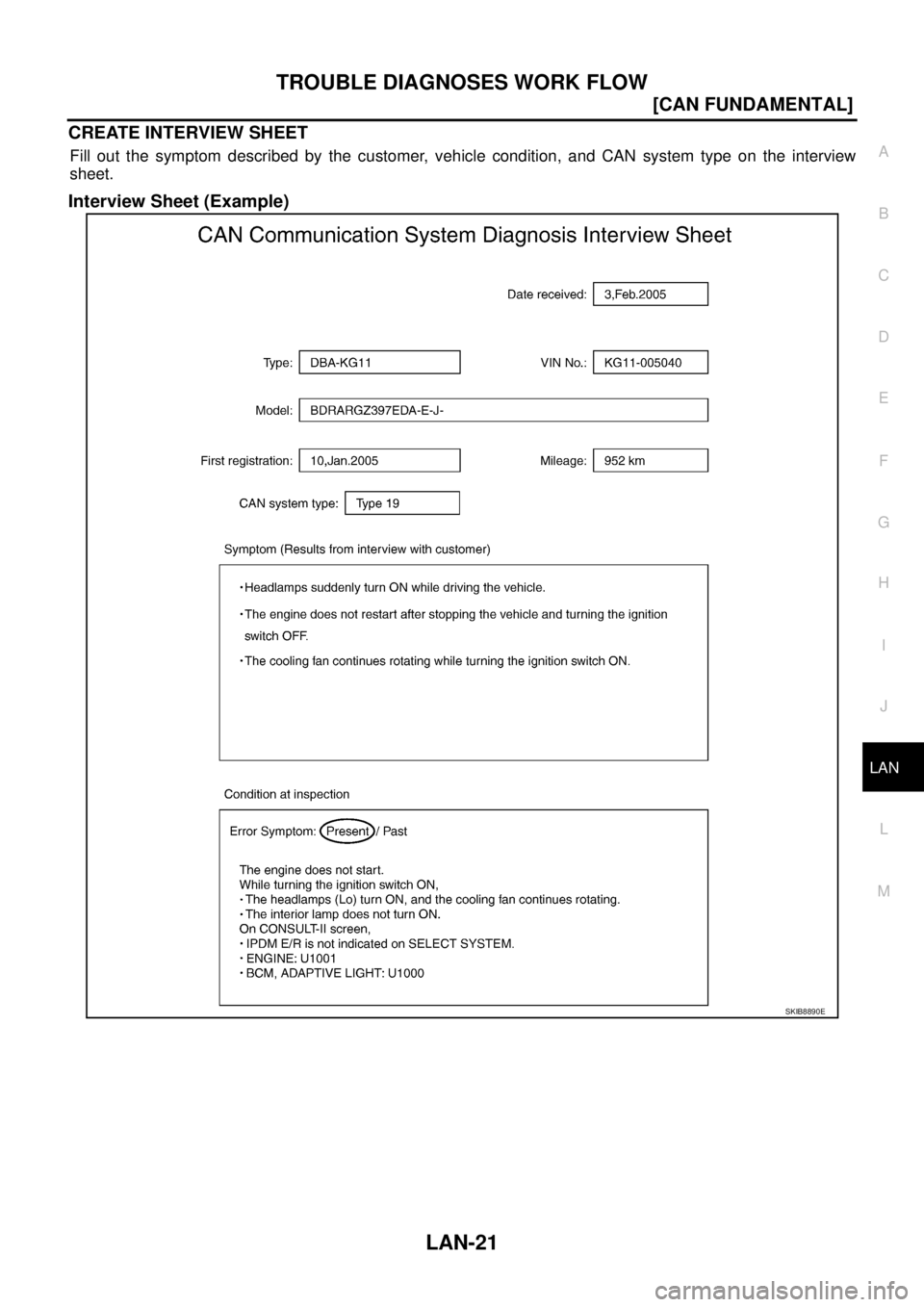

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-21 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN CREATE INTERVIEW SHEET Fill out the symptom described by the customer, vehicle condition, and CAN system type on the i

Page 2626 of 3502

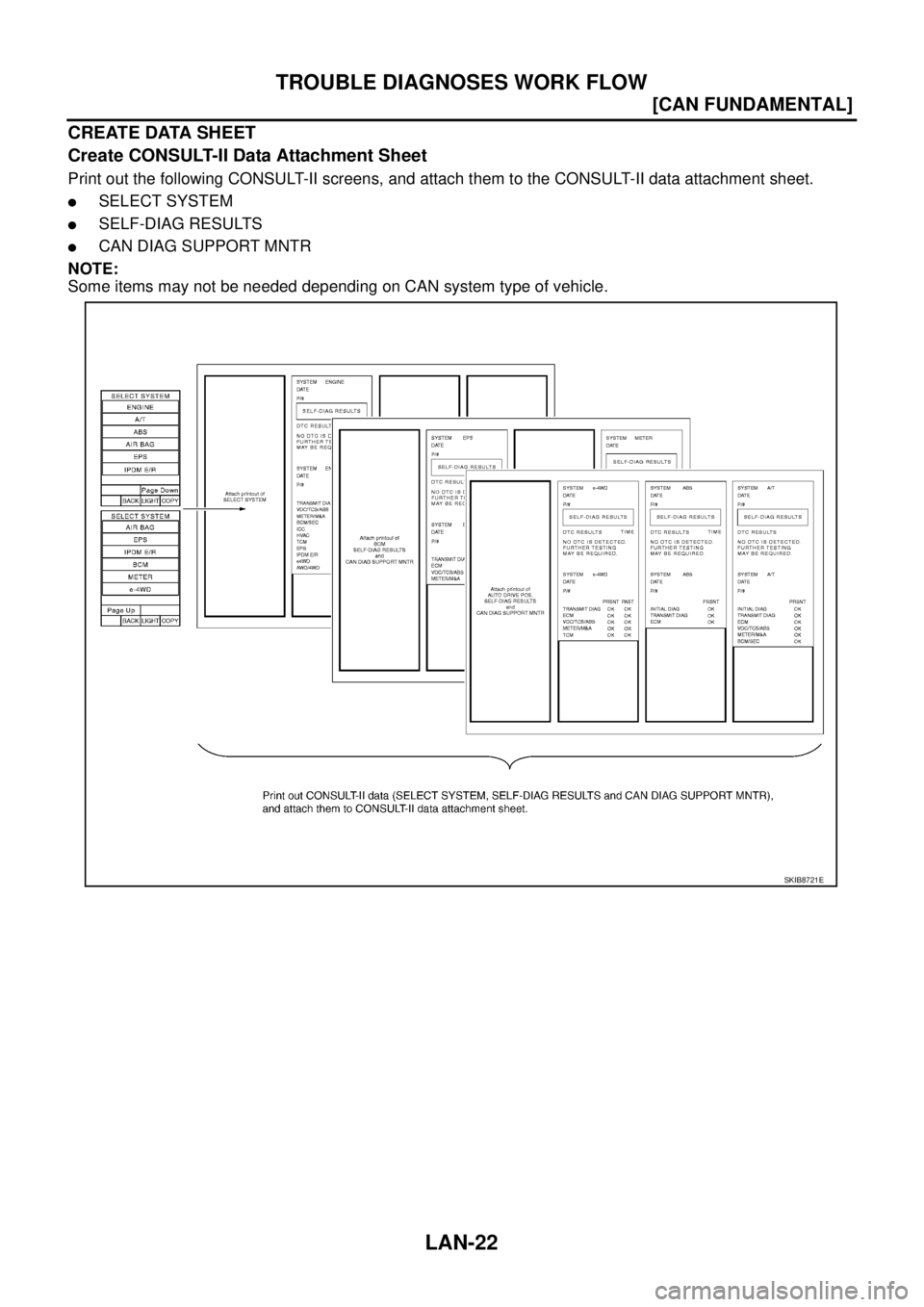

NISSAN TEANA 2003 Service Manual LAN-22 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW CREATE DATA SHEET Create CONSULT-II Data Attachment Sheet Print out the following CONSULT-II screens, and attach them to the CONSULT-II data atta

Page 2627 of 3502

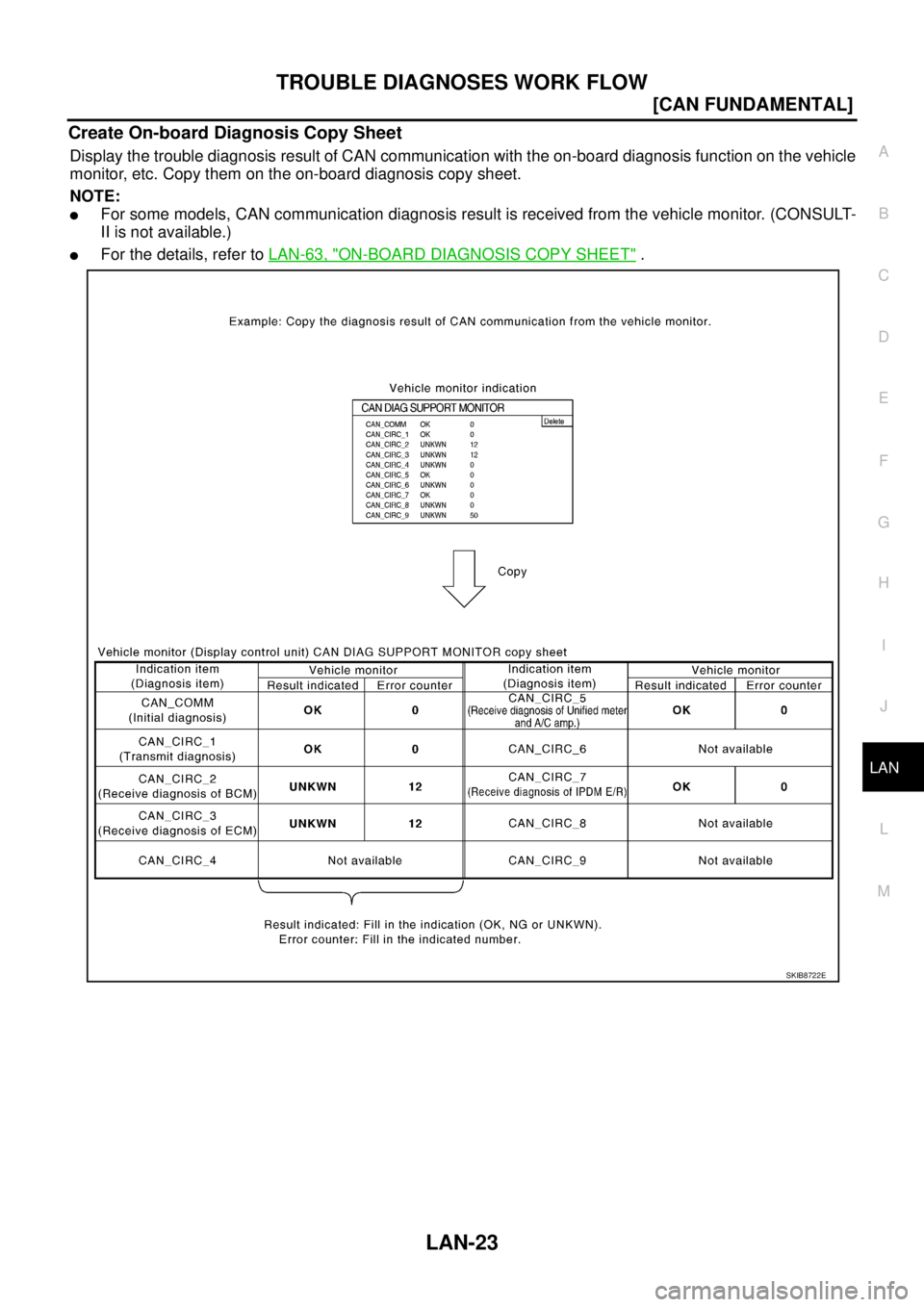

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-23 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Create On-board Diagnosis Copy Sheet Display the trouble diagnosis result of CAN communication with the on-board diagn

Page 2628 of 3502

NISSAN TEANA 2003 Service Manual LAN-24 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW CREATE DIAGNOSIS SHEET NOTE: Be sure to use the diagnosis sheet for the correct CAN system type. Print Diagnosis Sheet Print the diagnosis sheet

Page 2629 of 3502

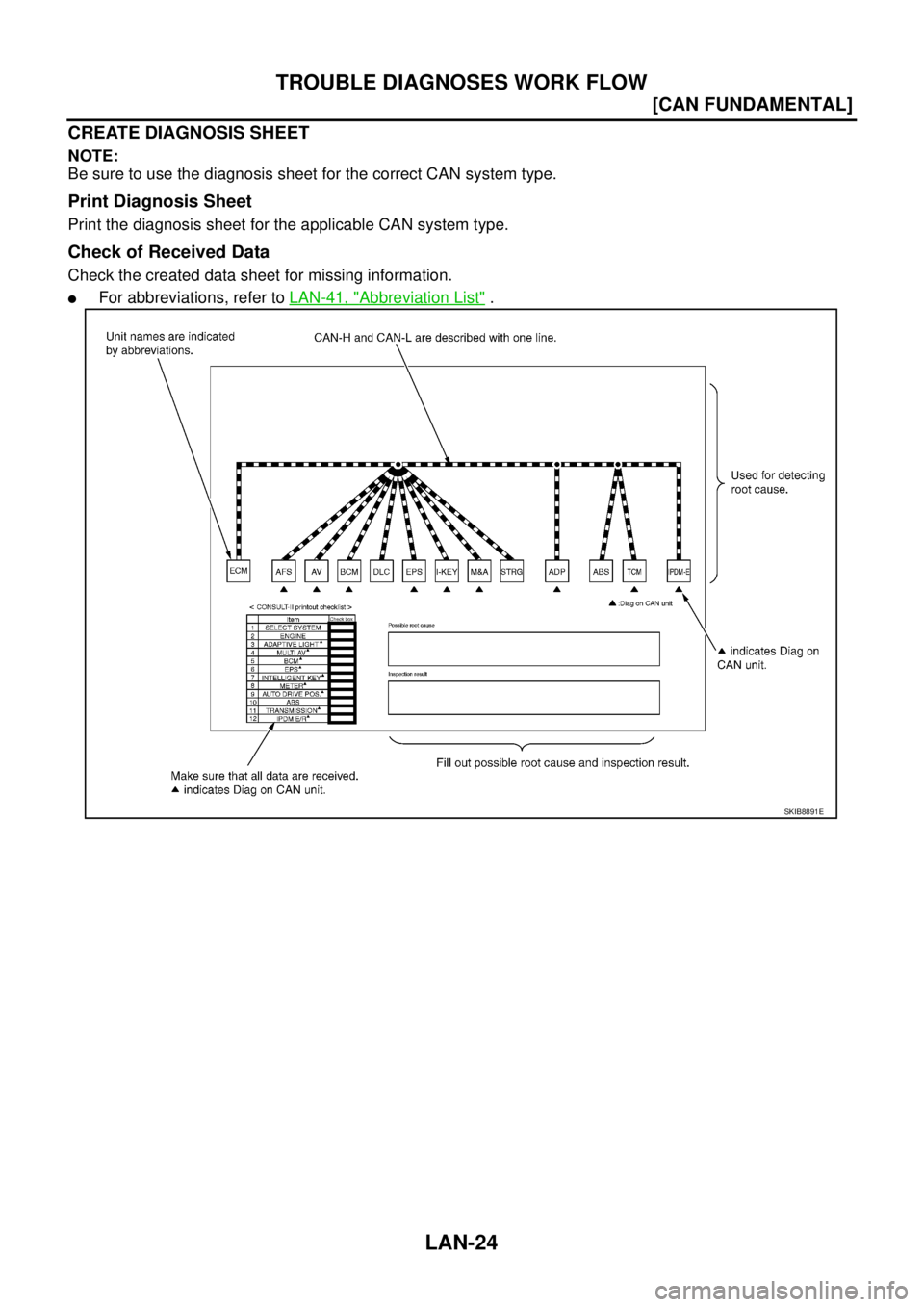

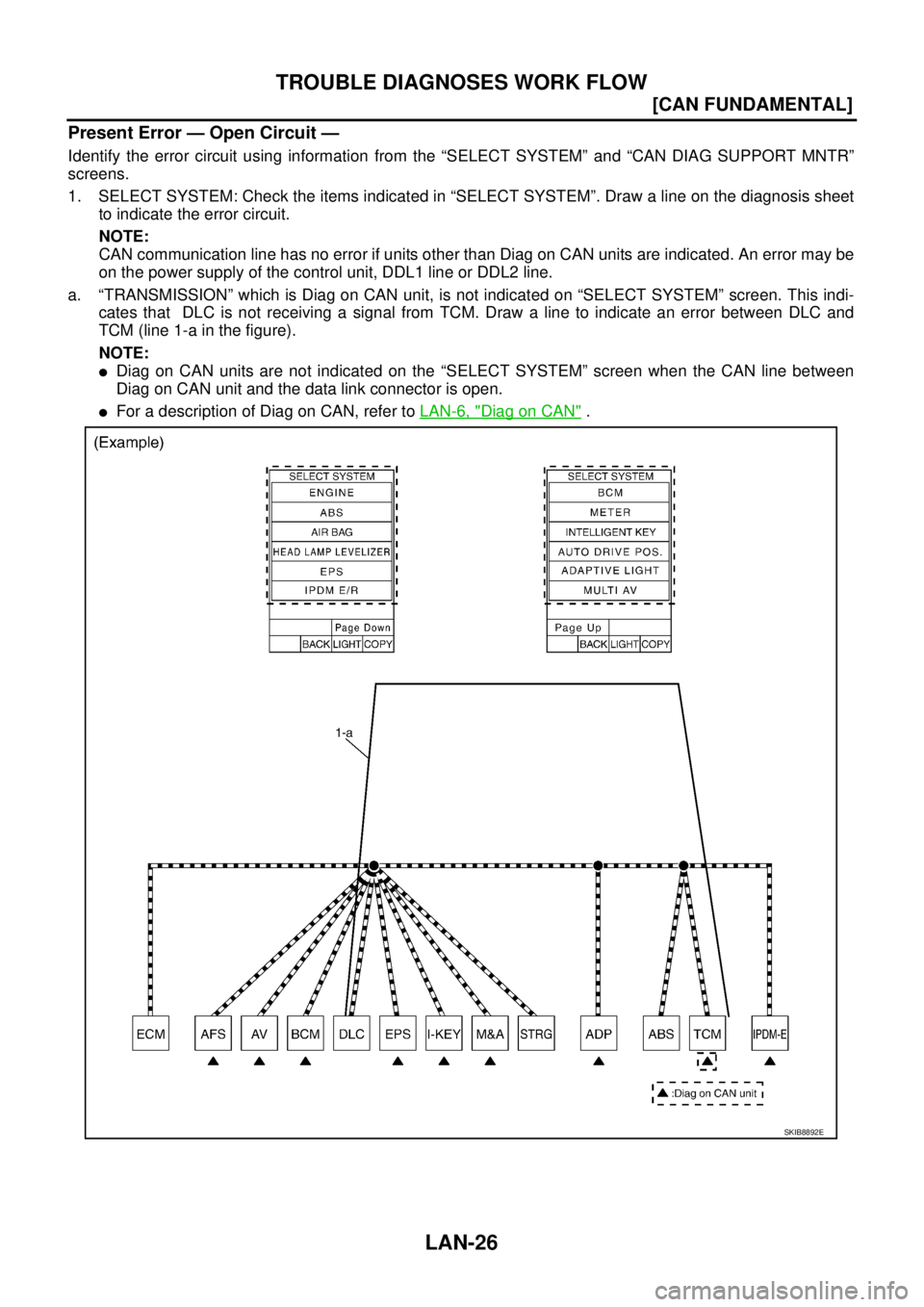

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-25 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN DETECT THE ROOT CAUSE Identify the root cause using the created diagnosis sheet. Identifying the root cause Draw a li

Page 2630 of 3502

NISSAN TEANA 2003 Service Manual LAN-26 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Present Error — Open Circuit — Identify the error circuit using information from the “SELECT SYSTEM” and “CAN DIAG SUPPORT MNTR” scre

Page 2631 of 3502

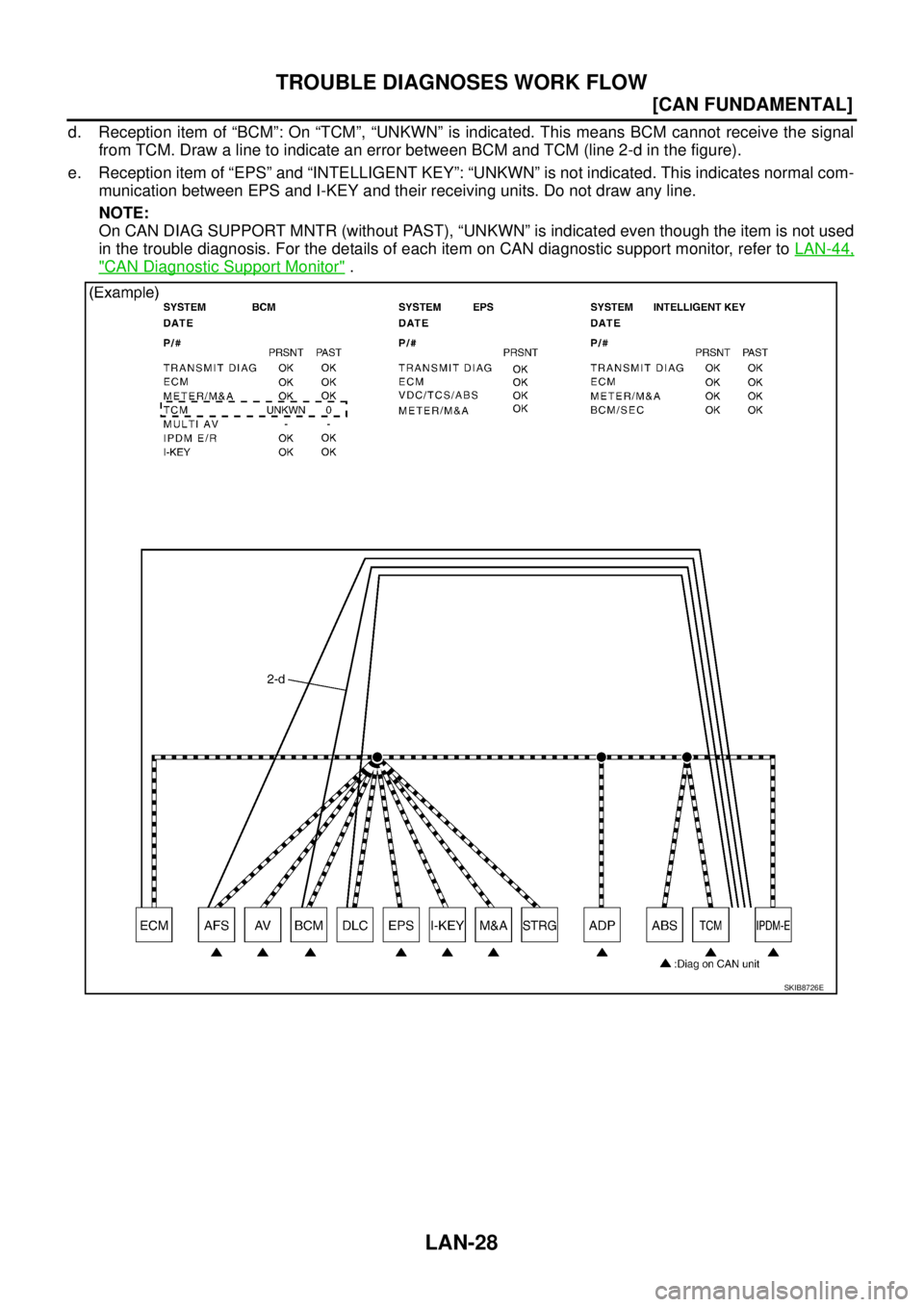

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-27 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN 2. CAN DIAG SUPPORT MNTR: Check each item on “CAN DIAG SUPPORT MNTR”. Draw a line on the diagnosis sheet to indica

Page 2632 of 3502

NISSAN TEANA 2003 Service Manual LAN-28 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW d. Reception item of “BCM”: On “TCM”, “UNKWN” is indicated. This means BCM cannot receive the signal from TCM. Draw a line to indicat
