VEHICLE SPEED SENSOR MTR
AT-89
D
E
F
G
H
I
J
K
L
MA
B
AT
4. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Page 98 of 3502

AT-90
SHIFT SOLENOID VALVE A
SHIFT SOLENOID VALVE APFP:31940
DescriptionBCS00110
Shift solenoid valves A and B are turned ON or OFF by TCM in response to signals sent from PNP switch,
vehicle speed and ECM (throttle opening). Gears will then be shifted to the optimum position.
CONSULT-II Reference ValueB C S 0 0 111
On Board Diagnosis LogicBCS00112
Diagnostic trouble code “SHIFT SOLENOID/V A” with CONSULT-II or 4th judgement flicker without CON-
SULT-II is detected when TCM detects an improper voltage drop when it tries to operate the solenoid valve.
Possible CauseBCS00113
Harness or connector
(Solenoid circuit is open or shorted.)
Shift solenoid valve A
DTC Confirmation ProcedureBCS00114
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm that the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine.
4. Drive vehicle in “D” position and allow the transmission to shift 1
→ 2 (“GEAR”).
5. If DTC is detected, go to AT- 9 2 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle in D
1 → D2 position.
3. Perform self-diagnosis. Refer to AT- 7 6 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 9 2 , "
Diagnostic Procedure" .
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Item name ConditionDisplay value
SHIFT S/V AWhen shift solenoid valve A operates. (When driving in “D
1 ” or “D4 ”.) ON
When shift solenoid valve A does not operate. (When driving in “D
2 ” or “D3 ”.) OFF
BCIA0031E
Page 99 of 3502
SHIFT SOLENOID VALVE A
AT-91
D
E
F
G
H
I
J
K
L
MA
B
AT

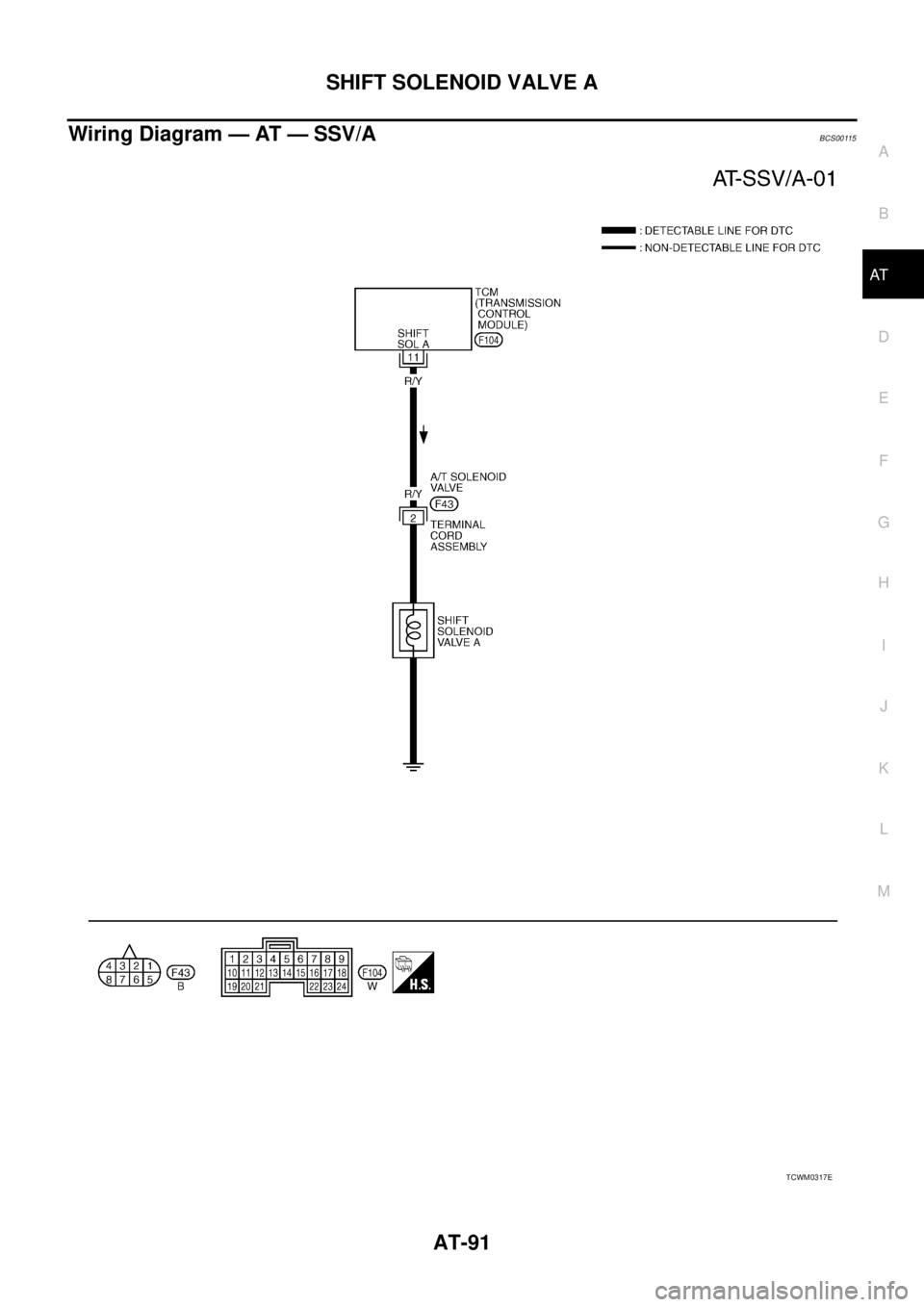

Wiring Diagram — AT — SSV/ABCS00115
TCWM0317E
Page 100 of 3502

AT-92
SHIFT SOLENOID VALVE A
Data are reference value and are measured between each terminal and ground.
Diagnostic ProcedureBCS00116
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “SHIFT S/V A” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
11 R/Y Shift solenoid valve AWhen shift solenoid valve
A operates. (When driving
in “D
1 ” or “D4 ”.)Battery voltage
When shift solenoid valve
A does not operate. (When
driving in “D
2 ” or “D3 ”.)0V
Item name Condition Display value
SHIFT S/V AWhen shift solenoid valve A operates.
(When driving in “D
1 ” or “D4 ”.)ON
When shift solenoid valve A does not operate.
(When driving in “D
2 ” or “D3 ”.)OFF
SCIA3251E
ItemConnec-
torTerminal ConditionJudgement
standard
(Approx.)
TCM con-
nectorF10411 -
GroundWhen shift solenoid
valve A operates.
(When driving in “D
1 ”
or “D
4 ”.)Battery volt-
age
When shift solenoid
valve A does not oper-
ate.
(When driving in “D
2 ”
or “D
3 ”.)0V
SCIA3248E
Page 101 of 3502

SHIFT SOLENOID VALVE A
AT-93
D
E
F
G
H
I
J
K
L
MA
B
AT
2. CHECK SHIFT SOLENOID VALVE A CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and transaxle assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
3. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform AT- 9 0 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
Solenoid Valve Connector TerminalResistance
(Approx.)
Shift solenoid valve A F104 11 - Ground 20 - 30 Ω
SCIA3249E
Item Connector Terminal Continuity
TCM connector F104 11
Ye s
Terminal cord assembly
harness connectorF43 2
SCIA3250E
Solenoid valve Connector Terminal Resistance (Approx.)
Shift solenoid valve A F43 2 - Ground 20 - 30 Ω
SCIA4942E
Page 102 of 3502
AT-94
SHIFT SOLENOID VALVE A
6. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionBCS00117
SHIFT SOLENOID VALVE A
For removal, refer to AT- 2 2 5 , "Control Valve Assembly and Accumulators" .

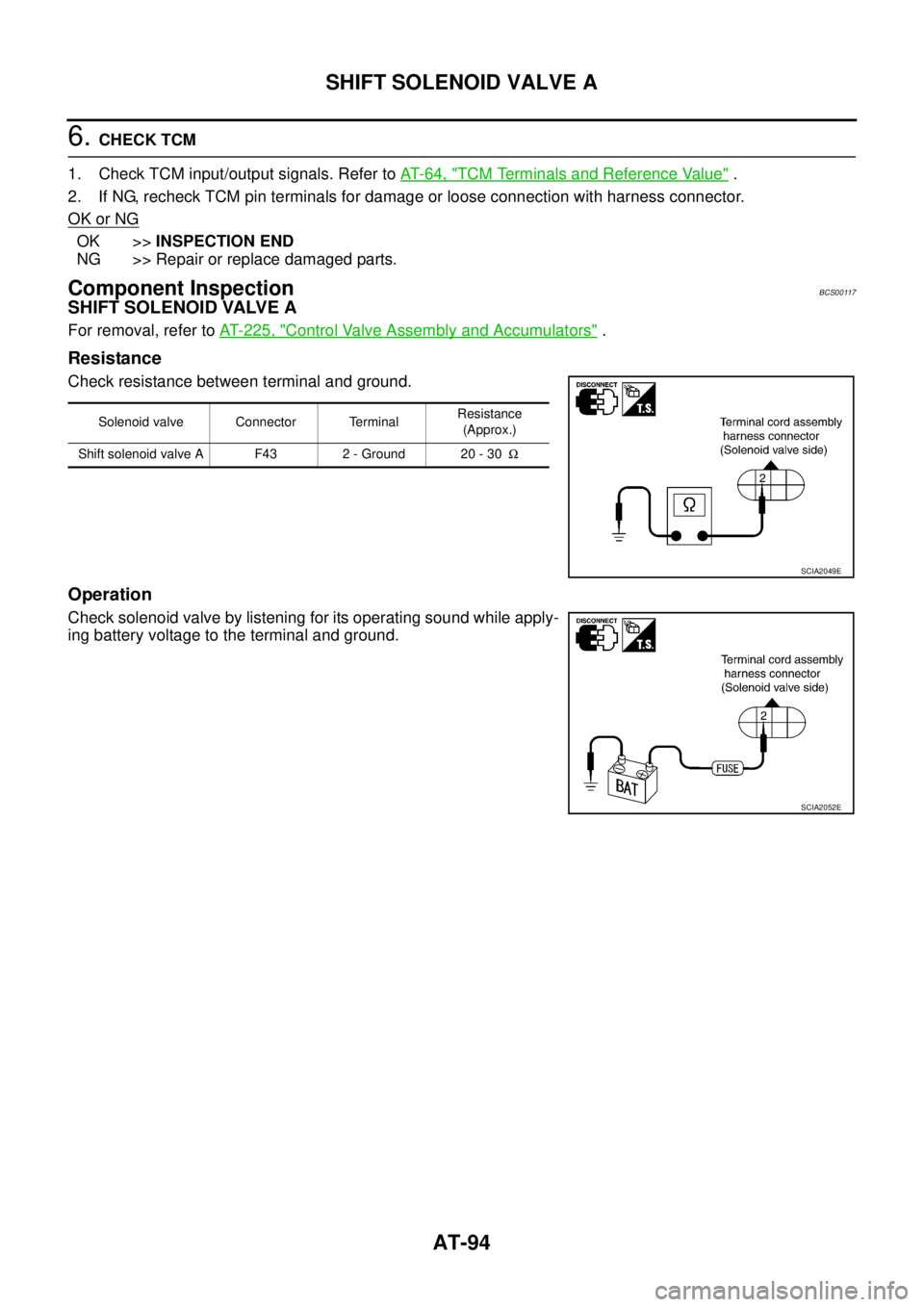

Resistance
Check resistance between terminal and ground.
Operation
Check solenoid valve by listening for its operating sound while apply-
ing battery voltage to the terminal and ground.
Solenoid valve Connector TerminalResistance
(Approx.)
Shift solenoid valve A F43 2 - Ground 20 - 30Ω
SCIA2049E
SCIA2052E
Page 103 of 3502

SHIFT SOLENOID VALVE B
AT-95
D
E
F
G
H
I
J
K
L
MA
B
AT
SHIFT SOLENOID VALVE BPFP:31940
DescriptionBCS00118
Shift solenoid valves A and B are turned ON or OFF by TCM in response to signals sent from PNP switch,
vehicle speed and ECM (throttle opening). Gears will then be shifted to the optimum position.
CONSULT-II Reference ValueBCS00119
On Board Diagnosis LogicBCS0011A
Diagnostic trouble code “SHIFT SOLENOID/V B” with CONSULT-II or 5th judgement flicker without CON-
SULT-II is detected when TCM detects an improper voltage drop when it tries to operate the solenoid valve.
Possible CauseBCS0011B
Harness or connector
(Solenoid circuit is open or shorted.)
Shift solenoid valve B
DTC Confirmation ProcedureBCS0011C
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm that the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine.
4. Drive vehicle in “D” position and allow the transmission to shift 1
→ 2 → 3 (“GEAR”).
5. If DTC is detected, go to AT- 9 7 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle in D
1 → D2 → D3 position.
3. Perform self-diagnosis. Refer to AT- 7 6 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 9 7 , "
Diagnostic Procedure" .
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Item name ConditionDisplay value
SHIFT S/V BWhen shift solenoid valve B operates. (When driving in “D
1 ” or “D2 ”.) ON
When shift solenoid valve B does not operate. (When driving in “D
3 ” or “D4 ”.) OFF
BCIA0031E
Page 104 of 3502
AT-96
SHIFT SOLENOID VALVE B

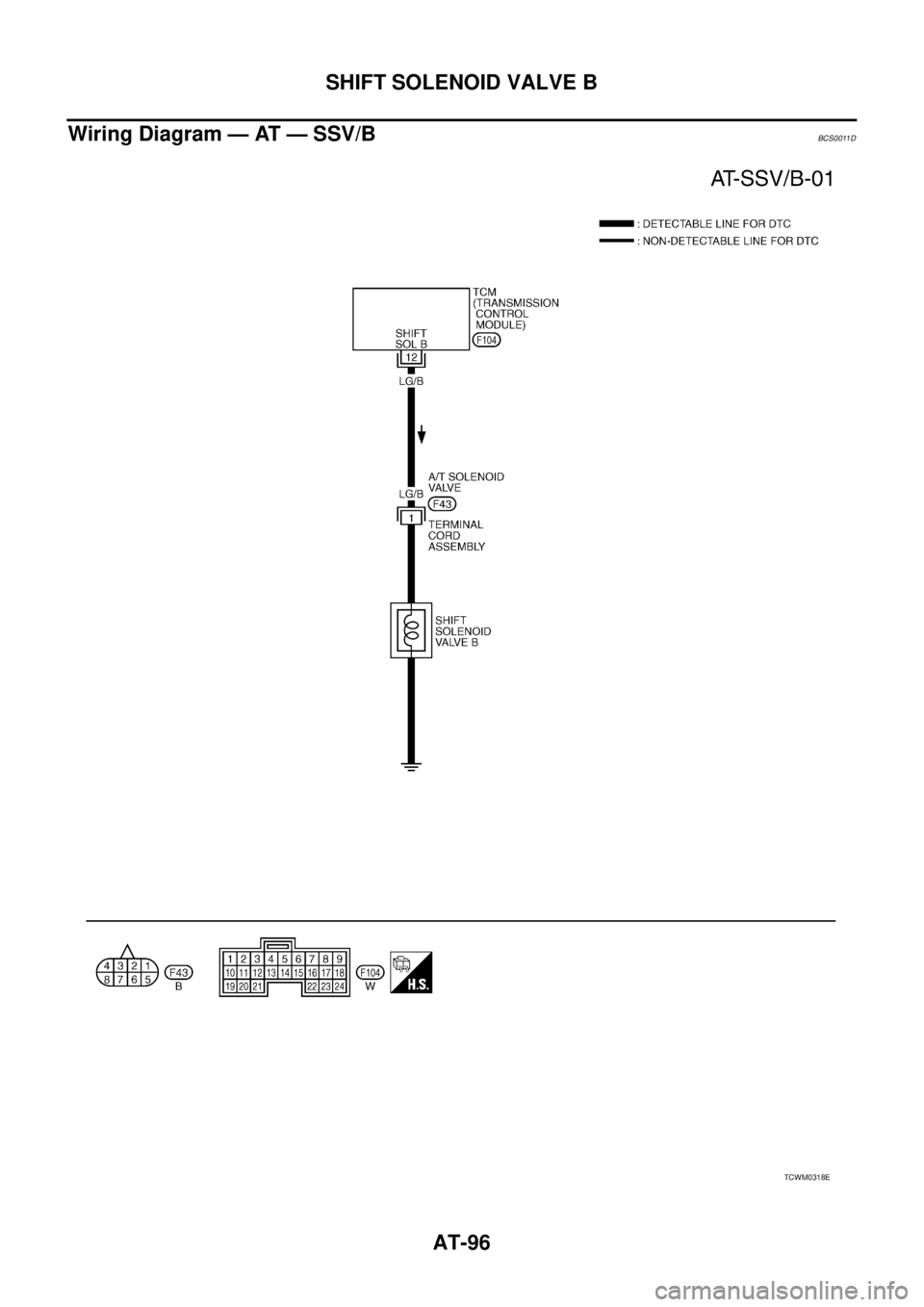

Wiring Diagram — AT — SSV/BBCS0011D
TCWM0318E
