A/T INDICATOR
DI-51
C
D
E
F
G
H
I
J
L
MA
B
DI
4. CHECK SELF-DIAGNOSIS OF TCM.
Perform TCM self-diagnosis. Refer to AT- 6 7 , "
CONSULT-II Function (A/T)" .
Self-diagnostic results content
No malfunction detected>> Check TCM input/output signal, and repair or replace malfunctioning parts. Refer
to AT- 6 4 , "
TCM Terminals and Reference Value" .
Malfunction detected>> Check applicable parts, and repair or replace corresponding parts.
Page 1258 of 3502
DI-52
CVT INDICATOR
CVT INDICATORPFP:24820

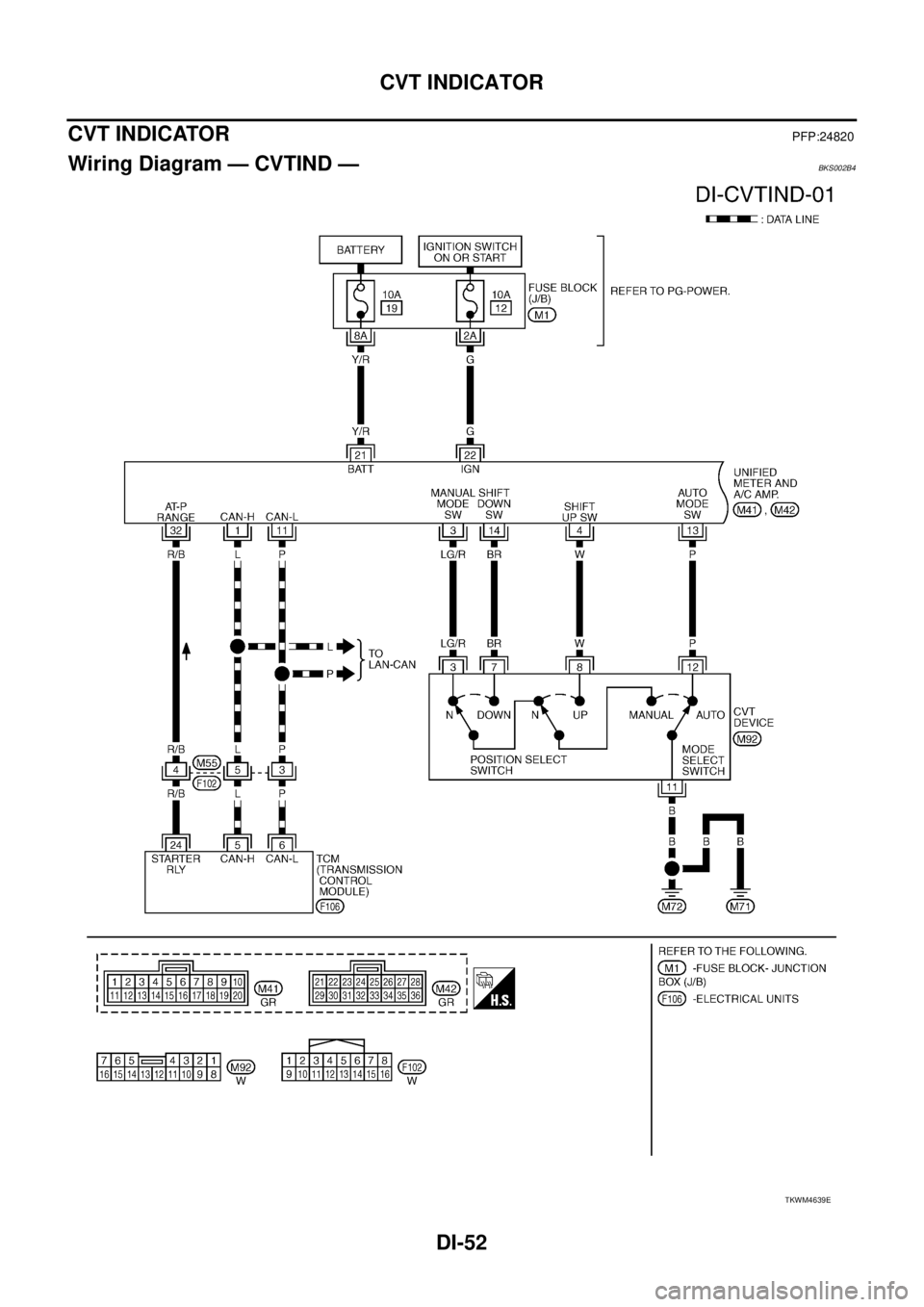

Wiring Diagram — CVTIND —BKS002B4
TKWM4639E
Page 1259 of 3502

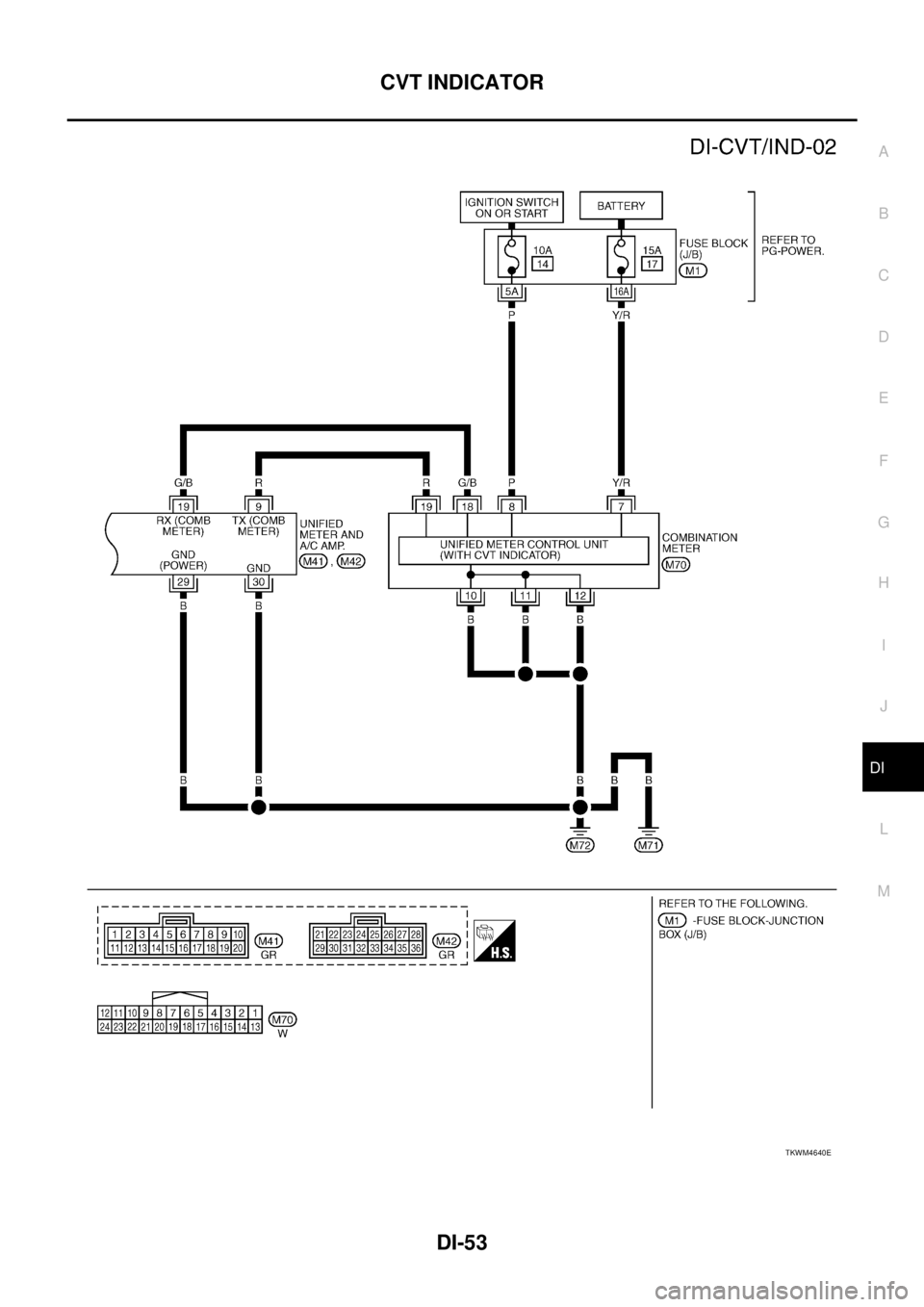

CVT INDICATOR
