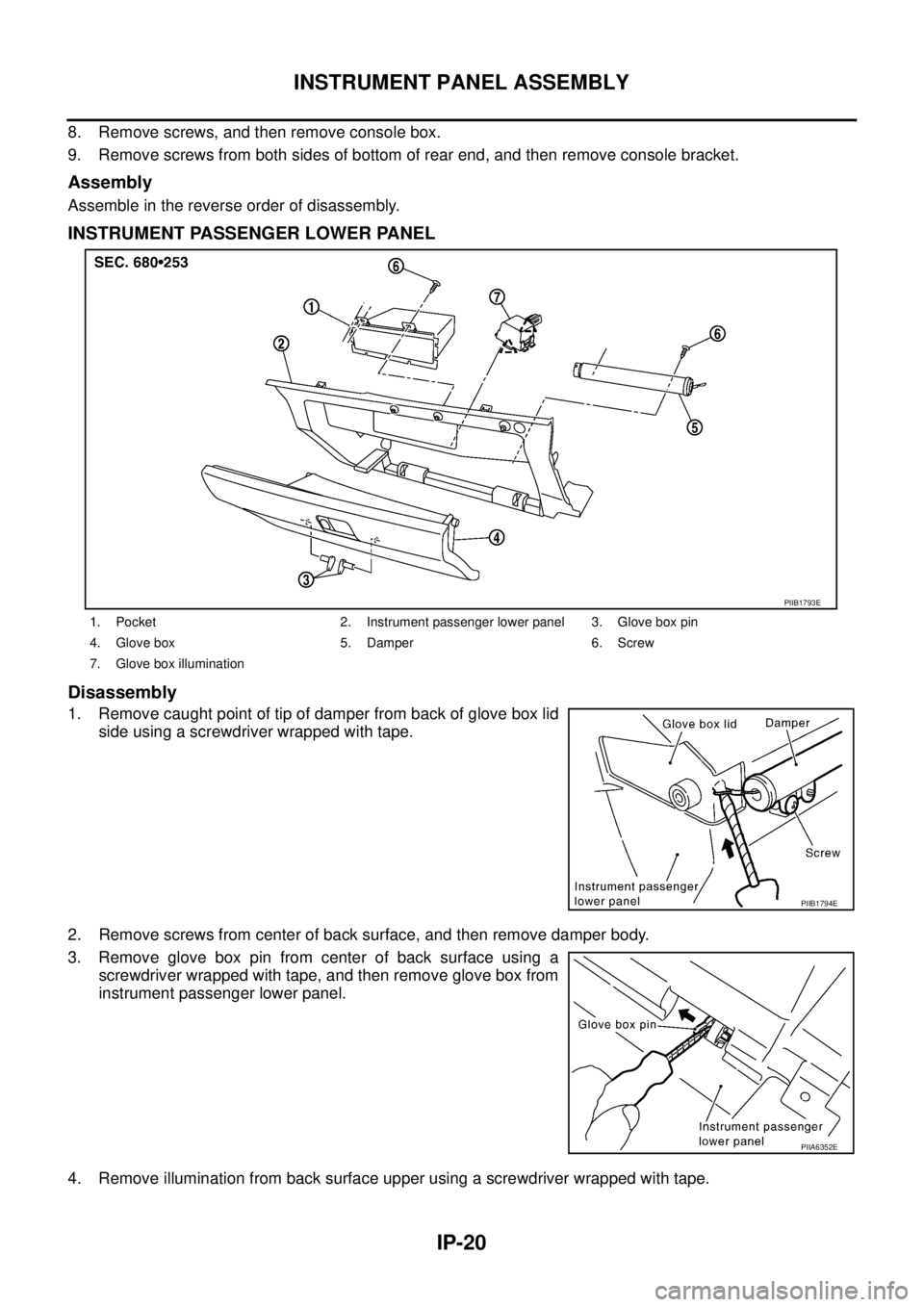

NISSAN TEANA 2003 Service Manual INSTRUMENT PANEL ASSEMBLY
IP-19
C
D
E
F
G
H
J
K
L
MA
B
IP

Disassembly and AssemblyBIS00128

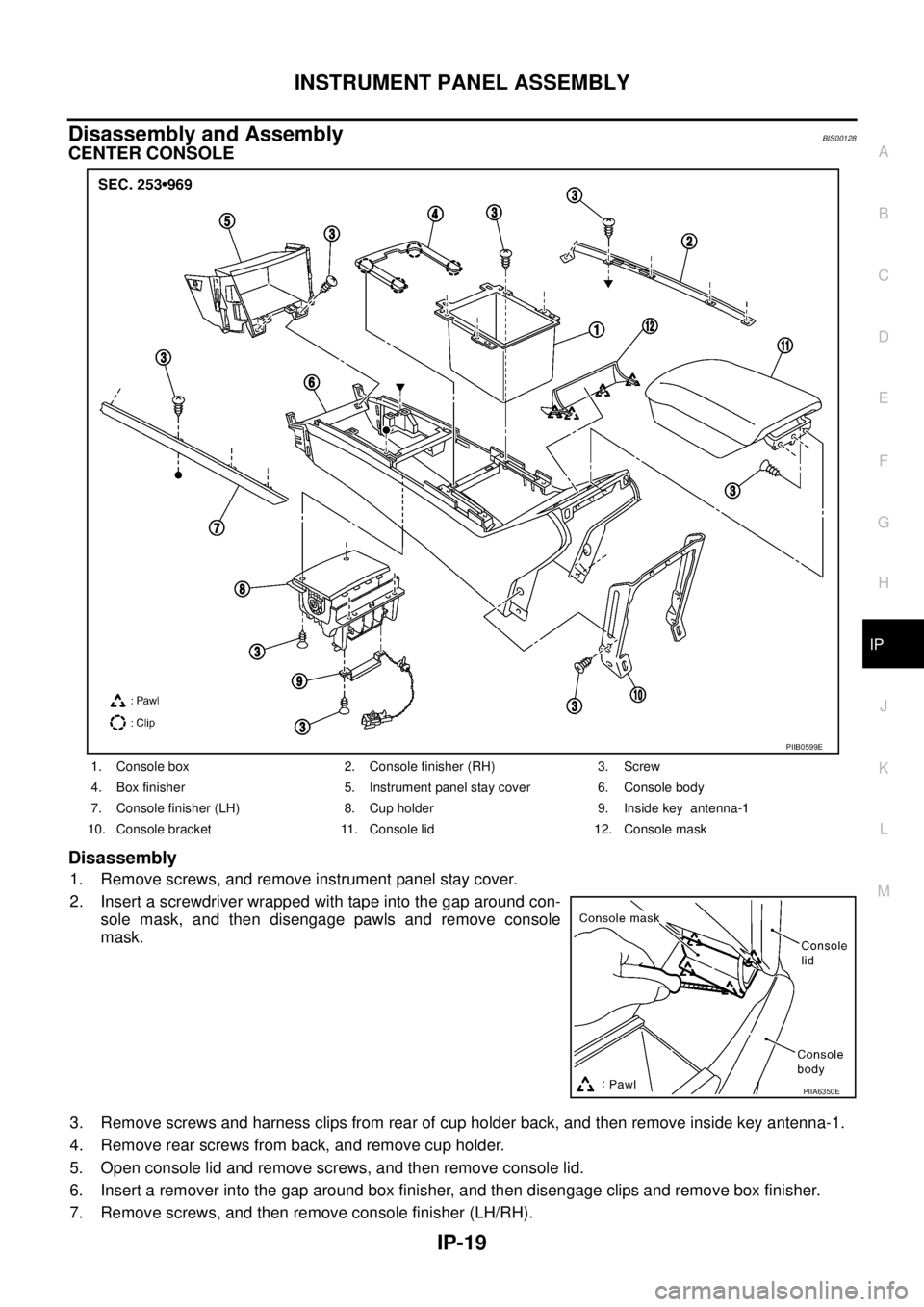

CENTER CONSOLE
Disassembly
1. Remove screws, and remove instrument panel stay cover.
2. Insert a screwdrive

Page 2602 of 3502

NISSAN TEANA 2003 Service Manual IP-20
INSTRUMENT PANEL ASSEMBLY

8. Remove screws, and then remove console box.
9. Remove screws from both sides of bottom of rear end, and then remove console bracket.
Assembly
Assemble in the rever

Page 2603 of 3502

NISSAN TEANA 2003 Service Manual INSTRUMENT PANEL ASSEMBLY
IP-21
C
D
E
F
G
H
J
K
L
MA
B
IP

5. Remove screws, and then remove pocket.
Assembly
Assemble in the reverse order of disassembly.
CLUSTER LID D
Disassembly
1. Remove screws

Page 2604 of 3502

NISSAN TEANA 2003 Service Manual IP-22
INSTRUMENT PANEL ASSEMBLY

Page 2605 of 3502

NISSAN TEANA 2003 Service Manual LAN-1
LAN SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION LAN
A
B
LAN

LAN SYSTEM
CAN FUNDAMENTAL
PRECAUTIONS .......................................................... 3
Precautions When U

LAN-1
LAN SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION LAN
A
B
LAN

LAN SYSTEM
CAN FUNDAMENTAL
PRECAUTIONS .......................................................... 3
Precautions When Using CONSULT-II ..................... 3
Precautions for Trouble Diagnosis ........................... 3
Precautions for Harness Repair ............................... 3
SYSTEM DESCRIPTION ............................................ 4
CAN Communication System ................................... 4
SYSTEM DIAGRAM .............................................. 4
CAN COMMUNICATION CONTROL CIRCUIT ..... 5
Diag on CAN ............................................................ 6
DESCRIPTION ...................................................... 6
SYSTEM DIAGRAM .............................................. 6
TROUBLE DIAGNOSIS .............................................. 7
Condition of Error Detection ..................................... 7
CAN COMMUNICATION SYSTEM ERROR ......... 7
WHEN INDICATED “U1000” OR “U1001” IS INDI-
CATED EVEN THOUGH CAN COMMUNICA-
TION SYSTEM IS NORMAL ................................. 7
Symptom When Error Occurs in CAN Communi-
cation System ........................................................... 8
ERROR EXAMPLE ............................................... 8
Self-Diagnosis ........................................................ 12
CAN Diagnostic Support Monitor ........................... 13
MONITOR ITEM (CONSULT-II) .......................... 13
MONITOR ITEM (ON-BOARD DIAGNOSIS) ...... 14
TROUBLE DIAGNOSES WORK FLOW .................. 15
Information Needed for Trouble Diagnosis ............. 15
How to Use CAN Communication Signal Chart ..... 15
Trouble Diagnosis Flow Chart ................................ 16
Trouble Diagnosis Procedure ................................. 17
INTERVIEW WITH CUSTOMER ......................... 17
INSPECTION OF VEHICLE CONDITION ........... 18
CHECK OF CAN SYSTEM TYPE (HOW TO USE
CAN SYSTEM TYPE SPECIFICATION CHART) ... 19
CREATE INTERVIEW SHEET ............................ 21
CREATE DATA SHEET ....................................... 22
CREATE DIAGNOSIS SHEET ............................ 24
DETECT THE ROOT CAUSE ............................. 25
CAN
INDEX FOR DTC ....................................................... 40
DTC No. Index ........................................................ 40
HOW TO USE THIS SECTION ................................. 41
Caution ................................................................... 41
Abbreviation List ..................................................... 41
PRECAUTIONS ........................................................ 42
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................. 42
Precautions When Using CONSULT-II ................... 42
Precautions for Trouble Diagnosis ......................... 42
Precautions for Harness Repair ............................. 42
TROUBLE DIAGNOSIS ............................................ 44
CAN Diagnostic Support Monitor ............................ 44
MONITOR ITEM LIST (CONSULT-II) .................. 44
MONITOR ITEM LIST (ON-BOARD DIAGNO-
SIS) ..................................................................... 48
CAN System Specification Chart ............................ 49
VEHICLE EQUIPMENT IDENTIFICATION
INFORMATION .................................................... 50
CAN Communication Signal Chart ......................... 51
TYPE 1/TYPE 2 ................................................... 51
TYPE 3 ................................................................ 52
TYPE 4 ................................................................ 54
Schematic ............................................................... 56
Wiring Diagram — CAN — ..................................... 57
Interview Sheet ....................................................... 60
Data Sheet .............................................................. 61
CONSULT-II DATA ATTACHMENT SHEET ........ 61
ON-BOARD DIAGNOSIS COPY SHEET ............ 63
CAN System (Type 1) ............................................. 64
DIAGNOSIS SHEET ........................................... 64
CAN System (Type 2) ............................................. 65
DIAGNOSIS SHEET ........................................... 65
CAN System (Type 3) ............................................. 66
DIAGNOSIS SHEET ........................................... 66
CAN System (Type 4) ............................................. 67
DIAGNOSIS SHEET ........................................... 67
Component Parts Location ..................................... 68

Page 2606 of 3502

NISSAN TEANA 2003 Service Manual LAN-2 Harness Layout ...................................................... 68
Malfunction Area Chart ........................................... 69
MAIN LINE .......................................

Page 2607 of 3502

NISSAN TEANA 2003 Service Manual PRECAUTIONS
LAN-3
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN

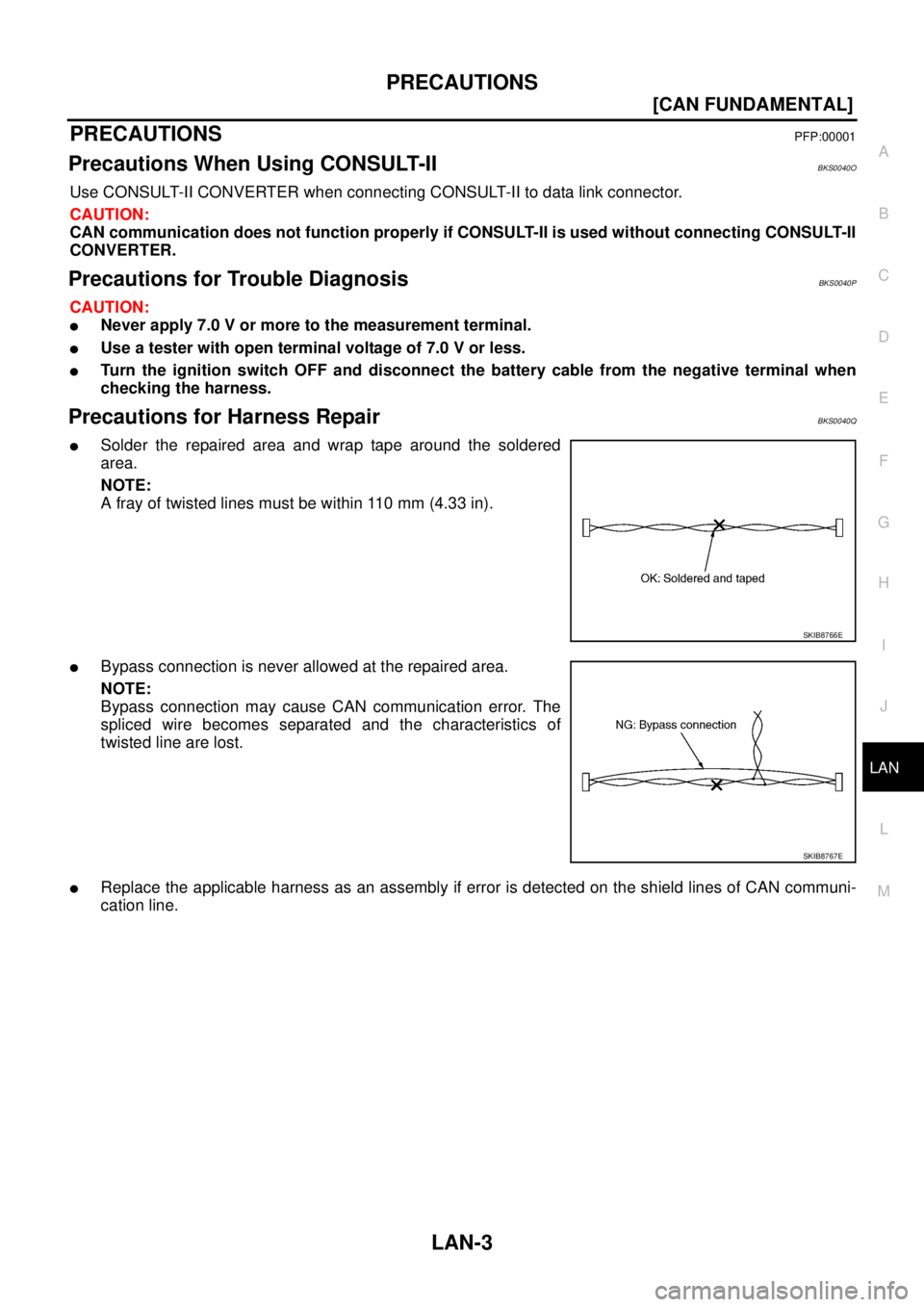

[CAN FUNDAMENTAL]PRECAUTIONSPFP:00001
Precautions When Using CONSULT-IIBKS0040O
Use CONSULT-II CONVERTER when connecting CONSULT-II to

Page 2608 of 3502

NISSAN TEANA 2003 Service Manual LAN-4
[CAN FUNDAMENTAL]
SYSTEM DESCRIPTION

SYSTEM DESCRIPTIONPFP:00000
CAN Communication SystemBKS0040R

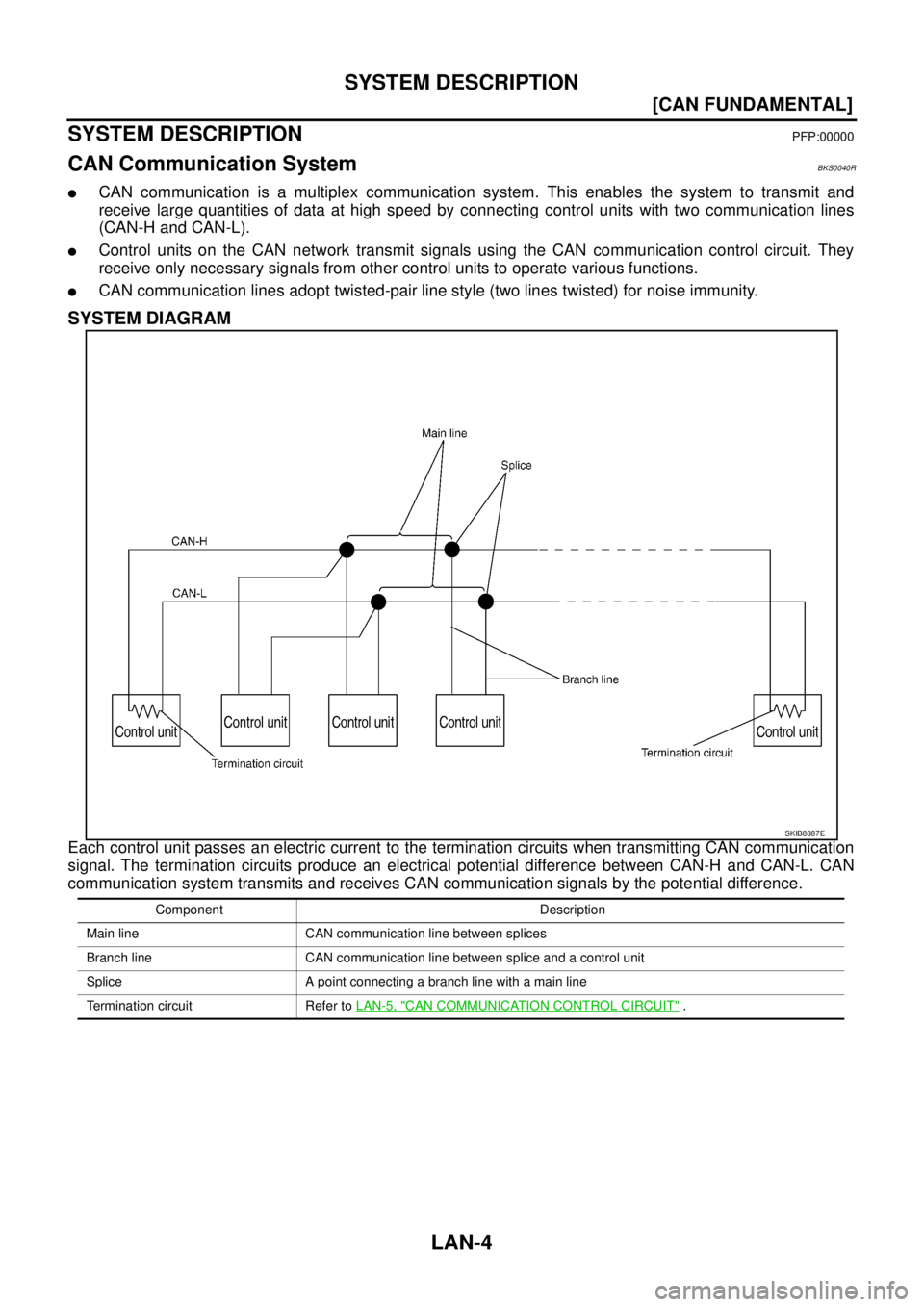

CAN communication is a multiplex communication system. This enables the system to transmit an
