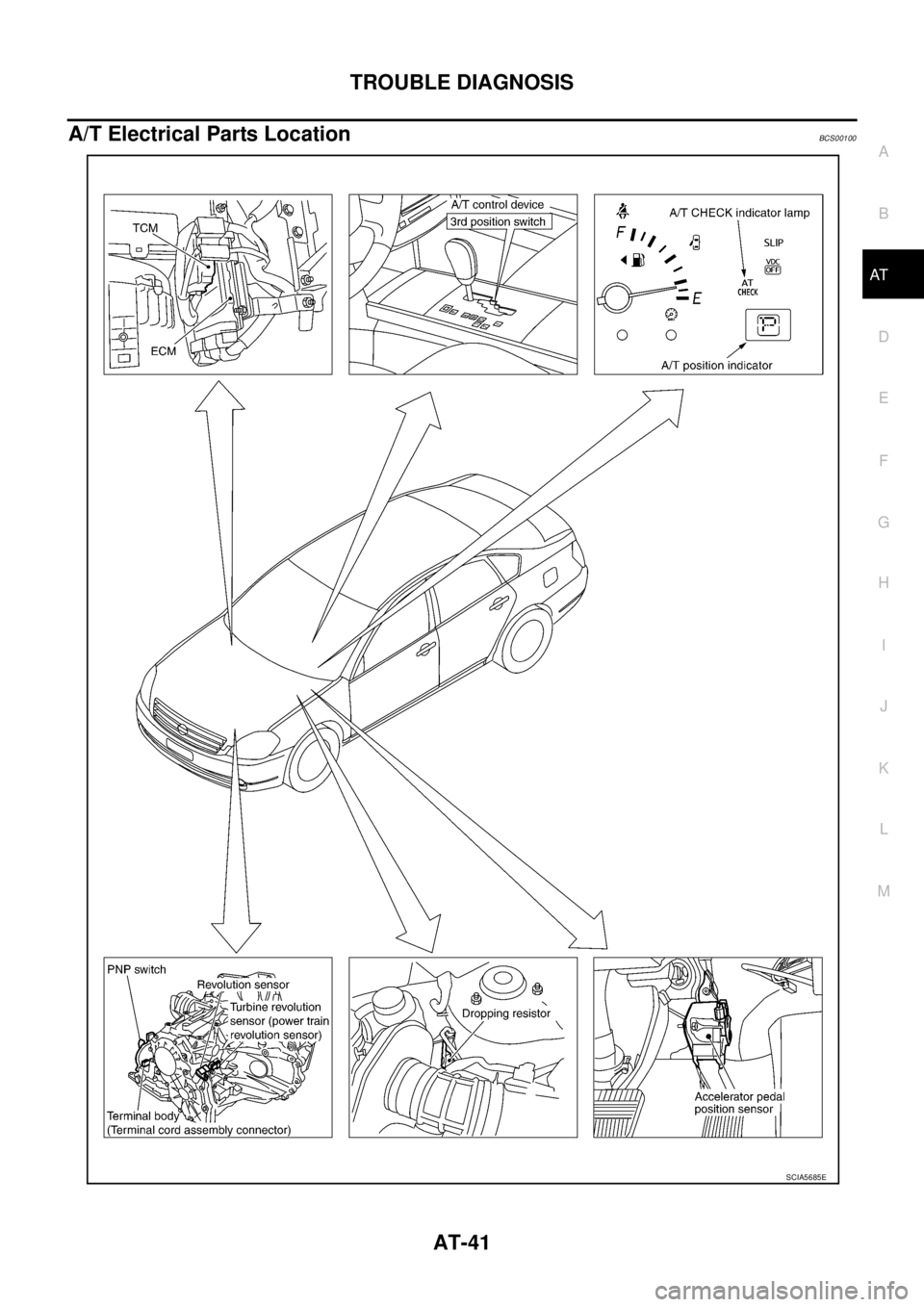

A/T Electrical Parts LocationBCS00100
SCIA5685E
Page 50 of 3502
AT-42
TROUBLE DIAGNOSIS
Circuit DiagramBCS00101
TCWM0513E
Page 51 of 3502

TROUBLE DIAGNOSIS
AT-43
D
E
F
G
H
I
J
K
L
MA
B
AT
Inspections Before Trouble DiagnosisBCS00102
A/T FLUID CHECK
Fluid Leakage and Fluid Level Check
Inspect for A/T fluid leakage and check the A/T fluid level. Refer to AT- 1 4 , "Checking A/T Fluid" .
A/T Fluid Condition Check
Inspect the A/T fluid condition.
STALL TEST
Stall Test Procedure
1. Check ATF and engine oil levels. If necessary, add ATF and oil.
2. Drive vehicle for approximately 10 minutes or until ATF and
engine oil reach operating temperature.
3. Set parking brake and block wheels.
4. Install a tachometer where it can be seen by driver during test.
It is good practice to mark the point of specified engine
rpm on indicator.
5. Start engine, apply foot brake, and place selector lever in “D”
position.
Fluid status Conceivable Cause Required Operation
Varnished (viscous
varnish state)Clutch, brake
scorchedReplace the ATF and check the A/T
main unit and the vehicle for mal-
functions (wire harnesses, cooler
pipes, etc.)
Milky white or
cloudyWater in the ATFReplace the ATF and check for
places where water is getting in.
Large amount of
metal powder mixed
inUnusual wear of
sliding parts within
A/TReplace the ATF and check for
improper operation of the A/T.
SAT638A
ATF operating temperature: 50 - 80°C (122 - 176°F)
SAT647B
SCIA7463E
SCIA5703E
Page 52 of 3502

AT-44
TROUBLE DIAGNOSIS
6. Accelerate to wide open throttle gradually while applying foot
brake.
7. Quickly note the engine stall revolution and immediately release
throttle.
CAUTION:
Do not hold down the accelerator pedal for more than 5 sec-
onds during this test.
8. Move selector lever to “N” position.
9. Cool off ATF.
CAUTION:
Run engine at idle for at leas 1 minute.
10. Repeat steps 6 through 9 with selector lever in “3”, “2”, “1” and
“R” positions.
Judgement of Stall Test

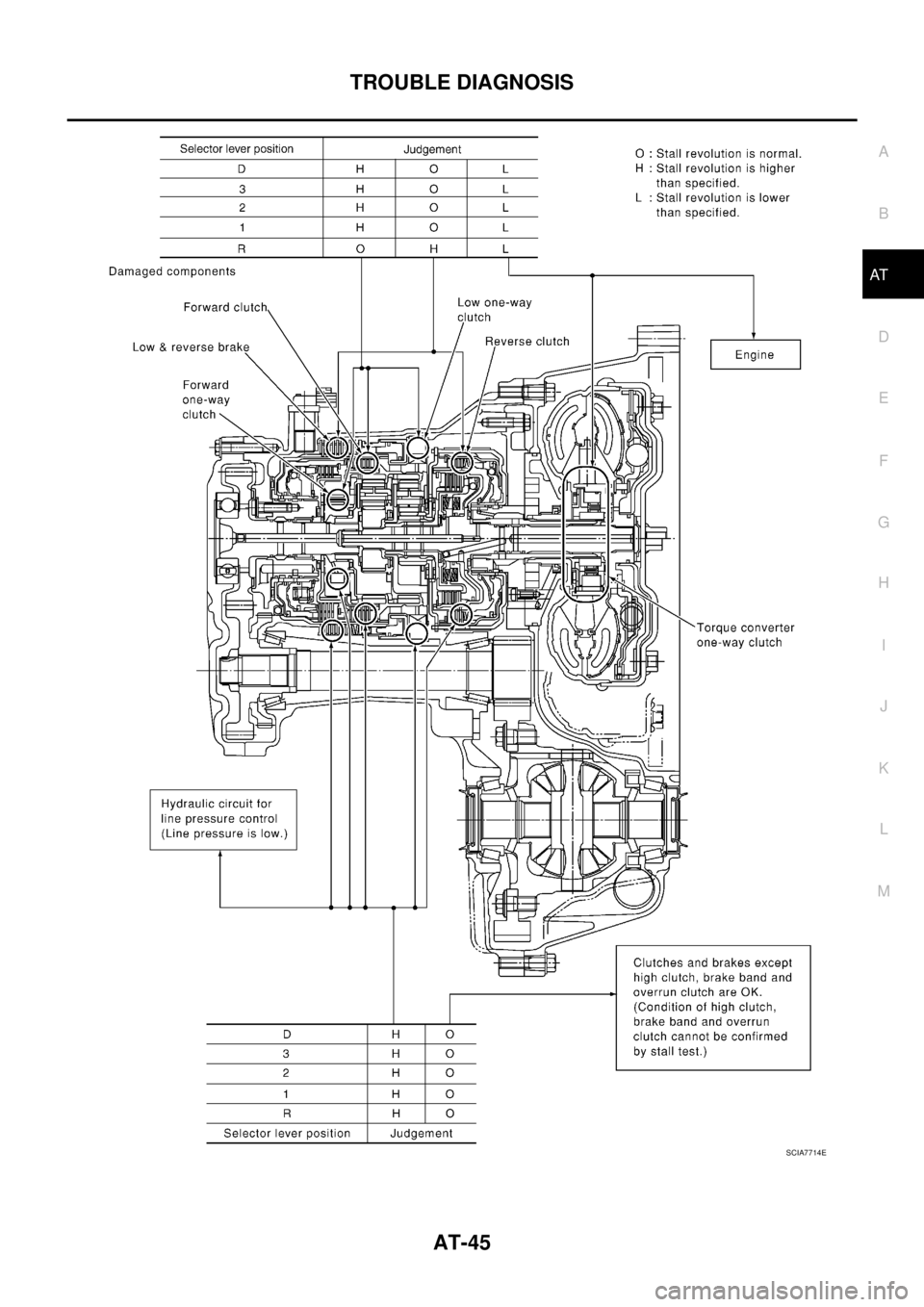

The test result and possible damaged components relating to each result are shown in the illustrations on next
page.
In order to pinpoint the possible damaged components, refer to AT- 3 7 , "
Work Flow Chart" .
NOTE:
Stall revolution is too high in “D”, “3”, “2”, or “1” position:
Slippage occurs in 1st gear but not in 2nd and 3rd gears. ..... Low one-way clutch slippage
Slippage occurs in the following gears:
1st through 3rd gears in “D” position and engine brake functions with selector lever set to “3” position.
1st and 2nd gears in “2” position and engine brake functions with accelerator pedal released (fully closed
throttle)...... Forward clutch or forward one-way clutch slippage
Stall revolution is too high in “R” position:
Engine brake does not function in “1” position. ..... Low & reverse brake slippage
Engine brake functions in “1” position. ..... Reverse clutch slippage
Stall revolution within specifications:
Vehicle does not achieve speed of more than 80 km/h (50 MPH). ..... One-way clutch seizure in torque
converter housing
CAUTION:
Be careful since automatic fluid temperature increases abnormally.
Slippage occurs in 3rd and 4th gears in “D” position. ..... High clutch slippage
Slippage occurs in 2nd and 4th gear in “D” position. ..... Brake band slippage
Engine brake does not function in 2nd and 3rd gears in “D” position with 3rd position switch set to ON, 2nd
gear in “2” position, and 1st gear in “1” position. ..... Overrun clutch slippage
Stall revolution less than specifications:
Poor acceleration during starts. ..... One-way clutch seizure in torque converterStall revolution
For QR20DE engine models:
2,400 - 2,850 rpm
For VQ23DE engine models:
2,400 - 2,900 rpm
SAT514G
SCIA5704E
Page 53 of 3502
TROUBLE DIAGNOSIS
AT-45
D
E
F
G
H
I
J
K
L
MA
B
AT
SCIA7714E
Page 54 of 3502
AT-46
TROUBLE DIAGNOSIS
LINE PRESSURE TEST
Line Pressure Test Ports
Location of line pressure test ports are shown in the figure.
Always replace pressure plugs as they are self-sealing
bolts.
Line Pressure Test Procedure
1. Check ATF and engine oil levels. If necessary, add ATF or
engine oil.
2. Drive vehicle for approx. 10 minutes or until engine oil and ATF
reach operating temperature.
3. Install oil pressure gauge to corresponding line pressure test
port.
4. Set parking brake and block wheels.
SCIA3332E
ATF operating temperature: 50 - 80°C (122 -176°F)
SAT647B
SCIA4845E
SCIA7463E
Page 55 of 3502

TROUBLE DIAGNOSIS
AT-47
D
E
F
G
H
I
J
K
L
MA
B
AT
5. Start engine and measure line pressure at idle and stall speed.
CAUTION:
Keep the brake pedal pressed all the way down during
measurement.
When measuring line pressure at stall speed, refer to AT-
43, "STALL TEST" .
Line Pressure
Judgement of Line Pressure Test
SAT493G
Engine speed rpmLine pressure kPa (bar, kg/cm2 , psi)
“D”, “3”, “2” and “1” positions “R” position
Idle 500 (5.00, 5.1, 73) 778 (7.78, 7.9, 113)
Stall 1,233 (12.33, 12.6, 179) 1,918 (19.18, 19.6, 278)
Judgement Suspected parts
At idleLine pressure is low in all positions.
Oil pump wear
Control piston damage
Pressure regulator valve or plug sticking
Spring for pressure regulator valve damaged
Fluid pressure leakage between oil strainer and pressure regulator valve
Clogged strainer
Line pressure is low in particular posi-
tion.
Fluid pressure leakage between manual valve and particular clutch
For example, line pressure is:
− Low in “R” and “1” positions, but
− Normal in “D”, “3” and “2” positions.
Therefore, fluid leakage exists at or around low and reverse brake circuit.
Refer to AT-18, "
CLUTCH AND BAND CHART" .
Line pressure is high.
Accelerator pedal position signal malfunction
A/T fluid temperature sensor damaged
Line pressure solenoid valve sticking
Short circuit of line pressure solenoid valve circuit
Pressure modifier valve sticking
Pressure regulator valve or plug sticking
Open in dropping resistor circuit
At stall
speedLine pressure is low.
Accelerator pedal position signal malfunction
Line pressure solenoid valve sticking
Short circuit of line pressure solenoid valve circuit
Pressure regulator valve or plug sticking
Pressure modifier valve sticking
Pilot valve sticking
Page 56 of 3502

AT-48
TROUBLE DIAGNOSIS
Road TestBCS00103
DESCRIPTION
The purpose of the test is to determine overall performance of A/T and analyze causes of malfunctions.
The road test consists of the following three parts:
1. Check before engine is started. Refer to AT- 4 8
.
2. Check at idle. Refer to AT- 4 8
.
3. Cruise test
Inspection all the item from Part 1 to Part 3. Refer to AT- 5 0 , AT- 5 1 and AT- 5 2 .
Before road test, familiarize yourself with all test procedures and items to check.
Perform tests on all items until specified symptom is found. Troubleshoot the items which are checked out
to be no good after road test. Refer to the following.
Refer to AT- 6 7 , "
CONSULT-II Function (A/T)" , AT- 7 6 , "Diagnostic Procedure Without CONSULT-II" and
AT- 1 6 8 , "
TROUBLE DIAGNOSIS FOR SYMPTOMS" .
Check Before Engine Is StartedBCS00104
1. CHECK A/T CHECK INDICATOR LAMP
1. Park vehicle on flat surface.
2. Move selector lever to “P” position.
3. Turn ignition switch OFF. Wait at least 5 seconds.
4. Turn ignition switch ON. (Do not start engine.)
Does A/T CHECK indicator lamp come on for about 2 seconds?
YES >> 1. Turn ignition switch OFF.
2. Perform self-diagnosis and note NG items.
Refer to AT- 6 9 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 7 6 , "Diagnostic Procedure Without
CONSULT-II" .
3. Go to AT- 4 8 , "
Check at Idle" .
NO >> Stop “Road Test”. Go to AT- 1 7 3 , "
A/T CHECK Indicator Lamp Does Not Come On" .
Check at IdleBCS00105
1. CHECK ENGINE START
1. Park vehicle on flat surface.
2. Move selector lever to “P” or “N” position.
3. Turn ignition switch OFF.
4. Turn ignition switch to “START” position.
Is engine started?
YES >> GO TO 2.
NO >>
Stop “Road Test”. Mark the box on the AT- 3 8 , "DIAGNOSTIC WORKSHEET" .
Go to AT- 1 7 5 , "Engine Cannot Be Started in “P” and “N” Position" .
2. CHECK ENGINE START
1. Turn ignition switch ON. (Do not start engine.)
2. Move selector lever to “R”, “D”, “3”, “2” or “1” position.
3. Turn ignition switch to “START” position.
Is engine started?
YES >>Stop “Road Test”. Mark the box on the AT- 3 8 , "DIAGNOSTIC WORKSHEET" .
Go to AT- 1 7 5 , "Engine Cannot Be Started in “P” and “N” Position" .
NO >> GO TO 3.
