NISSAN TEANA 2003 Service Manual FRONT DRIVE SHAFT
FAX-11
C
E
F
G
H
I
J
K
L
MA
B
FA X

Removal and Installation (LH)BDS0007N
COMPONENT
REMOVAL
1. Remove tires from vehicle.
2. Remove wheel sensor from steering knuckle. Refer to BRC-

Page 2394 of 3502

NISSAN TEANA 2003 Service Manual FAX-12
FRONT DRIVE SHAFT

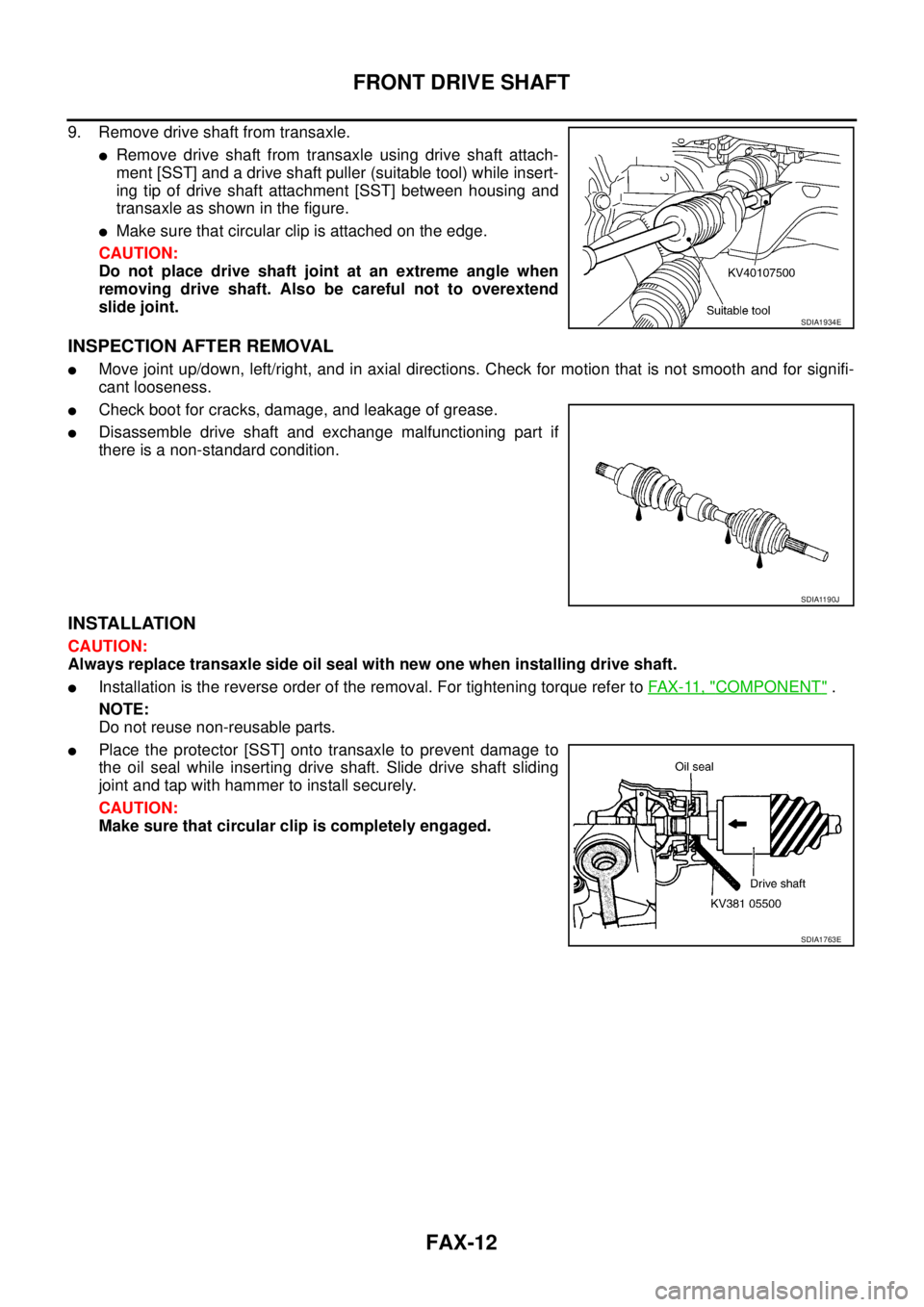

9. Remove drive shaft from transaxle.
Remove drive shaft from transaxle using drive shaft attach-
ment [SST] and a drive shaft puller (suitable tool) while insert-
ing tip

Page 2395 of 3502

NISSAN TEANA 2003 Service Manual FRONT DRIVE SHAFT
FAX-13
C
E
F
G
H
I
J
K
L
MA
B
FA X

Removal and Installation (RH)BDS0007O
COMPONENT
REMOVAL
1. Remove tires from vehicle.
2. Remove wheel sensor from steering knuckle. Refer to BRC-

Page 2396 of 3502

NISSAN TEANA 2003 Service Manual FAX-14
FRONT DRIVE SHAFT

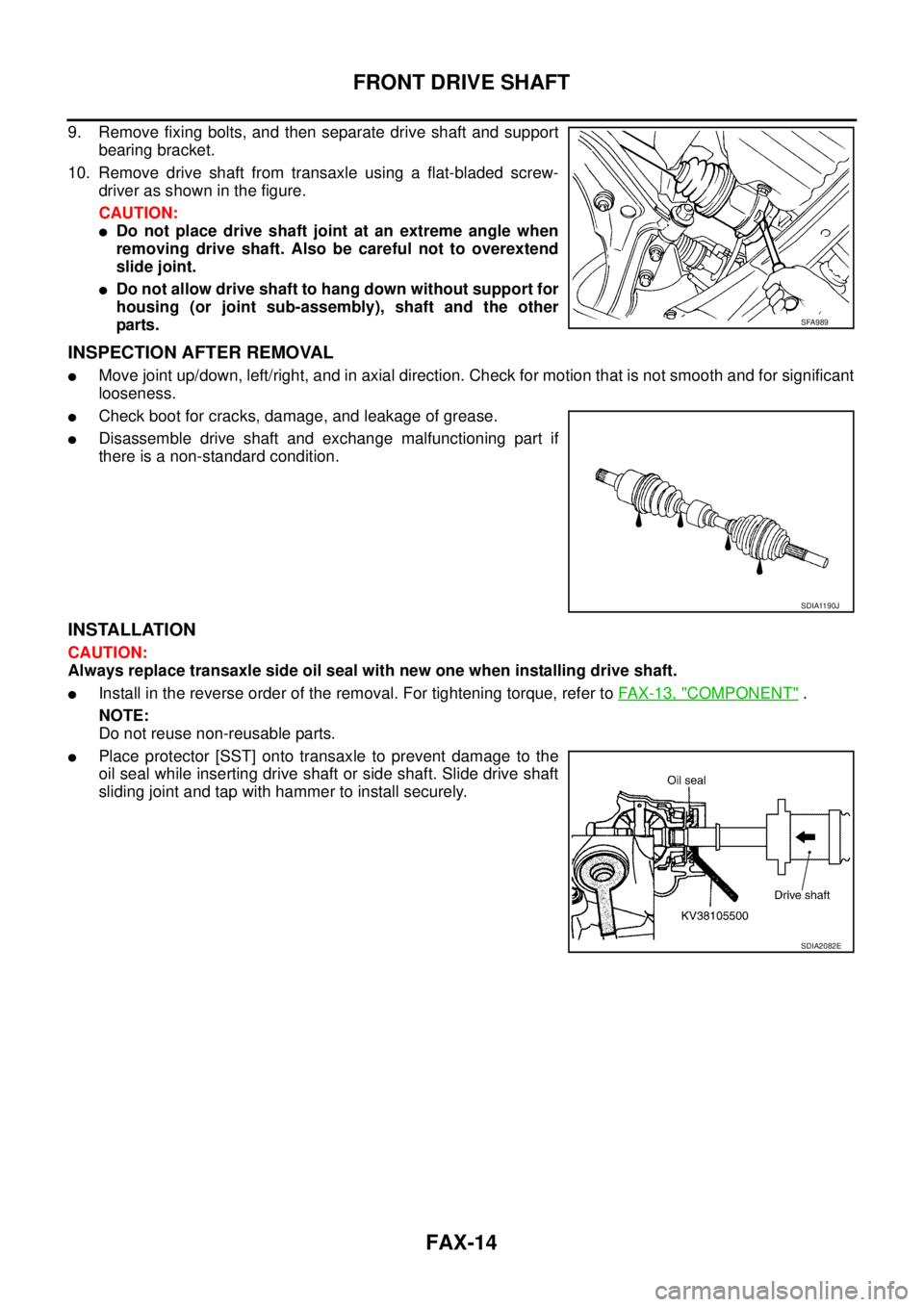

9. Remove fixing bolts, and then separate drive shaft and support
bearing bracket.
10. Remove drive shaft from transaxle using a flat-bladed screw-
driver as shown in the fi

Page 2397 of 3502

NISSAN TEANA 2003 Service Manual FRONT DRIVE SHAFT
FAX-15
C
E
F
G
H
I
J
K
L
MA
B
FA X

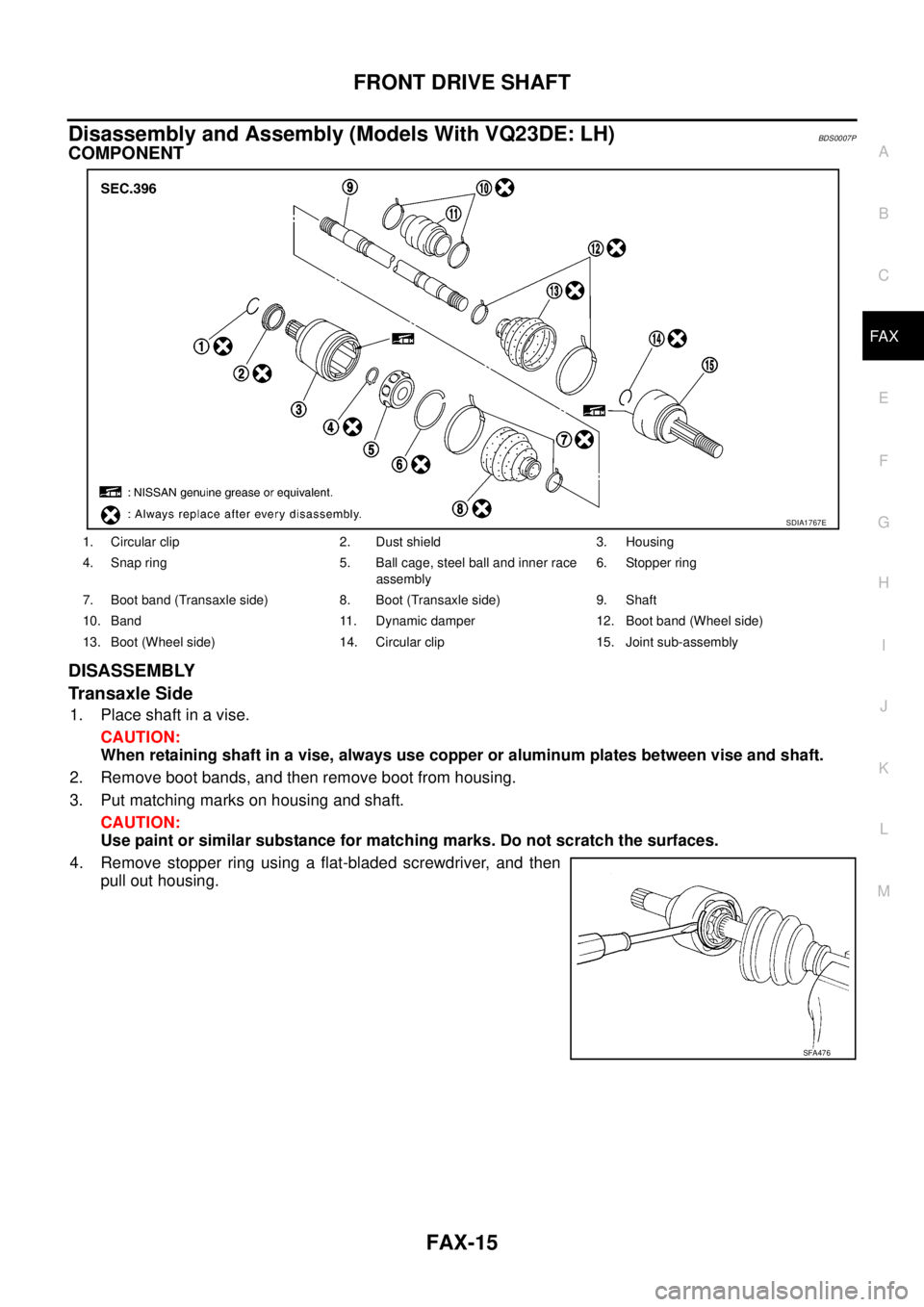

Disassembly and Assembly (Models With VQ23DE: LH)BDS0007P
COMPONENT
DISASSEMBLY
Transaxle Side
1. Place shaft in a vise.
CAUTION:
When retaining

Page 2398 of 3502

NISSAN TEANA 2003 Service Manual FAX-16
FRONT DRIVE SHAFT

5. Remove snap ring, and then remove ball cage, steel ball and
inner race assembly from shaft.
6. Remove boot from shaft.
7. Remove circular clip and dust shield from housin

FAX-16
FRONT DRIVE SHAFT

5. Remove snap ring, and then remove ball cage, steel ball and
inner race assembly from shaft.
6. Remove boot from shaft.
7. Remove circular clip and dust shield from housing.
8. Clean old grease on housing with paper towels.
Wheel Side
1. Place shaft in a vise.
CAUTION:
When retaining shaft in a vise, always use copper or aluminum plates between vise and shaft.
2. Remove boot bands, and then remove boot from joint sub-assembly.
3. Screw drive shaft puller (suitable tool) 30 mm (1.18 in) or more
over the thread on joint sub-assembly, and pull joint sub-assem-
bly out of shaft.
CAUTION:
Replace entire drive shaft assembly if joint sub-assembly
cannot be removed after five or more unsuccessful
attempts.
Align sliding hammer and drive shaft and remove them
by pulling firmly and uniformly.
4. Remove circular clip from shaft.
5. Remove boot from shaft.
6. Clean old grease on joint sub-assembly with paper towels while rotating ball cage.
Dynamic Damper
Remove band. Then, remove dynamic damper from shaft.
INSPECTION AFTER DISASSEMBLY
Shaft
Check shaft for runout, cracks, or other damage. Replace if there are.
Joint Sub-Assembly (Wheel Side)
Check joint sub-assembly for rough rotation and excessive axial looseness.
Check the inside of joint sub-assembly for entry of foreign material.
Check joint sub-assembly for compression scars, cracks, and fractures inside of joint sub-assembly.
Replace joint sub-assembly if there is any of non-standard conditions of components.
Housing (Transaxle Side)
NOTE:
Housing, ball cage, steel ball, and inner race are in a set.
Housing
Check ball rolling surface for compression scars, cracks, fractures, and excessive wear.
Check boot mount for deformation.
Ball Cage
Check sliding surface for compression scars, cracks, and fractures.
Steel Ball
Check for compression scars, cracks, fractures, and excessive wear.
Inner Race
Check ball sliding surface for compression scars, cracks, and fractures.
Check serration for damage.
SFA514A
SDIA0606E

Page 2399 of 3502

NISSAN TEANA 2003 Service Manual FRONT DRIVE SHAFT
FAX-17
C
E
F
G
H
I
J
K
L
MA
B
FA X

Dynamic Damper
Check for cracks, and other damage. Replace if there are.
Dust shield
Check for cracks, deformation, and other damage. Replace if

Page 2400 of 3502

NISSAN TEANA 2003 Service Manual FAX-18
FRONT DRIVE SHAFT

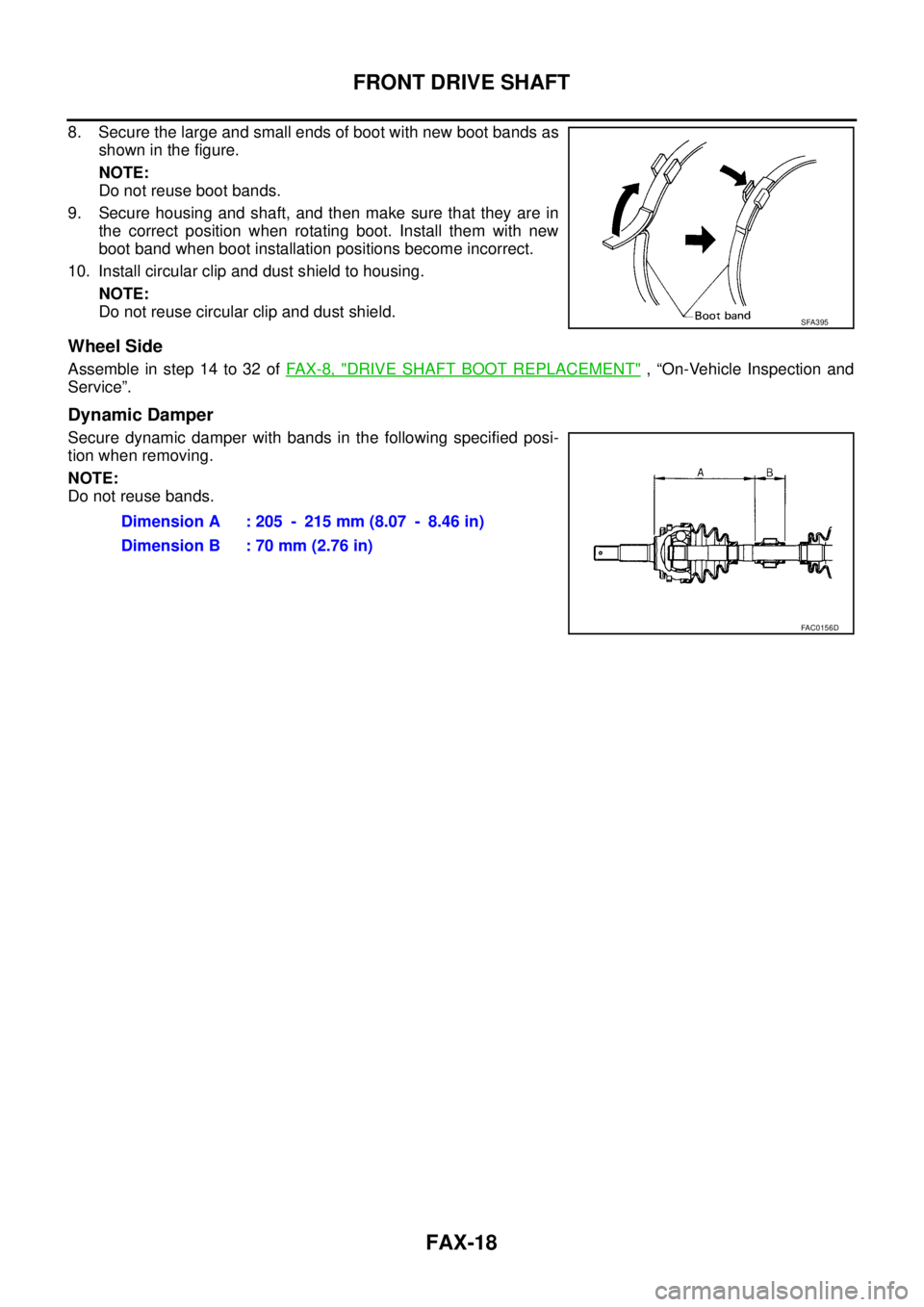

8. Secure the large and small ends of boot with new boot bands as
shown in the figure.
NOTE:
Do not reuse boot bands.
9. Secure housing and shaft, and then make sure that th
