NISSAN TEANA 2003 Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-161
C
D
E
F
G
H
I
J
L
MA
B
LT

Preliminary CheckBKS001PU
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusibl

Page 2850 of 3502

NISSAN TEANA 2003 Service Manual LT-162
TURN SIGNAL AND HAZARD WARNING LAMPS

CONSULT-II Functions (BCM)BKS001PV
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II BASIC OPERATION

LT-162
TURN SIGNAL AND HAZARD WARNING LAMPS

CONSULT-II Functions (BCM)BKS001PV
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II BASIC OPERATION
Refer to GI-34, "CONSULT-II Start Procedure" .
DATA MONITOR
Operation Procedure
1. Touch “FLASHER” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
4. When “ALL SIGNALS” is selected, all the items will be monitored. When “SELECTION FROM MENU” is
selected, touch individual items to be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
ACTIVE TEST
Operation Procedure
1. Touch “FLASHER” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching “OFF” deactivates the operation.
Display Item List
BCM diagnosis part Diagnosis mode Description
FLASHERDATA MONITOR Displays BCM input data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending driving signal to them.
ALL SIGNALS Monitors all the items.
SELECTION FROM MENU Selects items and monitor them.
Monitor item Contents
IGN ON SW “ON/OFF” Displays “IGN position (ON)/OFF, ACC position (OFF)” judged from the ignition switch signal.
HAZARD SW “ON/OFF” Displays “hazard ON (ON)/hazard OFF (OFF)” status, determined from hazard switch signal.
TURN SIGNAL R “ON/OFF” Displays “turn right (ON)/other (OFF)” status, determined from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays “turn left (ON)/other (OFF)” status, determined from lighting switch signal.
CONSULT-II
screen displayTest item Description
FLASHER Turn signal lamp RH and LH
operation Turn signal lamp RH and LH are operated by switching operation (OFF, RH, LH).
(It is not blinking operation.)

Page 2851 of 3502

NISSAN TEANA 2003 Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-163
C
D
E
F
G
H
I
J
L
MA
B
LT

Turn Signal Lamp RH Does Not IlluminateBKS002FN

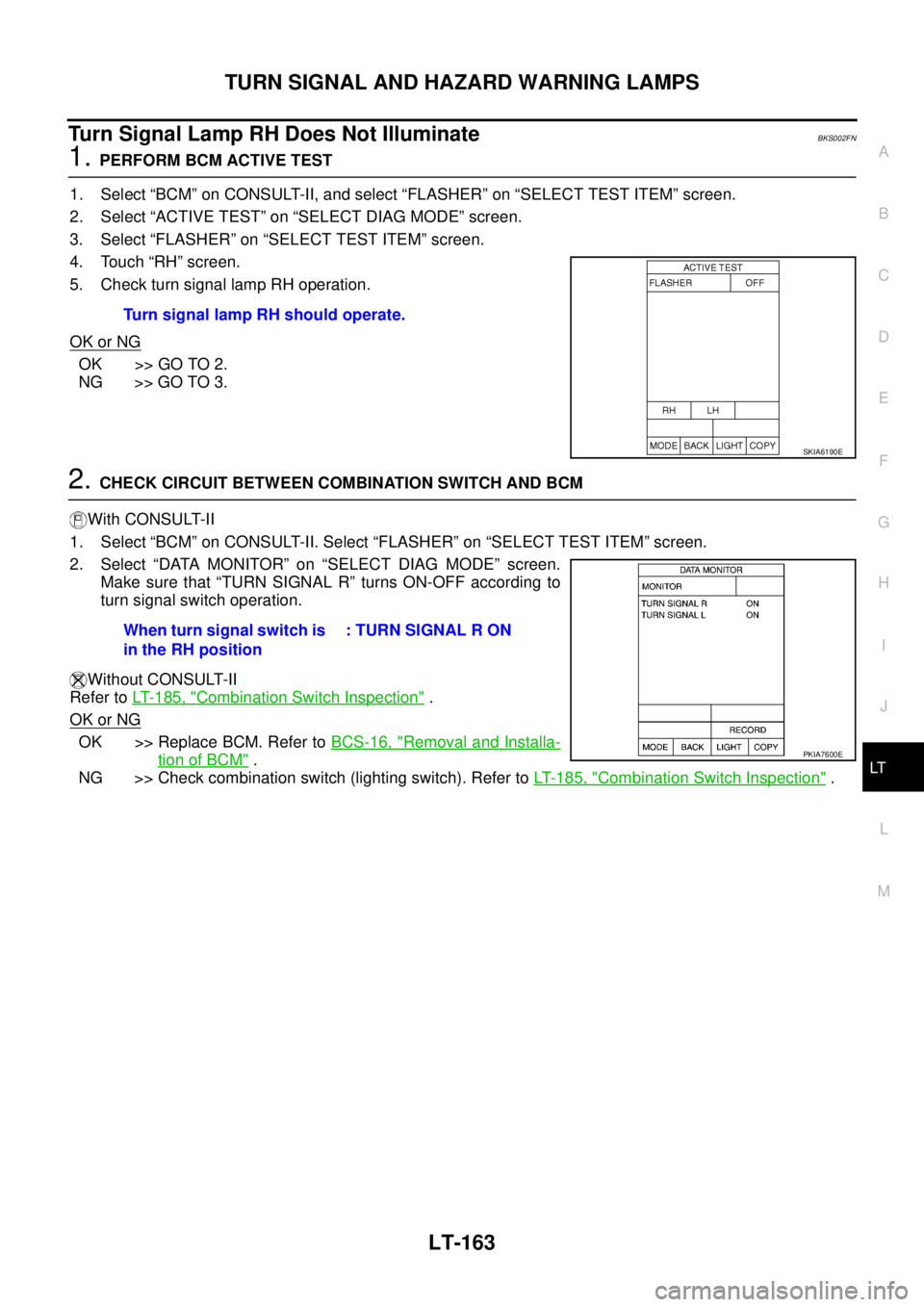

1. PERFORM BCM ACTIVE TEST
1. Select “BCM” on CONSULT-II, and select “FLAS

Page 2852 of 3502

NISSAN TEANA 2003 Service Manual LT-164
TURN SIGNAL AND HAZARD WARNING LAMPS

3. CHECK CIRCUIT BETWEEN BCM AND TURN SIGNAL LAMP
1. Turn ignition switch OFF.
2. Disconnect BCM connector, front combination lamp RH connector, side turn

Page 2853 of 3502

NISSAN TEANA 2003 Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-165
C
D
E
F
G
H
I
J
L
MA
B
LT

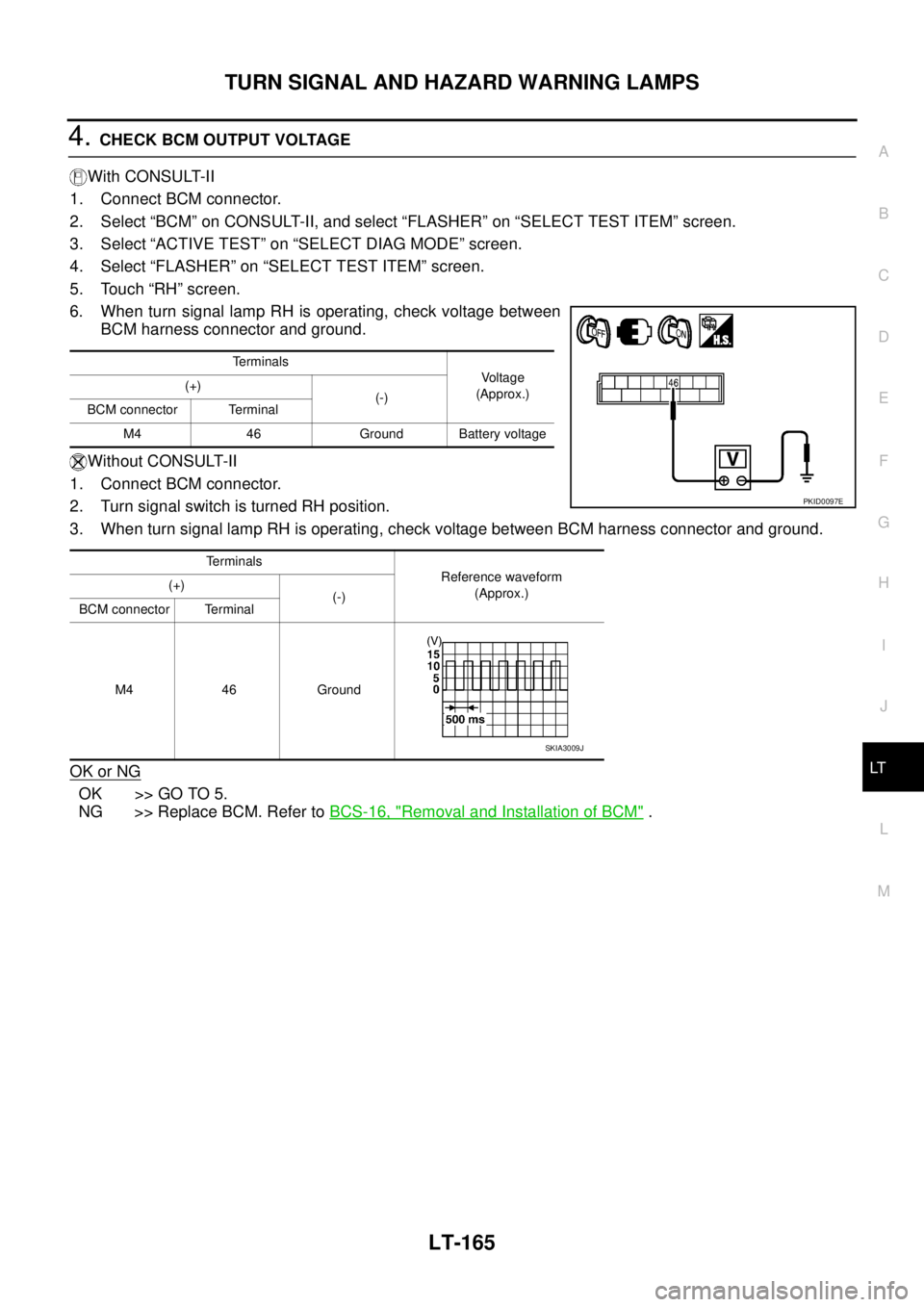

4. CHECK BCM OUTPUT VOLTAGE
With CONSULT-II
1. Connect BCM connector.
2. Select “BCM” on CONSULT-II, and select “FLASHER�

Page 2854 of 3502

NISSAN TEANA 2003 Service Manual LT-166
TURN SIGNAL AND HAZARD WARNING LAMPS

5. CHECK CIRCUIT BETWEEN TURN SIGNAL LAMP AND GROUND
1. Turn ignition switch OFF.
2. Check continuity between front combination lamp RH harness connector

Page 2855 of 3502

NISSAN TEANA 2003 Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-167
C
D
E
F
G
H
I
J
L
MA
B
LT

Turn Signal Lamp LH Does Not IlluminateBKS002FO
1. PERFORM BCM ACTIVE TEST
1. Select “BCM” on CONSULT-II, and select “FLAS

Page 2856 of 3502

NISSAN TEANA 2003 Service Manual LT-168
TURN SIGNAL AND HAZARD WARNING LAMPS

3. CHECK CIRCUIT BETWEEN BCM AND TURN SIGNAL LAMP
1. Turn ignition switch OFF.
2. Disconnect BCM connector, front combination lamp LH connector, side turn
