Page 1897 of 3502
DTC P1706 PNP SWITCH
EC-615
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

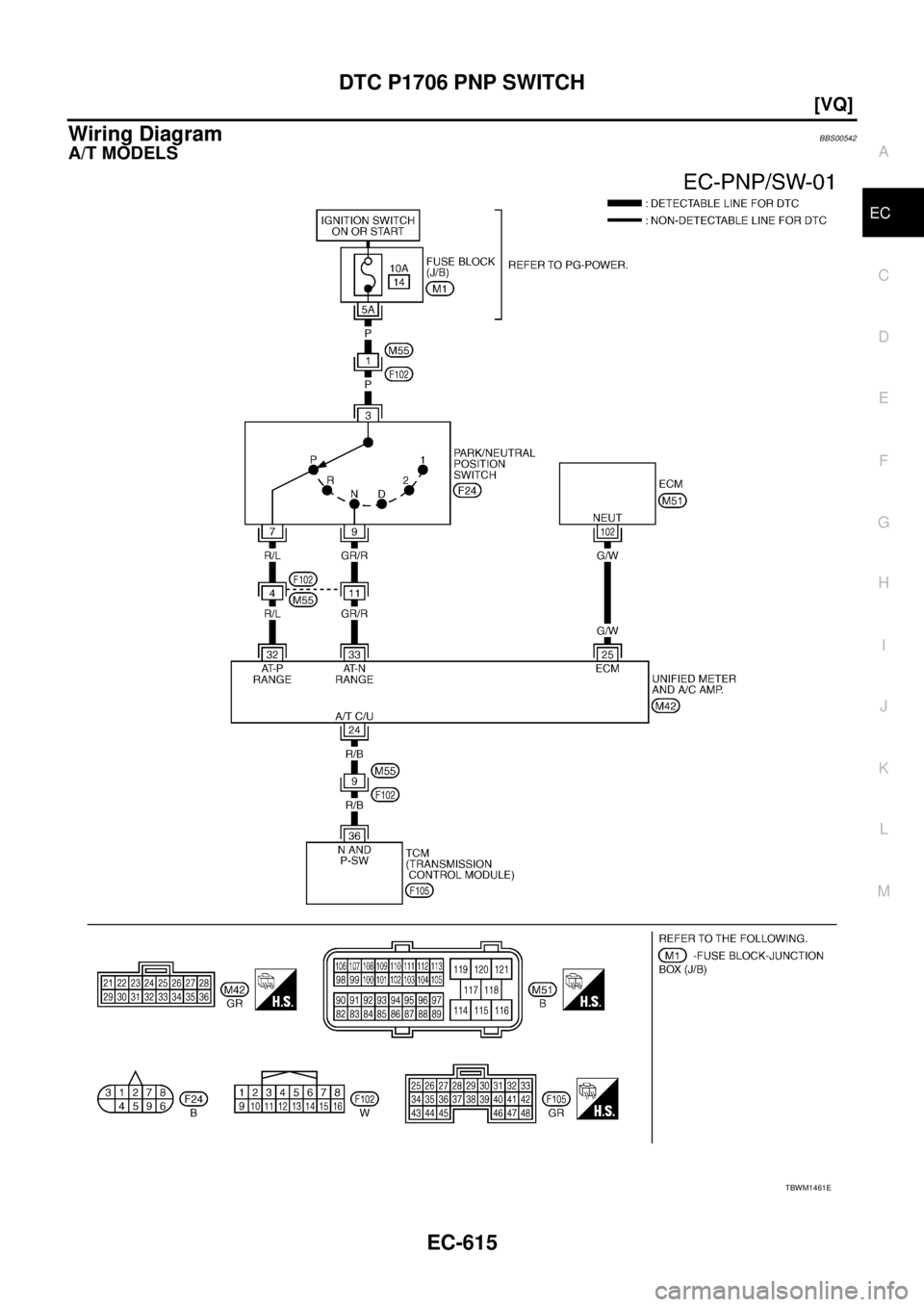

Wiring DiagramBBS00542
A/T MODELS
TBWM1461E
Page 1898 of 3502
EC-616
[VQ]
DTC P1706 PNP SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102 G/W PNP switch[Ignition switch: ON]
Shift lever: N or PApproximately 0V
[Ignition switch: ON]
Except above positionBATTERY VOLTAGE
(11 - 14V)
Page 1899 of 3502
DTC P1706 PNP SWITCH
EC-617
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
CVT MODELS
TBWM1462E
Page 1900 of 3502
![NISSAN TEANA 2003 Service Manual EC-618
[VQ]
DTC P1706 PNP SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output volta NISSAN TEANA 2003 Service Manual EC-618
[VQ]
DTC P1706 PNP SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output volta](/manual-img/5/57392/w960_57392-1899.png)
EC-618
[VQ]
DTC P1706 PNP SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS00543
A/T MODELS
1. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C amp.” harness connector M42.
3. Turn ignition switch ON.
4. Check voltage between “unified meter and A/C amp.” terminals
32, 33 and ground with CONSULT-II or tester under the follow-
ing conditions.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK PNP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect PNP switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between PNP switch terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102 G/W PNP switch[Ignition switch: ON]
Shift lever: N or PApproximately 0V
[Ignition switch: ON]
Except above positionBATTERY VOLTAGE
(11 - 14V)
Condition (Shift position)Voltage
Te r m i n a l 3 2 Te r m i n a l 3 3
P positionBATTERY VOLTAGE
(11 - 14V)Approximately 0 V
N position Approximately 0 VBATTERY VOLTAGE
(11 - 14V)
Except above position Approximately 0 V Approximately 0 V
PBIB1675E
Voltage: Battery voltage
PBIB1881E
Page 1901 of 3502
![NISSAN TEANA 2003 Service Manual DTC P1706 PNP SWITCH
EC-619
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M55, F102
Fuse block (J/B) connector M1
10A fuse
Harness for open NISSAN TEANA 2003 Service Manual DTC P1706 PNP SWITCH
EC-619
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M55, F102
Fuse block (J/B) connector M1
10A fuse
Harness for open](/manual-img/5/57392/w960_57392-1900.png)
DTC P1706 PNP SWITCH
EC-619
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M55, F102
Fuse block (J/B) connector M1
10A fuse
Harness for open or short between PNP switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Check harness continuity between PNP switch terminal 7 and “unified meter and A/C amp.” terminal 32,
PNP switch terminal 9 and “unified meter and A/C amp.” terminal 33.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M55
Harness for open or short between PNP switch and “unified meter and A/C amp.”
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK PNP SWITCH
Refer to AT- 2 3 0 , "
Park/Neutral Position (PNP) Switch" .
OK or NG
OK >> GO TO 7.
NG >> Replace PNP switch.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
8. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 102 and “unified meter and A/C amp.” terminal 25.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.Continuity should exist.
Continuity should exist.
Page 1902 of 3502
EC-620
[VQ]
DTC P1706 PNP SWITCH
9. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 10.
NG >> Repair or replace.
10. REPLACE “UNIFIED METER AND A/C AMP.”
Refer to DI-29, "
SELF-DIAGNOSTIC RESULTS" .
>>INSPECTION END
Page 1903 of 3502
![NISSAN TEANA 2003 Service Manual DTC P1706 PNP SWITCH
EC-621
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
CVT MODELS
1. CHECK DTC WITH TCM
Refer to CVT-24, "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK PNP SWI NISSAN TEANA 2003 Service Manual DTC P1706 PNP SWITCH
EC-621
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
CVT MODELS
1. CHECK DTC WITH TCM
Refer to CVT-24, "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK PNP SWI](/manual-img/5/57392/w960_57392-1902.png)
DTC P1706 PNP SWITCH
EC-621
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
CVT MODELS
1. CHECK DTC WITH TCM
Refer to CVT-24, "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect TCM harness connector.
3. Disconnect “unified meter and A/C amp.” harness connector.
4. Check harness continuity between TCM terminal 24 and “unified meter and A/C amp.” terminal 32.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M55, F102
Harness for open or short between “unified meter and A/C amp.” and TCM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 102 and “unified meter and A/C amp.” terminal 25.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace.
6. REPLACE “UNIFIED METER AND A/C AMP.”
Refer to DI-29, "
SELF-DIAGNOSTIC RESULTS" .
>>INSPECTION END Continuity should exist.
Continuity should exist.
Page 1904 of 3502
![NISSAN TEANA 2003 Service Manual EC-622
[VQ]
DTC P1715 INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)
DTC P1715 INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)PFP:31935
DescriptionBBS005AZ
ECM receives primary speed sensor signal from TCM thr NISSAN TEANA 2003 Service Manual EC-622
[VQ]
DTC P1715 INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)
DTC P1715 INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)PFP:31935
DescriptionBBS005AZ
ECM receives primary speed sensor signal from TCM thr](/manual-img/5/57392/w960_57392-1903.png)
EC-622
[VQ]
DTC P1715 INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)
DTC P1715 INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)PFP:31935
DescriptionBBS005AZ
ECM receives primary speed sensor signal from TCM through CAN communication line.
CONSULT-II Reference Value in Data Monitor ModeBBS005B0
Specification data are reference values.
On Board Diagnosis LogicBBS005B1
NOTE:
If DTC P1715 is displayed with DTC U1000 or U1001 first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-458, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P1715 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-538, "
DTC P0605 ECM" .
If DTC P1715 is displayed with DTC P0335, first perform the trouble diagnosis for DTC P0335.
Refer to EC-517, "
DTC P0335 CKP SENSOR (POS)" .
If DTC P1715 is displayed with DTC P0340 or P0345, first perform the trouble diagnosis for DTC
P0340, P0345. Refer to EC-524, "
DTC P0340, P0345 CMP SENSOR (PHASE)" .
The MI will not light up for this diagnosis.
DTC Confirmation ProcedureBBS005B2
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine.
4. Drive vehicle at a speed of more than 50 km/h (31 MPH) for at
least 5 seconds.
5. If 1st trip DTC is detected, go to EC-623, "
Diagnostic Procedure"
.
MONITOR ITEM CONDITION SPECIFICATION
I/P PULLY SPD
Vehicle speed: More than 20 km/h (12MPH)Almost the same speed as the
tachometer indication
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1715
1715Input speed sensor
(Primary speed sensor)
(TCM output)Primary speed sensor signal is different
from the theoretical value calculated by
ECM from secondary speed sensor sig-
nal and engine rpm signal.
Harness or connectors
(The CAN communication line is open or
shorted)
Harness or connectors
(Primary speed sensor circuit is open or
shorted)
TCM
SEF058Y
