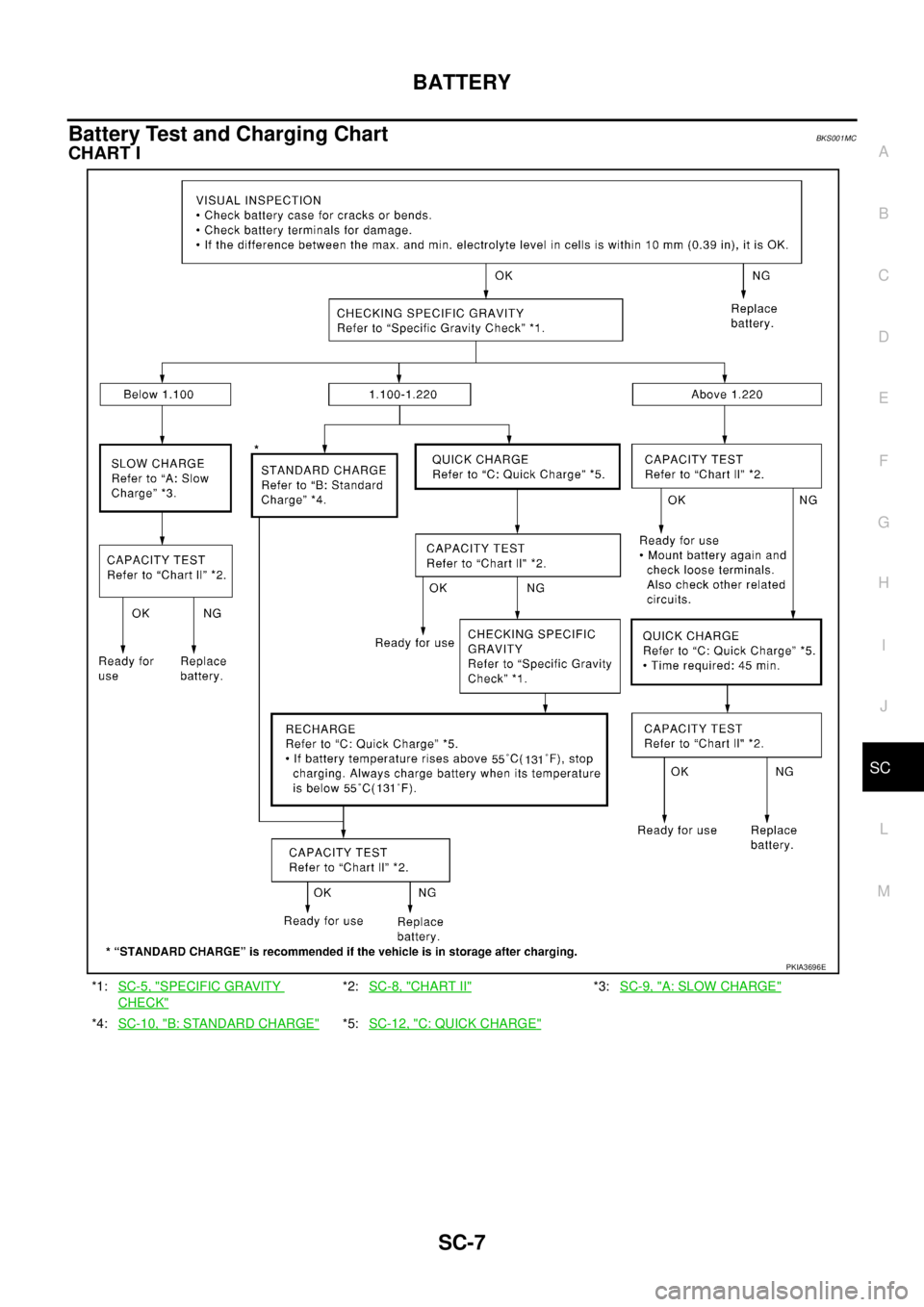

Battery Test and Charging ChartBKS001MC
CHART I
*1:SC-5, "SPECIFIC GRAVITY
CHECK"
*2:SC-8, "CHART II"*3:SC-9, "A: SLOW CHARGE"
*4:SC-10, "B: STANDARD CHARGE"*5:SC-12, "C: QUICK CHARGE"
PKIA3696E
Page 3226 of 3502
SC-8
BATTERY
CHART II

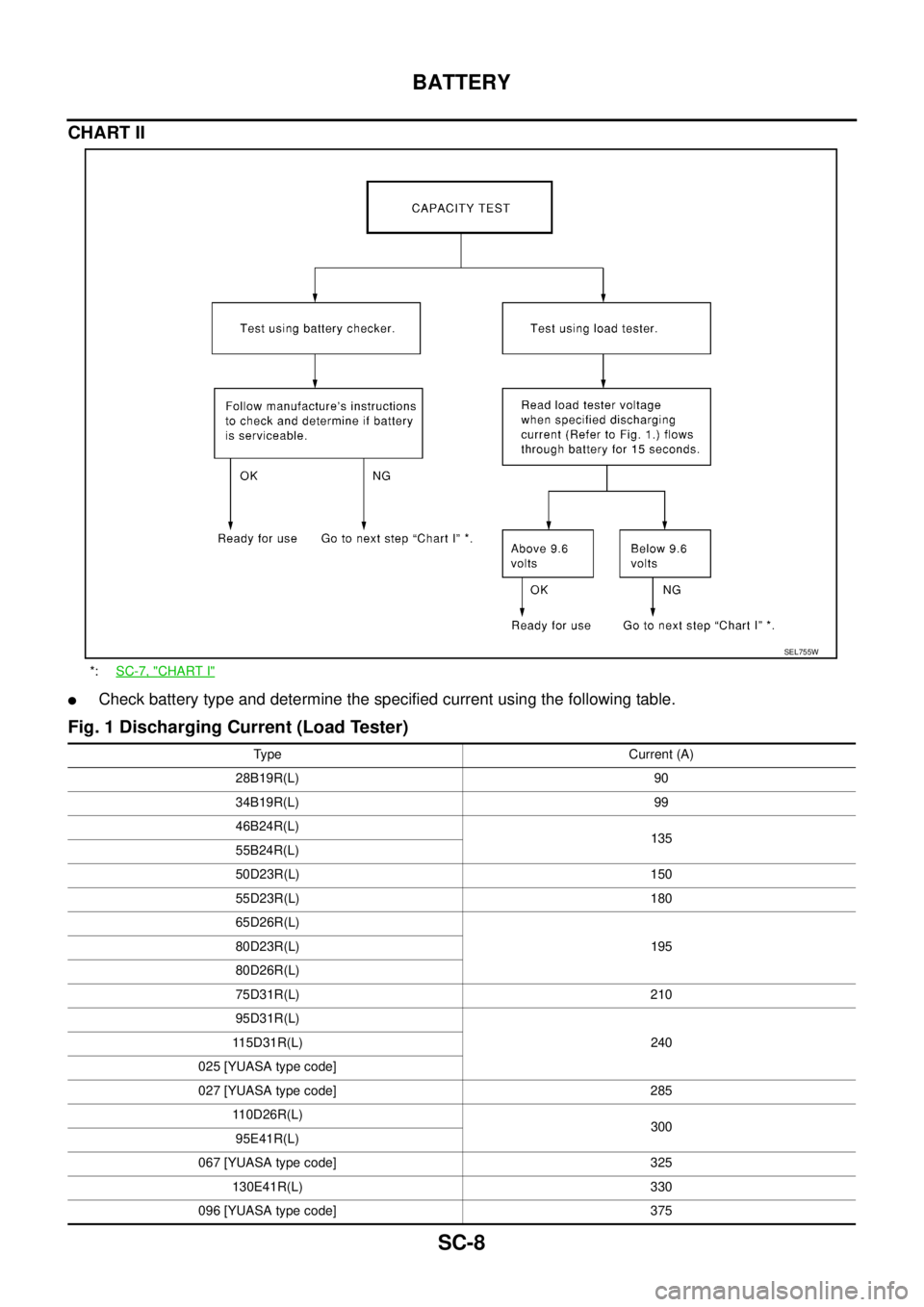

Check battery type and determine the specified current using the following table.
Fig. 1 Discharging Current (Load Tester)
*:SC-7, "CHART I"
SEL755W
Type Current (A)
28B19R(L) 90
34B19R(L) 99
46B24R(L)
135
55B24R(L)
50D23R(L) 150
55D23R(L) 180
65D26R(L)
195 80D23R(L)
80D26R(L)
75D31R(L) 210
95D31R(L)
240 115D31R(L)
025 [YUASA type code]
027 [YUASA type code] 285
110D26R(L)
300
95E41R(L)
067 [YUASA type code] 325
130E41R(L) 330
096 [YUASA type code] 375
Page 3227 of 3502
BATTERY
SC-9
C
D
E
F
G
H
I
J
L
MA
B
SC

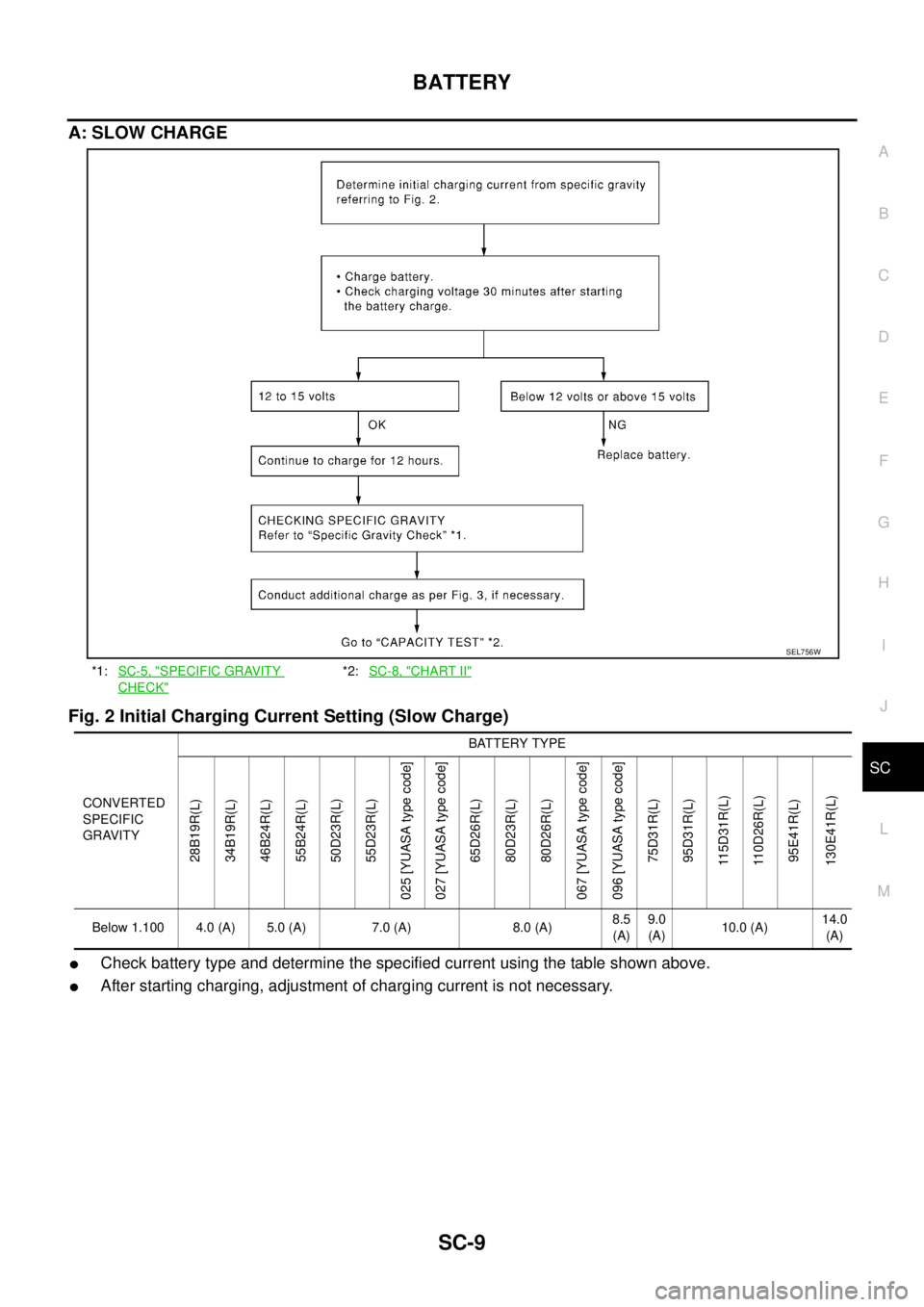

A: SLOW CHARGE
Fig. 2 Initial Charging Current Setting (Slow Charge)
Check battery type and determine the specified current using the table shown above.
After starting charging, adjustment of charging current is not necessary.
*1:SC-5, "SPECIFIC GRAVITY
CHECK"
*2:SC-8, "CHART II"
SEL756W
CONVERTED
SPECIFIC
GRAVITYBATTERY TYPE
28B19R(L)
34B19R(L)
46B24R(L)
55B24R(L)
50D23R(L)
55D23R(L)
025 [YUASA type code]
027 [YUASA type code]
65D26R(L)
80D23R(L)
80D26R(L)
067 [YUASA type code]
096 [YUASA type code]
75D31R(L)
95D31R(L)
115D31R(L)
110D26R(L)
95E41R(L)
130E41R(L)
Below 1.100 4.0 (A) 5.0 (A) 7.0 (A) 8.0 (A)8.5
(A)9.0
(A)10.0 (A)14.0
(A)
Page 3228 of 3502

SC-10
BATTERY
Fig. 3 Additional Charge (Slow Charge)
CAUTION:
Set charging current to specified value in Fig. 2. If charger is not capable of producing specified
current value, set its charging current as close to that value as possible.
Keep battery away from open flame while it is being charged.
When connecting charger, connect leads first, then turn on charger. Never turn on charger first, as
this may cause a spark.
If battery temperature rises above 55°C (131°F), stop charging. Always charge battery when its
temperature is below 55°C (131°F).
B: STANDARD CHARGE
Fig. 4 Initial Charging Current Setting (Standard Charge)
*:SC-8, "CHART II"
SEL757W
*1:SC-5, "SPECIFIC GRAVITY
CHECK"
*2:SC-8, "CHART II"
SEL758W
CONVERTED
SPECIFIC
GRAVITYBATTERY TYPE
28B19R(L)
34B19R(L)
46B24R(L)
55B24R(L)
50D23R(L)
55D23R(L)
025 YUASA type code
027 YUASA type code
65D26R(L)
80D23R(L)
80D26R(L)
067 YUASA type code
096 YUASA type code
75D31R(L)
95D31R(L)
115D31R(L)
110D26R(L)
95E41R(L)
130E41R(L)
1.100 - 1.130 4.0 (A) 5.0 (A) 6.0 (A) 7.0 (A)8.0
(A)9.0 (A)13.0
(A)
1.130 - 1.160 3.0 (A) 4.0 (A) 5.0 (A) 6.0 (A)7.0
(A)8.0 (A)11 . 0
(A)
Page 3229 of 3502

BATTERY
SC-11
C
D
E
F
G
H
I
J
L
MA
B
SC
Check battery type and determine the specified current using the table shown above.
After starting charging, adjustment of charging current is not necessary.
Fig. 5 Additional Charge (Standard Charge)
CAUTION:
Never use standard charge method on a battery whose specific gravity is less than 1.100.
Set charging current to specified value in Fig. 4. If charger is not capable of producing specified
current value, set its charging current as close to that value as possible.
Keep battery away from open flame while it is being charged.
When connecting charger, connect leads first, then turn on charger. Never turn on charger first, as
this may cause a spark.
If battery temperature rises above 55°C (131°F), stop charging. Always charge battery when its
temperature is below 55°C (131°F).
1.160 - 1.190 2.0 (A) 3.0 (A) 4.0 (A) 5.0 (A)6.0
(A)7.0 (A)9.0
(A)
1.190 - 1.220 2.0 (A) 2.0 (A) 3.0 (A) 4.0 (A)5.0
(A)5.0 (A)7.0
(A) CONVERTED
SPECIFIC
GRAVITYBATTERY TYPE
28B19R(L)
34B19R(L)
46B24R(L)
55B24R(L)
50D23R(L)
55D23R(L)
025 YUASA type code
027 YUASA type code
65D26R(L)
80D23R(L)
80D26R(L)
067 YUASA type code
096 YUASA type code
75D31R(L)
95D31R(L)
115D31R(L)
110D26R(L)
95E41R(L)
130E41R(L)
*:SC-8, "CHART II"
SEL759W
Page 3230 of 3502

SC-12
BATTERY
C: QUICK CHARGE
Fig. 6 Initial Charging Current Setting and Charging Time (Quick Charge)
Check battery type and determine the specified current using the table shown above.
After starting charging, adjustment of charging current is not necessary.
CAUTION:
Never use quick charge method on a battery whose specific gravity is less than 1.100.
Set initial charging current to specified value in Fig. 6. If charger is not capable of producing spec-
ified current value, set its charging current as close to that value as possible.
Keep battery away from open flame while it is being charged.
When connecting charger, connect leads first, then turn on charger. Never turn on charger first, as
this may cause a spark.
Be careful of a rise in battery temperature because a large current flow is required during quick-
charge operation.
If battery temperature rises above 55°C (131°F), stop charging. Always charge battery when its
temperature is below 55°C (131°F).
Never exceed the charging time specified in Fig. 6, because charging battery over the charging
time can cause deterioration of the battery.
*:SC-8, "CHART II"
SEL760W
BATTERY TYPE
28B19R(L)
34B19R(L)
46B24R(L)
55B24R(L)
50D23R(L)
55D23R(L)
65D26R(L)
80D23R(L)
80D26R(L)
025 [YUASA type code]
027 [YUASA type code]
067 [YUASA type code]
096 [YUASA type code]
75D31R(L)
95D31R(L)
115D31R(L)
110D26R(L)
95E41R(L)
130E41R(L)
CURRENT [A] 10 (A) 15 (A) 20 (A) 25 (A) 30 (A)40
(A)
CONVERTED SPECIFIC GRAVITY
1.100 -
1.1302.5 hours
1.130 -
1.1602.0 hours
1.160 -
1.1901.5 hours
1.190 -
1.2201.0 hours
Above
1.2200.75 hours (45 min.)
Page 3231 of 3502
BATTERY
SC-13
C
D
E
F
G
H
I
J
L
MA
B
SC

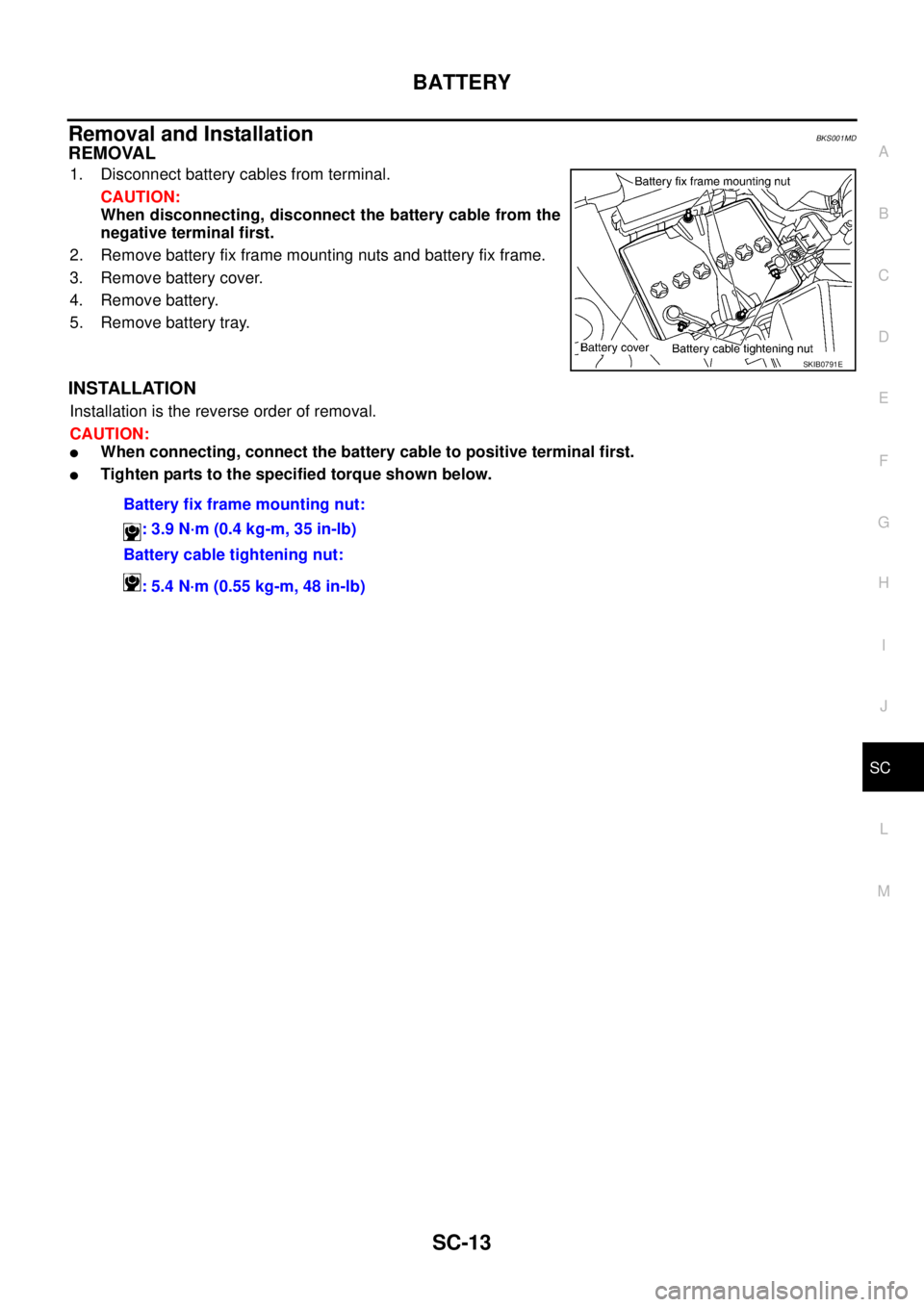

Removal and Installation BKS001MD
REMOVAL
1. Disconnect battery cables from terminal.
CAUTION:
When disconnecting, disconnect the battery cable from the
negative terminal first.
2. Remove battery fix frame mounting nuts and battery fix frame.
3. Remove battery cover.
4. Remove battery.
5. Remove battery tray.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
When connecting, connect the battery cable to positive terminal first.
Tighten parts to the specified torque shown below.
SKIB0791E
Battery fix frame mounting nut:
: 3.9 N·m (0.4 kg-m, 35 in-lb)
Battery cable tightening nut:
: 5.4 N·m (0.55 kg-m, 48 in-lb)
Page 3232 of 3502

SC-14
STARTING SYSTEM
STARTING SYSTEMPFP:23300
System Description BKS001ME
Power is supplied at all times:
through 40A fusible link (letter F , located in the fuse and fusible link block)
to ignition switch terminal 1,
through 15A fuse (No. 71, located in the IPDM E/R)
to CPU of IPDM E/R,
through 15A fuse (No. 78, located in the IPDM E/R)
to CPU of IPDM E/R.
With the ignition switch in the ON or START position, power is supplied:
[A/T models]
from ignition relay
through 10A fuse (No. 83, located in the IPDM E/R)
through IPDM E/R terminal 26
to park/neutral position switch terminal 1.
[CVT models]
through ignition relay ( within the IPDM E/R )
to CPU of IPDM E/R.
When the selector lever in the “P” or “N” position, power is supplied:
[A/T models]
through park/neutral position switch terminal 2
to IPDM E/R terminal 53.
[CVT models]
from TCM terminal 24
to IPDM E/R terminal 53.
Ground is supplied:
to IPDM E/R terminals 38, 50 and 60
from grounds E1 and E31.
Then starter relay is turn ON.
With the ignition switch in the START position, IPDM E/R is energized and power is supplied:
from ignition switch terminal 5
to IPDM E/R terminal 4 and
through IPDM E/R terminal 3
to starter motor terminal 1.
The starter motor plunger closes and provides a closed circuit between the battery and starter motor. The
starter motor is grounded to the engine block. With power and ground supplied, cranking occurs and the
engine starts.
