Page 1505 of 3502

NISSAN TEANA 2003 Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-223
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

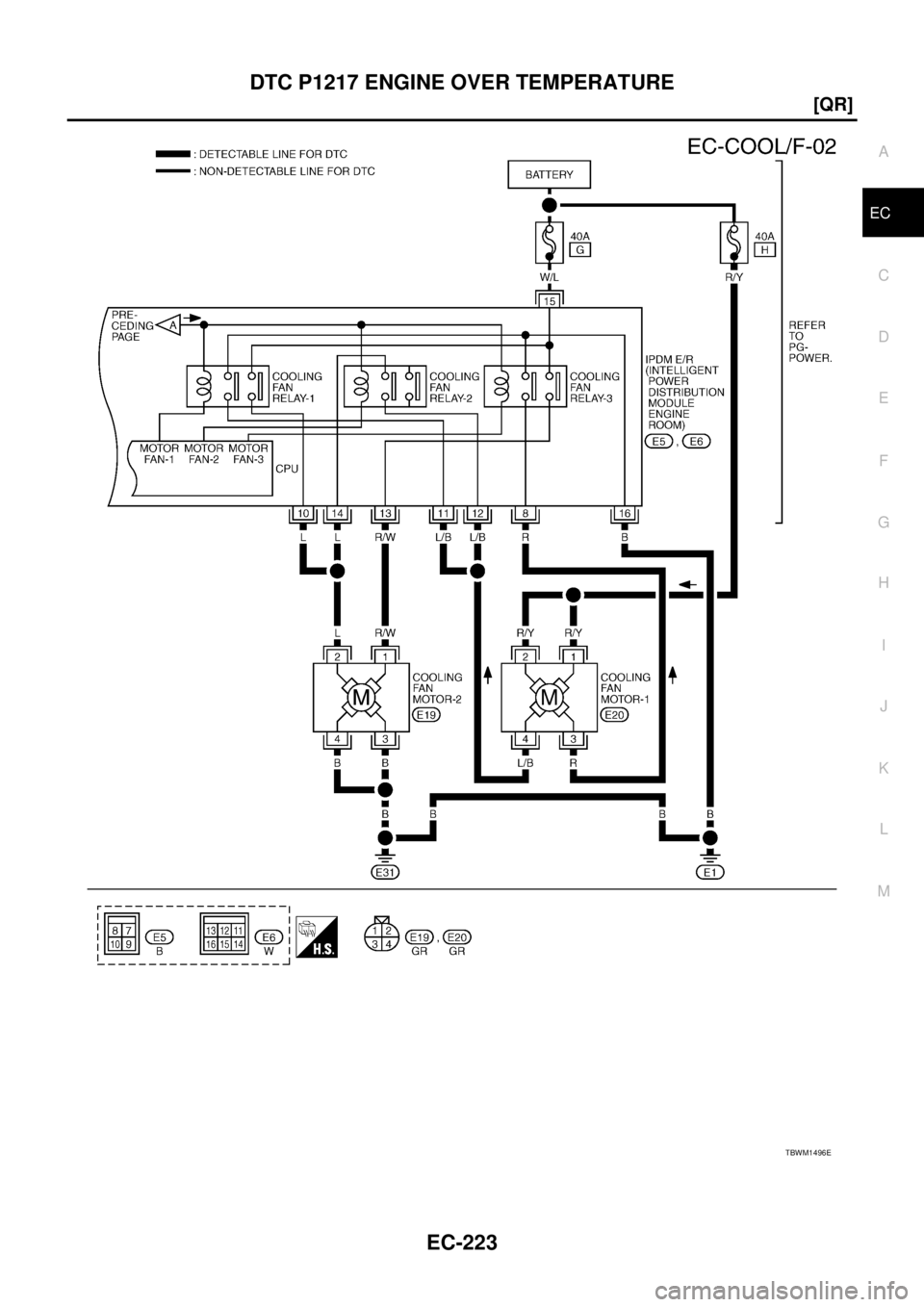

TBWM1496E

Page 1506 of 3502

NISSAN TEANA 2003 Service Manual EC-224
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic ProcedureBBS005GC
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 3.
2. CHECK COOLING FAN OPERATION
W

Page 1507 of 3502

NISSAN TEANA 2003 Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-225
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

5. CHECK COMPONENT PARTS
Check the following.
Radiator cap (Refer to CO-14, "Checking Radiator Cap" .)
Thermostat (Refer to

Page 1508 of 3502

NISSAN TEANA 2003 Service Manual EC-226
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

4. CHECK COOLING FAN MOTOR-1 CIRCUIT-I
1. Disconnect cooling fan motor-1 harness connector.
2. Check voltage between cooling fan motor-1 terminals 1, 2

Page 1509 of 3502

NISSAN TEANA 2003 Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-227
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

7. CHECK COOLING FAN MOTOR-2 CIRCUIT-I
1. Disconnect cooling fan motor-2 harness connector.
2. Check harness continuity betwee

Page 1510 of 3502

NISSAN TEANA 2003 Service Manual EC-228
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 m

Page 1511 of 3502

NISSAN TEANA 2003 Service Manual DTC P1225 TP SENSOR
EC-229
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1225 TP SENSORPFP:16119
Component DescriptionBBS005GF
Electric throttle control actuator consists of throttle control motor,
throttle p

DTC P1225 TP SENSOR
EC-229
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1225 TP SENSORPFP:16119
Component DescriptionBBS005GF
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicBBS005GG
The MI will not light up for this self-diagnosis.
DTC Confirmation ProcedureBBS005GH
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. If 1st trip DTC is detected, go to EC-230, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Turn ignition switch ON.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If 1st trip DTC is detected, go to EC-230, "
Diagnostic Procedure" .
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1225
1225Closed throttle position
learning performanceClosed throttle position learning value is excessively
low.
Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y

Page 1512 of 3502

NISSAN TEANA 2003 Service Manual EC-230
[QR]
DTC P1225 TP SENSOR

Diagnostic ProcedureBBS005GI
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matt
