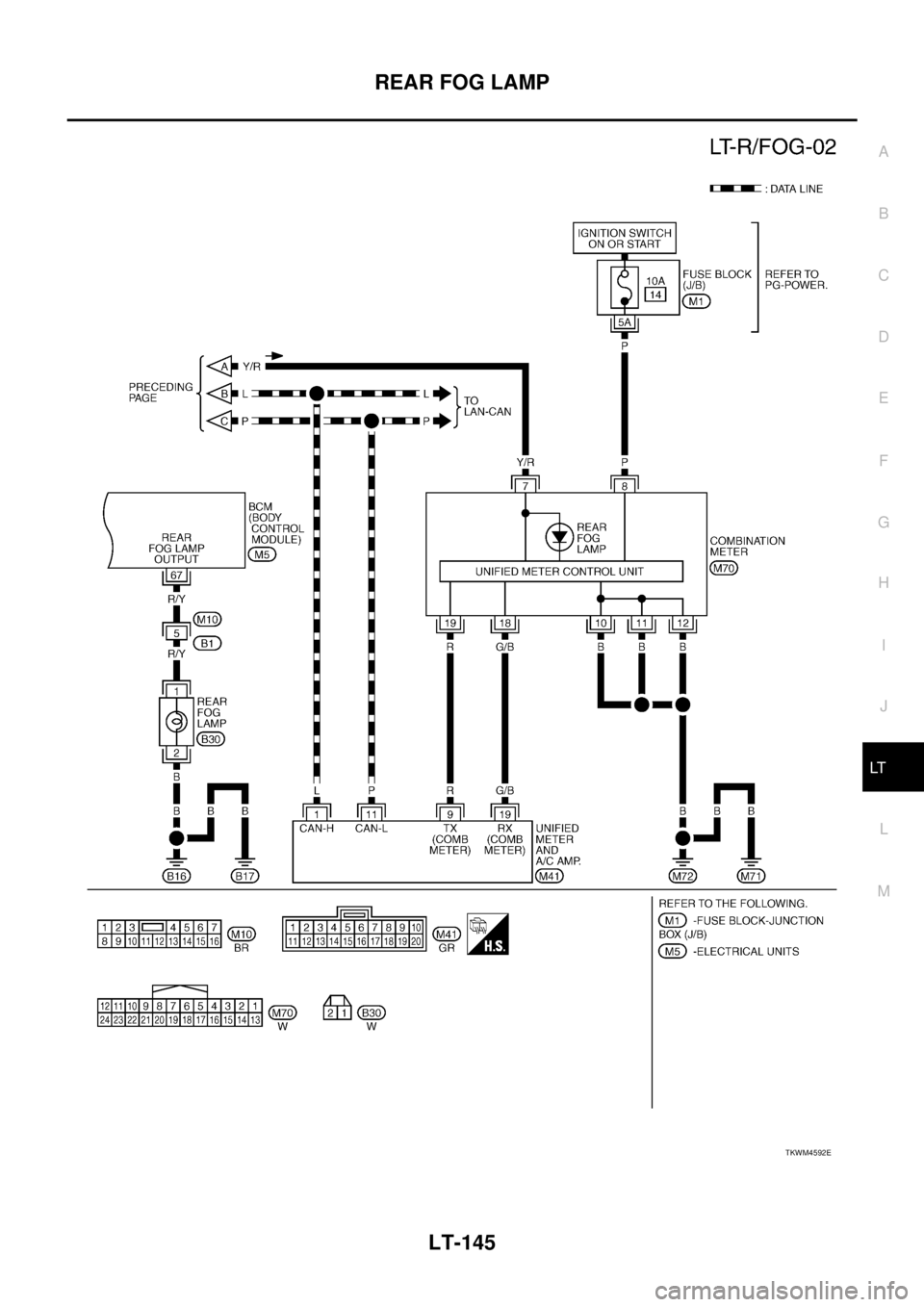

NISSAN TEANA 2003 Service Manual REAR FOG LAMP LT-145 C D E F G H I J L MA B LT TKWM4592E

Page 2834 of 3502

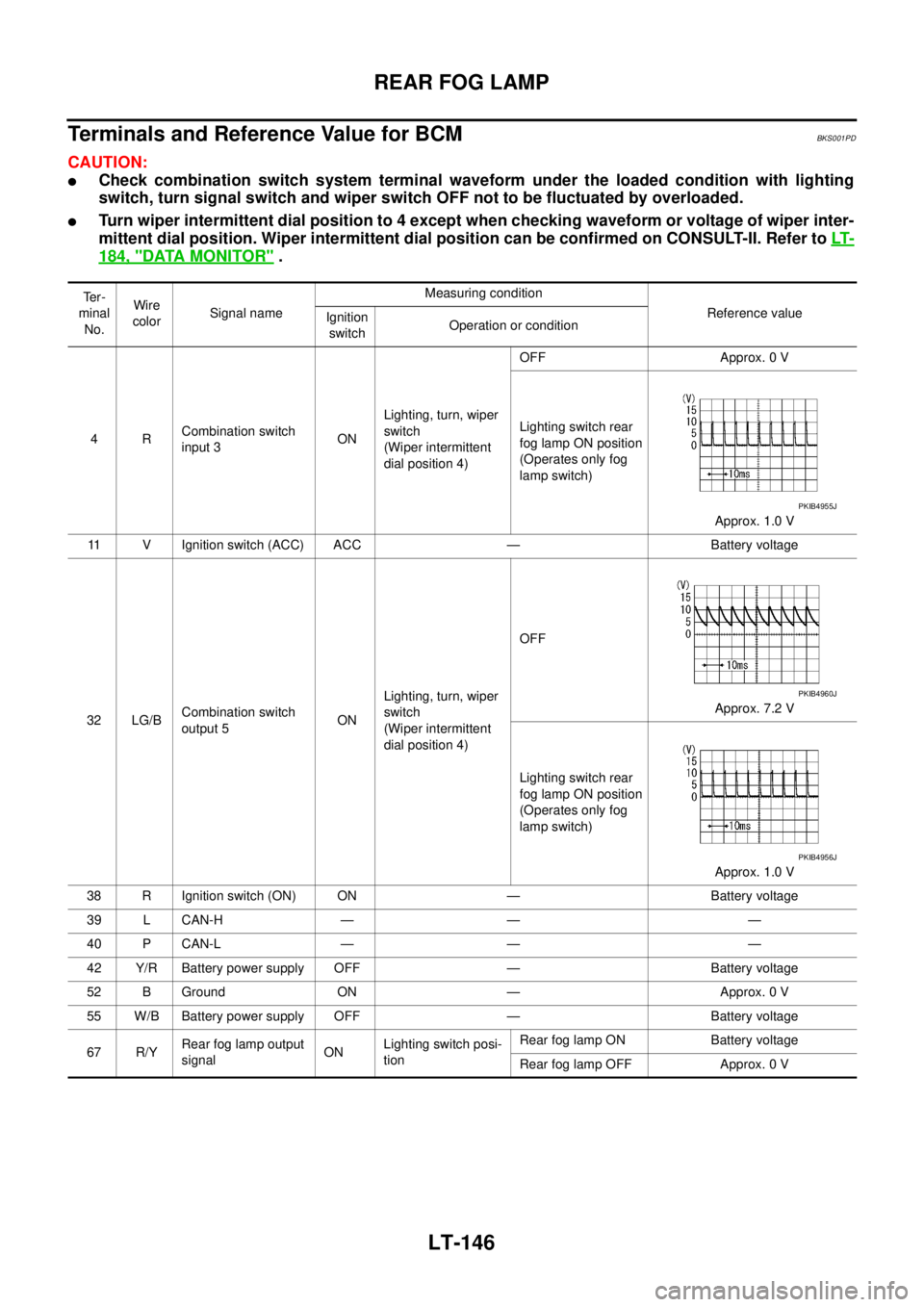

NISSAN TEANA 2003 Service Manual LT-146 REAR FOG LAMP Terminals and Reference Value for BCMBKS001PD CAUTION: Check combination switch system terminal waveform under the loaded condition with lighting switch, turn signal switch and

Page 2835 of 3502

NISSAN TEANA 2003 Service Manual REAR FOG LAMP LT-147 C D E F G H I J L MA B LT How to Proceed With Trouble DiagnosisBKS001PE 1. Confirm the symptom or customer complaint. 2. Understand operation description and function descriptio

Page 2836 of 3502

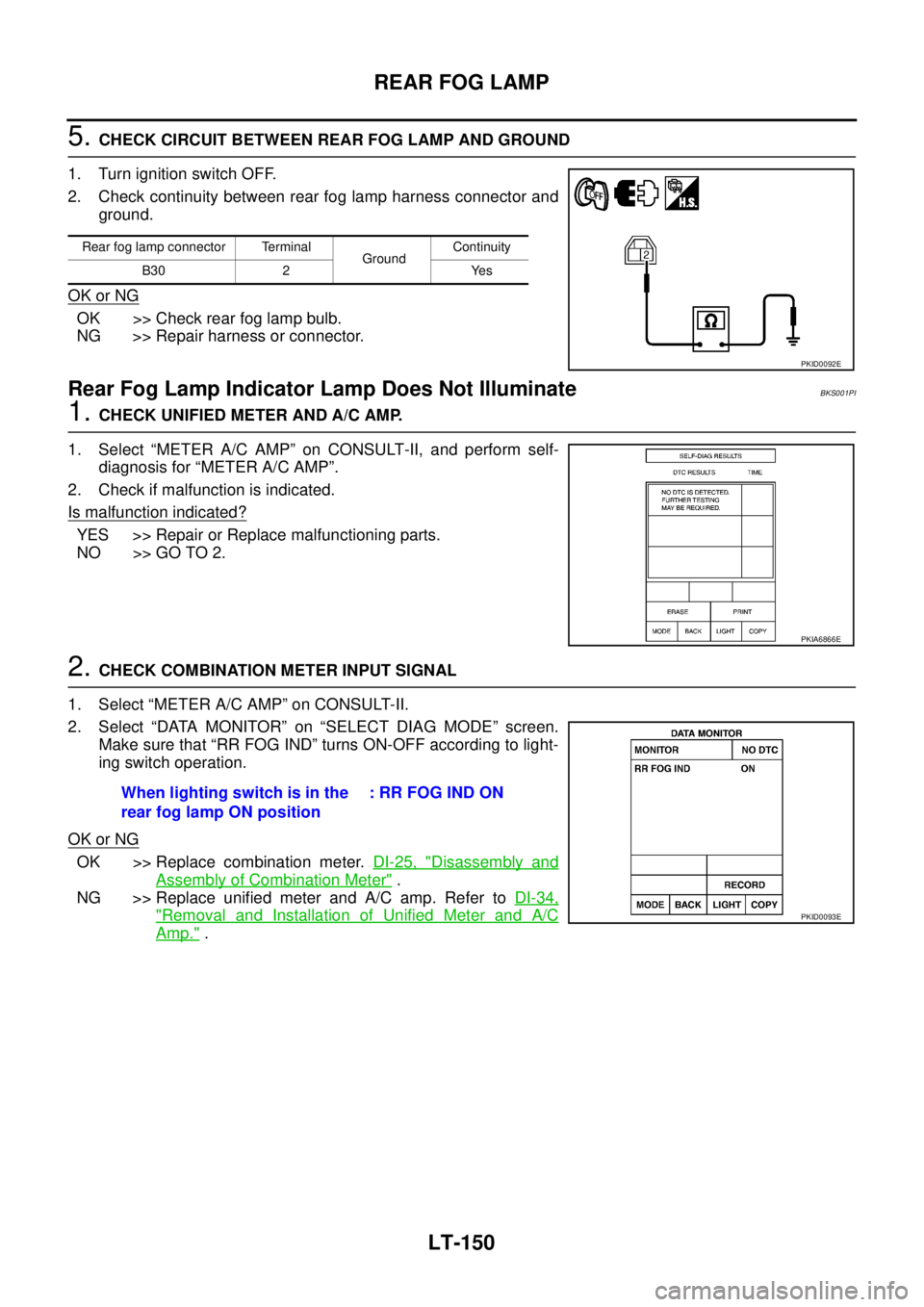

NISSAN TEANA 2003 Service Manual LT-148 REAR FOG LAMP 3. CHECK GROUND CIRCUIT Check continuity between BCM harness connector and ground. OK or NG OK >> INSPECTION END NG >> Repair harness or connector. CONSULT-II Function (BCM)BKS0

Page 2837 of 3502

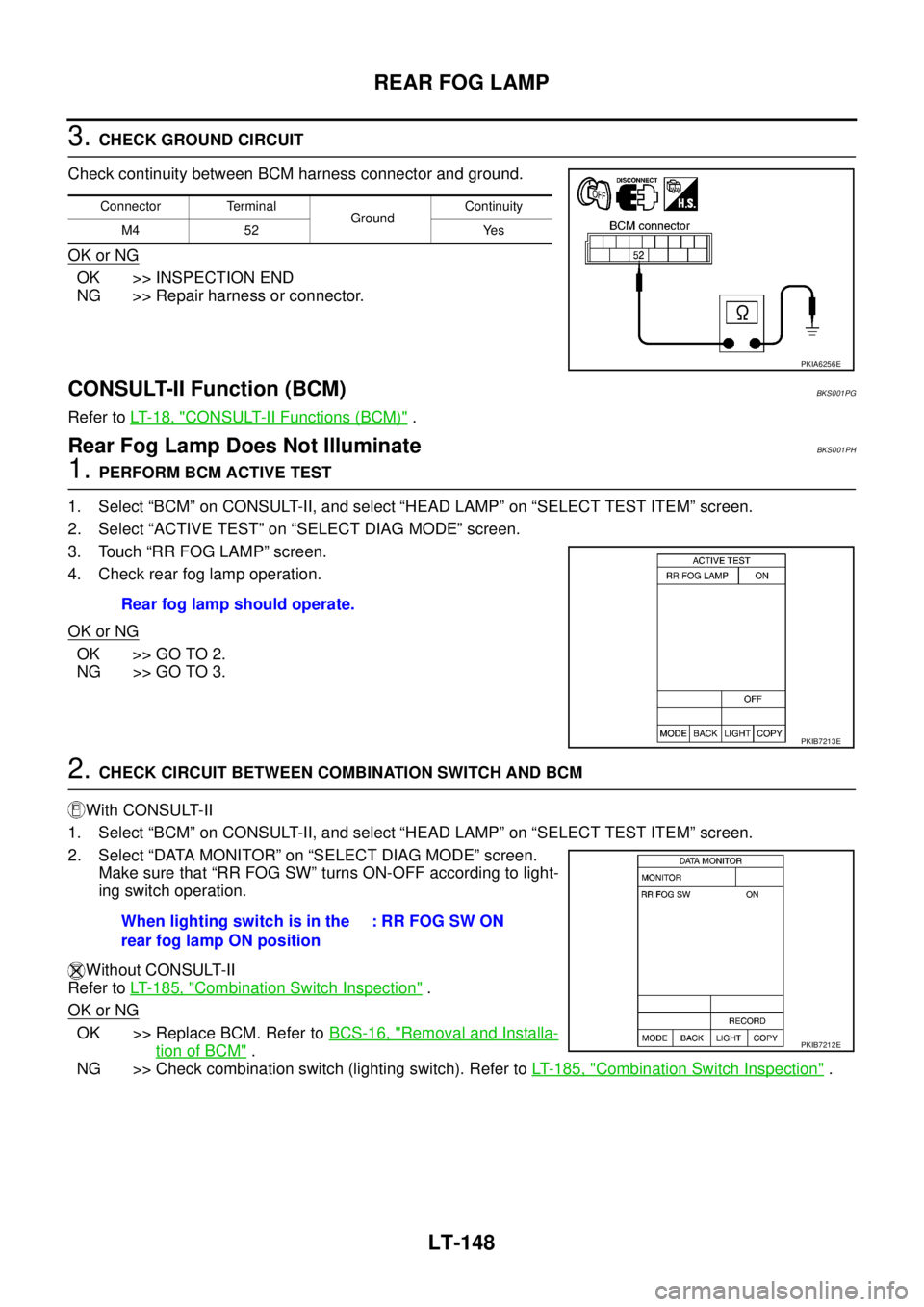

NISSAN TEANA 2003 Service Manual REAR FOG LAMP LT-149 C D E F G H I J L MA B LT 3. CHECK CIRCUIT BETWEEN BCM AND REAR FOG LAMP 1. Turn ignition switch OFF. 2. Disconnect BCM connector and rear fog lamp connector. 3. Check continuit

Page 2838 of 3502

NISSAN TEANA 2003 Service Manual LT-150 REAR FOG LAMP 5. CHECK CIRCUIT BETWEEN REAR FOG LAMP AND GROUND 1. Turn ignition switch OFF. 2. Check continuity between rear fog lamp harness connector and ground. OK or NG OK >> Check rear

Page 2839 of 3502

NISSAN TEANA 2003 Service Manual REAR FOG LAMP LT-151 C D E F G H I J L MA B LT Rear Fog Lamp Does Not Go OFFBKS001PJ 1. PERFORM BCM ACTIVE TEST 1. Select “BCM” on CONSULT-II, and select “HEAD LAMP” on “SELECT TEST ITEM

Page 2840 of 3502

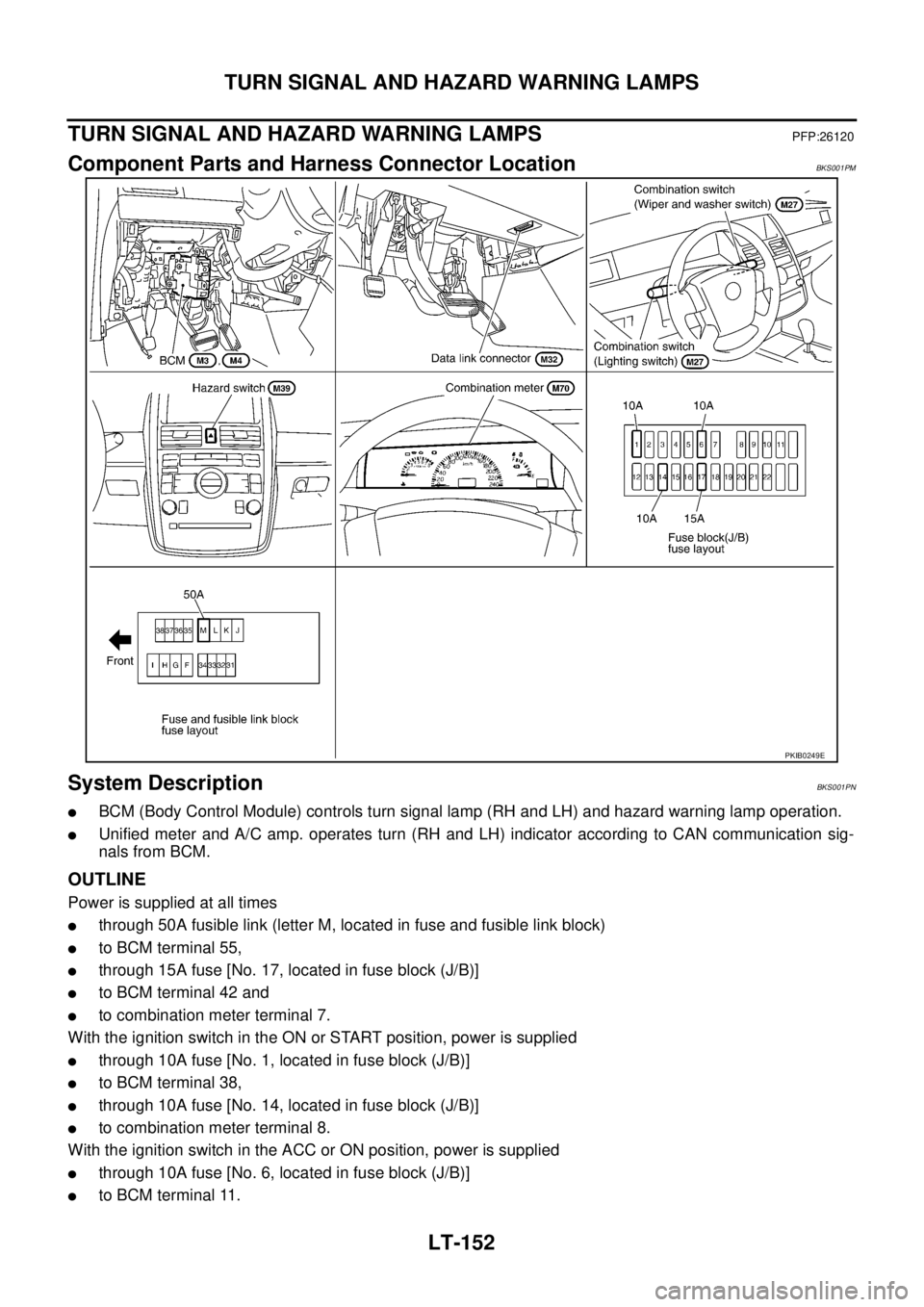

NISSAN TEANA 2003 Service Manual LT-152 TURN SIGNAL AND HAZARD WARNING LAMPS TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120 Component Parts and Harness Connector LocationBKS001PM System DescriptionBKS001PN BCM (Body Control Module)
