FUEL INJECTOR AND FUEL TUBE
EM-37
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
2. Install fuel injector to fuel tube with the following procedure:
a. Insert clip into clip mounting groove on fuel injector.
Insert clip so that protrusion “A” of fuel injector matches cutout
“A” of clip.
CAUTION:
Do not reuse clip. Replace it with a new one.
Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.
Insert it while matching it to the axial center.
Insert fuel injector so that protrusion “B” of fuel tube matches
cutout “B” of clip.
Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by checking that fuel
injector does not rotate or come off.
Make sure that protrusions of fuel injectors are aligned with
cutouts of clips after installation.
3. From the engine rear side, set fuel tube and fuel injector assembly at its position for installation on intake
manifold.
CAUTION:
When installing, be careful to avoid any interference with fuel injector.
4. Set fuel tube protector onto fuel tube.
5. Tighten mounting bolts with the following procedure.
Tighten bolts evenly in two steps in numerical order as shown
in the figure.
6. Connect sub-harness for fuel injector.
7. Note the following, and connect quick connectors at engine side and vehicle side to install fuel feed hose.
NOTE:
There is quick connector for the engine side and for the vehicle side, and they have different shapes. But
connection is same procedure. The following procedure shows the engine side.
a. Check the connection for foreign material and damage.
b. Align center to insert quick connector straightly into fuel tube.
Insert quick connector to fuel tube until the top spool on fuel
tube is inserted completely and the second level spool is posi-
tioned slightly below quick connector bottom end.
CAUTION:
Hold “A” position in the figure when inserting fuel tube
into quick connector.
Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.
PBIC2651E
1st step
: 10.1 N·m (1.0 kg-m, 7 ft-lb)
2nd step
: 23.6 N·m (2.4 kg-m, 17 ft-lb)
PBIC2180E
KBIA0272E
Page 2146 of 3502
![NISSAN TEANA 2003 Service Manual EM-38
[QR]
FUEL INJECTOR AND FUEL TUBE
Insert until you hear a “click” sound and actually feel the engagement.
To avoid misidentification of engagement with a similar sound, be sure to perform NISSAN TEANA 2003 Service Manual EM-38
[QR]
FUEL INJECTOR AND FUEL TUBE
Insert until you hear a “click” sound and actually feel the engagement.
To avoid misidentification of engagement with a similar sound, be sure to perform](/manual-img/5/57392/w960_57392-2145.png)
EM-38
[QR]
FUEL INJECTOR AND FUEL TUBE
Insert until you hear a “click” sound and actually feel the engagement.
To avoid misidentification of engagement with a similar sound, be sure to perform the next
step.
c. Before clamping fuel feed hose with hose clamps, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel tube.
d. Install quick connector cap to quick connector connection. (On
both the engine side and the vehicle side)
Install so that the arrow mark on the side faces up.
CAUTION:
Make sure that quick connector and fuel tube are
securely fit into quick connector cap installation groove.
If quick connector cap cannot be installed smoothly,
quick connector may have not been installed correctly.
Check connection again.
NOTE:
There is quick connector cap for the engine side and for the
vehicle side, and they have different shapes. The figure shows engine side as an example.
8. Install fuel feed hose to hose clamp.
9. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leaks
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch the engine immediately after stopped as engine becomes extremely hot.
PBIC2348E
Page 2147 of 3502
ROCKER COVER
EM-39
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
ROCKER COVERPFP:13264
Removal and InstallationBBS00594
REMOVAL
1. Remove engine cover. Refer to EM-19, "INTAKE MANIFOLD" .
2. Disconnect PCV hoses from rocker cover.
3. Remove ignition coil. Refer to EM-31, "
IGNITION COIL" .
4. Remove PCV valve and O-ring from rocker cover, if necessary.
5. Remove oil filler cap from rocker cover, if necessary.
6. Loosen bolts in reverse order shown in the figure.
7. Remove rocker cover gasket from rocker cover.
8. Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1).
CAUTION:
Do not scratch or damage the mating surface when cleaning off old liquid gasket.
1. PCV hose 2. O-ring 3. PCV valve
4. PCV hose 5. Oil filler cap 6. Rocker cover
7. Rocker cover gasket
PBIC2623E
KBIA0242E
Page 2148 of 3502

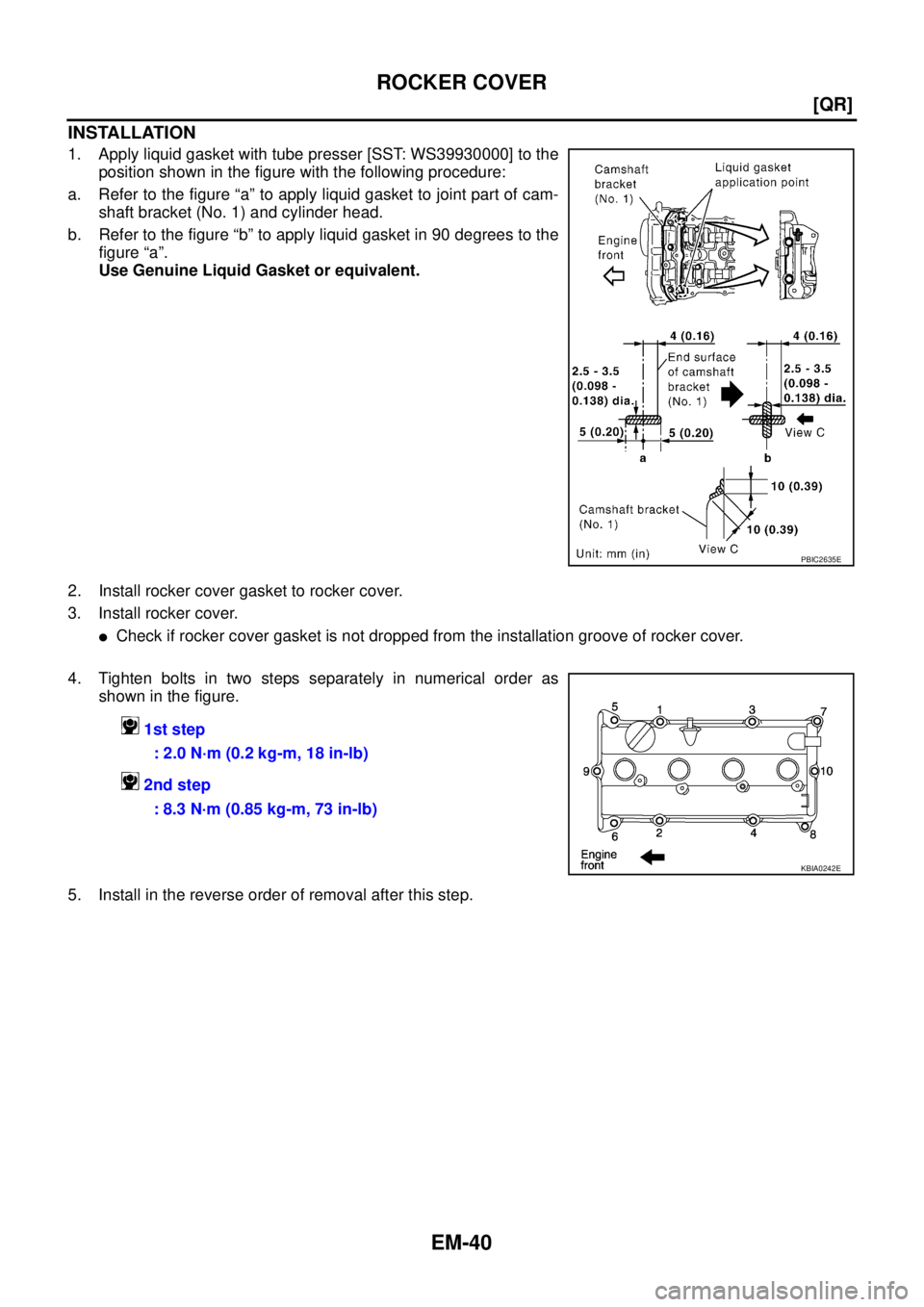

EM-40
[QR]
ROCKER COVER
INSTALLATION
1. Apply liquid gasket with tube presser [SST: WS39930000] to the
position shown in the figure with the following procedure:
a. Refer to the figure “a” to apply liquid gasket to joint part of cam-
shaft bracket (No. 1) and cylinder head.
b. Refer to the figure “b” to apply liquid gasket in 90 degrees to the
figure “a”.
Use Genuine Liquid Gasket or equivalent.
2. Install rocker cover gasket to rocker cover.
3. Install rocker cover.
Check if rocker cover gasket is not dropped from the installation groove of rocker cover.
4. Tighten bolts in two steps separately in numerical order as
shown in the figure.
5. Install in the reverse order of removal after this step.
PBIC2635E
1st step
: 2.0 N·m (0.2 kg-m, 18 in-lb)
2nd step
: 8.3 N·m (0.85 kg-m, 73 in-lb)
KBIA0242E
Page 2149 of 3502
![NISSAN TEANA 2003 Service Manual CAMSHAFT
EM-41
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
CAMSHAFTPFP:13001
Removal and InstallationBBS00595
Refer to GI-10, "Components" for symbol marks in the figure.
NOTE:
This section describes removal/i NISSAN TEANA 2003 Service Manual CAMSHAFT
EM-41
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
CAMSHAFTPFP:13001
Removal and InstallationBBS00595
Refer to GI-10, "Components" for symbol marks in the figure.
NOTE:
This section describes removal/i](/manual-img/5/57392/w960_57392-2148.png)
CAMSHAFT
EM-41
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
CAMSHAFTPFP:13001
Removal and InstallationBBS00595
Refer to GI-10, "Components" for symbol marks in the figure.
NOTE:
This section describes removal/installation procedure of camshaft without removing front cover. If front cover
is removed or installed, removal of camshaft bracket (No. 1) is easier before step 9 and installation is easier
after step 3. Regarding removal and installation of front cover, refer to EM-53, "
TIMING CHAIN" .
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" .
2. Remove the following parts.
Engine cover; Refer to EM-19, "INTAKE MANIFOLD" .
Ignition coil; Refer to EM-31, "IGNITION COIL" .
Rocker cover; Refer to EM-39, "ROCKER COVER" .
3. Remove reservoir tank of radiator from bracket, and move it aside. Refer to CO-13, "
RADIATOR" .
1. Front cover 2. Chain guide 3. Chain tensioner
4. Spring 5. Chain tensioner plunger 6. O-ring
7. Camshaft bracket (No. 1) 8. Camshaft (INT) 9. Camshaft bracket (No. 2 to 5)
10. Camshaft sprocket (INT) 11. Oil ring 12. O-ring
13.Intake valve timing control solenoid
valve14. Intake valve timing control cover 15. O-ring
16. Camshaft position sensor (PHASE) 17. O-ring 18. Camshaft (EXH)
19. Valve lifter 20. Camshaft sprocket (EXH)
A. Refer to EM-47
PBIC4734E
Page 2150 of 3502
![NISSAN TEANA 2003 Service Manual EM-42
[QR]
CAMSHAFT
4. Remove reservoir tank of power steering oil pump from bracket, and move power steering piping aside.
Refer to PS-39, "
HYDRAULIC LINE" .
CAUTION:
To avoid power steering flui NISSAN TEANA 2003 Service Manual EM-42
[QR]
CAMSHAFT
4. Remove reservoir tank of power steering oil pump from bracket, and move power steering piping aside.
Refer to PS-39, "
HYDRAULIC LINE" .
CAUTION:
To avoid power steering flui](/manual-img/5/57392/w960_57392-2149.png)
EM-42
[QR]
CAMSHAFT
4. Remove reservoir tank of power steering oil pump from bracket, and move power steering piping aside.
Refer to PS-39, "
HYDRAULIC LINE" .
CAUTION:
To avoid power steering fluid leakage, temporarily fix reservoir tank of power steering oil pump
vertically.
5. Remove intake valve timing control cover with the following procedure:
a. Disconnect intake valve timing control solenoid valve harness connector.
b. Disconnect ground cables and remove harness clip.
c. Remove intake valve timing control solenoid valve, if necessary.
d. Loosen bolts in reverse order as shown in the figure.
e . U s e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ] o r e q u i v a l e n t t o o l t o c u t l i q -
uid gasket for removal.
CAUTION:
Be careful not to damage the mating surfaces.
6. Pull chain guide between camshaft sprockets out through front cover.
7. Set No. 1 cylinder at TDC on its compression stroke with the following procedure:
a. Remove splash guard (RH).
b. Rotate crankshaft pulley clockwise and align TDC mark to timing
indicator on front cover.
c. At the same time, make sure that the mating marks on camshaft
sprockets are located as shown in the figure.
If not, rotate crankshaft pulley one more turn to align mating
marks to the positions in the figure.
8. Remove camshaft sprockets with the following procedure:
a. Put indelible paint marks on timing chain link plate aligning with the mating marks on camshaft sprockets.
KBIA0085E
KBIA0190E
PBIC2351E
Page 2151 of 3502
![NISSAN TEANA 2003 Service Manual CAMSHAFT
EM-43
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
b. Push in chain tensioner plunger. Insert a stopper pin into hole on
chain tensioner body to secure chain tensioner plunger and
remove chain tensioner. NISSAN TEANA 2003 Service Manual CAMSHAFT
EM-43
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
b. Push in chain tensioner plunger. Insert a stopper pin into hole on
chain tensioner body to secure chain tensioner plunger and
remove chain tensioner.](/manual-img/5/57392/w960_57392-2150.png)
CAMSHAFT
EM-43
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
b. Push in chain tensioner plunger. Insert a stopper pin into hole on
chain tensioner body to secure chain tensioner plunger and
remove chain tensioner.
CAUTION:
Be careful not to drop mounting bolts inside front cover.
NOTE:
Use approximately 0.5 mm (0.02 in) dia. hard metal pin as a
stopper pin.
c. Secure hexagonal part of camshaft with wrench. Loosen cam-
shaft sprocket mounting bolts and remove camshaft sprockets.
CAUTION:
Do not loosen mounting bolts with securing anything
other than the camshaft hexagonal part or with tension-
ing timing chain.
Do not rotate crankshaft or camshaft while timing chain
is removed. It causes interference between valve and pis-
ton.
NOTE:
Chain tension holding work is not necessary. Crankshaft
sprocket and timing chain do not disconnect structurally while
front cover is attached.
9. Remove camshaft position sensor (PHASE) from cylinder head back side.
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensor in a location where it is exposed to magnetism.
10. Loosen mounting bolts in reverse order as shown in the figure,
and remove camshaft brackets.
Remove camshaft bracket (No. 1) by slightly tapping it with
plastic hammer.
11. Remove camshafts.
12. Remove valve lifters.
Identify installation positions, and store them without mixing them up.
KBIA0048E
KBIA0049E
SBIA0255E
Page 2152 of 3502
![NISSAN TEANA 2003 Service Manual EM-44
[QR]
CAMSHAFT
INSPECTION AFTER REMOVAL
Camshaft Runout
1. Put V-block on a precise flat table, and support No. 2 and 5 jour-
nal of camshaft.
CAUTION:
Do not support journal No. 1 (on the side NISSAN TEANA 2003 Service Manual EM-44
[QR]
CAMSHAFT
INSPECTION AFTER REMOVAL
Camshaft Runout
1. Put V-block on a precise flat table, and support No. 2 and 5 jour-
nal of camshaft.
CAUTION:
Do not support journal No. 1 (on the side](/manual-img/5/57392/w960_57392-2151.png)

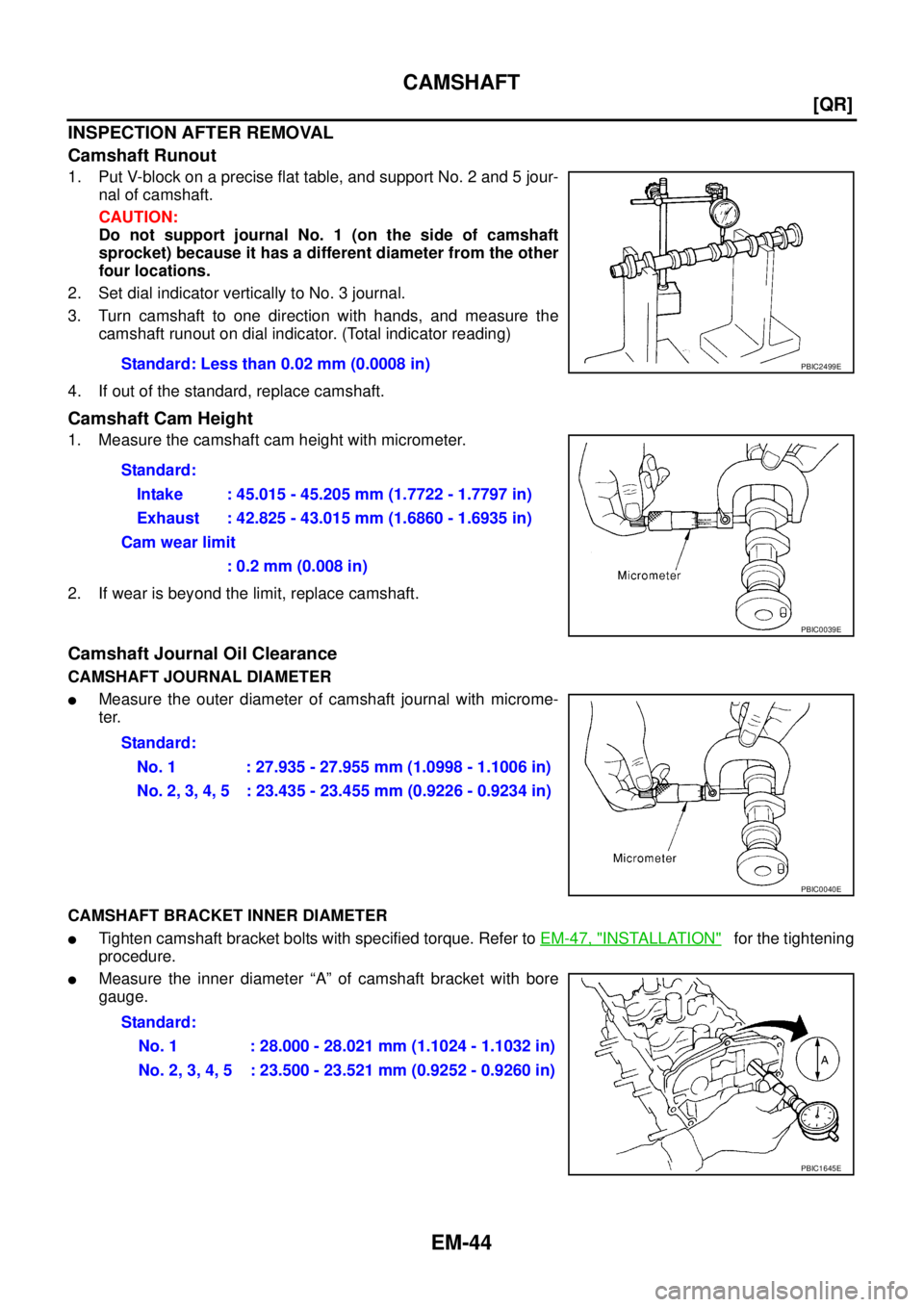

EM-44
[QR]
CAMSHAFT
INSPECTION AFTER REMOVAL
Camshaft Runout
1. Put V-block on a precise flat table, and support No. 2 and 5 jour-
nal of camshaft.
CAUTION:
Do not support journal No. 1 (on the side of camshaft
sprocket) because it has a different diameter from the other
four locations.
2. Set dial indicator vertically to No. 3 journal.
3. Turn camshaft to one direction with hands, and measure the
camshaft runout on dial indicator. (Total indicator reading)
4. If out of the standard, replace camshaft.
Camshaft Cam Height
1. Measure the camshaft cam height with micrometer.
2. If wear is beyond the limit, replace camshaft.
Camshaft Journal Oil Clearance
CAMSHAFT JOURNAL DIAMETER
Measure the outer diameter of camshaft journal with microme-
ter.
CAMSHAFT BRACKET INNER DIAMETER
Tighten camshaft bracket bolts with specified torque. Refer to EM-47, "INSTALLATION" for the tightening
procedure.
Measure the inner diameter “A” of camshaft bracket with bore
gauge.Standard: Less than 0.02 mm (0.0008 in)
PBIC2499E
Standard:
Intake : 45.015 - 45.205 mm (1.7722 - 1.7797 in)
Exhaust : 42.825 - 43.015 mm (1.6860 - 1.6935 in)
Cam wear limit
: 0.2 mm (0.008 in)
PBIC0039E
Standard:
No. 1 : 27.935 - 27.955 mm (1.0998 - 1.1006 in)
No. 2, 3, 4, 5 : 23.435 - 23.455 mm (0.9226 - 0.9234 in)
PBIC0040E
Standard:
No. 1 : 28.000 - 28.021 mm (1.1024 - 1.1032 in)
No. 2, 3, 4, 5 : 23.500 - 23.521 mm (0.9252 - 0.9260 in)
PBIC1645E
