NISSAN TEANA 2003 Service Manual CYLINDER BLOCK
EM-237
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

Position each ring with the gap as shown in the figure refer-
ring to the piston front mark.
Install top ring and second ring with the stamped

Page 2346 of 3502

NISSAN TEANA 2003 Service Manual EM-238
[VQ]
CYLINDER BLOCK

Match the stamped cylinder number marks on connecting rod
with those on connecting rod bearing cap to install.
Be sure that front mark on connecting rod bearing cap is f

Page 2347 of 3502

NISSAN TEANA 2003 Service Manual CYLINDER BLOCK
EM-239
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

Press-fit pilot converter with its chamfer facing crankshaft as
shown in the figure.
19. Install knock sensor.
Install knock sensor so that con

Page 2348 of 3502

NISSAN TEANA 2003 Service Manual EM-240
[VQ]
CYLINDER BLOCK

*: For the service parts, the grade for fitting cannot be selected between piston pin and connecting rod. (Only “0” grade is available.) The
information at the shipme

EM-240
[VQ]
CYLINDER BLOCK

*: For the service parts, the grade for fitting cannot be selected between piston pin and connecting rod. (Only “0” grade is available.) The
information at the shipment from the plant is described as a reference.
The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.
For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the
measurement with the values of each selection table.
For details of the measurement method of each part, the reuse standards and the selection method of the
selective fitting parts, refer to the text.
HOW TO SELECT PISTON
When New Cylinder Block is Used
Check the cylinder bore grade (“1”, “2” or “3”) on rear side of cylinder
block, and select piston of the same grade.
NOTE:
Piston is available with piston pin as a set for the service part. (Only
“0” grade piston pin is available.)
When Cylinder Block is Reused
1. Measure the cylinder bore inner diameter. Refer to EM-249, "Cylinder Bore Inner Diameter" .
2. Determine the bore grade by comparing the measurement with
the values under the cylinder bore inner diameter of the “Piston
Selection Table”.
3. Select piston of the same grade.
Piston Selection Table
VQ23DE
Unit: mm (in)
VQ35DE
Unit: mm (in)
NOTE:
Piston is available together with piston pin as assembly.
SEM756G
PBIC0812E
Grade 1 2 (or no mark) 3
Cylinder bore inner diameter85.000 - 85.010
(3.3465 - 3.3468)85.010 - 85.020
(3.3468 - 3.3472)85.020 - 85.030
(3.3472 - 3.3476)
Piston skirt diameter84.980 - 84.990
(3.3457 - 3.3461)84.990 - 85.000
(3.3461 - 3.3465)85.000 - 85.010
(3.3465 - 3.3468)
Grade 1 2 (or no mark) 3
Cylinder bore inner diameter95.500 - 95.510
(3.7598 - 3.7602)95.510 - 95.520
(3.7602 - 3.7606)95.520 - 95.530
(3.7606 - 3.7610)
Piston skirt diameter95.480 - 95.490
(3.7590 - 3.7594)95.490 - 95.500
(3.7594 - 3.7598)95.500 - 95.510
(3.7598 - 3.7602)

Page 2349 of 3502

NISSAN TEANA 2003 Service Manual CYLINDER BLOCK
EM-241
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no
piston pin grades can be selecte

CYLINDER BLOCK
EM-241
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no
piston pin grades can be selected. (Only “0” grade is available.)
No second grade mark is available on piston.
HOW TO SELECT CONNECTING ROD BEARING
When New Connecting Rod and Crankshaft are Used
Check pin diameter grade (“0”, “1” or “2”) on front of crankshaft, and
select connecting rod bearing of the same grade.
NOTE:
There is no grading for connecting rod big end diameter.
When Crankshaft and Connecting Rod are Reused
1. Measure the connecting rod big end diameter. Refer to EM-247, "CONNECTING ROD BIG END DIAME-
TER" .
2. Make sure that the connecting rod big end diameter is within the standard value.
3. Measure the crankshaft pin journal diameter. Refer to EM-251, "
CRANKSHAFT PIN JOURNAL DIAME-
TER" .
4. Determine the grade of crankshaft pin diameter grade by corresponding to the measured dimension in
“Crankshaft pin journal diameter” column of “Connecting Rod Bearing Selection Table”.
5. Select connecting rod bearing of the same grade.
Connecting Rod Bearing Selection Table
VQ23DE
Unit: mm (in)
Unit: mm (in)
VQ35DE
Unit: mm (in)
Unit: mm (in)
Undersize Bearings Usage Guide
When the specified connecting rod bearing oil clearance is not obtained with standard size connecting rod
bearings, use undersize (US) bearings.
When using undersize (US) bearing, measure the connecting rod bearing inner diameter with bearing
installed, and grind crankshaft pin so that the connecting rod bearing oil clearance satisfies the standard.
SEM452G
Connecting rod big end diameter 48.000 - 48.013 (1.8898 - 1.8903)
Crankshaft Connecting rod bearing
Crankshaft pin journal diameter Grade (Mark) Dimension (Bearing thickness range) Bearing grade No. Color
44.968 - 44.974 (1.7704 - 1.7706) 0 1.500 - 1.503 (0.0591 - 0.0592) STD 0 Black
44.962 - 44.968 (1.7702 - 1.7704) 1 1.503 - 1.506 (0.0592 - 0.0593) STD 1 Brown
44.956 - 44.962 (1.7699 - 1.7702) 2 1.506 - 1.509 (0.0593 - 0.0594) STD 2 Green
Connecting rod big end diameter 55.000 - 55.013 (2.1654 - 2.1659)
Crankshaft Connecting rod bearing
Crankshaft pin journal diameter Grade (Mark) Dimension (Bearing thickness range) Bearing grade No. Color
51.968 - 51.974 (2.0460 - 2.0462) 0 1.500 - 1.503 (0.0591 - 0.0592) STD 0 Black
51.962 - 51.968 (2.0457 - 2.0460) 1 1.503 - 1.506 (0.0592 - 0.0593) STD 1 Brown
51.956 - 51.962 (2.0455 - 2.0457) 2 1.506 - 1.509 (0.0593 - 0.0594) STD 2 Green

Page 2350 of 3502

NISSAN TEANA 2003 Service Manual EM-242
[VQ]
CYLINDER BLOCK

CAUTION:
In grinding crankshaft pin journal to use undersize bear-
ings, keep the fillet R [1.5 mm (0.059 in)].
Bearing undersize table
Unit: mm (in)
NOTE:
Both VQ23DE and

Page 2351 of 3502

NISSAN TEANA 2003 Service Manual CYLINDER BLOCK
EM-243
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

Main Bearing Selection Table
PBIC1981E

Page 2352 of 3502

NISSAN TEANA 2003 Service Manual EM-244
[VQ]
CYLINDER BLOCK

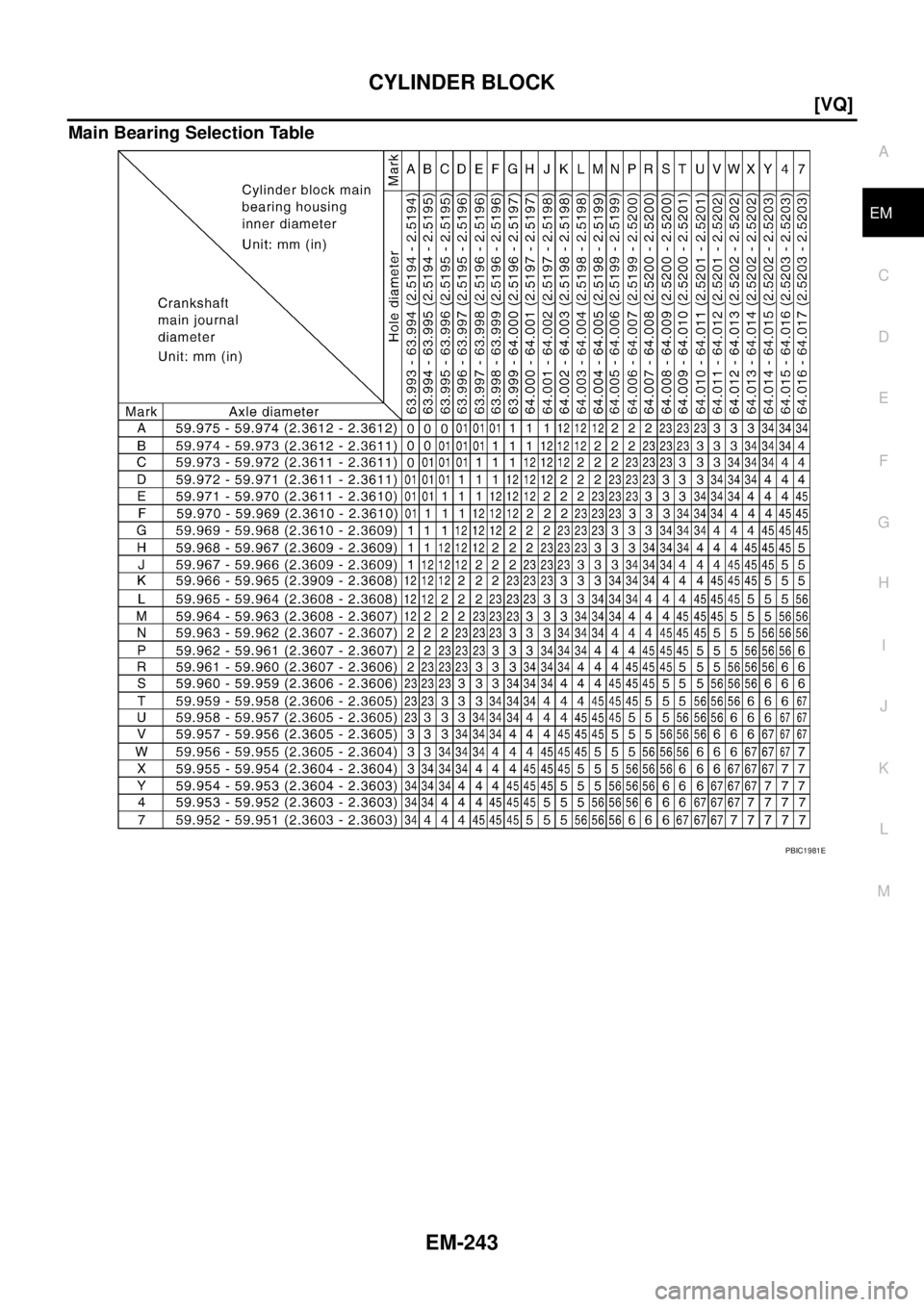

Main Bearing Grade Table (All Journals)
Unit: mm (in)
Undersize Bearing Usage Guide
When the specified main bearing oil clearance is not obtained with standard size main
