Page 345 of 3502
REPAIR FOR COMPONENT PARTS
AT-337
D
E
F
G
H
I
J
K
L
MA
B
AT
Bearings
Make sure bearings roll freely and are free from noise, cracks,
pitting or wear. Replace if necessary.
CAUTION:
When replacing taper roller bearing, replace outer and inner
race as a set.
ASSEMBLY
1. Attach side gear thrust washers to side gears, then install pinion
mate thrust washers and pinion mate gears in place.
CAUTION:
Apply ATF to any parts.
2. Insert pinion mate shaft.
CAUTION:
When inserting, be careful not to damage pinion mate
gear thrust washers.
Apply ATF to pinion mate shaft.
3. Measure clearance between side gear and differential case with
washers following the procedure below:
a. Set SST and dial indicator on side gear.
SPD715
SMT839
SMT087A
SCIA4910E

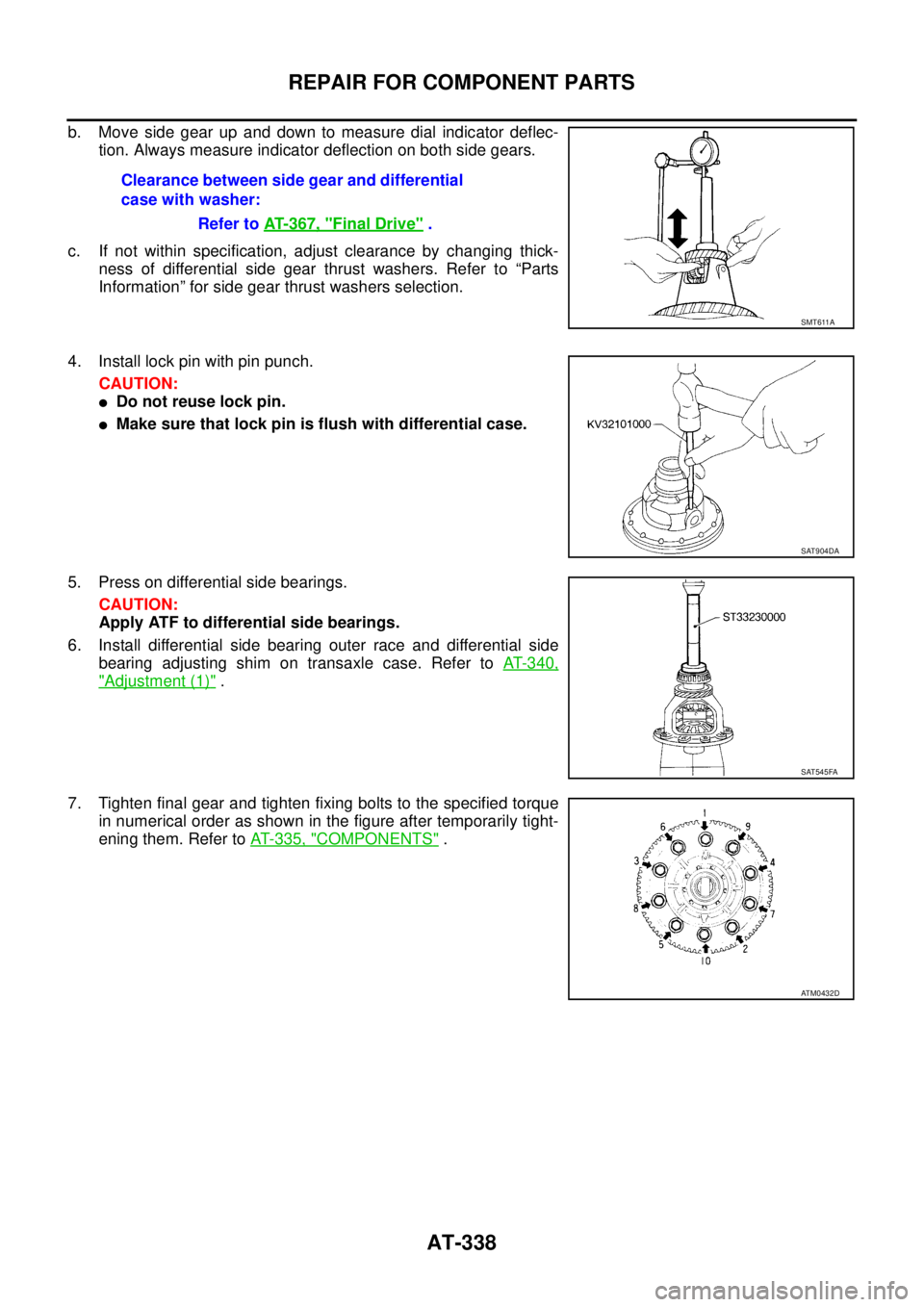

Page 346 of 3502

AT-338
REPAIR FOR COMPONENT PARTS
b. Move side gear up and down to measure dial indicator deflec-
tion. Always measure indicator deflection on both side gears.
c. If not within specification, adjust clearance by changing thick-
ness of differential side gear thrust washers. Refer to “Parts
Information” for side gear thrust washers selection.
4. Install lock pin with pin punch.
CAUTION:
Do not reuse lock pin.
Make sure that lock pin is flush with differential case.
5. Press on differential side bearings.
CAUTION:
Apply ATF to differential side bearings.
6. Install differential side bearing outer race and differential side
bearing adjusting shim on transaxle case. Refer to AT- 3 4 0 ,
"Adjustment (1)" .
7. Tighten final gear and tighten fixing bolts to the specified torque
in numerical order as shown in the figure after temporarily tight-
ening them. Refer to AT- 3 3 5 , "
COMPONENTS" . Clearance between side gear and differential
case with washer:
Refer to AT- 3 6 7 , "
Final Drive" .
SMT611A
SAT904DA
SAT545FA
ATM0432D

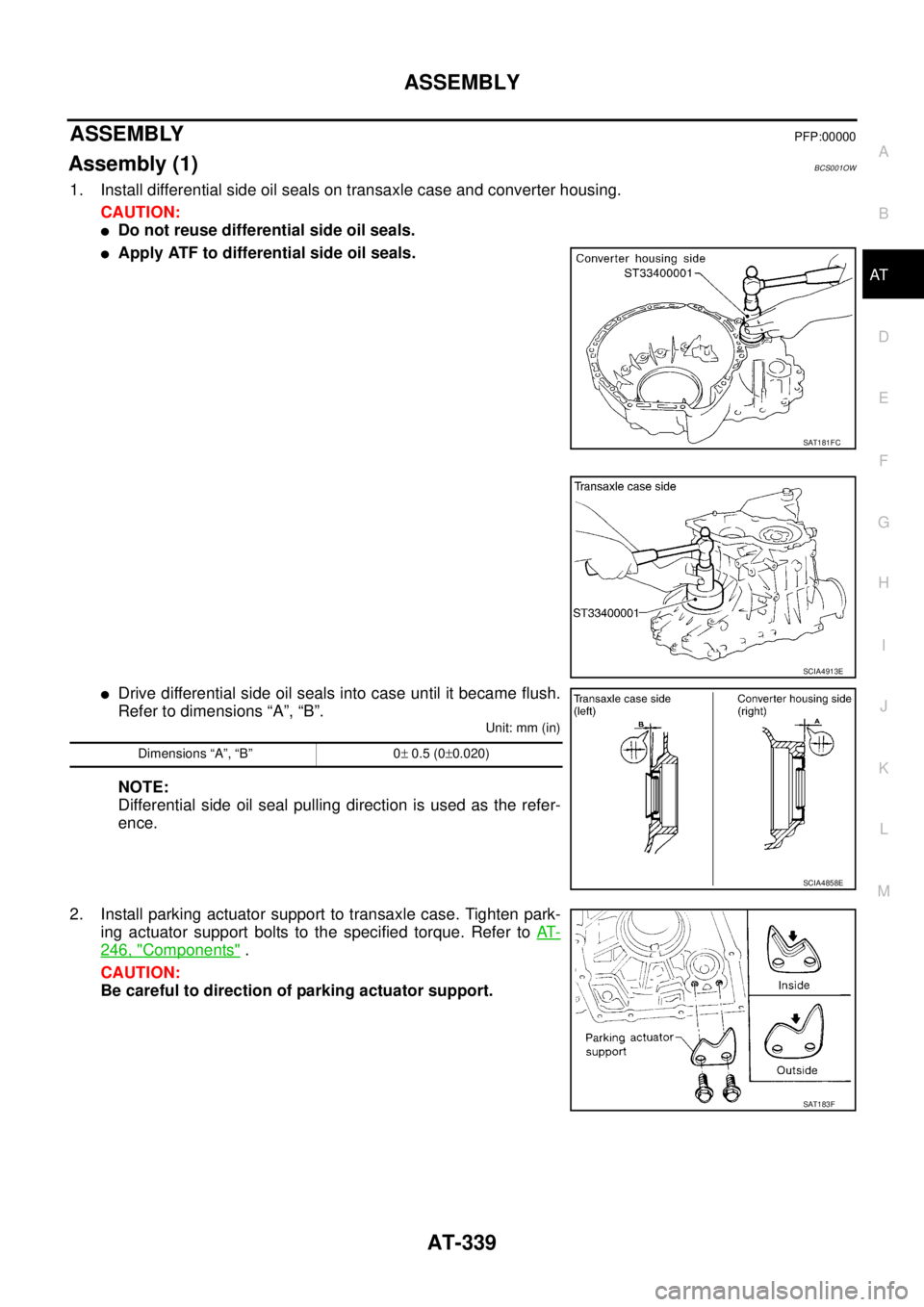

Page 347 of 3502
ASSEMBLY
AT-339
D
E
F
G
H
I
J
K
L
MA
B
AT
ASSEMBLYPFP:00000
Assembly (1)BCS001OW
1. Install differential side oil seals on transaxle case and converter housing.
CAUTION:
Do not reuse differential side oil seals.
Apply ATF to differential side oil seals.
Drive differential side oil seals into case until it became flush.
Refer to dimensions “A”, “B”.
Unit: mm (in)
NOTE:
Differential side oil seal pulling direction is used as the refer-
ence.
2. Install parking actuator support to transaxle case. Tighten park-
ing actuator support bolts to the specified torque. Refer to AT-
246, "Components" .
CAUTION:
Be careful to direction of parking actuator support.
SAT181FC
SCIA4913E
Dimensions “A”, “B” 0± 0.5 (0±0.020)
SCIA4858E
SAT183F
Page 348 of 3502
AT-340
ASSEMBLY
3. Install parking pawl on transaxle case and fix it with parking
shaft.
4. Install return spring and parking pawl spacer.
Adjustment (1)BCS001OX
DIFFERENTIAL SIDE BEARING PRELOAD
1. Install differential side bearing outer race without differential side
bearing adjusting shim on transaxle case.
CAUTION:
Apply ATF to differential side bearing outer race.
2. Install differential side bearing outer race on converter housing.
CAUTION:
Apply ATF to differential side bearing outer race.
3. Place final drive assembly on transaxle case.
4. Install converter housing on transaxle case. Tighten converter
housing mounting bolts to the specified torque. Refer to AT- 2 4 6 ,
"Components" .
SCIA4881E
SAT870D
SAT008F

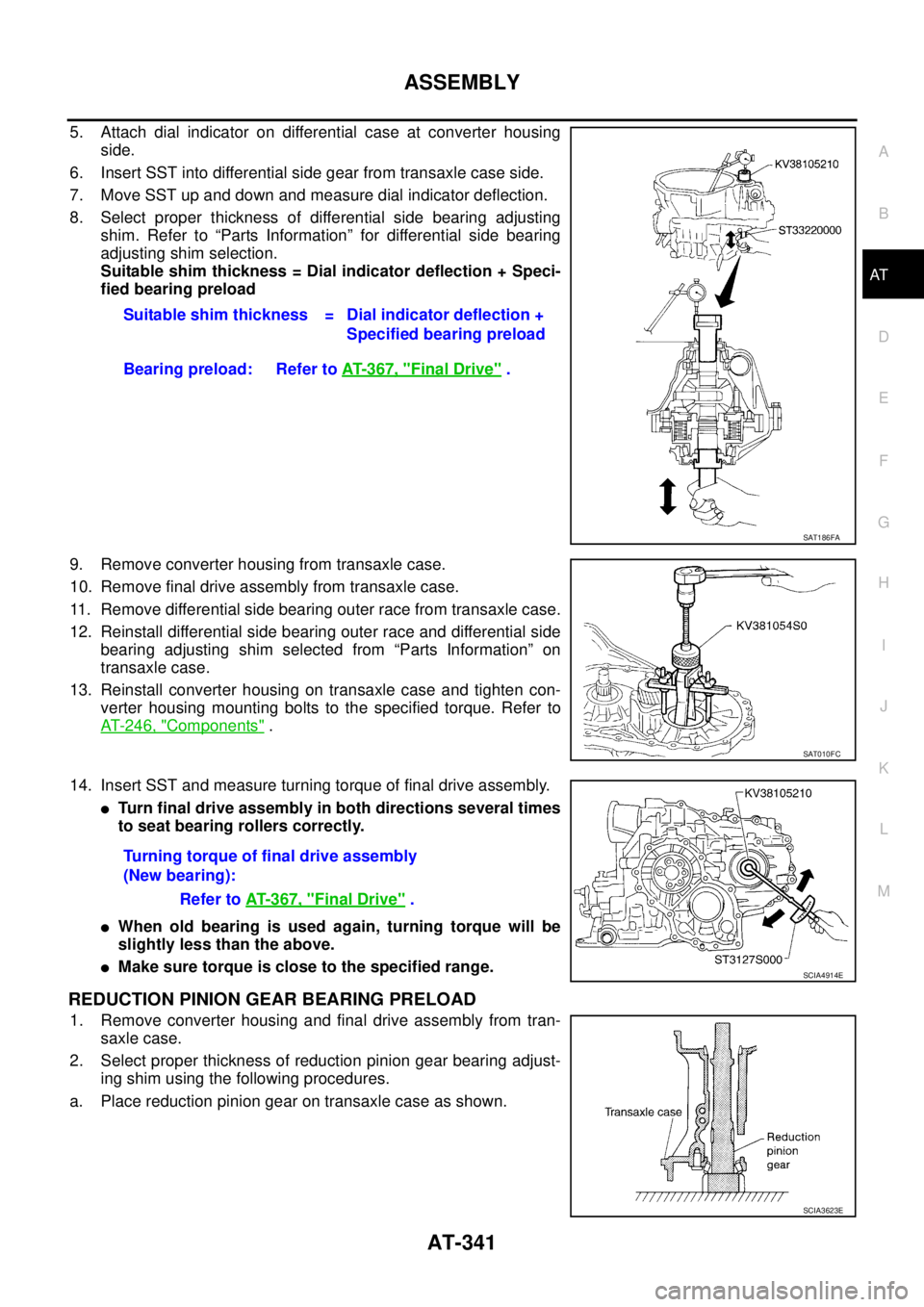

Page 349 of 3502

ASSEMBLY
AT-341
D
E
F
G
H
I
J
K
L
MA
B
AT
5. Attach dial indicator on differential case at converter housing
side.
6. Insert SST into differential side gear from transaxle case side.
7. Move SST up and down and measure dial indicator deflection.
8. Select proper thickness of differential side bearing adjusting
shim. Refer to “Parts Information” for differential side bearing
adjusting shim selection.
Suitable shim thickness = Dial indicator deflection + Speci-
fied bearing preload
9. Remove converter housing from transaxle case.
10. Remove final drive assembly from transaxle case.
11. Remove differential side bearing outer race from transaxle case.
12. Reinstall differential side bearing outer race and differential side
bearing adjusting shim selected from “Parts Information” on
transaxle case.
13. Reinstall converter housing on transaxle case and tighten con-
verter housing mounting bolts to the specified torque. Refer to
AT- 2 4 6 , "
Components" .
14. Insert SST and measure turning torque of final drive assembly.
Turn final drive assembly in both directions several times
to seat bearing rollers correctly.
When old bearing is used again, turning torque will be
slightly less than the above.
Make sure torque is close to the specified range.
REDUCTION PINION GEAR BEARING PRELOAD
1. Remove converter housing and final drive assembly from tran-
saxle case.
2. Select proper thickness of reduction pinion gear bearing adjust-
ing shim using the following procedures.
a. Place reduction pinion gear on transaxle case as shown.Suitable shim thickness = Dial indicator deflection +
Specified bearing preload
Bearing preload: Refer to AT- 3 6 7 , "
Final Drive" .
SAT186FA
SAT010FC
Turning torque of final drive assembly
(New bearing):
Refer to AT- 3 6 7 , "
Final Drive" .
SCIA4914E
SCIA3623E

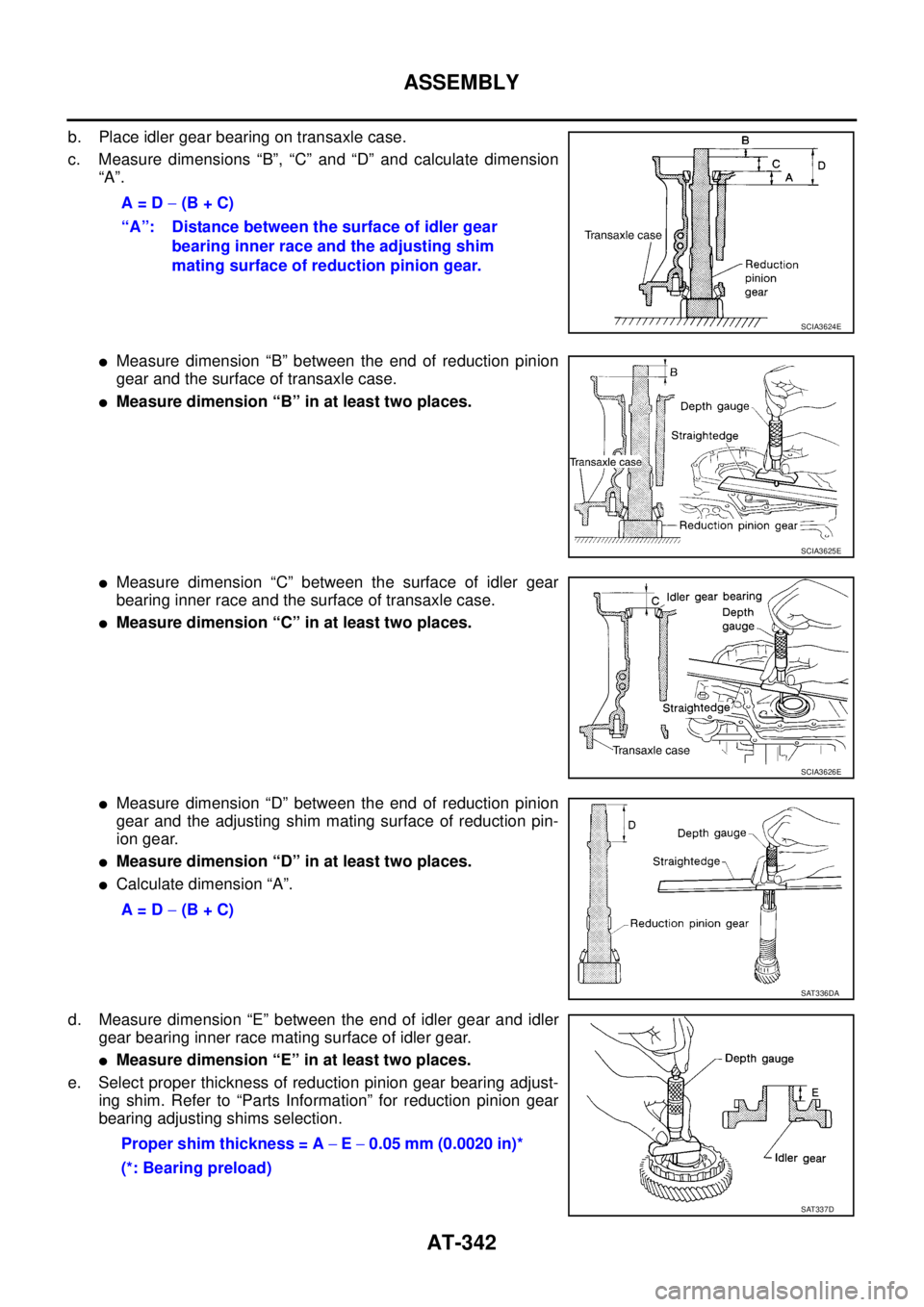

Page 350 of 3502

AT-342
ASSEMBLY
b. Place idler gear bearing on transaxle case.
c. Measure dimensions “B”, “C” and “D” and calculate dimension
“A”.
Measure dimension “B” between the end of reduction pinion
gear and the surface of transaxle case.
Measure dimension “B” in at least two places.
Measure dimension “C” between the surface of idler gear
bearing inner race and the surface of transaxle case.
Measure dimension “C” in at least two places.
Measure dimension “D” between the end of reduction pinion
gear and the adjusting shim mating surface of reduction pin-
ion gear.
Measure dimension “D” in at least two places.
Calculate dimension “A”.
d. Measure dimension “E” between the end of idler gear and idler
gear bearing inner race mating surface of idler gear.
Measure dimension “E” in at least two places.
e. Select proper thickness of reduction pinion gear bearing adjust-
ing shim. Refer to “Parts Information” for reduction pinion gear
bearing adjusting shims selection.A = D − (B + C)
“A”: Distance between the surface of idler gear
bearing inner race and the adjusting shim
mating surface of reduction pinion gear.
SCIA3624E
SCIA3625E
SCIA3626E
A = D − (B + C)
SAT336DA
Proper shim thickness = A − E − 0.05 mm (0.0020 in)*
(*: Bearing preload)
SAT337D

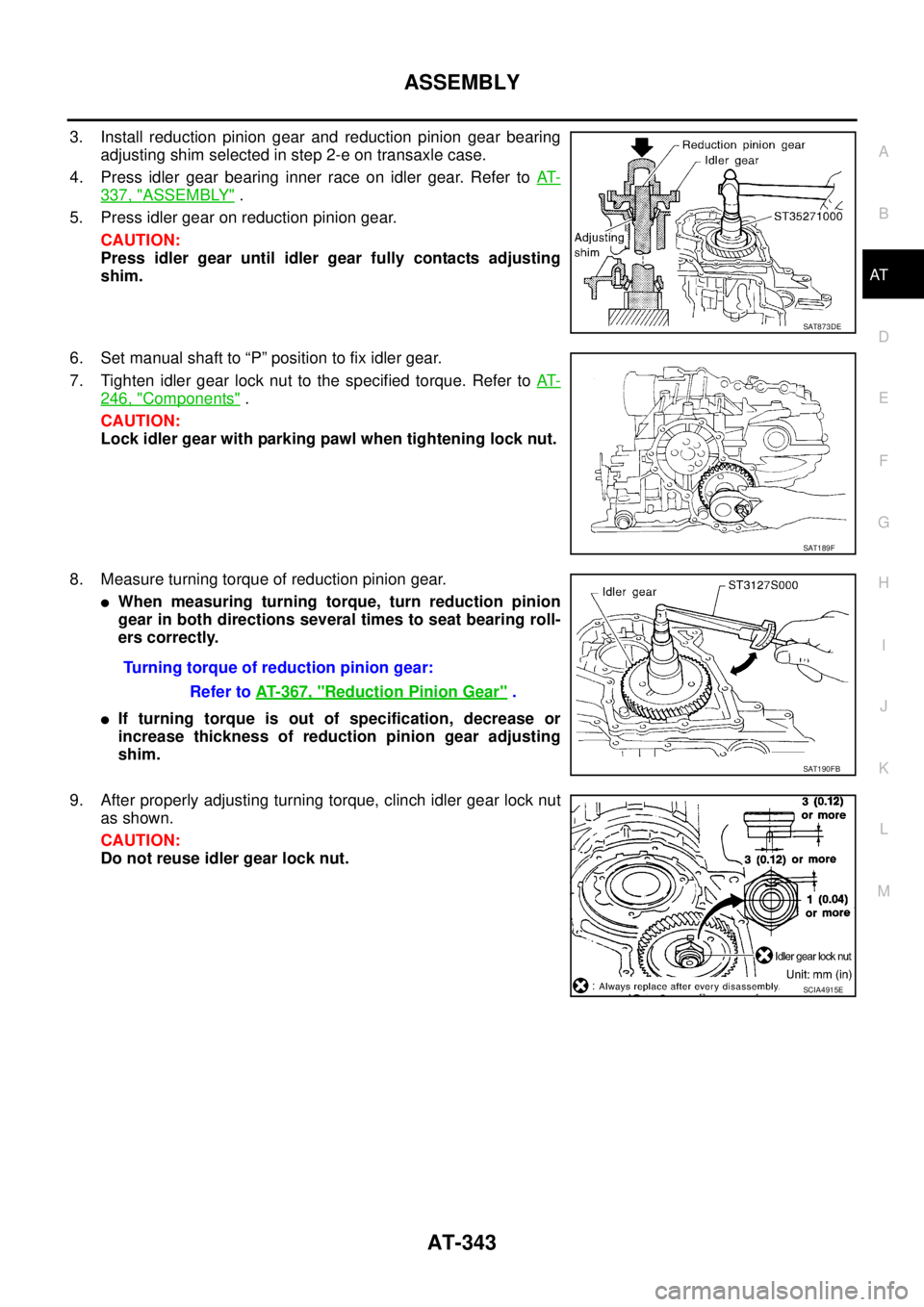

Page 351 of 3502

ASSEMBLY
AT-343
D
E
F
G
H
I
J
K
L
MA
B
AT
3. Install reduction pinion gear and reduction pinion gear bearing
adjusting shim selected in step 2-e on transaxle case.
4. Press idler gear bearing inner race on idler gear. Refer to AT-
337, "ASSEMBLY" .
5. Press idler gear on reduction pinion gear.
CAUTION:
Press idler gear until idler gear fully contacts adjusting
shim.
6. Set manual shaft to “P” position to fix idler gear.
7. Tighten idler gear lock nut to the specified torque. Refer to AT-
246, "Components" .
CAUTION:
Lock idler gear with parking pawl when tightening lock nut.
8. Measure turning torque of reduction pinion gear.
When measuring turning torque, turn reduction pinion
gear in both directions several times to seat bearing roll-
ers correctly.
If turning torque is out of specification, decrease or
increase thickness of reduction pinion gear adjusting
shim.
9. After properly adjusting turning torque, clinch idler gear lock nut
as shown.
CAUTION:
Do not reuse idler gear lock nut.
SAT873DE
SAT189F
Turning torque of reduction pinion gear:
Refer to AT- 3 6 7 , "
Reduction Pinion Gear" .
SAT190FB
SCIA4915E

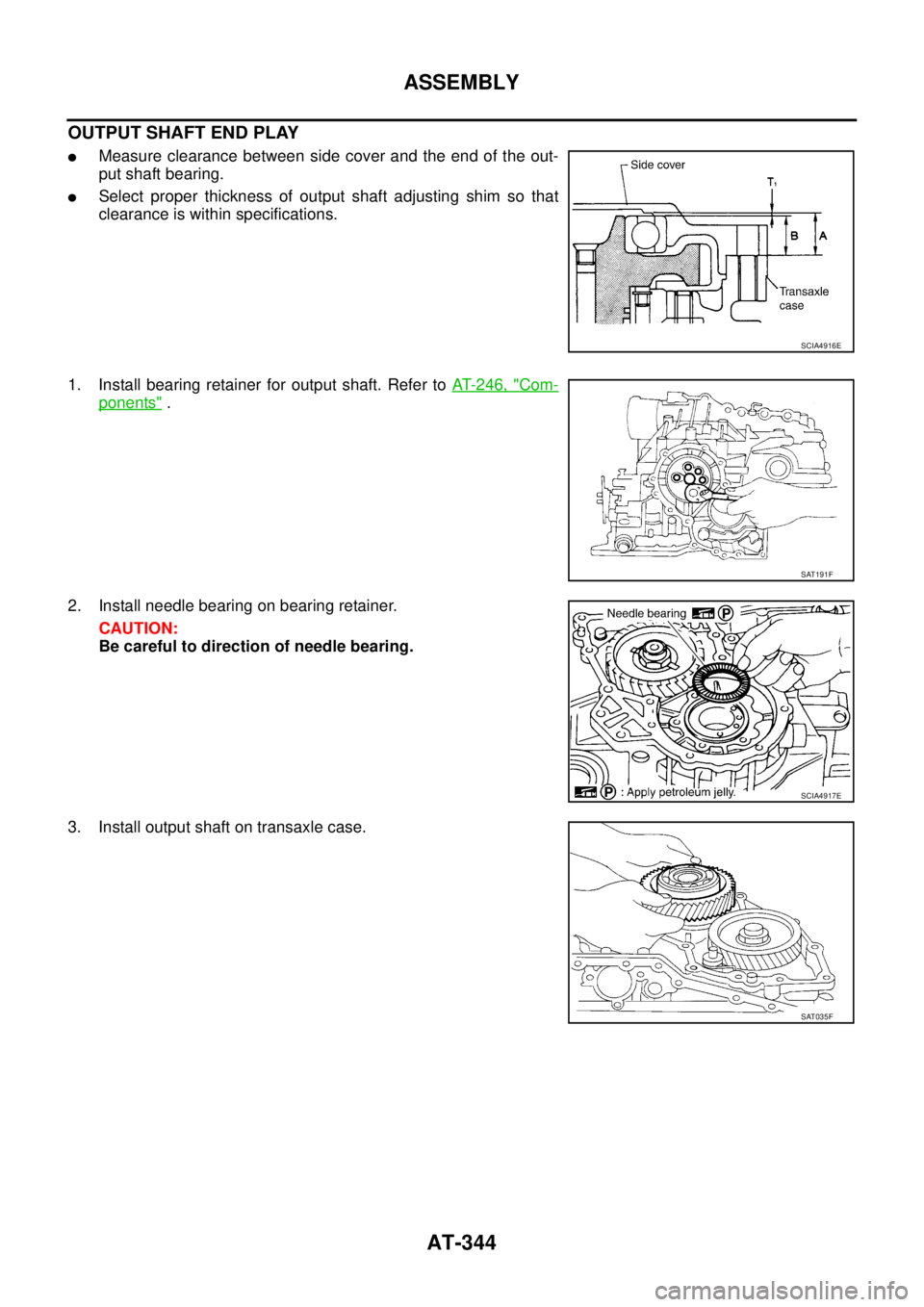

Page 352 of 3502
AT-344
ASSEMBLY
OUTPUT SHAFT END PLAY
Measure clearance between side cover and the end of the out-
put shaft bearing.
Select proper thickness of output shaft adjusting shim so that
clearance is within specifications.
1. Install bearing retainer for output shaft. Refer to AT- 2 4 6 , "
Com-
ponents" .
2. Install needle bearing on bearing retainer.
CAUTION:
Be careful to direction of needle bearing.
3. Install output shaft on transaxle case.
SCIA4916E
SAT191F
SCIA4917E
SAT035F
