NISSAN TEANA 2003 Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-117
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

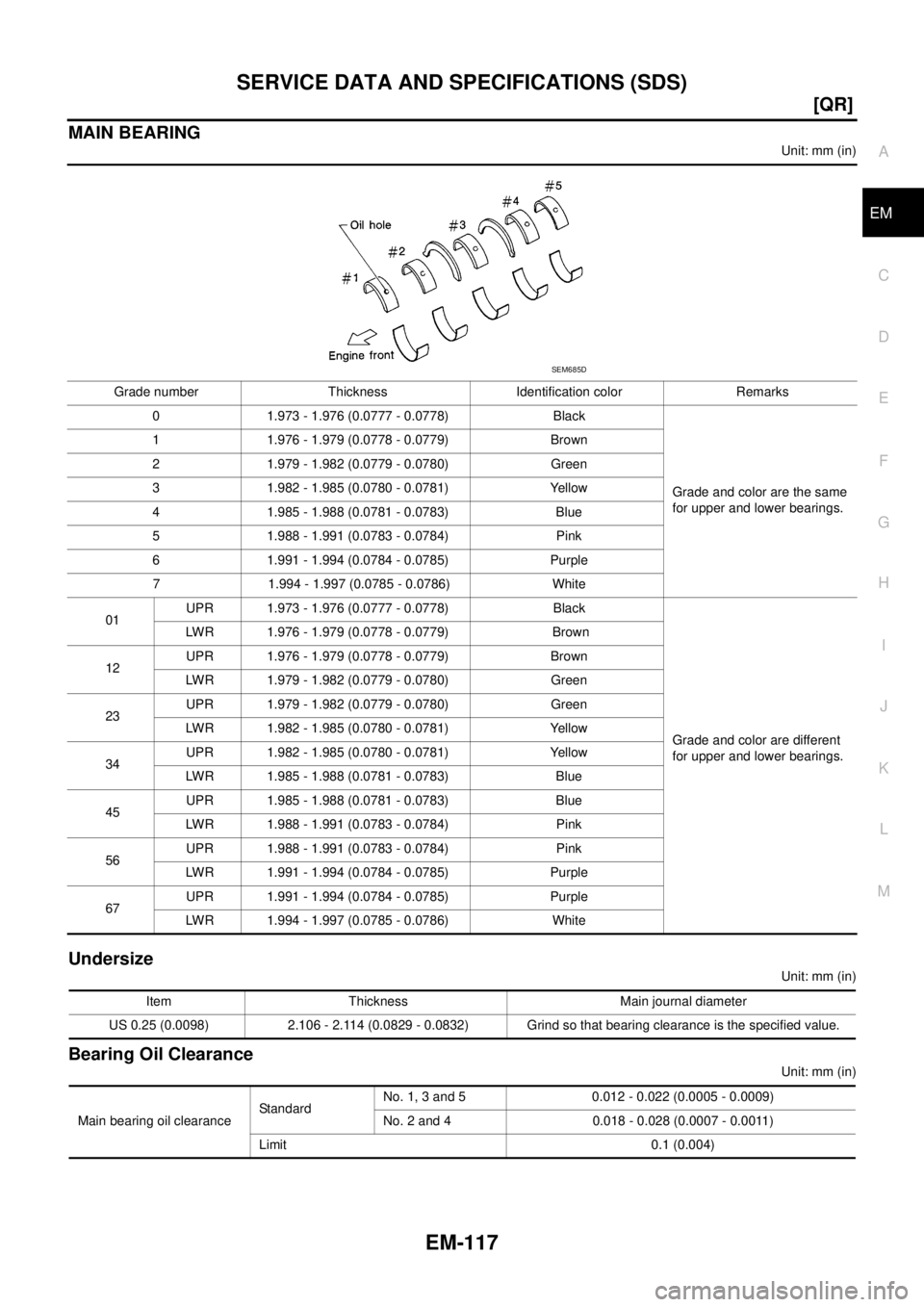

MAIN BEARING
Unit: mm (in)
Undersize
Unit: mm (in)
Bearing Oil Clearance
Unit: mm (in) Grade number Thickness Identificat

Page 2226 of 3502

NISSAN TEANA 2003 Service Manual EM-118
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)

CONNECTING ROD BEARING
Undersize
Unit: mm (in)
Bearing Oil Clearance
Unit: mm (in) Grade number Thickness mm (in) Identification color
0 1.495 - 1.

Page 2227 of 3502

NISSAN TEANA 2003 Service Manual PRECAUTIONS
EM-119
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

[VQ]PRECAUTIONSPFP:00001
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectBBS007TP
NOTE:
This Procedure is applied only to

PRECAUTIONS
EM-119
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

[VQ]PRECAUTIONSPFP:00001
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectBBS007TP
NOTE:
This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT
SYSTEM).
Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.
Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
Precautions for Drain Engine CoolantBBS007TQ
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingBBS007TR
Before starting work, make sure no fire or spark producing items are in the work area.
Release fuel pressure before disconnecting and disassembly.
After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyBBS007TS
When instructed to use special service tools, use specified tools. Always be careful to work safely, avoid
forceful or uninstructed operations.
Exercise maximum care to avoid damage to mating or sliding surfaces.
Cover openings of engine system with tape or equivalent, if necessary, to seal out foreign materials.
Mark and arrange disassembly parts in an organized way for easy troubleshooting and re-assembly.
When loosening bolts and nuts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified.
Precautions for Inspection, Repair and ReplacementBBS007TT
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationBBS007TU
Use torque wrench to tighten nuts and bolts to specification.

Page 2228 of 3502

NISSAN TEANA 2003 Service Manual EM-120
[VQ]
PRECAUTIONS

When tightening bolts and nuts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in t

EM-120
[VQ]
PRECAUTIONS

When tightening bolts and nuts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is speci-
fied, do exactly as specified.
Replace with new gasket, packing, oil seal or O-ring.
Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for
any restriction and blockage.
Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.
Before assembly, oil sliding surfaces well.
Release air within route when refilling after draining engine coolant.
After repairing, start engine and increase engine speed to check engine coolant, fuel, engine oil, and
exhaust gases for leakage.
Parts Requiring Angle TighteningBBS007TV
Use angle wrench [SST: KV10112100] for the final tightening of the following engine parts:
–Cylinder head bolts
–Main bearing cap bolts
–Connecting rod cap nuts (VQ23DE)
–Connecting rod cap bolts (VQ35DE)
–Crankshaft pulley bolt
Do not use a torque value for final tightening.
The torque value for these parts are for a preliminary step.
Ensure thread and seat surfaces are clean and coated with engine oil.
Precautions for Liquid GasketBBS007TW
REMOVAL OF LIQUID GASKET SEALING
After removing mounting nuts and bolts, separate the mating
surface using seal cutter (SST) and remove old liquid gasket
sealing.
CAUTION:
Be careful not to damage the mating surfaces.
Tap seal cutter to insert it, and then slide it by tapping on the
side as shown in the figure.
In areas where seal cutter (SST) is difficult to use, use plastic
hammer to lightly tap the parts, to remove it.
CAUTION:
If for some unavoidable reason tool such as screwdriver is
used, be careful not to damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using scraper, remove old liquid gasket adhering to the gasket
application surface and the mating surface.
Remove liquid gasket completely from the groove of the gas-
ket application surface, mounting bolts, and bolt holes.
2. Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
PBIC0275E
PBIC0003E

Page 2229 of 3502

NISSAN TEANA 2003 Service Manual PRECAUTIONS
EM-121
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

3. Attach liquid gasket tube to tube presser (SST).
Use Genuine Liquid Gasket or equivalent.
4. Apply liquid gasket without breaks to the specified

Page 2230 of 3502

NISSAN TEANA 2003 Service Manual EM-122
[VQ]
PREPARATION

PREPARATIONPFP:00002
Special Service Tools BBS004VI
Tool number
Tool nameDescription
ST0501S000
Engine stand assembly
1. ST05011000
Engine stand
2. ST05012000
BaseDisassembli

Page 2231 of 3502

NISSAN TEANA 2003 Service Manual PREPARATION
EM-123
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

EM03470000
Piston ring compressorInstalling piston assembly into cylinder bore
ST16610001
Pilot bushing pullerRemoving pilot converter
KV10111100
Se

Page 2232 of 3502

NISSAN TEANA 2003 Service Manual EM-124
[VQ]
PREPARATION

Commercial Service ToolsBBS004VJ
KV10114400
Heated oxygen sensor wrenchLoosening or tightening heated oxygen
sensor 2
a: 22 mm (0.87 in)
Quick connector release Removing fue
