NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
SRS-27
C
D
E
F
G
I
J
K
L
MA
B
SRS

PRE-TEN FRONT RH
[OPEN]
[B1081]Front RH pre-tensioner circuit is open.
1. Visually check the wiring harness
connections.
2. Replace the harness

TROUBLE DIAGNOSIS
SRS-27
C
D
E
F
G
I
J
K
L
MA
B
SRS

PRE-TEN FRONT RH
[OPEN]
[B1081]Front RH pre-tensioner circuit is open.
1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front RH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT RH
[VB-SHORT]
[B1082]
Front RH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT RH
[GND-SHORT]
[B1083]
Front RH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT RH
[SHORT]
[B1084]
Front RH pre-tensioner circuit is shorted between lines.
PRE-TEN FRONT LH
[OPEN]
[B1086]
Front LH pre-tensioner circuit is open.
1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front LH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT LH
[VB-SHORT]
[B1087]
Front LH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT LH
[GND-SHORT]
[B1088]
Front LH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT LH
[SHORT]
[B1089]
Front LH pre-tensioner circuit is shorted between lines.
SATELLITE SENS RH
[UNIT FAIL]
[B1113]
SATELLITE SENS RH
[COMM FAIL]
[B1115]
RH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the RH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SATELLITE SENS LH
[UNIT FAIL]
[B1118]
SATELLITE SENS LH
[COMM FAIL]
[B1120]
LH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the LH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
CURTAIN MODULE RH
[OPEN]
[B1145]
RH side curtain air bag module circuit is open.
1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace RH side curtain air bag
module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. CURTAIN MODULE RH
[VB-SHORT]
[B1146]
RH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE RH
[GND-SHORT]
[B1147]
RH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE RH
[SHORT]
[B1148]
RH side curtain air bag module circuit is shorted between lines. Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”

Page 3402 of 3502

NISSAN TEANA 2003 Service Manual SRS-28
TROUBLE DIAGNOSIS

CURTAIN MODULE LH
[OPEN]
[B1150]LH side curtain air bag module circuit is open.
1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible

Page 3403 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
SRS-29
C
D
E
F
G
I
J
K
L
MA
B
SRS

Trouble Diagnosis without CONSULT-IIBHS0004B
DIAGNOSTIC PROCEDURE 6
Inspecting SRS Malfunctioning Parts by Using “AIR BAG” Warning Lamp — Di

Page 3404 of 3502

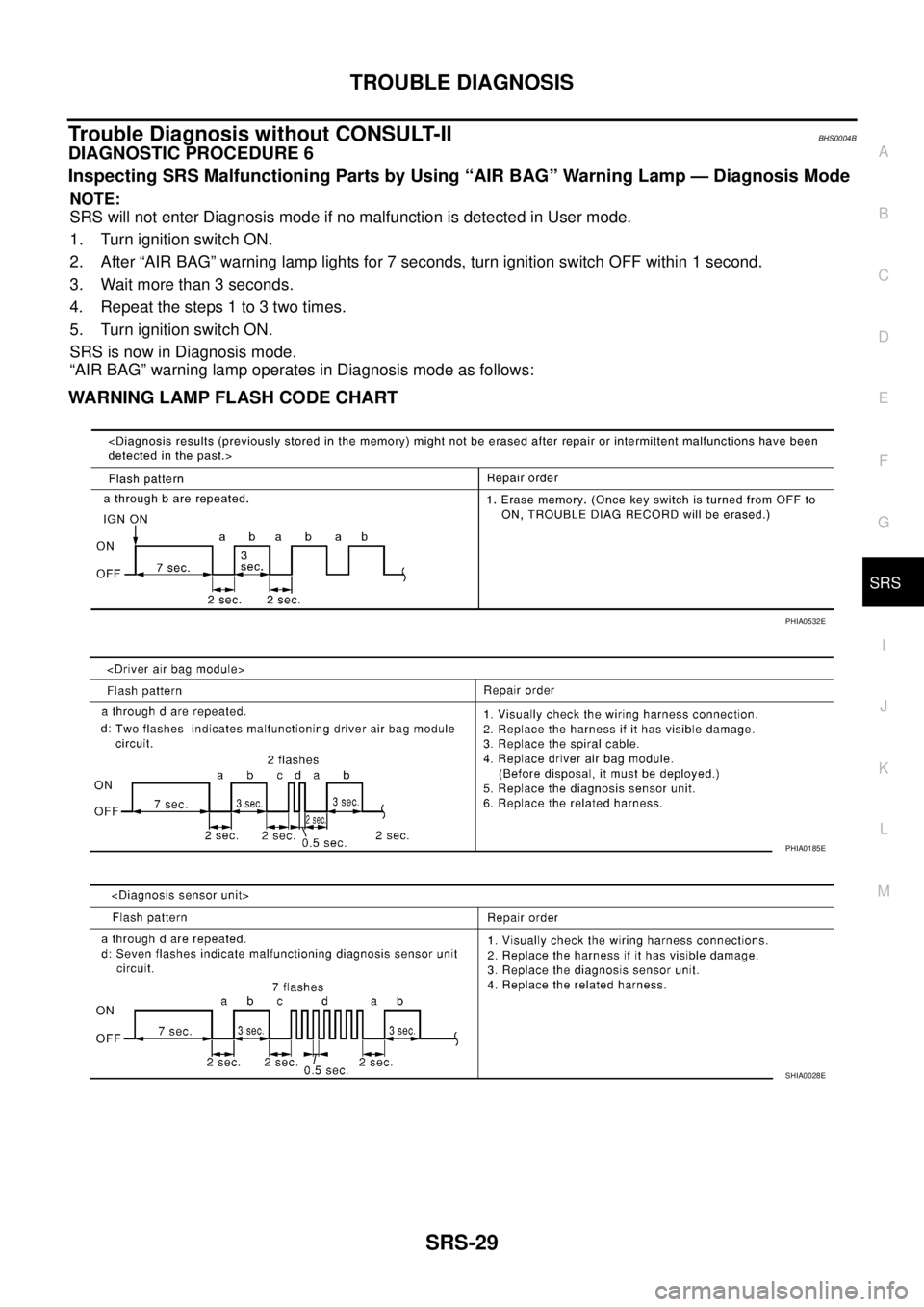

NISSAN TEANA 2003 Service Manual SRS-30
TROUBLE DIAGNOSIS

SHIA0029E
SHIA0083E
SHIA0030E
SHIA0031E

Page 3405 of 3502

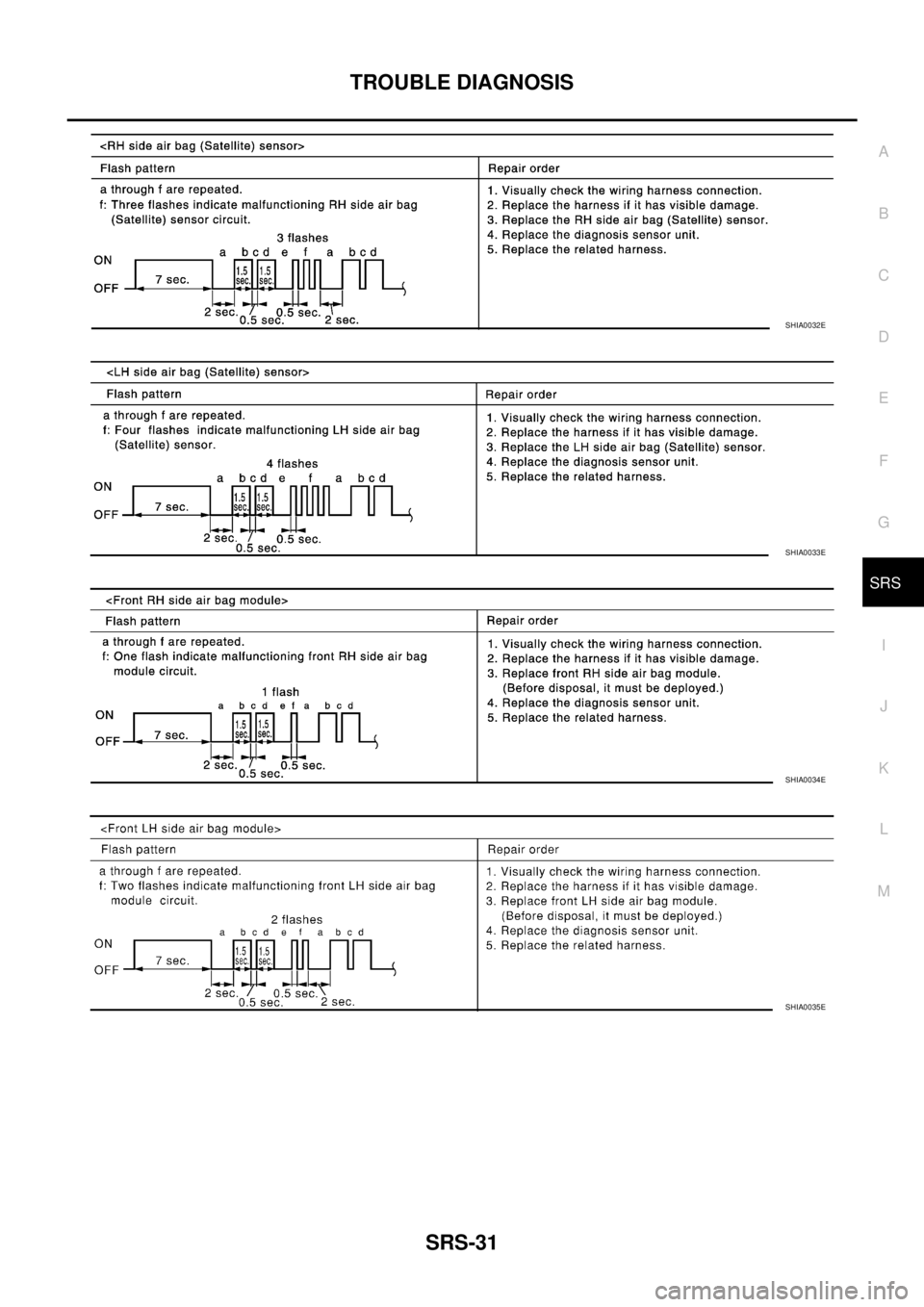

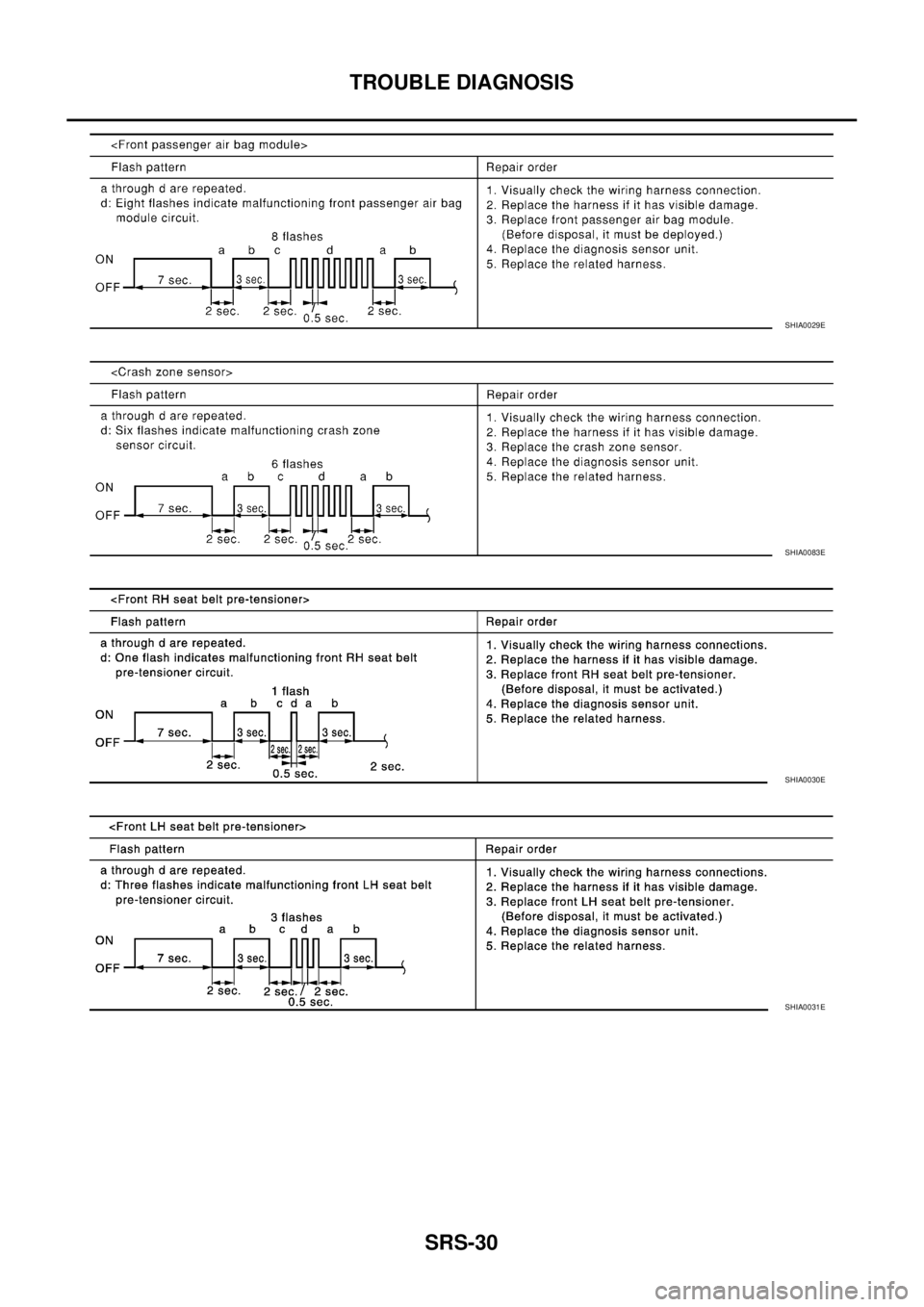

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
SRS-31
C
D
E
F
G
I
J
K
L
MA
B
SRS

SHIA0032E
SHIA0033E
SHIA0034E
SHIA0035E

Page 3406 of 3502

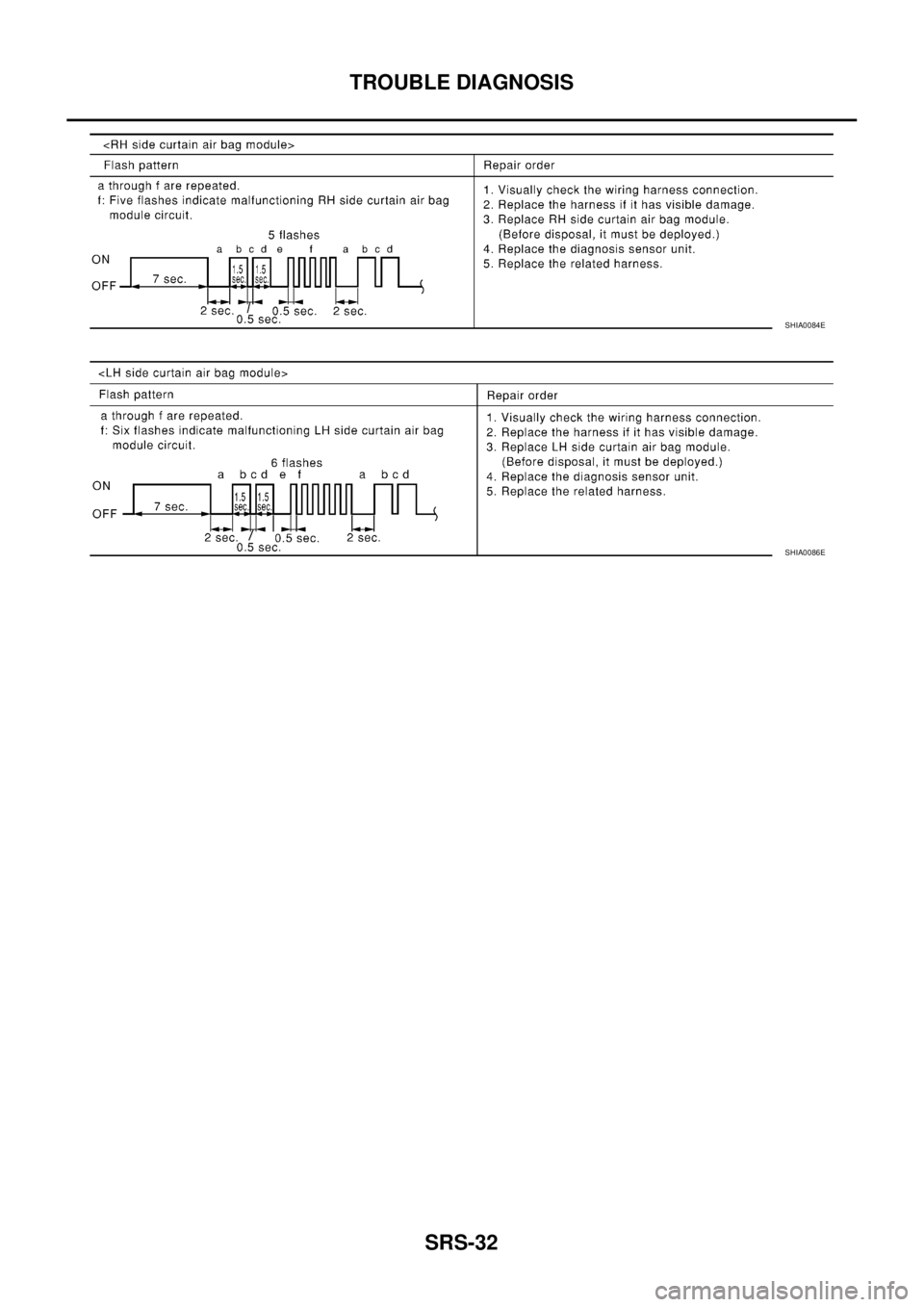

NISSAN TEANA 2003 Service Manual SRS-32
TROUBLE DIAGNOSIS

SHIA0084E
SHIA0086E

Page 3407 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
SRS-33
C
D
E
F
G
I
J
K
L
MA
B
SRS

Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn OFFBHS0004C
DIAGNOSTIC PROCEDURE 7
1. CHECK THE DEPLOYMENT OF AIR BAG MODULE
Is air ba

Page 3408 of 3502

NISSAN TEANA 2003 Service Manual SRS-34
TROUBLE DIAGNOSIS

Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn ONBHS0004D
DIAGNOSTIC PROCEDURE 8
1. CHECK “METER” FUSE
Check 10A fuse [No.14, located in fuse block (J/B)].
