NISSAN TEANA 2003 Service Manual A/T 3RD GEAR FUNCTION
AT-145
D
E
F
G
H
I
J
K
L
MA
B
AT

Diagnostic ProcedureBCS0013F
1. CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Acc

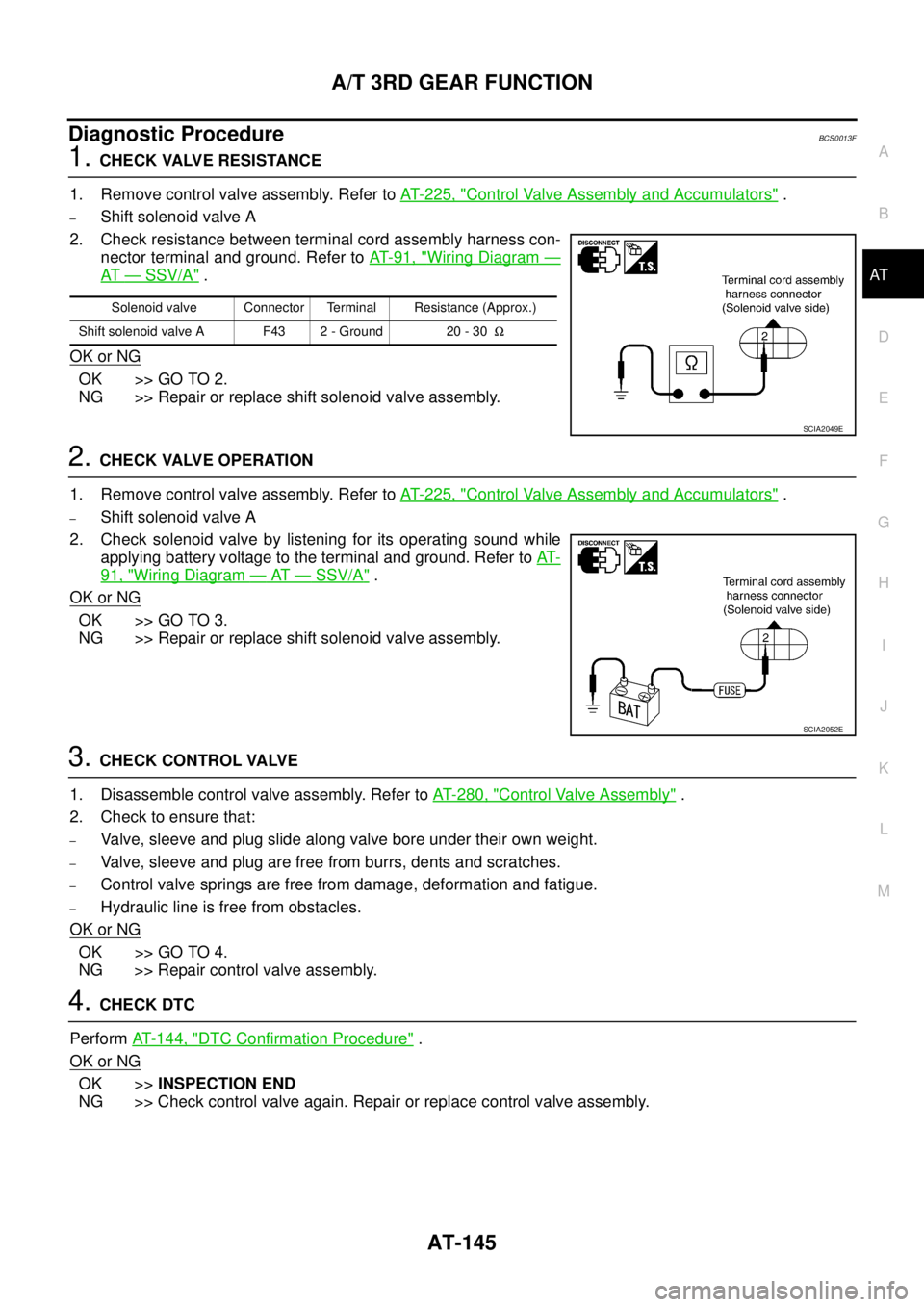

Page 154 of 3502

NISSAN TEANA 2003 Service Manual AT-146
A/T 4TH GEAR FUNCTION

A/T 4TH GEAR FUNCTIONPFP:31940
DescriptionBCS0013G
This malfunction will not be detected while A/T CHECK indicator lamp is indicating another self-diagnosis
malfunction

AT-146
A/T 4TH GEAR FUNCTION

A/T 4TH GEAR FUNCTIONPFP:31940
DescriptionBCS0013G
This malfunction will not be detected while A/T CHECK indicator lamp is indicating another self-diagnosis
malfunction.
This malfunction is detected when A/T does not shift into fourth gear position or the torque converter
clutch does not lock up as instructed by TCM. This is not caused by electrical malfunction (circuits open or
shorted) but by mechanical malfunction such as control valve sticking, improper solenoid valve operation,
malfunctioning oil pump or torque converter clutch, etc.
CONSULT-II Reference Value BCS0026N
On Board Diagnosis LogicBCS0013H
This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is much lower than the position (4th) supposed by TCM, the slip ratio will be
much less than normal. In case the ratio does not reach the specified value, TCM judges this diagnosis
malfunction.
This malfunction will be caused when shift solenoid valve B is stuck closed.
Gear positions supposed by TCM are as follows.
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve A stuck open: 2, 2, 3 and 3* position
In case of gear position with shift solenoid valve B stuck closed: 1, 2, 2 and 1* positions to each gear
position above
*: “A/T 4TH GR FNCTN” is detected.
Diagnostic trouble code “A/T 4TH GR FNCTN” with CONSULT-II is detected when A/T cannot be shifted
to the 4th gear position even if electrical circuit is good.
Possible CauseBCS0013I
Shift solenoid valve A
Shift solenoid valve B
Line pressure solenoid valve
Each clutch
Hydraulic control circuit
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Item name Condition Display value (Approx.)
LINE PRES DTYSmall throttle opening (Low line pressure) ⇔ Large throttle opening
(High line pressure)0% ⇔ 92%

Page 155 of 3502

NISSAN TEANA 2003 Service Manual A/T 4TH GEAR FUNCTION
AT-147
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC Confirmation ProcedureBCS0013J
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again,

A/T 4TH GEAR FUNCTION
AT-147
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC Confirmation ProcedureBCS0013J
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.
2. Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SE: 0.4 - 1.5 V
If out of range, drive vehicle to decrease the voltage (warm up
the fluid) or stop engine to increase the voltage (cool down the
fluid).
3. Select “4TH GR FNCTN P0734” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to 55 to 65 km/h (34 to 40 MPH) under the
following condition and release accelerator pedal completely.
THROTTLE POSI: Less than 5.5/8 (at all times during step 4)
SLCT LVR POSI: “D” position
–Make sure that “GEAR” shows “3” after releasing pedal.
5. Depress accelerator pedal steadily with 1.0/8 - 2.0/8 of “THROTTLE POSI” from a speed of 55 to 65 km/h
(34 to 40 MPH) until “TESTING” has turned to “STOP VEHICLE” or “COMPLETED”. (It will take approxi-
mately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to AT- 1 4 7 , "
Diagnostic Procedure" .
If “STOP VEHICLE” appears on CONSULT-II screen, go to following step.
–Make sure that “GEAR” shows “4” when depressing accelerator pedal with 1.0/8 - 2.0/8 of
“THROTTLE POSI”.
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS” for
“A/T”. In case a 1st trip DTC other than “A/T 4TH GR FNCTN” is shown, refer to applicable “TROU-
BLE DIAGNOSIS FOR DTC”.
6. Stop vehicle.
7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
8. Make sure that “OK” is displayed. (If “NG” is displayed, refer to AT- 1 4 7 , "
Diagnostic Procedure" .)
Refer to AT- 5 4 , "
Vehicle Speed Which Gear Shifting Occurs" .
Diagnostic ProcedureBCS0013K
1. CHECK SHIFT-UP (D3 TO D4 )
During AT- 5 0 , "
Cruise Test — Part 1" .
Does A/T shift from D
3 to D4 at the specified speed?
YES >> GO TO 11.
NO >> GO TO 2.
BCIA0031E
Vehicle condition Gear on actual transmission shift pattern when screen is changed to 1 → 2 → 3 → 4
No malfunction exists 1 → 2 → 3 → 4
Malfunction for “A/T 4TH GR
FNCTN” exists.2 → 2 → 3 → 3
1 → 2 → 2 → 1

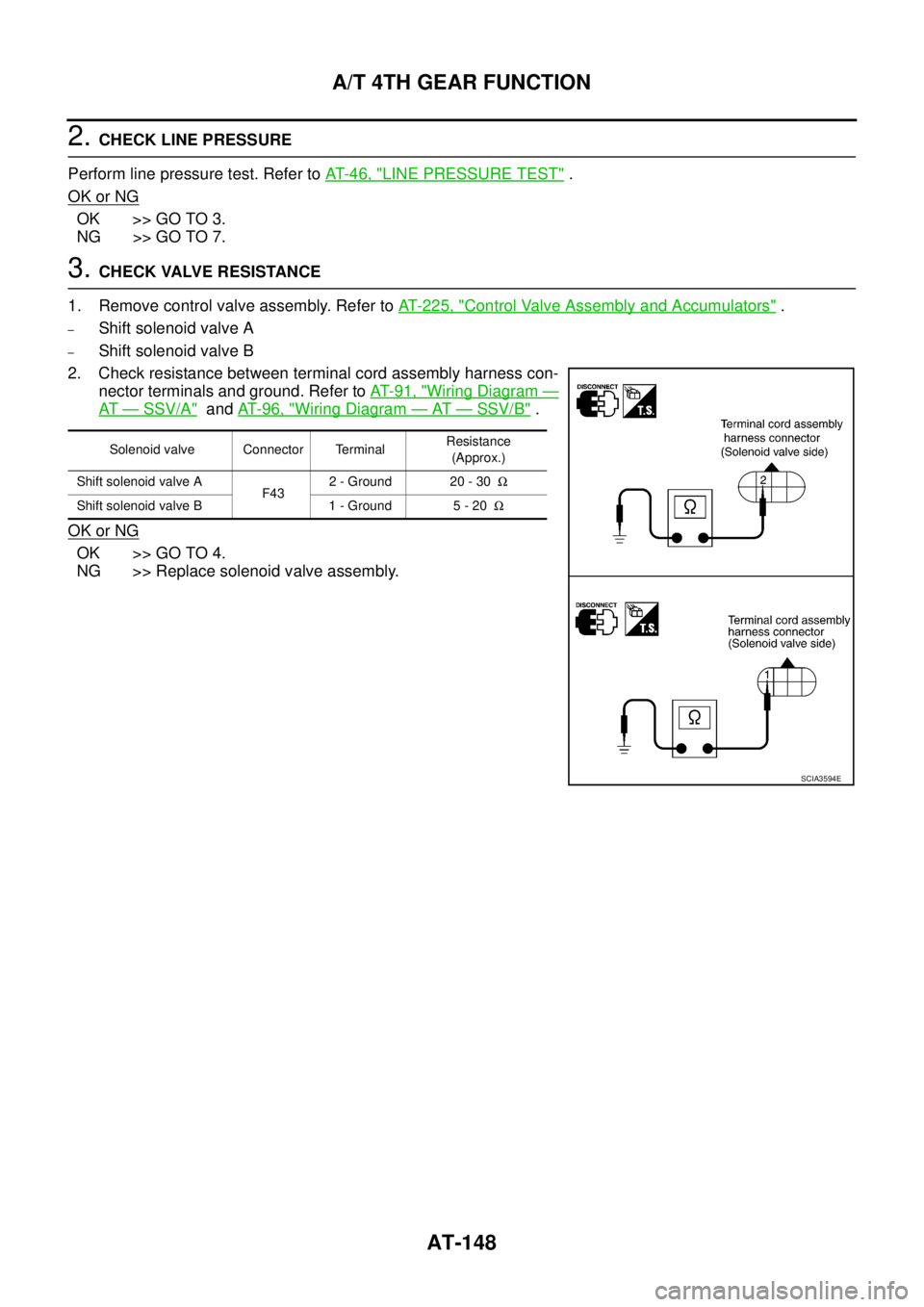

Page 156 of 3502

NISSAN TEANA 2003 Service Manual AT-148
A/T 4TH GEAR FUNCTION

2. CHECK LINE PRESSURE
Perform line pressure test. Refer to AT- 4 6 , "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 7.
3. CHECK VALVE RESISTANCE
1. Remove

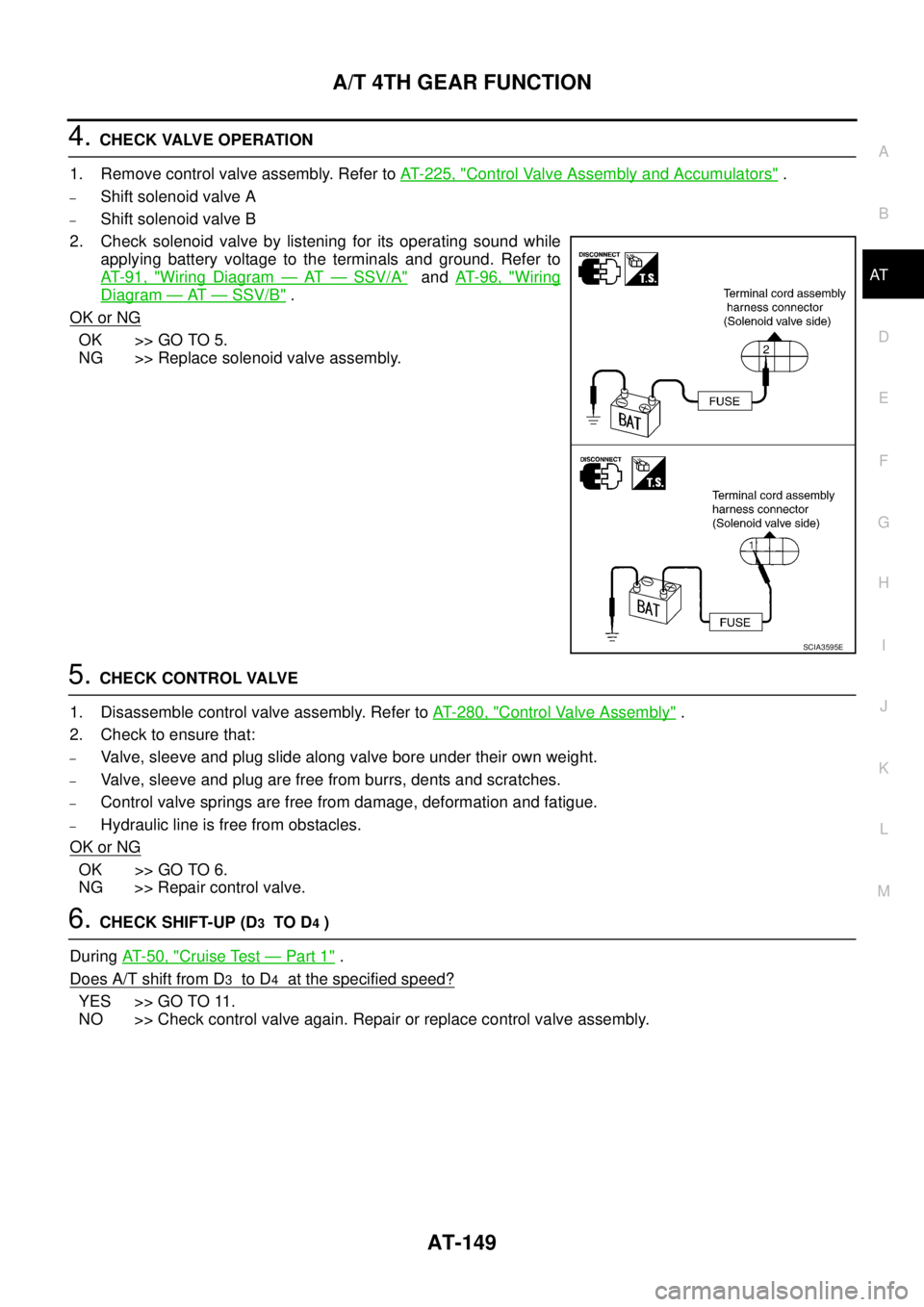

Page 157 of 3502

NISSAN TEANA 2003 Service Manual A/T 4TH GEAR FUNCTION
AT-149
D
E
F
G
H
I
J
K
L
MA
B
AT

4. CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
–Shift solenoid

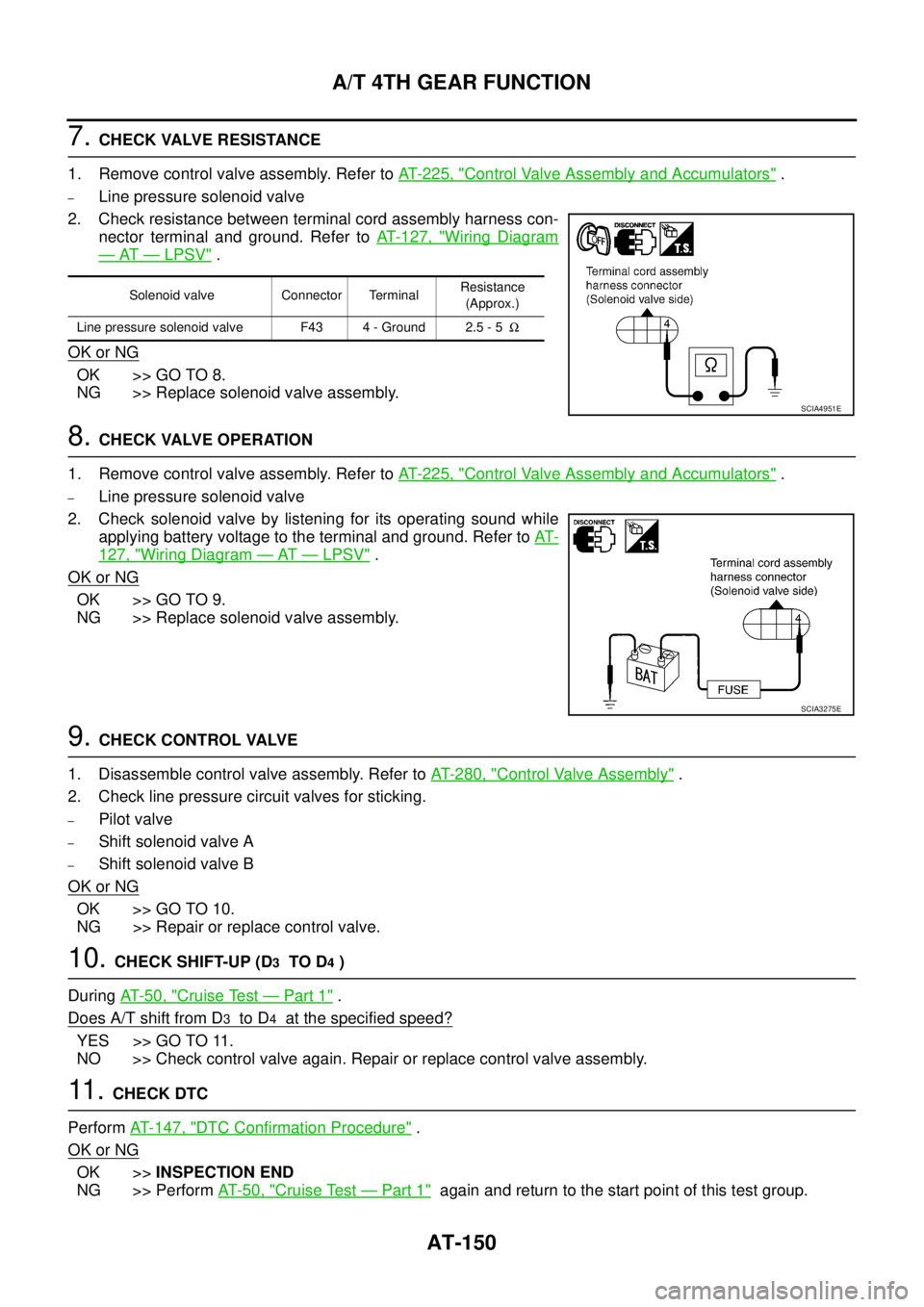

Page 158 of 3502

NISSAN TEANA 2003 Service Manual AT-150
A/T 4TH GEAR FUNCTION

7. CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
–Line pressure solenoid valve
2. Check r

Page 159 of 3502

NISSAN TEANA 2003 Service Manual A/T TCC S/V FUNCTION (LOCK-UP)
AT-151
D
E
F
G
H
I
J
K
L
MA
B
AT

A/T TCC S/V FUNCTION (LOCK-UP)PFP:31940
DescriptionBCS0013L
This malfunction is detected when A/T does not shift into fourth gear pos

Page 160 of 3502

NISSAN TEANA 2003 Service Manual AT-152
A/T TCC S/V FUNCTION (LOCK-UP)

DTC Confirmation ProcedureBCS0013O
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignit

AT-152
A/T TCC S/V FUNCTION (LOCK-UP)

DTC Confirmation ProcedureBCS0013O
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm that the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.
2. Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SE: 0.4 - 1.5 V
If out of range, drive vehicle to decrease voltage (warm up the
fluid) or stop engine to increase voltage (cool down the fluid).
3. Select “TCC S/V FNCTN P0744” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to more than 80 km/h (50 MPH) and maintain
the following condition continuously until “TESTING” has turned
to “COMPLETE”. (It will take approximately 30 seconds after
“TESTING” shows.)
THROTTLE POSI: 1.0/8 - 2.0/8 (at all times during step 4)
SLCT LVR POSI: “D” position
TCC S/V DUTY: More than 94%
VEHICLE SPEED: Constant speed of more than 80 km/h (50 MPH)
–Make sure that “GEAR” shows “4”.
–For shift schedule, refer to AT- 5 4 , "Vehicle Speed Which Gear Shifting Occurs" .
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS” for
“A/T”. In case a 1st trip DTC other than “A/T TCC S/V FNCTN” is shown, refer to applicable “TROU-
BLE DIAGNOSIS FOR DTC”.
5. Make sure that “OK” is displayed. (If “NG” is displayed, refer to AT- 1 5 2 , "
Diagnostic Procedure" .)
Refer to AT- 5 4 , "
Vehicle Speed at When Lock-up Occurs/Releases" .
Diagnostic ProcedureBCS0013P
1. CHECK SHIFT-UP (D3 TO D4 )
During AT- 5 0 , "
Cruise Test — Part 1" .
Does A/T shift from D
3 to D4 at the specified speed?
YES >> GO TO 11.
NO >> GO TO 2.
2. CHECK LINE PRESSURE
Perform line pressure test. Refer to AT- 4 6 , "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 6.
BCIA0031E
