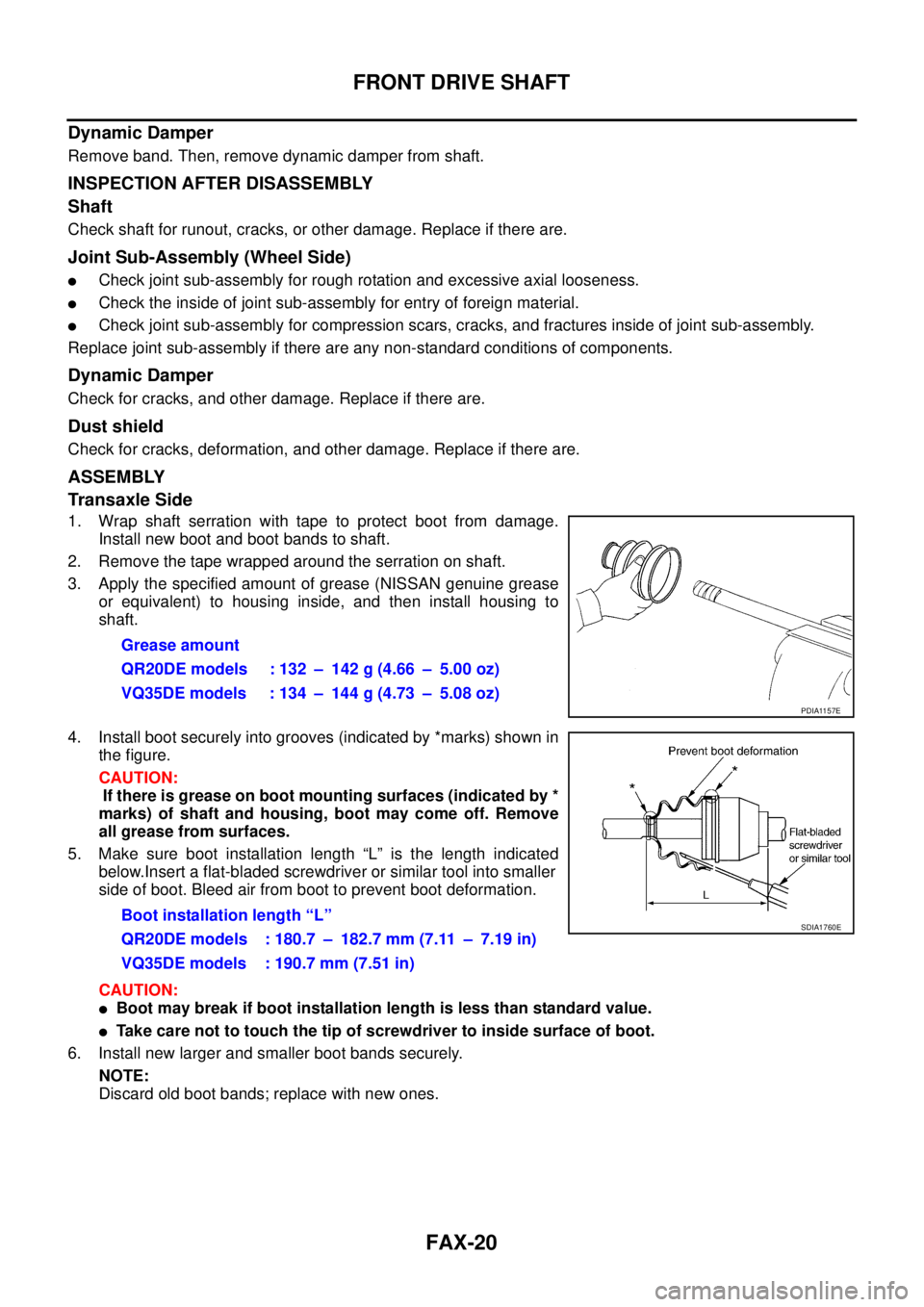

NISSAN TEANA 2003 Service Manual FRONT DRIVE SHAFT FAX-19 C E F G H I J K L MA B FA X Disassembly and Assembly (Models With VQ35DE and QR20DE: LH)BDS0007Q COMPONENT DISASSEMBLY Transaxle side 1. For transaxle side housing is non-d

Page 2402 of 3502

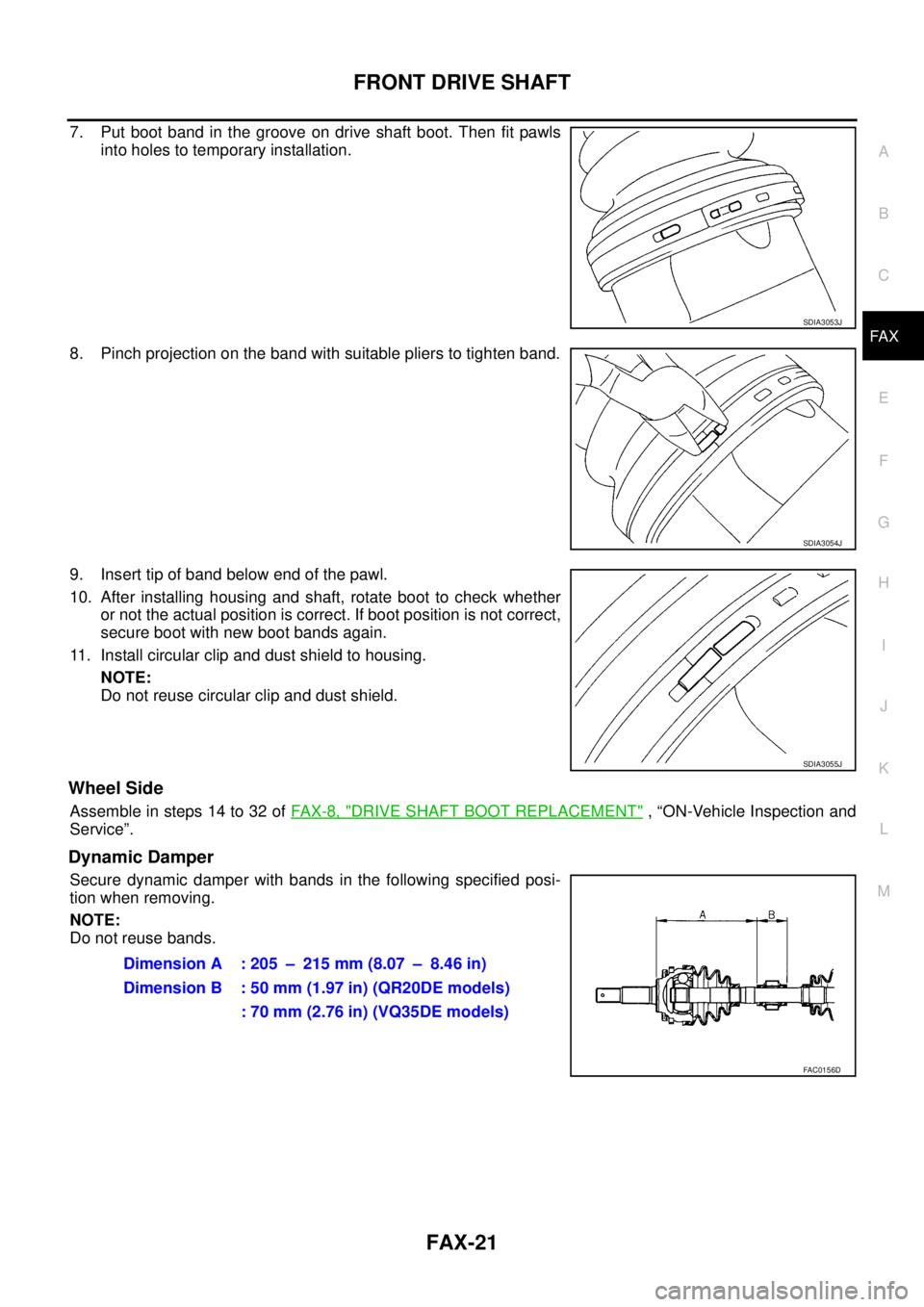

NISSAN TEANA 2003 Service Manual FAX-20 FRONT DRIVE SHAFT Dynamic Damper Remove band. Then, remove dynamic damper from shaft. INSPECTION AFTER DISASSEMBLY Shaft Check shaft for runout, cracks, or other damage. Replace if there are.

Page 2403 of 3502

NISSAN TEANA 2003 Service Manual FRONT DRIVE SHAFT FAX-21 C E F G H I J K L MA B FA X 7. Put boot band in the groove on drive shaft boot. Then fit pawls into holes to temporary installation. 8. Pinch projection on the band with sui

Page 2404 of 3502

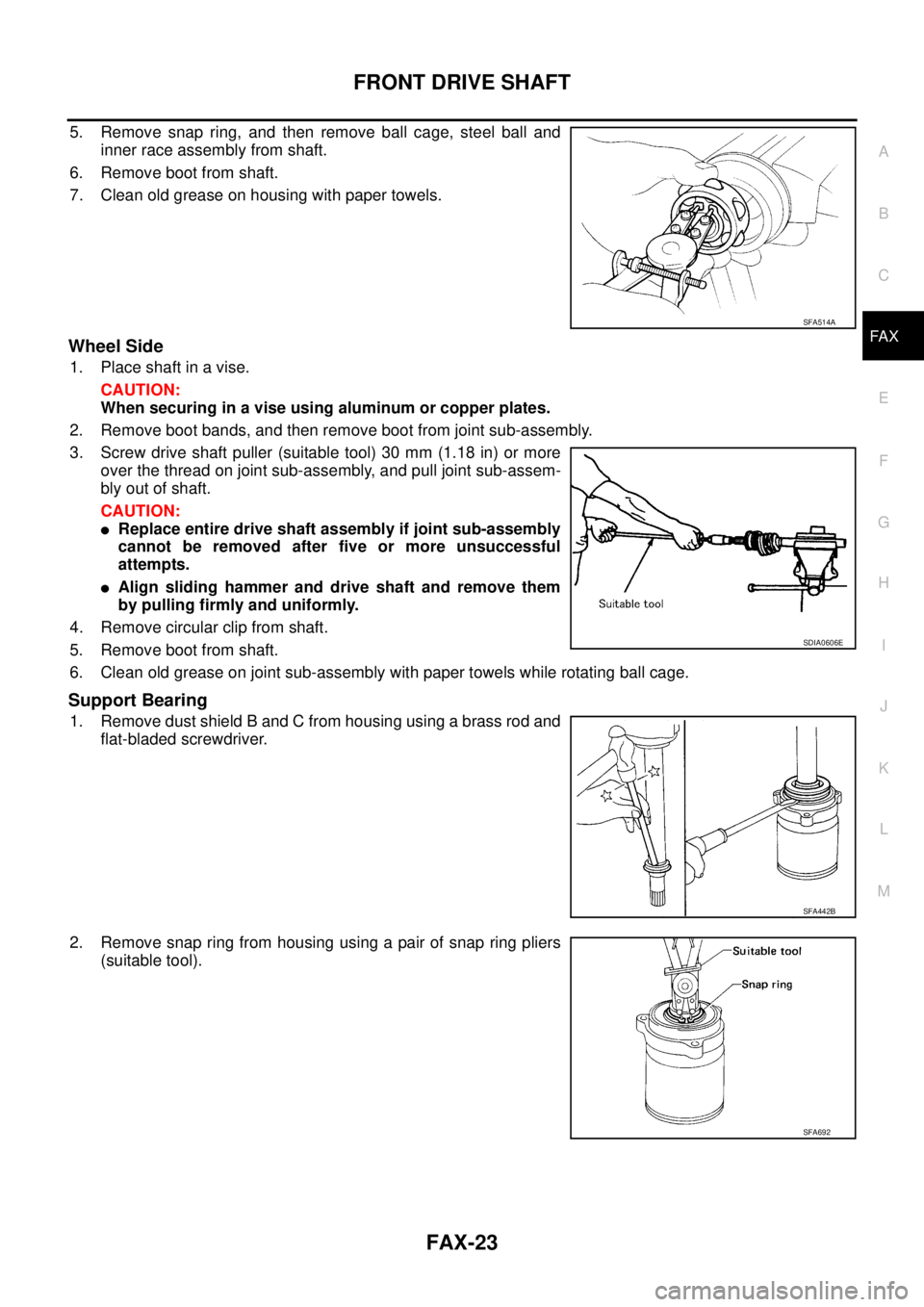

NISSAN TEANA 2003 Service Manual FAX-22 FRONT DRIVE SHAFT Disassembly and Assembly (Models With VQ23DE: RH)BDS0007R COMPONENT DISASSEMBLY Transaxle Side 1. Place shaft in a vise. CAUTION: When retaining shaft in a vise, always use

Page 2405 of 3502

NISSAN TEANA 2003 Service Manual FRONT DRIVE SHAFT FAX-23 C E F G H I J K L MA B FA X 5. Remove snap ring, and then remove ball cage, steel ball and inner race assembly from shaft. 6. Remove boot from shaft. 7. Clean old grease on

Page 2406 of 3502

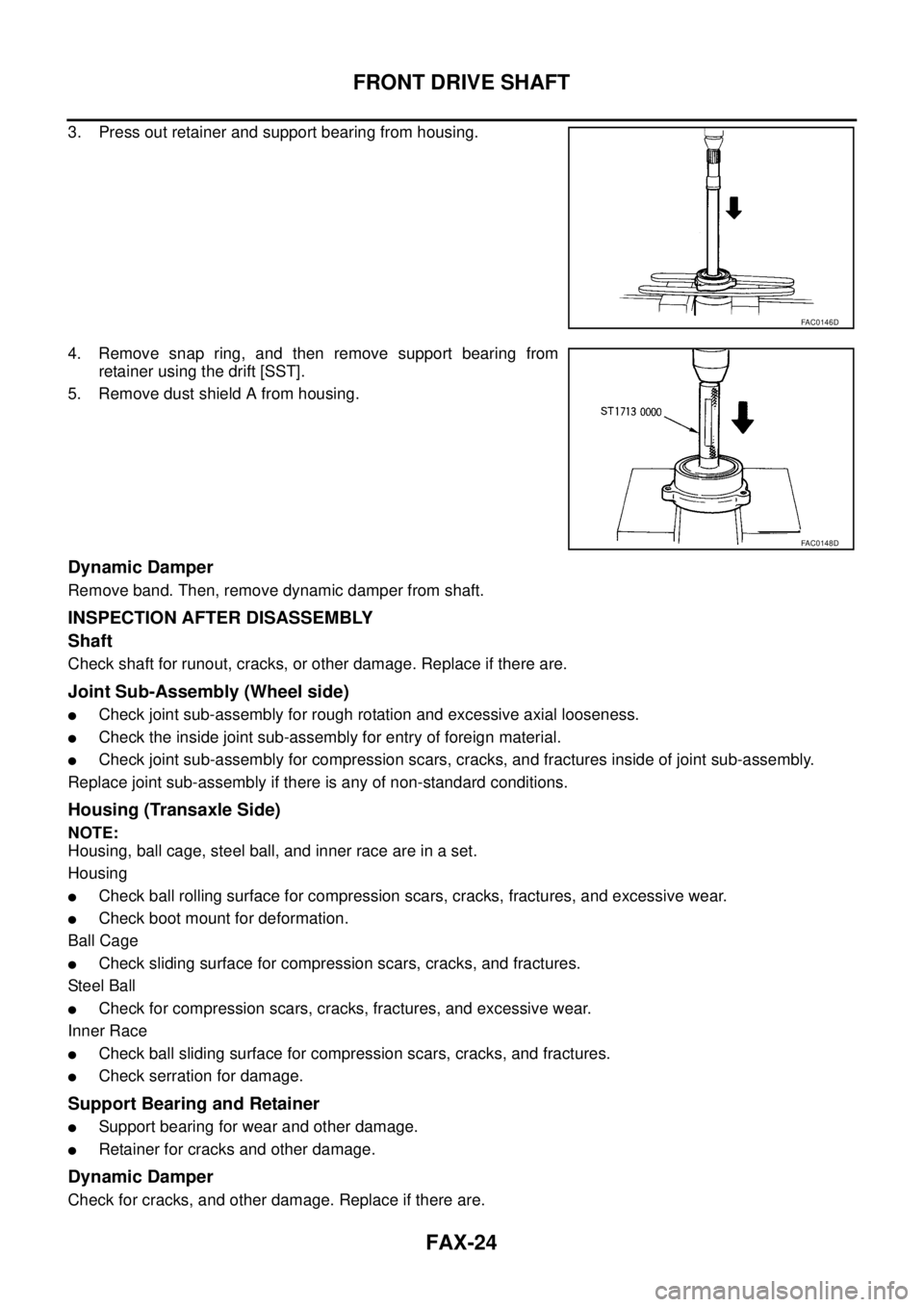

NISSAN TEANA 2003 Service Manual FAX-24 FRONT DRIVE SHAFT 3. Press out retainer and support bearing from housing. 4. Remove snap ring, and then remove support bearing from retainer using the drift [SST]. 5. Remove dust shield A fro

Page 2407 of 3502

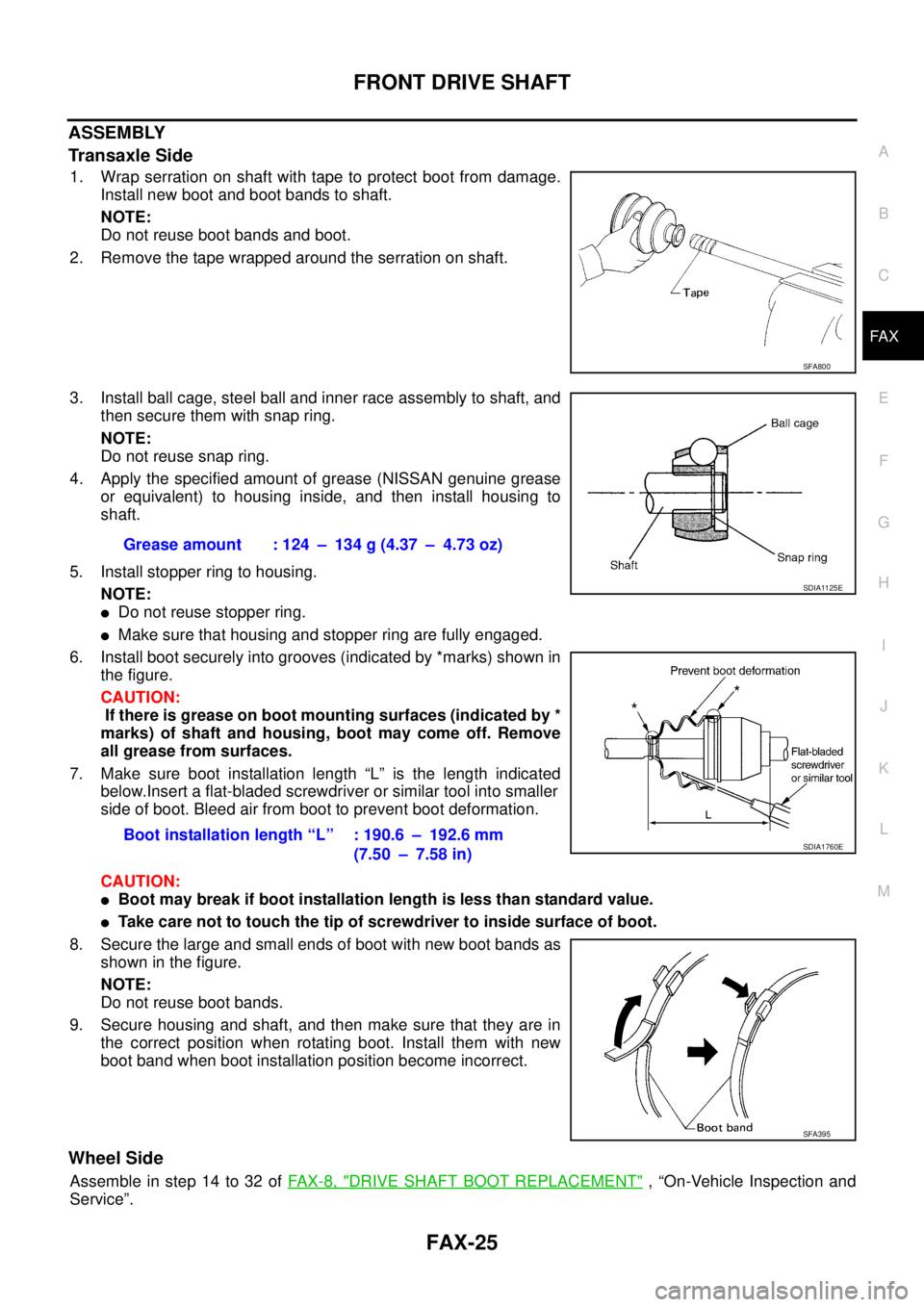

NISSAN TEANA 2003 Service Manual FRONT DRIVE SHAFT FAX-25 C E F G H I J K L MA B FA X ASSEMBLY Transaxle Side 1. Wrap serration on shaft with tape to protect boot from damage. Install new boot and boot bands to shaft. NOTE: Do not

Page 2408 of 3502

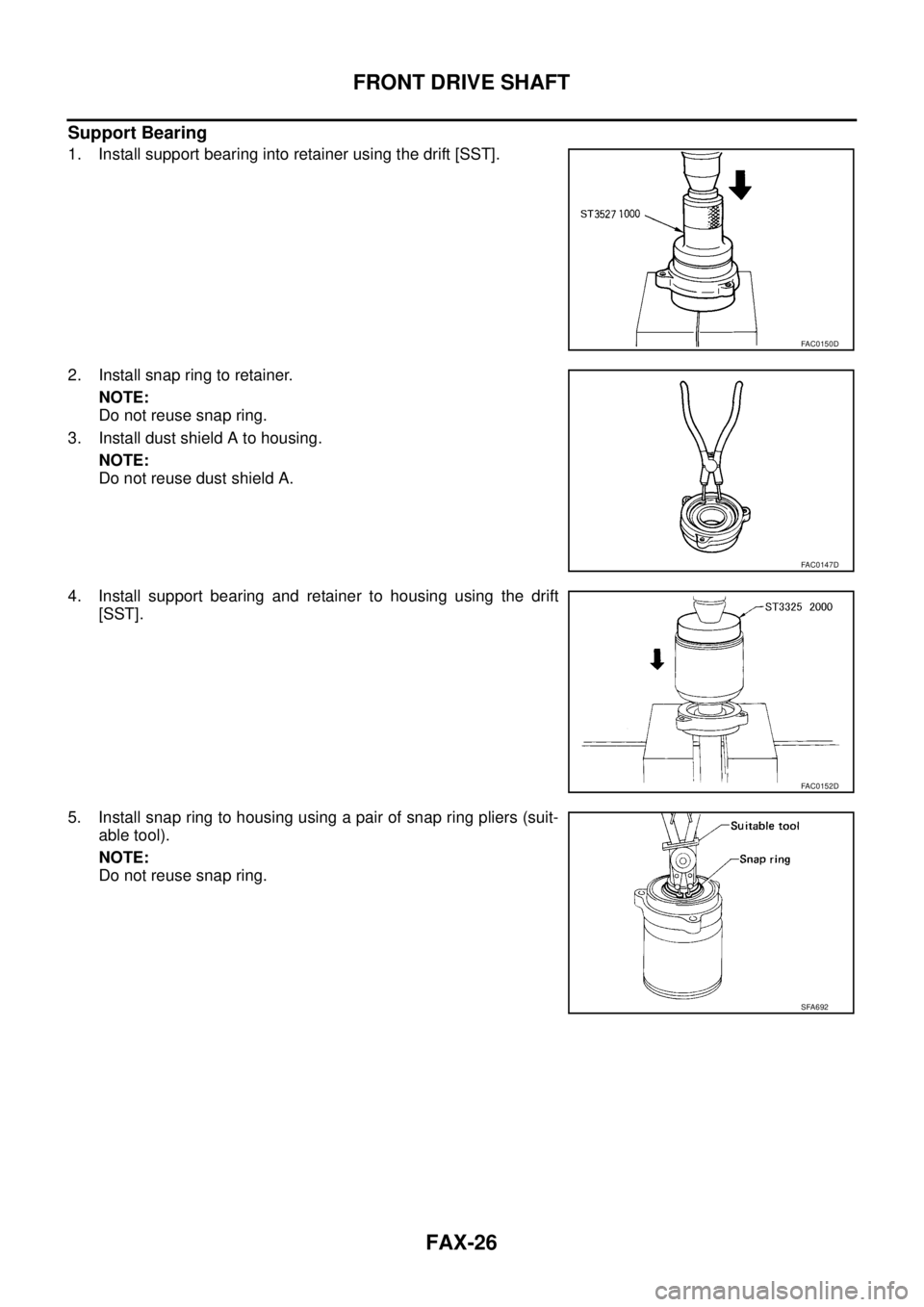

NISSAN TEANA 2003 Service Manual FAX-26 FRONT DRIVE SHAFT Support Bearing 1. Install support bearing into retainer using the drift [SST]. 2. Install snap ring to retainer. NOTE: Do not reuse snap ring. 3. Install dust shield A to h
