Page 129 of 3502
TURBINE REVOLUTION SENSOR
AT-121
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — PT/SENBCS0012G
TCWM0518E
Page 130 of 3502

AT-122
TURBINE REVOLUTION SENSOR
Data are reference value and are measured between each terminal and ground.
Diagnostic ProcedureBCS0012H
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “TURBINE REV” while driving.
Check the value changes according to driving speed.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK TURBINE REVOLUTION SENSOR
With CONSULT-II
1. Start engine.
2. Check power supply to turbine revolution sensor (power train revolution sensor) by voltage between TCM
connector terminals. Refer to AT- 1 5 8 , "
Wiring Diagram — AT — MAIN" .
3. If OK, check the pulse when vehicle cruises.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
Terminal Wire color Item ConditionJudgement
standard (Approx.)
38 G/BTurbine revolution sen-
sor (power train revolu-
tion sensor)When moving at 20 km/h
(12 MPH)240 Hz
42 B Sensor ground Always 0 V
Item name Condition Display value
TURBINE REV During driving (lock-up ON)Approximately matches
the engine speed.
SCIA4730E
Item Connector Terminal Data (Approx.)
TCM con-
nectorF104, F10510 - 42
Battery voltage
19 - 42
Item Condition
Turbine revolution
sensor (power train
revolution sensor)When moving at 20 km/h (12 MPH), use the CONSULT-II
pulse frequency measuring function.
CAUTION:
Connect the diagnosis data link cable to the vehicle
diagnosis connector.
Item Connector Terminal Data (Approx.)
TCM connector F105 38 240 Hz
SCIA4949E
Page 131 of 3502

TURBINE REVOLUTION SENSOR
AT-123
D
E
F
G
H
I
J
K
L
MA
B
AT
3. CHECK POWER AND SENSOR GROUND
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Turn ignition switch ON. (Do not start engine.)
4. Check voltage between turbine revolution sensor (power train
revolution sensor) harness connector terminals.
5. Check voltage between turbine revolution sensor (power train
revolution sensor) harness connector terminal and ground.
6. If OK, check harness for short to ground and short power.
7. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG - 1 >> Battery voltage is not supplied between terminals 1 and 3, terminals 1 and ground: GO TO 6.
NG - 2 >> Battery voltage is not supplied between terminals 1 and 3 only: GO TO 7.
4. CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Check continuity between TCM connector terminal and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Item Connector Terminal Data (Approx.)
Turbine revolution sensor
(power train revolution sensor)
harness connectorF38 1 - 3 Battery voltage
SCIA2770E
Item Connector Terminal Data (Approx.)
Turbine revolution sensor
(power train revolution sensor)
harness connectorF38 1 - ground Battery voltage
SCIA2771E
Item Connector Terminal Continuity
TCM connector F105 38
Ye s Turbine revolution sensor
(power train revolution sen-
sor) harness connectorF38 2
SCIA2772E
Page 132 of 3502

AT-124
TURBINE REVOLUTION SENSOR
5. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
6. CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Check continuity between TCM connector terminals and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal. Refer to AT- 4 2 , "
Circuit Diagram" and AT- 1 5 8 ,
"Wiring Diagram — AT — MAIN" .
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> 10A fuse (No.83, located in the IPDM E/R) or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Check continuity between TCM connector terminal and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Item Connector Terminal Continuity
TCM connector F104 10
Ye s Turbine revolution sensor
(power train revolution sen-
sor) harness connectorF38 1
TCM connector F104 19
Ye s Turbine revolution sensor
(power train revolution sen-
sor) harness connectorF38 1
SCIA2773E
Item Connector Terminal Continuity
TCM connector F105 42
Ye s Turbine revolution sensor
(power train revolution sen-
sor) harness connectorF38 3
SCIA2774E
Page 133 of 3502
TURBINE REVOLUTION SENSOR
AT-125
D
E
F
G
H
I
J
K
L
MA
B
AT
8. CHECK DTC
Perform AT- 1 2 0 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
Page 134 of 3502

AT-126
LINE PRESSURE SOLENOID VALVE
LINE PRESSURE SOLENOID VALVEPFP:31940
DescriptionBCS0012I
Line pressure solenoid valve regulates oil pump discharge pressure to suit the driving condition in response to
a signal sent from TCM.
The line pressure duty cycle value is not consistent when the closed throttle position switch is ON. To
confirm the line pressure duty cycle at low-pressure, accelerator (throttle) should be open until the
closed throttle position switch is “OFF”.
CONSULT-II Reference ValveBCS0026L
On Board Diagnosis LogicBCS0012J
Diagnostic trouble code “LINE PRESSURE S/V” with CONSULT-II or 11th judgement flicker without CON-
SULT-II is detected when TCM detects an improper voltage drop when it tries to operate the solenoid valve.
Possible CauseBCS0012K
Harness or connector
(Solenoid circuit is open or shorted.)
Line pressure solenoid valve
DTC Confirmation ProcedureBCS0012L
CAUTION:
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm that the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Depress accelerator pedal completely and wait at least 1 sec-
ond.
4. If DTC is detected, go to AT- 1 2 9 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. With brake pedal depressed, shift the lever from “P” → “N” → “D” → “N” → “P” positions.
3. Perform self-diagnosis. Refer to AT- 7 6 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 1 2 9 , "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
LINE PRES DTYSmall throttle opening (Low line pressure) ⇔ Large throttle opening
(High line pressure)0% ⇔ 92%
BCIA0031E
Page 135 of 3502
LINE PRESSURE SOLENOID VALVE
AT-127
D
E
F
G
H
I
J
K
L
MA
B
AT

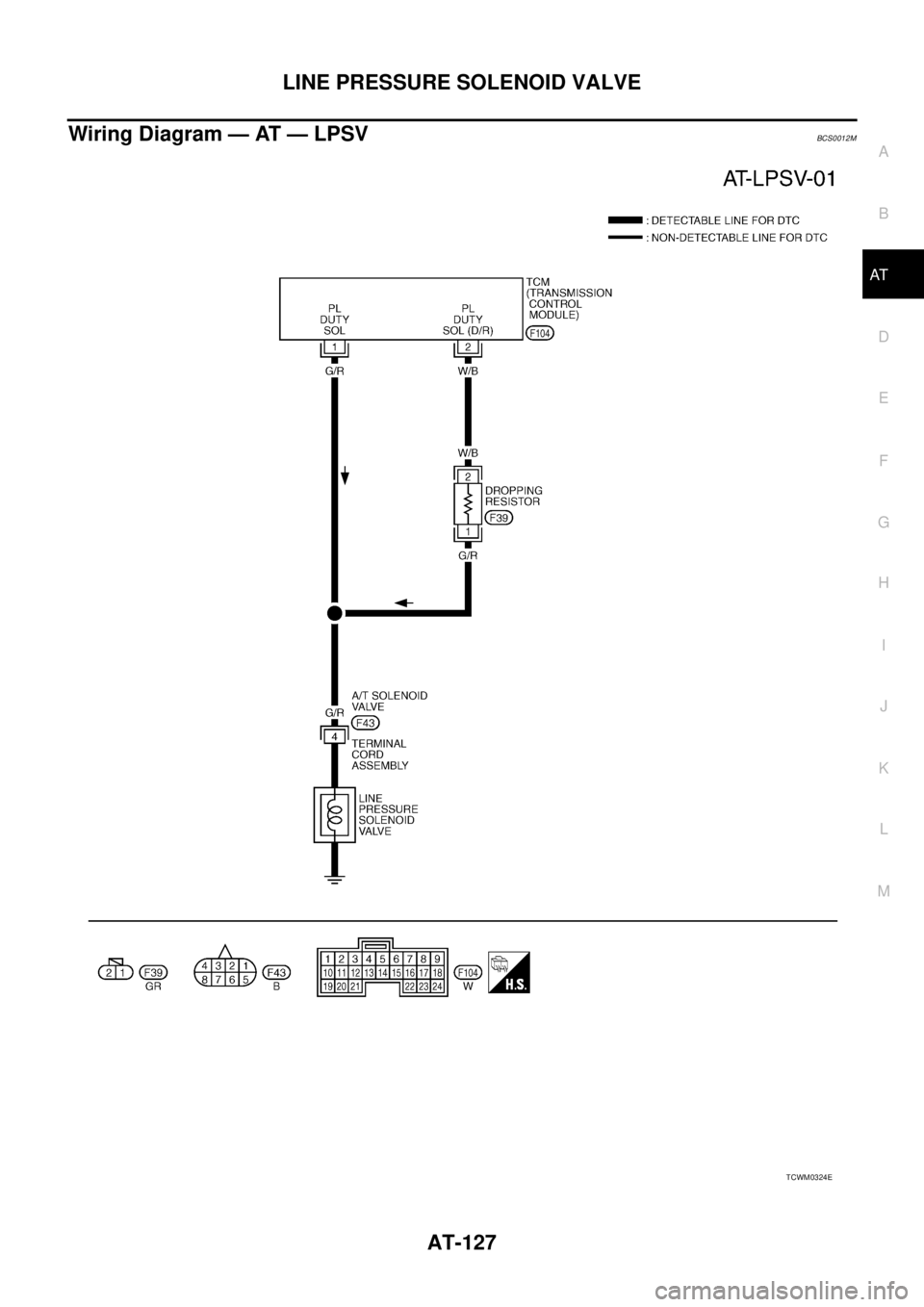

Wiring Diagram — AT — LPSVBCS0012M
TCWM0324E
Page 136 of 3502
AT-128
LINE PRESSURE SOLENOID VALVE
Data are reference value and are measured between each terminal and ground.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
1 G/RLine pressure solenoid
valveWhen releasing accelera-
tor pedal after warming up
engine.1.5 - 3.0 V
When depressing acceler-
ator pedal fully after warm-
ing up engine.0V
2W/BLine pressure solenoid
valve (with dropping
resistor)When releasing accelera-
tor pedal after warming up
engine.5 - 14 V
When depressing acceler-
ator pedal fully after warm-
ing up engine.0V
