Page 3473 of 3502

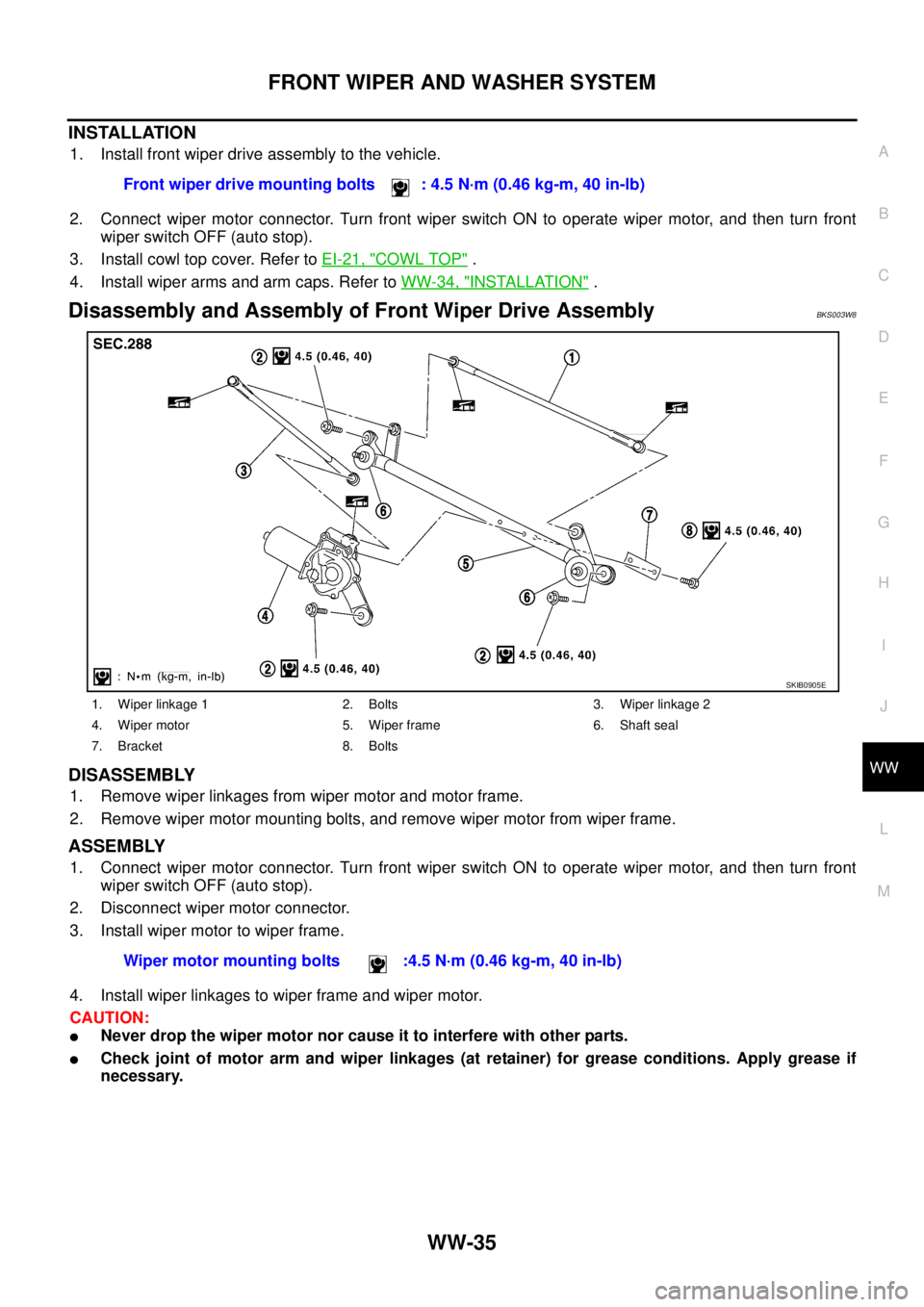

NISSAN TEANA 2003 Service Manual FRONT WIPER AND WASHER SYSTEM WW-35 C D E F G H I J L MA B WW INSTALLATION 1. Install front wiper drive assembly to the vehicle. 2. Connect wiper motor connector. Turn front wiper switch ON to opera

Page 3474 of 3502

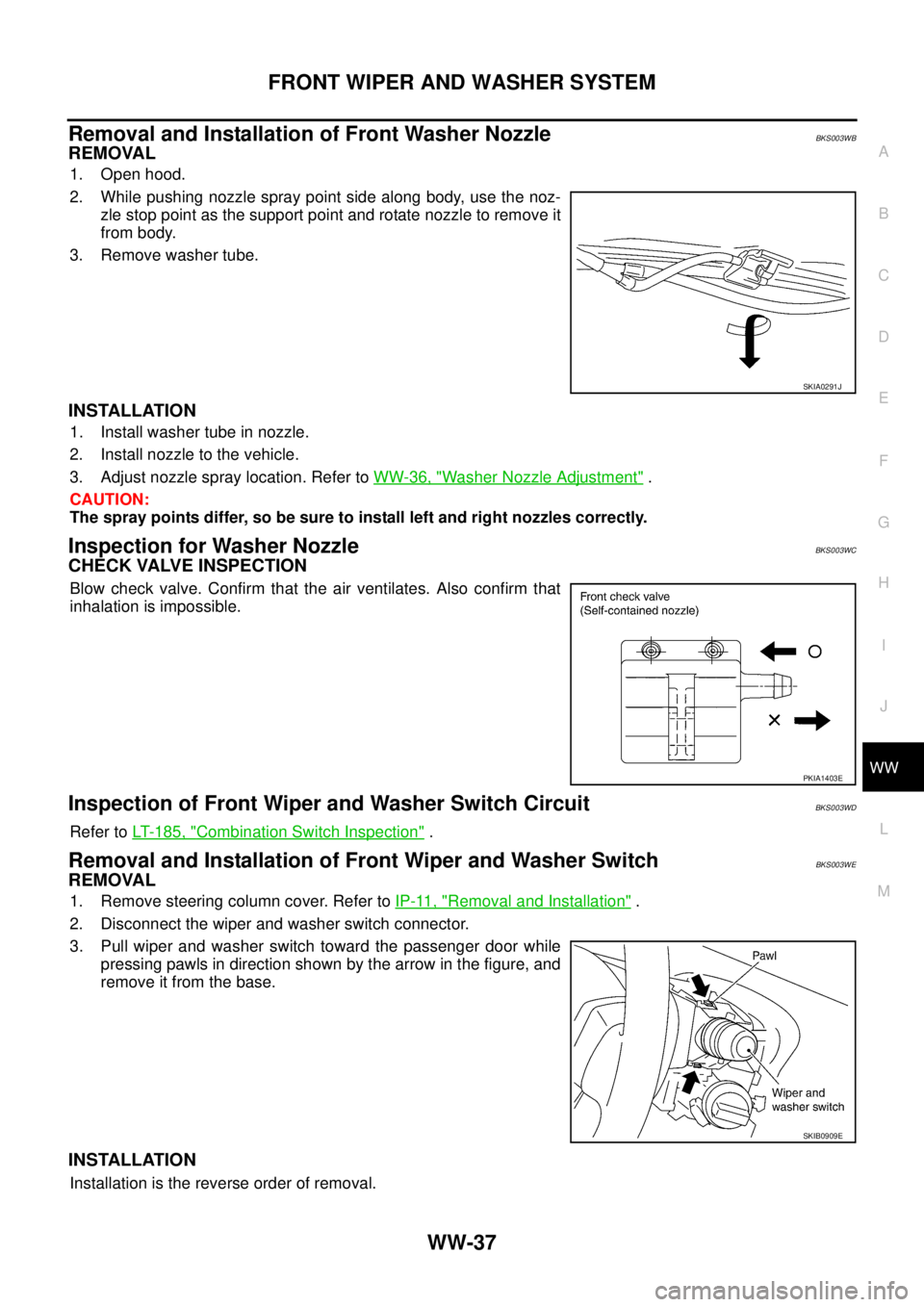

NISSAN TEANA 2003 Service Manual WW-36 FRONT WIPER AND WASHER SYSTEM Washer Nozzle AdjustmentBKS003W9 Adjust spray positions as shown in the figure. Unit: mm (in) Insert a needle or suitable tool into the nozzle hole and move it to

Page 3475 of 3502

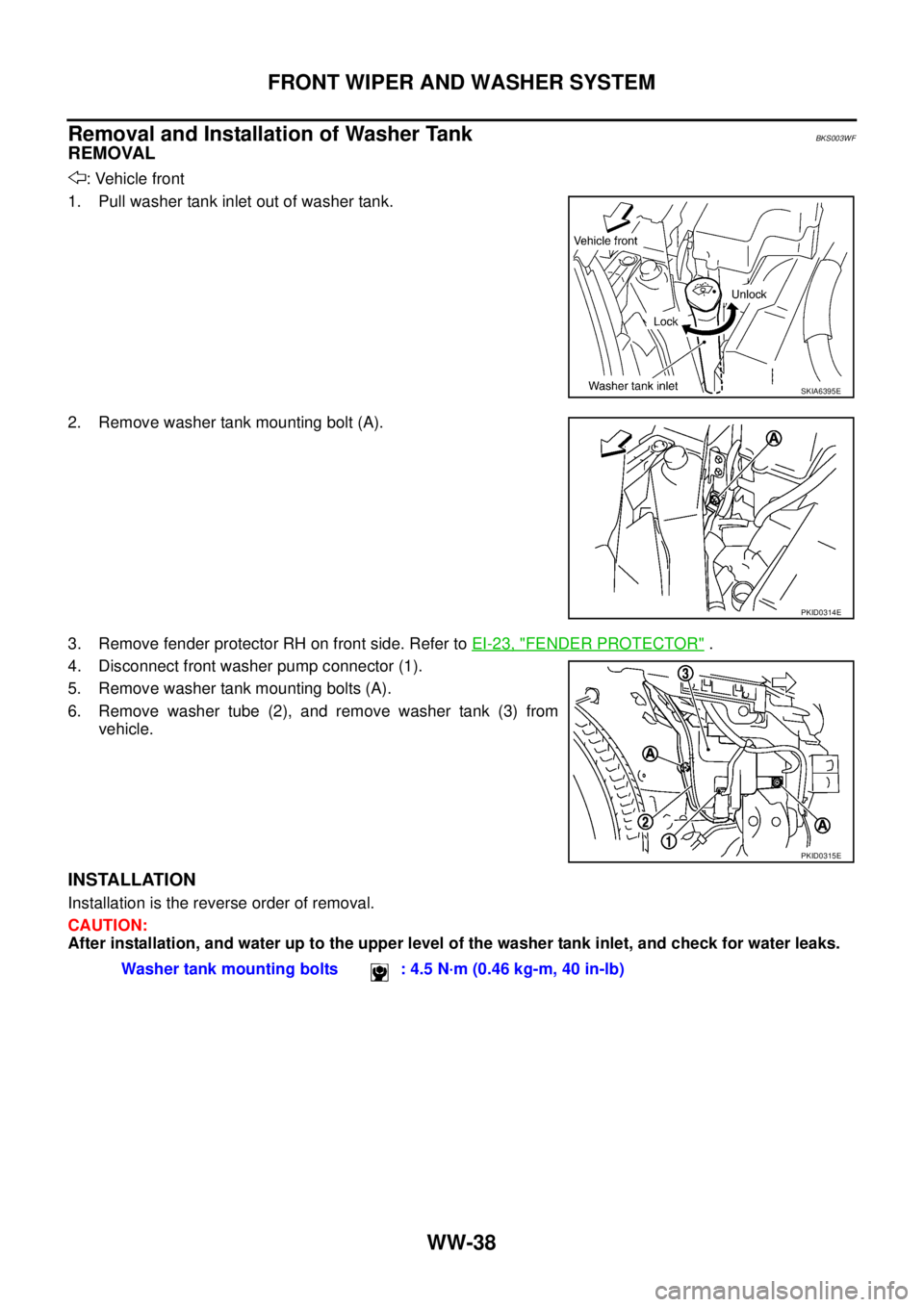

NISSAN TEANA 2003 Service Manual FRONT WIPER AND WASHER SYSTEM WW-37 C D E F G H I J L MA B WW Removal and Installation of Front Washer NozzleBKS003WB REMOVAL 1. Open hood. 2. While pushing nozzle spray point side along body, use t

Page 3476 of 3502

NISSAN TEANA 2003 Service Manual WW-38 FRONT WIPER AND WASHER SYSTEM Removal and Installation of Washer TankBKS003WF REMOVAL : Vehicle front 1. Pull washer tank inlet out of washer tank. 2. Remove washer tank mounting bolt (A). 3.

Page 3477 of 3502

NISSAN TEANA 2003 Service Manual FRONT WIPER AND WASHER SYSTEM WW-39 C D E F G H I J L MA B WW Removal and Installation of Front Washer PumpBKS003WG REMOVAL 1. Remove fender protector RH on front side. Refer to EI-23, "FENDER PROTE

Page 3478 of 3502

NISSAN TEANA 2003 Service Manual WW-40 HEADLAMP WASHER HEADLAMP WASHERPFP:28620 Components Parts and Harness Connector LocationBKS002CB System DescriptionBKS002CC BCM (Body Control Module) controls headlamp washer operation. IPDM

Page 3479 of 3502

NISSAN TEANA 2003 Service Manual HEADLAMP WASHER WW-41 C D E F G H I J L MA B WW When the headlamp washer switch is ON, ground is supplied to BCM terminal 10 through headlamp washer switch terminal 1 through headlamp washer swit

Page 3480 of 3502

NISSAN TEANA 2003 Service Manual WW-42 HEADLAMP WASHER SchematicBKS002EM TKWM4644E
