Page 1937 of 3502
![NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-655
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when me NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-655
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when me](/manual-img/5/57392/w960_57392-1936.png)
DTC P2138 APP SENSOR
EC-655
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS00554
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-457, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
47 WSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
82 BSensor ground
(APP sensor 1)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
83 GSensor ground
(APP sensor 2)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
90 R/WSensor power supply
(APP sensor 1)[Ignition switch: ON]Approximately 5V
91 PSensor power supply
(APP sensor 2)[Ignition switch: ON]Approximately 5V
98 LGAccelerator pedal position
sensor 2[Ignition switch: ON]
Engine: Stopped
Accelerator pedal: Released0.28 - 0.48V
[Ignition switch: ON]
Engine: Stopped
Accelerator pedal: Fully depressedMore than 2.0V
106 WAccelerator pedal position
sensor 1[Ignition switch: ON]
Engine: Stopped
Accelerator pedal: Released0.65 - 0.87V
[Ignition switch: ON]
Engine: Stopped
Accelerator pedal: Fully depressedMore than 4.3V
PBIB2160E
Page 1938 of 3502
EC-656
[VQ]
DTC P2138 APP SENSOR
2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 2 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E206, M13
Harness for open or short between ECM and APP sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
Check voltage between APP sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 5.
PBIB2467E
Voltage: Approximately 5V
PBIB2478E
Voltage: Approximately 5V
PBIB2477E
Page 1939 of 3502
![NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-657
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
5. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-657
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
5. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity](/manual-img/5/57392/w960_57392-1938.png)
DTC P2138 APP SENSOR
EC-657
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
5. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 1 and ECM terminal 91.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E206, M13
Harness for open between ECM and APP sensor
>> Repair open circuit in harness or connectors.
7. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 8.
NG >> Repair short to ground or short to power in harness or connectors.
8. CHECK THROTTLE POSITION SENSOR
Refer to EC-651, "
Component Inspection" .
OK or NG
OK >> GO TO 16.
NG >> GO TO 9.
9. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-389, "
Throttle Valve Closed Position Learning" .
3. Perform EC-389, "
Idle Air Volume Learning" .
>>INSPECTION END Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
91 APP sensor terminal 1EC-654
47 Electric throttle control actuator terminal 1EC-647
Page 1940 of 3502
![NISSAN TEANA 2003 Service Manual EC-658
[VQ]
DTC P2138 APP SENSOR
10. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sens NISSAN TEANA 2003 Service Manual EC-658
[VQ]
DTC P2138 APP SENSOR
10. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sens](/manual-img/5/57392/w960_57392-1939.png)
EC-658
[VQ]
DTC P2138 APP SENSOR
10. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 4 and ECM terminal 82, APP sensor terminal 5
and ECM terminal 83.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E206, M13
Harness for open or short between APP sensor and ECM
>> Repair open circuit or short to power in harness or connectors.
12. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between APP sensor terminal 3 and ECM terminal 106, APP sensor terminal 6
and ECM terminal 98.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E206, M13
Harness for open or short between APP sensor and ECM
>> Repair open circuit or short to power in harness or connectors.
14. CHECK APP SENSOR
Refer to EC-659, "
Component Inspection" .
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.Continuity should exist.
Continuity should exist.
Page 1941 of 3502
![NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-659
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
15. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-389, "
Accelerator Pedal Released Position Lear NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-659
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
15. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-389, "
Accelerator Pedal Released Position Lear](/manual-img/5/57392/w960_57392-1940.png)
DTC P2138 APP SENSOR
EC-659
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
15. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-389, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-389, "
Throttle Valve Closed Position Learning" .
4. Perform EC-389, "
Idle Air Volume Learning" .
>>INSPECTION END
16. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionBBS00555
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly and go to next step.
5. Perform EC-389, "
Accelerator Pedal Released Position Learning" .
6. Perform EC-389, "
Throttle Valve Closed Position Learning" .
7. Perform EC-389, "
Idle Air Volume Learning" .
Removal and InstallationBBS00556
ACCELERATOR PEDAL
Refer to ACC-3, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1)Fully released 0.65 - 0.87V
Fully depressed More than 4.3V
98
(Accelerator pedal position
sensor 2)Fully released 0.28 - 0.48V
Fully depressed More than 2.0V
MBIB0023E
Page 1942 of 3502
EC-660
[VQ]
ASCD BRAKE SWITCH
ASCD BRAKE SWITCHPFP:25320
Component DescriptionBBS00576
When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to EC-363, "
AUTOMATIC SPEED CONTROL DEVICE
(ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeBBS00577
Specification data are reference values.
PBIB2469E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ASCD brake switch)
Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
Page 1943 of 3502
ASCD BRAKE SWITCH
EC-661
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

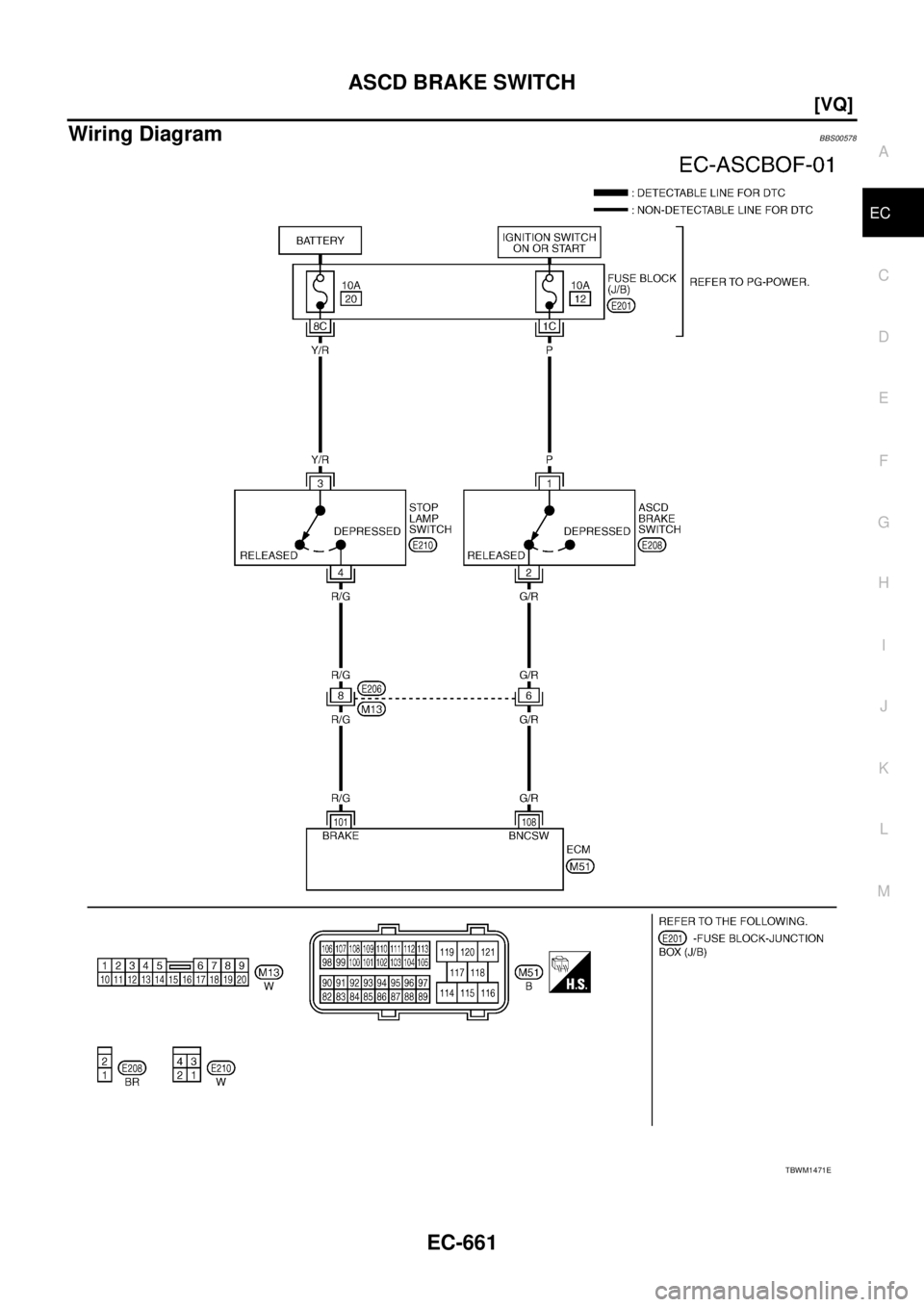

Wiring DiagramBBS00578
TBWM1471E
Page 1944 of 3502
![NISSAN TEANA 2003 Service Manual EC-662
[VQ]
ASCD BRAKE SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. NISSAN TEANA 2003 Service Manual EC-662
[VQ]
ASCD BRAKE SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage.](/manual-img/5/57392/w960_57392-1943.png)
EC-662
[VQ]
ASCD BRAKE SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS00579
1. CHECK OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT-II.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the
following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101 R/G Stop lamp switch[Ignition switch: OFF]
Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]
Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
108 G/R ASCD brake switch[Ignition switch: ON]
Brake pedal: Slightly depressedApproximately 0V
[Ignition switch: ON]
Brake pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
CONDITION INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
SEC011D
CONDITION VOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage
MBIB0061E
