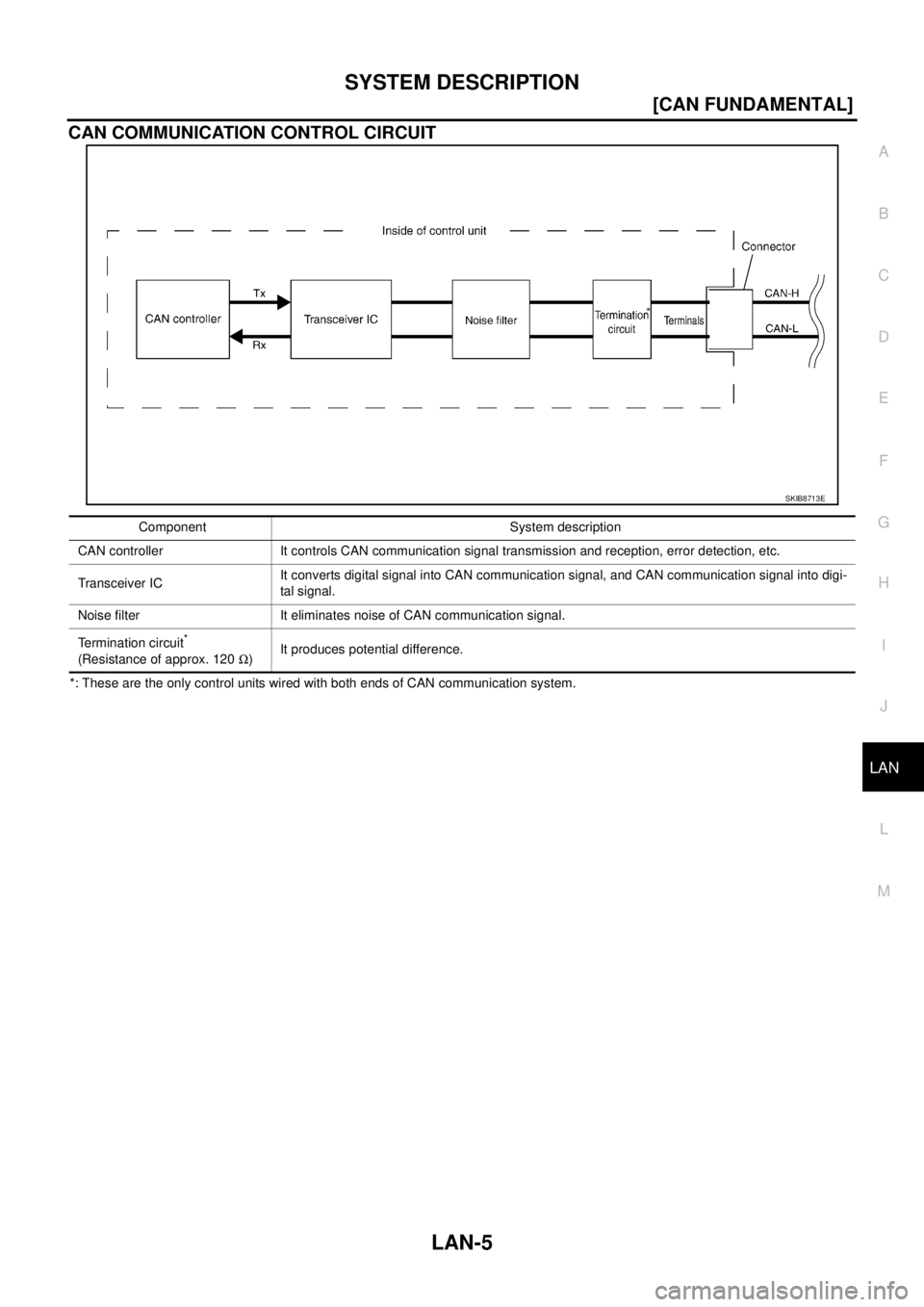

NISSAN TEANA 2003 Service Manual SYSTEM DESCRIPTION LAN-5 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN CAN COMMUNICATION CONTROL CIRCUIT *: These are the only control units wired with both ends of CAN communication system. SKIB8713

Page 2610 of 3502

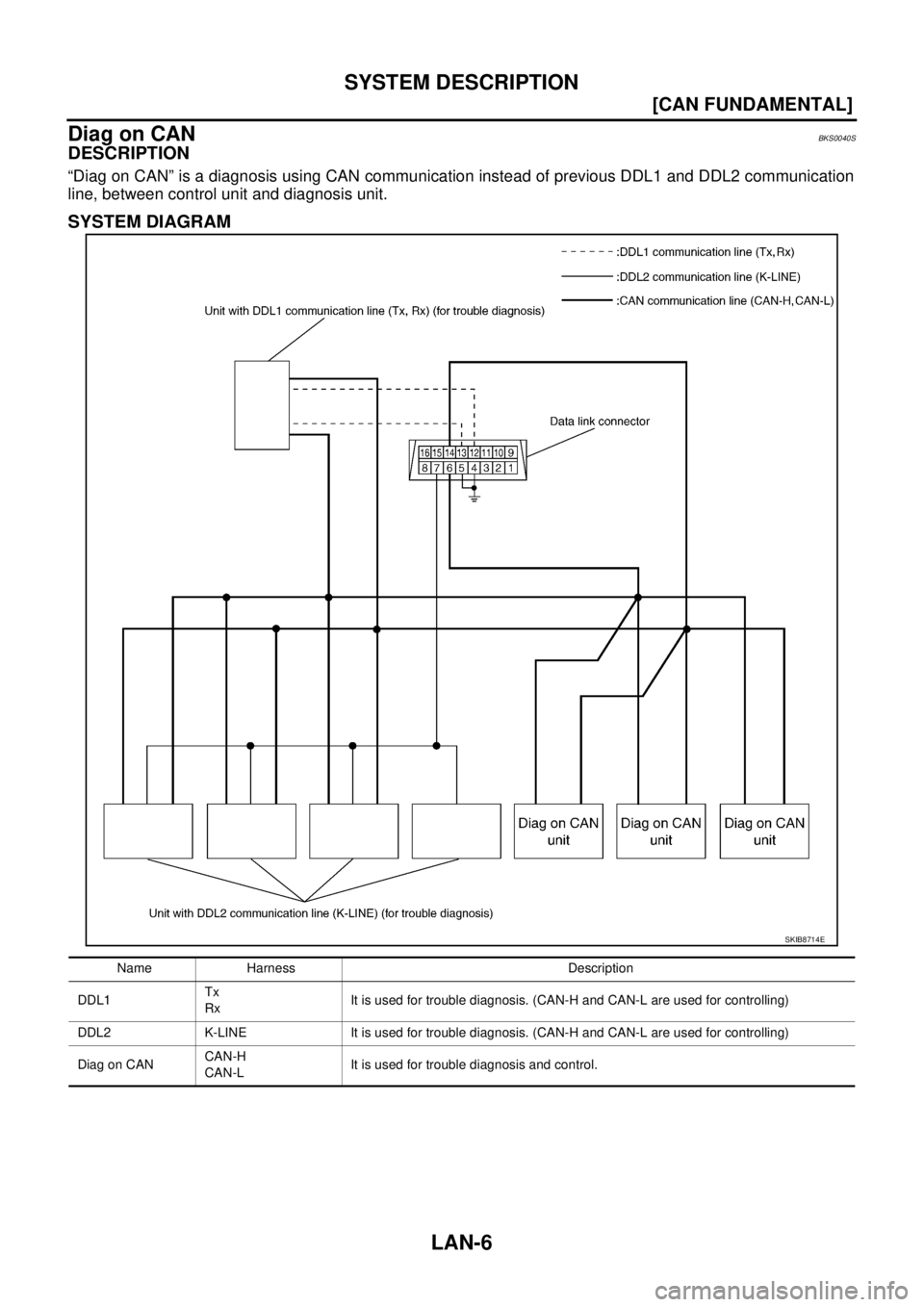

NISSAN TEANA 2003 Service Manual LAN-6 [CAN FUNDAMENTAL] SYSTEM DESCRIPTION Diag on CANBKS0040S DESCRIPTION “Diag on CAN” is a diagnosis using CAN communication instead of previous DDL1 and DDL2 communication line, between cont

Page 2611 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS LAN-7 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN TROUBLE DIAGNOSISPFP:00004 Condition of Error DetectionBKS0040T “U1000” or “U1001” is indicated on SELF-DIAG RESULTS on C

Page 2612 of 3502

NISSAN TEANA 2003 Service Manual LAN-8 [CAN FUNDAMENTAL] TROUBLE DIAGNOSIS Symptom When Error Occurs in CAN Communication SystemBKS0040U In CAN communication system, multiple units mutually transmit and receive signals. Each unit c

Page 2613 of 3502

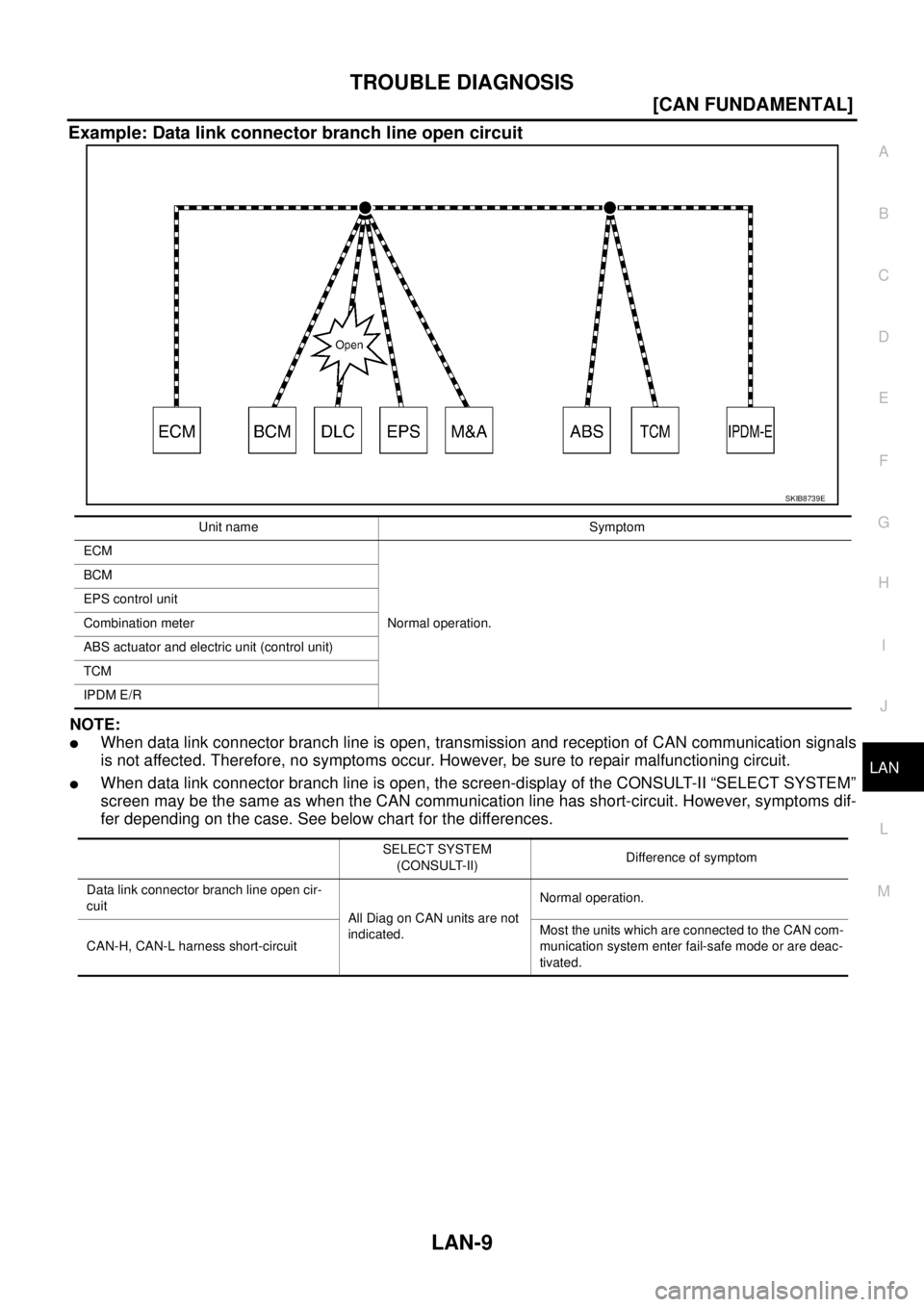

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS LAN-9 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Example: Data link connector branch line open circuit NOTE: When data link connector branch line is open, transmission and recep

Page 2614 of 3502

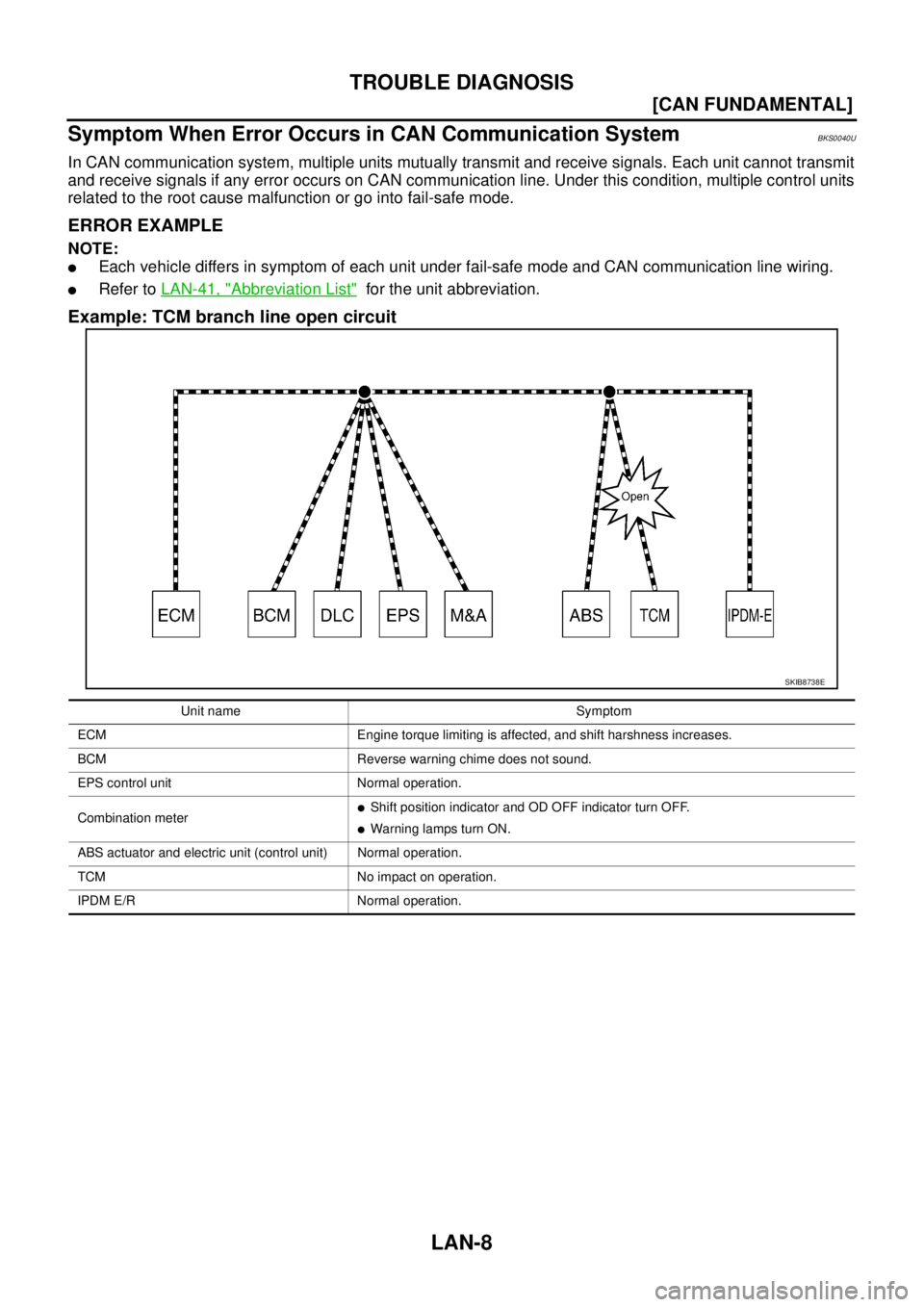

NISSAN TEANA 2003 Service Manual LAN-10 [CAN FUNDAMENTAL] TROUBLE DIAGNOSIS Example: Main Line Between Data Link Connector and ABS Actuator and Electric Unit (Con- trol Unit) Open Circuit SKIB8740E Unit name Symptom ECM Engine torq

Page 2615 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS LAN-11 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Example: CAN-H, CAN-L Harness Short Circuit SKIB8741E Unit name Symptom ECM Engine torque limiting is affected, and shift harsh

Page 2616 of 3502

NISSAN TEANA 2003 Service Manual LAN-12 [CAN FUNDAMENTAL] TROUBLE DIAGNOSIS Self-DiagnosisBKS0040V DTCSelf-diagnosis item (CONSULT-II indication)DTC detection condition Inspection/Action U1000 CAN COMM CIRCUITWhen ECM is not trans
