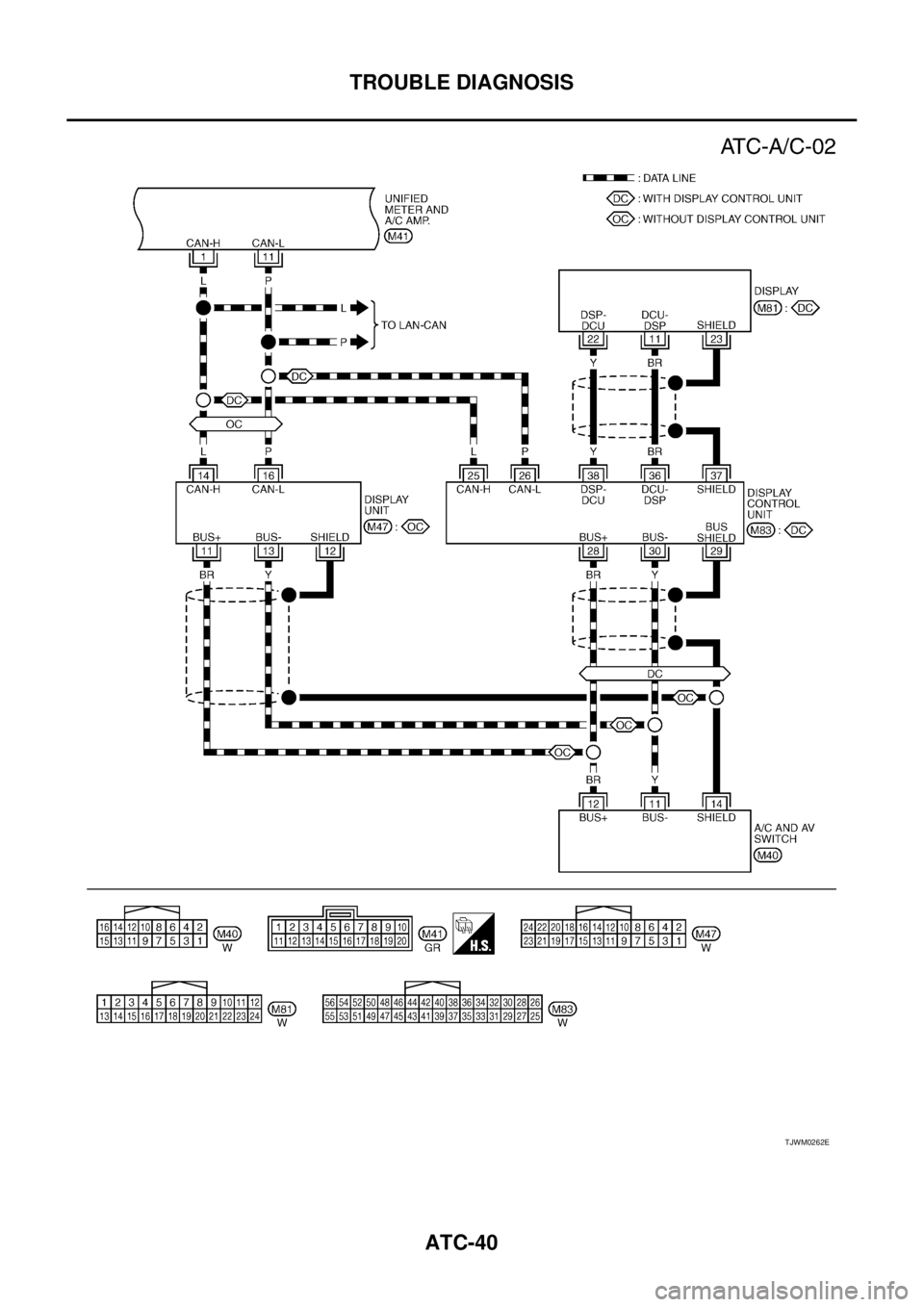

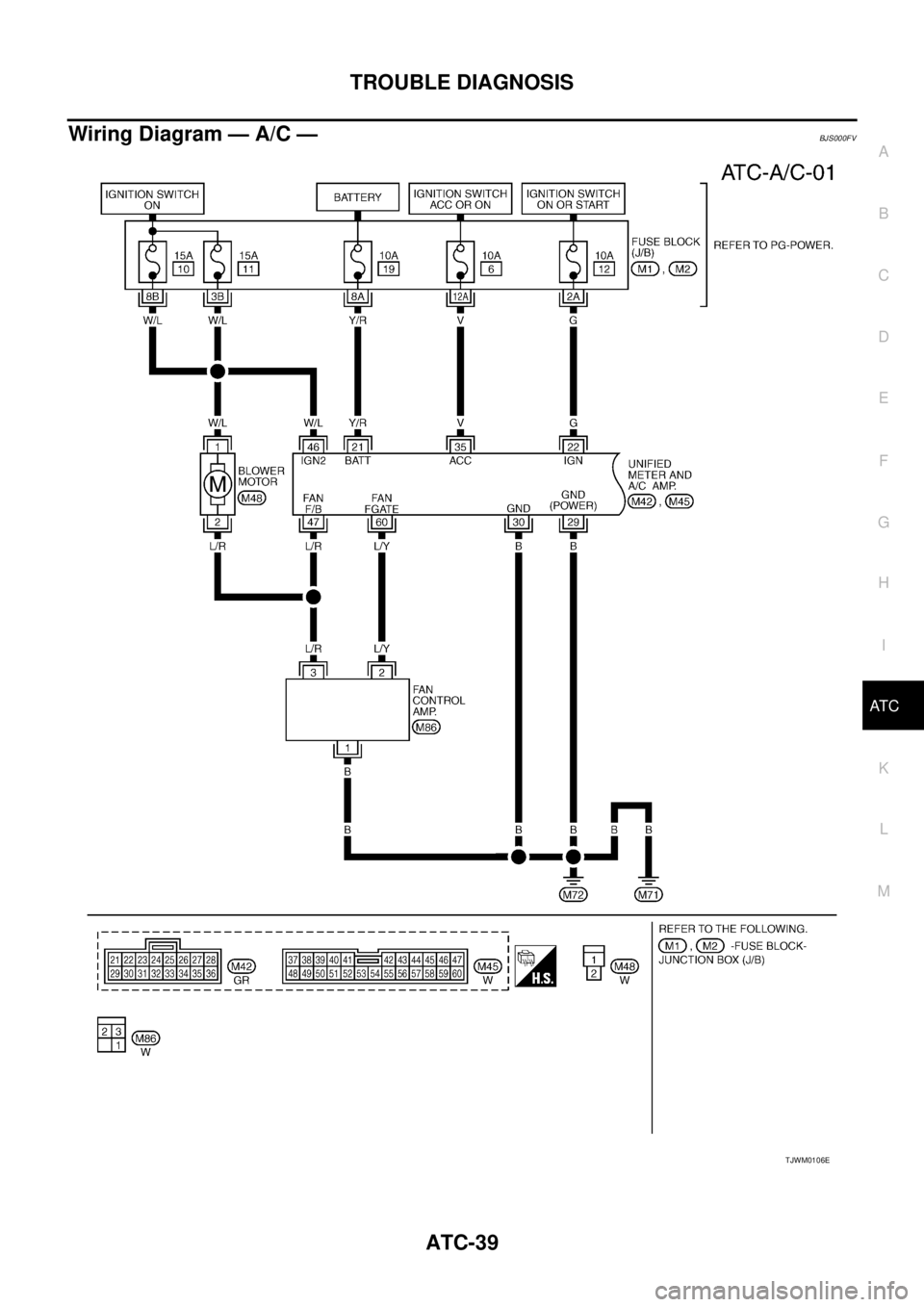

Wiring Diagram — A/C —BJS000FV
TJWM0106E
Page 418 of 3502

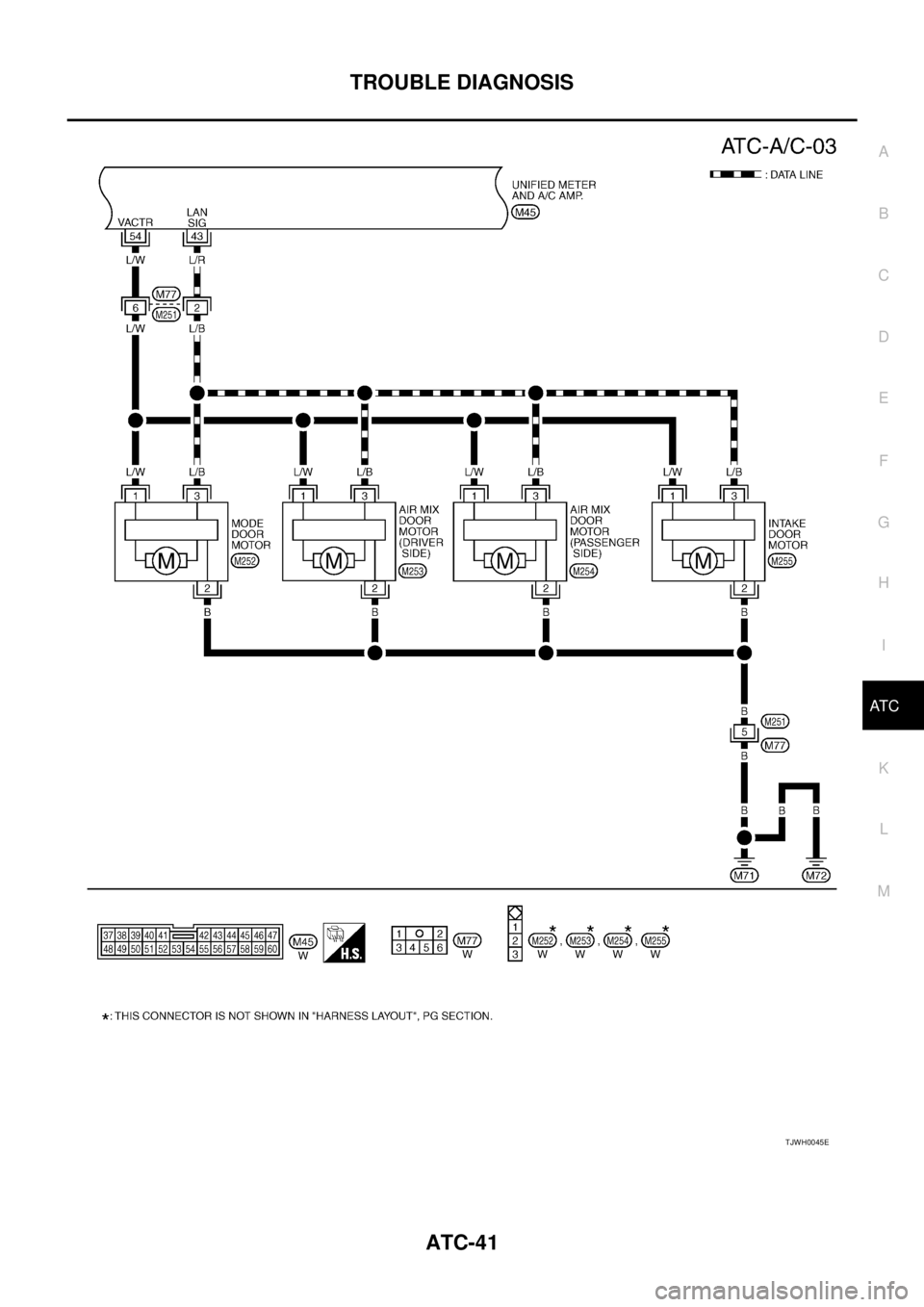

ATC-40
TROUBLE DIAGNOSIS
TJWM0262E
Page 419 of 3502
TROUBLE DIAGNOSIS
ATC-41
C
D
E
F
G
H
I
K
L
MA
B
AT C

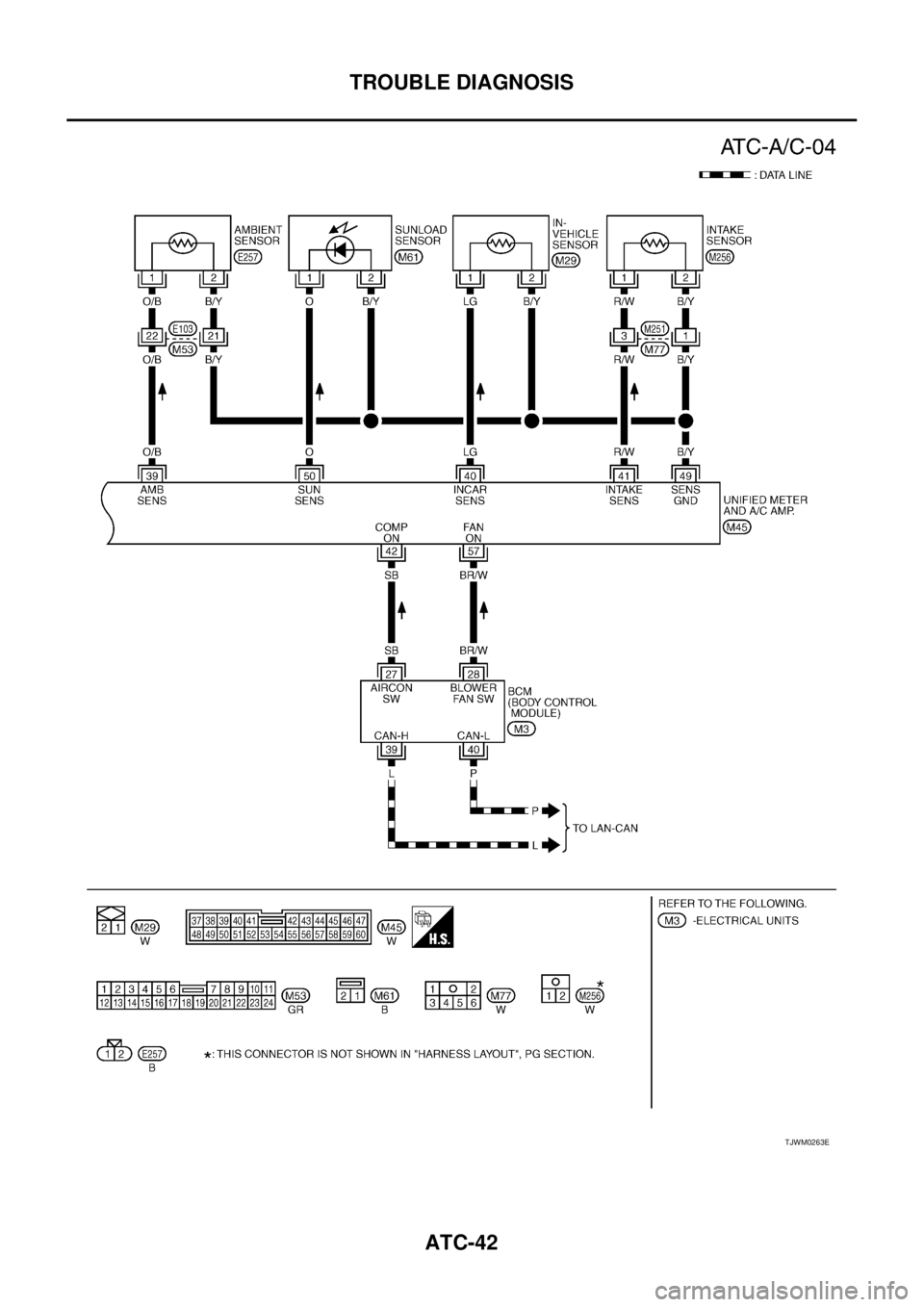

TJWH0045E
Page 420 of 3502
ATC-42
TROUBLE DIAGNOSIS
TJWM0263E
Page 421 of 3502
TROUBLE DIAGNOSIS
ATC-43
C
D
E
F
G
H
I
K
L
MA
B
AT C

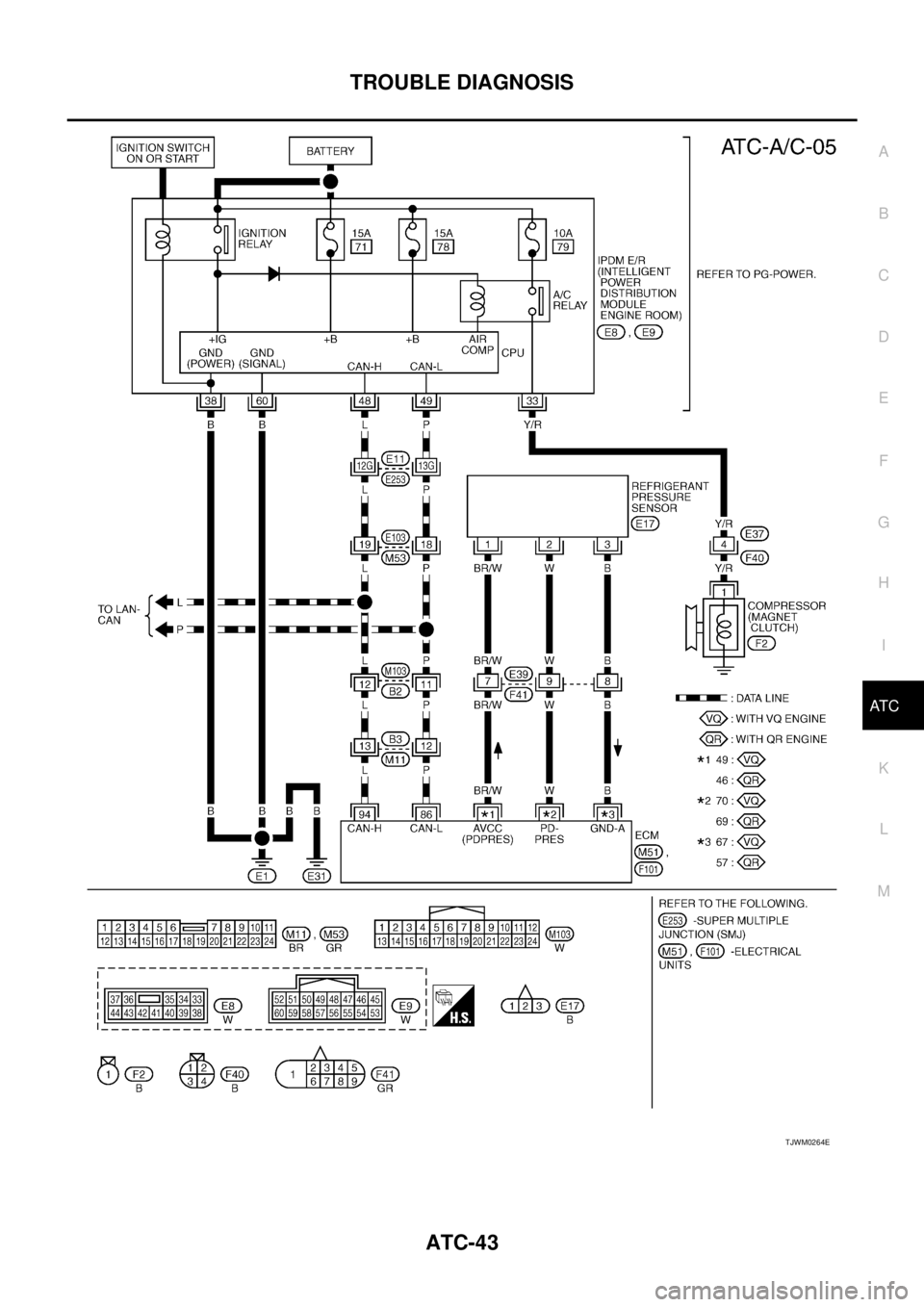

TJWM0264E
Page 422 of 3502
ATC-44
TROUBLE DIAGNOSIS
Auto Amp. Terminals and Reference ValueBJS000FW
Measure voltage between each terminal and ground by referring ter-
minals and reference value for unified meter and A/C amp.
PIN CONNECTOR TERMINAL LAYOUT
TERMINALS AND REFERENCE VALUE FOR UNIFIED METER AND A/C AMP.
RJIA2732E
RJIA2734E
Te r m i n a l
No.Wire
colorItemIgnition
switchConditionVoltag e
(V)
1 L CAN-H — — —
11 P C A N - L — — —
21 Y/R Power supply from BATT OFF — Battery voltage
22 G Power supply from IGN ON — Battery voltage
29 B Ground (Power) ON — Approx. 0
30 B Ground ON — Approx. 0
35 V Power supply from ACC ACC — Battery voltage
39 O/B Ambient sensor — — —
40 LG In-vehicle sensor — — —
41 R/W Intake sensor — — —
42 SB Compressor ON signal ONA/C switch: ON (Blower motor
operates.)Approx. 0
OFF switch: ON (A/C System:
OFF)
43 L/R A/C LAN signal ON —
SJIA1423J
SJIA1453J
Page 423 of 3502
TROUBLE DIAGNOSIS
ATC-45
C
D
E
F
G
H
I
K
L
MA
B
AT C
46 W/L Power supply from IGN 2 ON — Battery voltage
47 L/RBlower fan motor feedback
signalON Fan speed: 1st speed Approx. 8
49 B/Y Sensor ground ON — Approx. 0
50 O Sunload sensor — — —
54 L/WPower supply for each door
motorON — Battery voltage
57 BR/W FAN ON signal ONAUTO switch: ON (Blower
motor operates.)Approx. 0
AUTO switch: OFF Approx. 5
60 L/YBlower fan motor control sig-
nalONFan speed: 1st - 4th speed Approx. 2.5 - 3.5
Fan speed: 5th speed Approx. 9.5 - 10.5 Terminal
No.Wire
colorItemIgnition
switchConditionVoltage
(V)
Page 424 of 3502
ATC-46
TROUBLE DIAGNOSIS
Self-diagnosis FunctionBJS000FX
DESCRIPTION
The self-diagnosis system diagnoses sensors, door motors, blower motor, etc. by system line. Refer to appli-
cable sections (items) for details. Shifting from usual control to the self-diagnosis system is accomplished by
starting the engine (turning the ignition switch ON) and pressing A/C switch for at least 5 seconds. The A/C
switch must be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This system
will be canceled by either pressing AUTO switch or turning the ignition switch OFF. Shifting to the next step is
accomplished by means of pressing temperature control switch (driver side), as required.
Additionally sifting from STEP-5 to AUXILIARY MECHANISM is accomplished by means of pressing (fan)
control switch (UP).
SJIA1670E
