NISSAN TEANA 2003 Service Manual INTERIOR LAMP
LT-217
C
D
E
F
G
H
I
J
L
MA
B
LT

INTERIOR LAMPPFP:28491

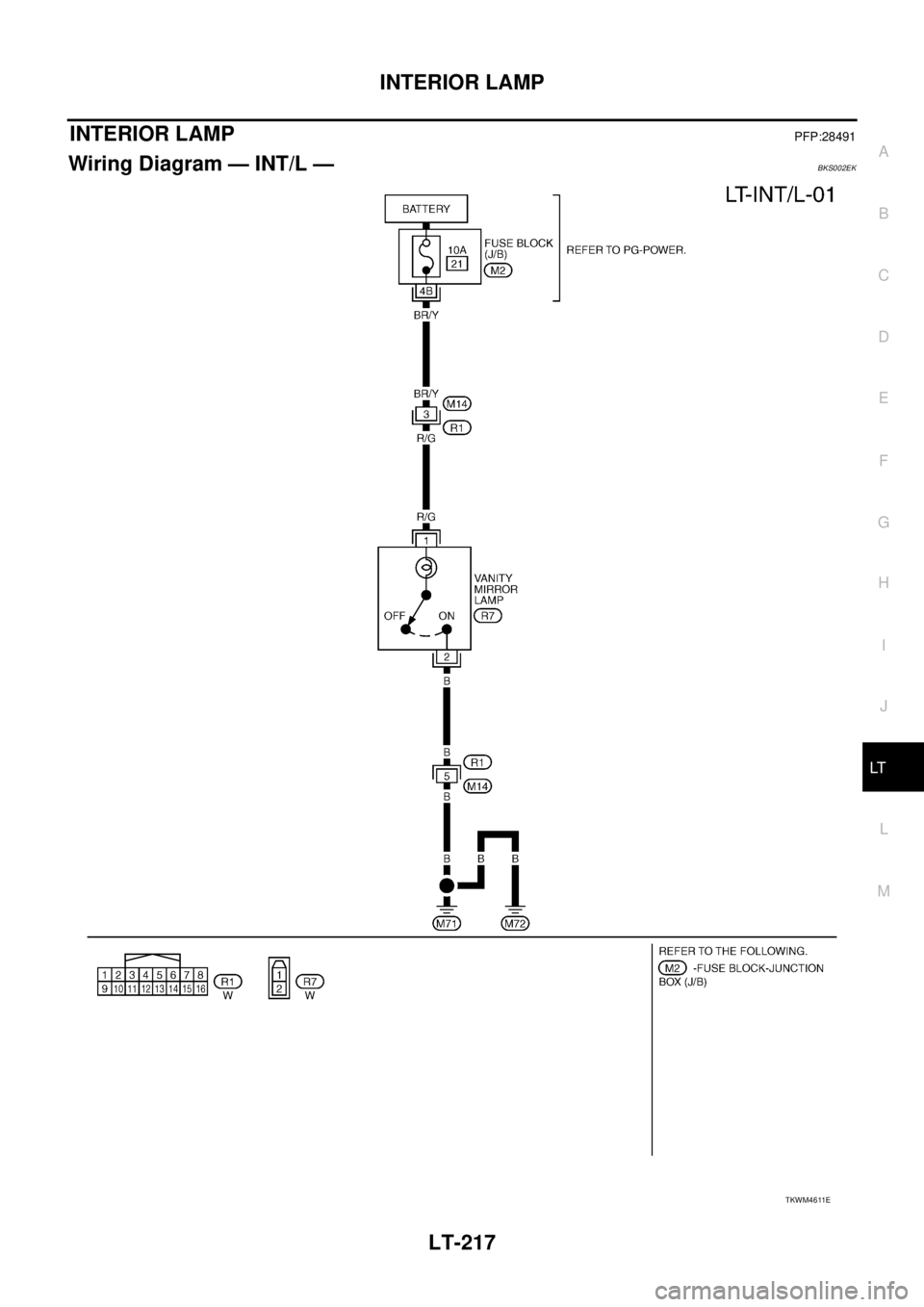

Wiring Diagram — INT/L —BKS002EK
TKWM4611E

Page 2906 of 3502

NISSAN TEANA 2003 Service Manual LT-218
INTERIOR LAMP

Bulb ReplacementBKS002EL
VANITY MIRROR LAMP
1. Insert a thin screwdriver in the lens and remove lens.
2. Remove bulb together with substrate.
Vanity mirror lamp : 12V - 1.8W
SKI

Page 2907 of 3502

NISSAN TEANA 2003 Service Manual INTERIOR ROOM LAMP
LT-219
C
D
E
F
G
H
I
J
L
MA
B
LT

INTERIOR ROOM LAMPPFP:26410

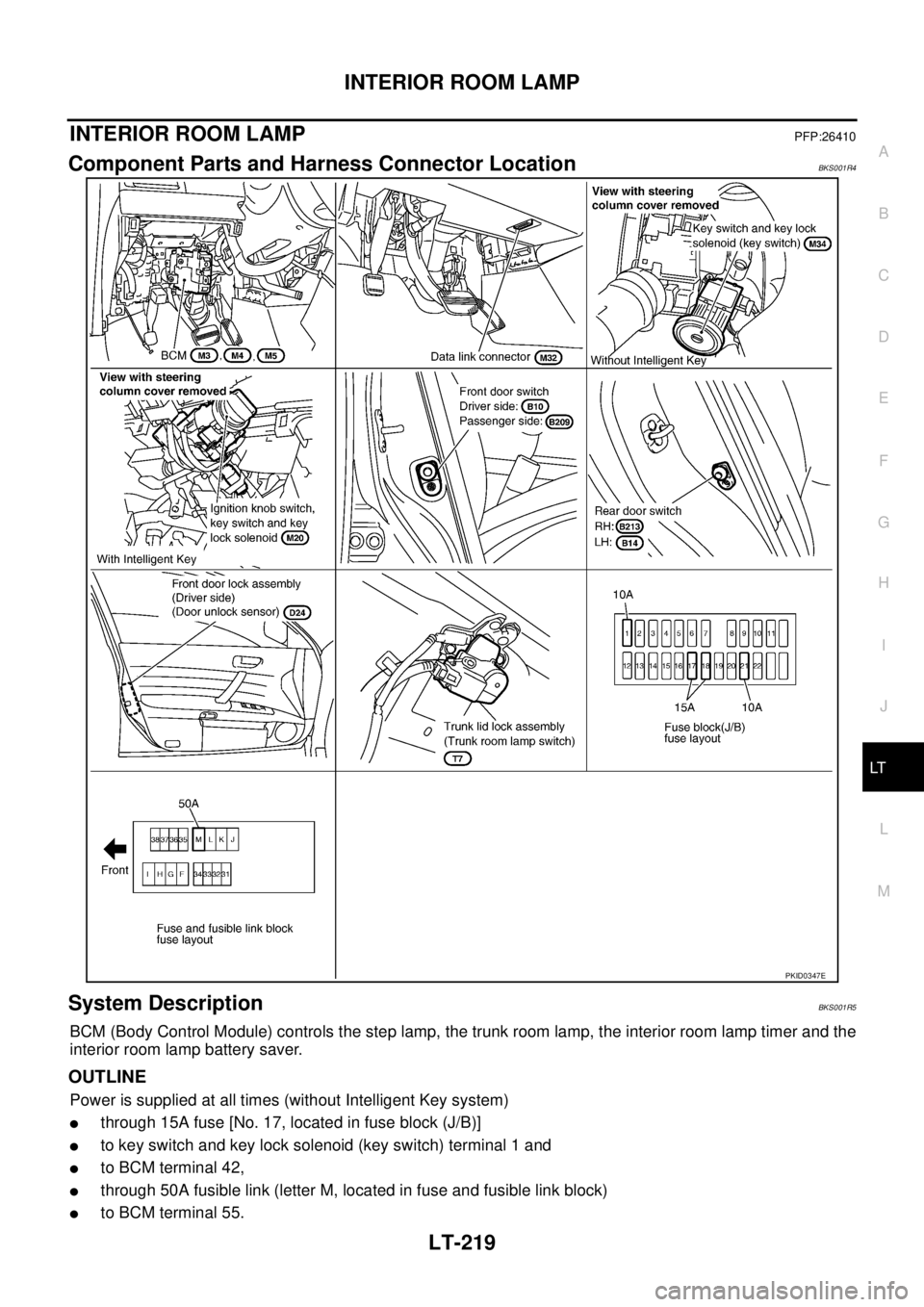

Component Parts and Harness Connector LocationBKS001R4
System DescriptionBKS001R5
BCM (Body Control Module) controls t

Page 2908 of 3502

NISSAN TEANA 2003 Service Manual LT-220
INTERIOR ROOM LAMP

Power is supplied at all times (with Intelligent Key system)
through 15A fuse [No. 18, located in fuse block (J/B)]
to ignition knob switch, key switch and key lock solen

LT-220
INTERIOR ROOM LAMP

Power is supplied at all times (with Intelligent Key system)
through 15A fuse [No. 18, located in fuse block (J/B)]
to ignition knob switch, key switch and key lock solenoid terminals 3 and 7,
through 15A fuse [No. 17, located in fuse block (J/B)]
to BCM terminal 42,
through 50A fusible link (letter M, located in fuse and fusible link block)
to BCM terminal 55.
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 1, located in fuse block (J/B)]
to BCM terminal 38.
Ground is supplied
to BCM terminal 52
through grounds M71 and M72.
SWITCH OPERATION
When the key switch and key lock solenoid (key switch) is ON (key is inserted), power is supplied (without
Intelligent Key system)
through the key switch and key lock solenoid terminal 4
to BCM terminal 37.
With power is supplied, BCM detects that the key is inserted.
When the ignition knob switch, key switch and key lock solenoid (key switch) is ON (key is inserted), power is
supplied (with Intelligent Key system)
through ignition knob switch, key switch and key lock solenoid terminal 8
to BCM terminal 37.
With power is supplied, BCM detects that the key is inserted.
When the ignition knob switch, key switch and key lock solenoid (ignition knob switch) is ON (ignition knob
switch is pushed), power is supplied (with Intelligent Key system)
through ignition knob switch key switch and key lock solenoid terminal 2
to Intelligent Key unit terminal 27.
With power is supplied, Intelligent Key unit detects that the ignition knob switch is pushed. Intelligent Key unit
sends ignition knob switch signal (ON) to BCM through CAN communication.
When the front door switch (driver side) is ON (door is opened), ground is supplied
to BCM terminal 62
through front door switch (driver side) terminal 2
through case ground of front door switch (driver side).
When the front door switch (passenger side) is ON (door is opened), ground is supplied
to BCM terminal 12
through front door switch (passenger side) terminal 2
through case ground of front door switch (passenger side).
When the rear door switch RH is ON (door is opened), ground is supplied
to BCM terminal 13
through rear door switch RH terminal 2
through case ground of rear door switch RH.
When the rear door RH is opened, ground is supplied
to BCM terminal 63
through rear door switch LH terminal 2
through case ground of rear door switch LH.
With ground is supplied, BCM detects that each door is opened.
When the front door lock assembly (driver side) (door unlock sensor) is ON (driver side door is unlocked),
ground is supplied
to BCM terminal 7

Page 2909 of 3502

NISSAN TEANA 2003 Service Manual INTERIOR ROOM LAMP
LT-221
C
D
E
F
G
H
I
J
L
MA
B
LT

through front door lock assembly (driver side) (door unlock sensor) terminal 4
through front door lock assembly (driver side) (door unlock senso

INTERIOR ROOM LAMP
LT-221
C
D
E
F
G
H
I
J
L
MA
B
LT

through front door lock assembly (driver side) (door unlock sensor) terminal 4
through front door lock assembly (driver side) (door unlock sensor) terminal 5
through grounds M71 and M72.
With ground is supplied, BCM detects that the driver side door is unlocked.
When the front door lock assembly (driver side) (door unlock sensor) is OFF (door is locked), ground is not
supplied. And BCM detects that the driver side door is locked.
When the trunk lid lock assembly (trunk room lamp switch) is ON (trunk lid is opened), ground is supplied
to BCM terminal 57
through trunk lid lock assembly (trunk room lamp switch) terminal 3
through trunk lid lock assembly (trunk room lamp switch) terminal 1
through grounds B214 and B217.
With ground is supplied, BCM detects that the trunk lid is opened.
STEP LAMP OPERATION
When front door switch (driver side) or front door switch (passenger switch) is turned ON, front step lamp
(driver side) and front step lamp (passenger side) turns ON. Power is supplied
through 10A fuse [No. 21, located in fuse block (J/B)]
to front step lamp (driver side) terminal 1 and
to front step lamp (passenger side) terminal 1.
Ground is supplied
to front step lamp (driver side) terminal 2 and
to front step lamp (passenger side) terminal 2
through BCM terminal 47.
With power and ground supplied, front step lamp (driver side) and front step lamp (passenger side) illuminate.
And, front step lamp (driver side) and front step lamp (passenger side) turns OFF when front door switch
(driver side) and front door switch (passenger switch) are turned OFF.
TRUNK ROOM LAMP OPERATION
When trunk lid lock assembly (trunk room lamp switch) is turned ON (trunk lid is opened), trunk room lamp turn
ON. Power is supplied
through 10A fuse [No. 21, located in fuse block (J/B)]
to trunk room lamp terminal 1.
Ground is supplied
to trunk room lamp terminal 2
through BCM terminal 64.
With power and ground supplied, trunk room lamp illuminate.
And, trunk room lamp turns OFF when trunk lid lock assembly (trunk room lamp switch) is turned OFF.
INTERIOR ROOM LAMP TIMER OPERATION
The interior room lamp timer controls to turn ON/OFF of the map lamp, personal lamps and ignition keyhole
illumination when map lamp switch and personal lamp switch are in DOOR position.
BCM controls the interior room lamp timer according to the following signals.
Key switch signal
Door lock status signal (from front door lock assembly)
Front door switch (driver side) signal
Front door switch (passenger side) signal
Rear door switch RH signal
Rear door switch LH signal
Keyless lock/unlock signal (from remote keyless receiver)
Intelligent Key lock/unlock signal (from Intelligent Key unit through CAN communication)
And when those lamps are turned ON/OFF, the interior room lamp timer executes brightening/dimming control
for maximum 5 seconds. Brightening/dimming control time can be changed with CONSULT-II. Refer to LT- 2 3 3 ,
"WORK SUPPORT (INT LAMP)" .

Page 2910 of 3502

NISSAN TEANA 2003 Service Manual LT-222
INTERIOR ROOM LAMP

When the map lamp, personal lamp and ignition keyhole illumination are turned ON by the interior room lamp
timer, power is supplied
through 10A fuse [No. 21, located in f

LT-222
INTERIOR ROOM LAMP

When the map lamp, personal lamp and ignition keyhole illumination are turned ON by the interior room lamp
timer, power is supplied
through 10A fuse [No. 21, located in fuse block (J/B)]
to map lamp terminal 3
to personal lamp RH and LH terminals 2, and
to ignition keyhole illumination terminal 1.
Ground is supplied
to map lamp terminal 2
to personal lamp RH and LH terminals 1, and
to ignition keyhole illumination terminal 2
through BCM terminal 48
With power and ground supplied, the map lamp, personal lamp and ignition keyhole illumination illuminate.
Timer Operation Condition
When BCM detects driver door is unlocked, the key is not inserted in the ignition key cylinder (key switch
OFF), and ignition knob switch is OFF (with Intelligent Key system), it determines that conditions for inte-
rior room lamp timer operation are met, and turns the room lamp ON for 30 seconds.
When BCM detects key is removed from ignition key cylinder (key switch OFF), it determines that condi-
tions for interior room lamp timer operation are met, and turns the room lamp ON for 30 seconds.
When BCM detects driver door is closed, and the key is not inserted in the ignition key cylinder (key switch
OFF), and ignition knob switch is OFF (with Intelligent Key system), it determines that conditions for inte-
rior room lamp timer operation are met, and turns the room lamp ON for 30 seconds.
When ignition knob turns to OFF from ON, Intelligent Key unit sends ignition knob switch signal
(ON→OFF) through CAN communication. When BCM detect ignition knob switch is turned to OFF by igni-
tion knob switch signal (ON→OFF), and the key is not inserted in the ignition key cylinder (key switch
OFF), it determines that conditions for interior room lamp timer operation are met, and turns the room
lamp ON for 30 seconds.
BCM does not activate the timer even a door other than the driver door is opened.
*: Setting can be changed by CONSULT-II. Refer to LT- 2 3 3 , "
WORK SUPPORT (INT LAMP)" .
Conditions for Canceling Timer
Timer operation is cancelled in any of the following conditions.
Driver door is locked.
Driver door is opened.
Ignition key switch or ignition knob is ON.
INTERIOR ROOM LAMP BATTERY SAVER CONTROL
If the interior room lamp switch is in DOOR position and the lamps left illuminated due to incompletely closed
door, BCM turns OFF the room lamp and ignition keyhole illumination in 30 or 60 minutes to prevent run down
of the battery. (Timer setting can be changed by CONSULT-II. Refer to LT- 2 3 4 , "
WORK SUPPORT (BATTERY
SAVER)" .)
When the ignition key switch or ignition knob is turned from ON to OFF, the timer is activated.
When any of the following door switch signal condition is changed with the ignition key switch in OFF posi-
tion, the timer is activated when the change is occurred.
Door switch signals: front door switch (driver side and passenger side) signal, rear door switch (LH and RH)
signal, front door lock assembly signal, key switch signal, ignition knob switch signal, central door unlock
switch signal and remote control unlock signal.

Page 2911 of 3502

NISSAN TEANA 2003 Service Manual INTERIOR ROOM LAMP
LT-223
C
D
E
F
G
H
I
J
L
MA
B
LT

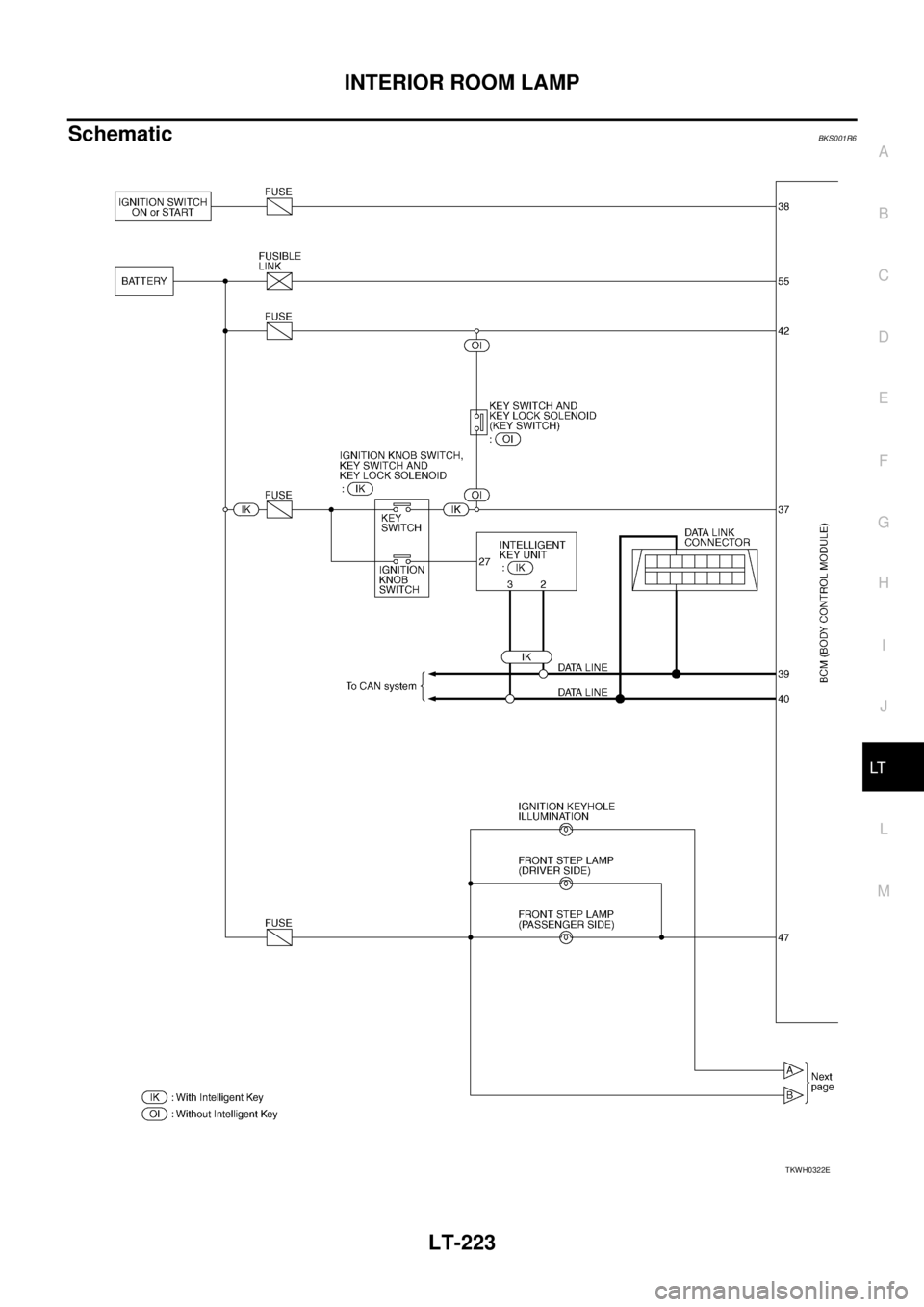

SchematicBKS001R6
TKWH0322E

Page 2912 of 3502

NISSAN TEANA 2003 Service Manual LT-224
INTERIOR ROOM LAMP

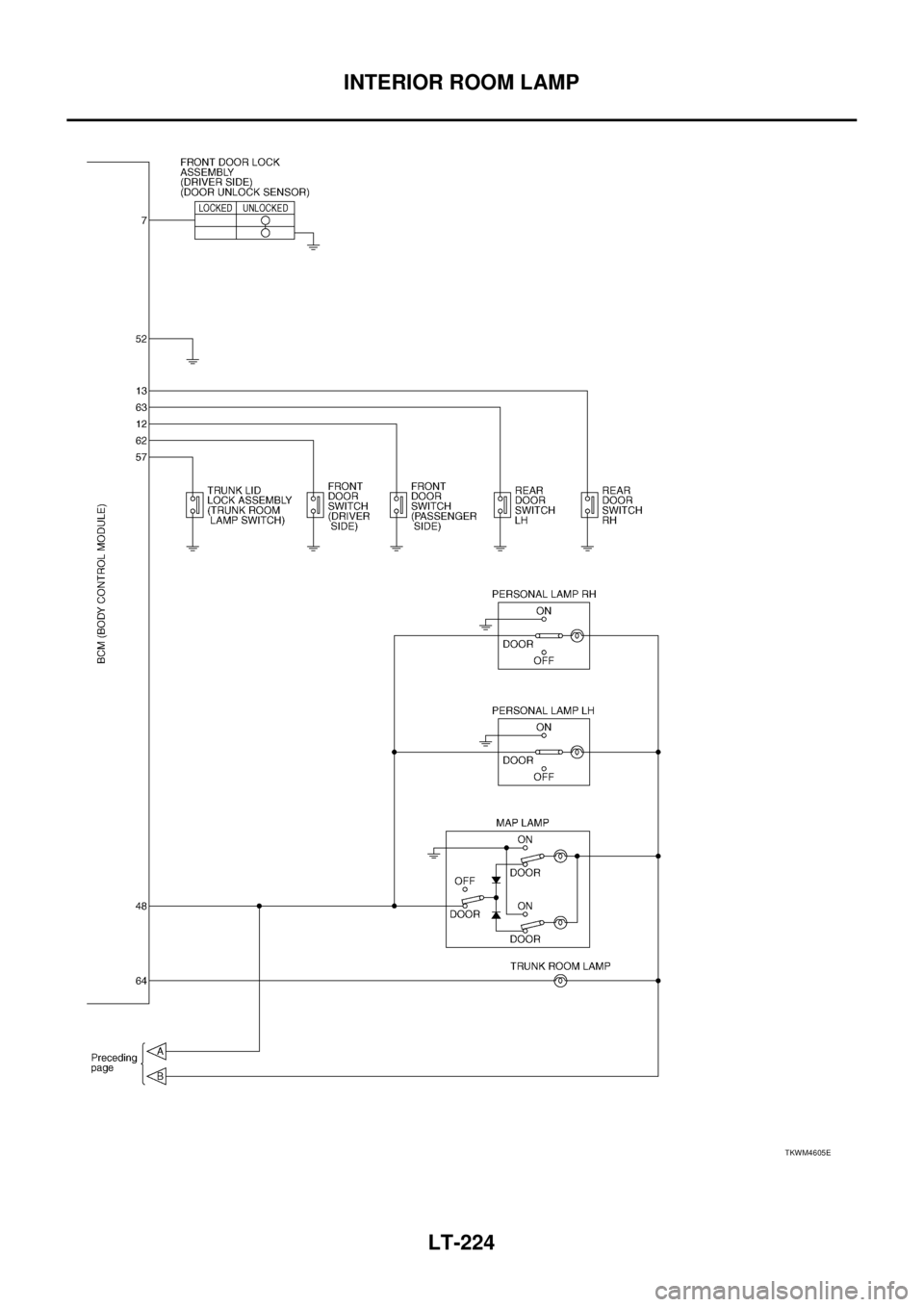

TKWM4605E
