Confirmation ModeBKS0027Y
DIAGNOSIS PROCEDURE
1. Select “DCU Confirmation”.
Each diagnosis is shown by selecting each screen switch on
DCU Confirmation screen.
DCU
Display Diagnosis

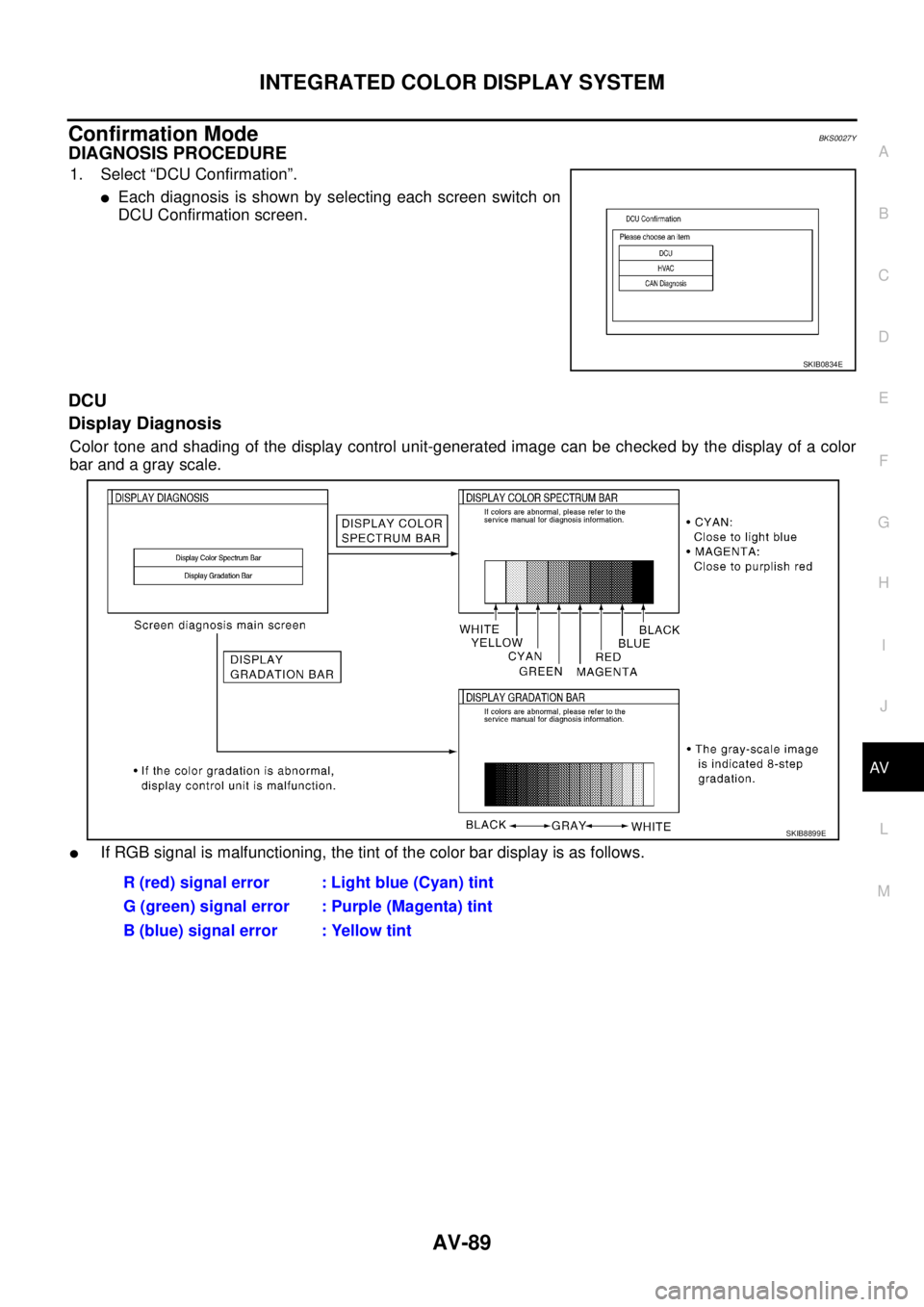

Color tone and shading of the display control unit-generated image can be checked by the display of a color
bar and a gray scale.
If RGB signal is malfunctioning, the tint of the color bar display is as follows.
SKIB0834E
R (red) signal error : Light blue (Cyan) tint
G (green) signal error : Purple (Magenta) tint
B (blue) signal error : Yellow tint
SKIB8899E
Page 618 of 3502

AV-90
INTEGRATED COLOR DISPLAY SYSTEM
Vehicle Signal
A comparison check can be made of each actual vehicle signal and
the signals recognized by the display control unit.
History of Error
Diagnosis results of self-diagnosis depend on if any error occurred
during the time after selecting “DCU Failure Diagnosis” until self-
diagnosis results is displayed.
Meanwhile, when an error occurs before selecting “DCU Failure
Diagnosis”, and if an error does not occur until self-diagnosis results
is displayed, a diagnosis result is judged as normal.
Consequently, a diagnosis needs to be performed with “History of
Error” for the past error that is not available with self-diagnosis.
“History of Error” stores error occurrences up to 50, and errors after
the 51st are displayed as the 50th.
SKIB0835E
Diagnosis item Display Condition Remarks
Speed SignalON When vehicle speed is more than 0 km/h (0 MPH)
Changes in indication may be delayed.
This is normal. OFF When vehicle speed is 0 km/h (0 MPH)
— Ignition switch in ACC position
LightON Lighting switch ON
—
OFF Lighting switch OFF
IGNON Ignition switch ON
—
OFF Ignition switch ACC position
ReverseON Selector lever in R position
Changes in indication may be delayed.
This is normal. OFF Selector lever in any position other than R position
— Ignition switch in ACC position
SKIB8900E
Page 619 of 3502

INTEGRATED COLOR DISPLAY SYSTEM
AV-91
C
D
E
F
G
H
I
J
L
MA
B
AV
Diagnosis by History of Error
When having a difficulty on the investigation of cause due to multiple errors with a reproducible malfunction,
turn ON the ignition switch from OFF mode after making a memo of the item and number of time (or delete
“History of Error”). Check “History of Error” again after the malfunction was reproduced, and then perform
diagnosis focusing on the item of which number of time increased.
Error item Possible cause Action to take
DCU malfunctionDisplay control unit malfunction is
detected.Replace display control unit.
Display Connect Error
Display power supply and ground
circuit malfunction is detected.
Malfunction is detected on commu-
nication signal between display con-
trol unit and display.1. Delete the “History of Error”, and turn
OFF ignition switch.
2. Turn ON ignition switch, and make sure
of the “History of Error”.
3. If the error item listed left is displayed
again, GO TO 4. If the error item is not
displayed, end the diagnosis. (This is
not a malfunction.)
4. Check display power supply and
ground circuit.
5. Check communication circuit between
display control unit and display.
6. Check communication signal between
display control unit and display.
7. If the results from the above checkup
show no malfunction, replace either
display control unit or display, and then
start self-diagnosis.
8. If self-diagnosis results still show any
malfunction, replace the other unit.
Page 620 of 3502

AV-92
INTEGRATED COLOR DISPLAY SYSTEM
Software Version
Software version of each unit is displayed.
HVAC
Self-diagnosis of air conditioner system is performed. Refer to AT C - 4 6 , "Self-diagnosis Function" .
Audio Connect Error
Audio unit power supply circuit mal-
function is detected.
Malfunction is detected on commu-
nication signal between display con-
trol unit and audio unit.1. Start self-diagnosis, and make sure of
the result.
2. If any error is found, GO TO 3. If any
error is not found, delete the “History of
Error” and end the diagnosis. (This is
not a malfunction.)
3. Check audio unit power supply circuit.
4. Check communication circuit between
display control unit and audio unit.
5. Check communication signal between
display control unit and audio unit.
6. If the results from the above checkup
show no malfunction, replace either
display control unit or audio unit, and
then start self-diagnosis.
7. If self-diagnosis results still show any
malfunction, replace the other unit.
SW Error
A/C and AV switch power supply
and ground circuit malfunction is
detected.
Malfunction is detected on commu-
nication signal between display con-
trol unit and A/C and AV switch.1. Delete the “History of Error”, and turn
OFF ignition switch.
2. Turn ON ignition switch, and make sure
of the “History of Error”.
3. If the error item listed left is displayed
again, GO TO 4. If the error item is not
displayed, end the diagnosis. (This is
not a malfunction.)
4. Check A/C and AV switch power supply
and ground circuit.
5. Check communication circuit between
display control unit and A/C and AV
switch.
6. If the results from the above checkup
show no malfunction, replace either
display control unit or A/C and AV
switch, and then start self-diagnosis.
7. If self-diagnosis results still show any
malfunction, replace the other unit. Error item Possible cause Action to take
Page 621 of 3502
INTEGRATED COLOR DISPLAY SYSTEM
AV-93
C
D
E
F
G
H
I
J
L
MA
B
AV
CAN DIAGNOSIS
The transmitting/receiving of CAN communication can be monitored.
Item Content Error counter
Communication OK / NG 0 - 50
CAN System 1 OK / UNKNW 0 - 50
CAN System 2 OK / UNKNW 0 - 50
CAN System 3 OK / UNKNW 0 - 50
CAN System 4 OK / UNKNW 0 - 50
CAN System 5 OK / UNKNW 0 - 50
CAN System 6 OK / UNKNW 0 - 50
CAN System 7 OK / UNKNW 0 - 50
CAN System 8 OK / UNKNW 0 - 50
CAN System 9 OK / UNKNW 0 - 50
PKIC9893E
Page 622 of 3502

AV-94
INTEGRATED COLOR DISPLAY SYSTEM
CONSULT-II Functions (REAR VIEW CAMERA)BKS00281
CONSULT-II can display each diagnosis item using the diagnosis test modes shown following.
CONSULT-II BASIC OPERATION PROCEDURE
Refer to GI-34, "CONSULT-II Start Procedure" .
WORK SUPPORT
Operation Procedure
1. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
2. Touch “SELECT GUIDELINE PATTERN” or “ADJ GUIDELINE POSITION” on “SELECT WORK ITEM”
screen.
For details, refer to AV- 9 5 , "
Vehicle Width and Distance Guiding Line Correction" .
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
3. When “SELECTION FROM MENU” is selected, touch individual items to be monitored. When “ALL SIG-
NALS” is selected, all the items will be monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
Diagnosis partCheck Item,
Diagnosis ModeDescription
REAR VIEW CAMERAWORK SUPPORT It can adjust the vehicle width and distance guiding lines that overlap camera image.
DATA MONITOR Displays input data for rear view camera control unit in real-time.
ECU PART NUMBER Displays rear view camera control unit part number.
Item Description
SELECT GUIDELINE PATTERN The opening of the vehicle width and distance guiding lines can be selected from 2 patterns.
ADJ GUIDELINE POSITION Make fine adjustment to the vehicle width and distance guiding lines upper/lower/left/right
Item Description
ALL SIGNALS Monitors all the signal.
SELECTION FROM MENU Selects and monitors individual items.
Item Description
R POSI SIG [ON/OFF]“ON (Selector lever R position)/OFF (other than R position)” status as judged from the reverse
signal is displayed.
Page 623 of 3502

INTEGRATED COLOR DISPLAY SYSTEM
AV-95
C
D
E
F
G
H
I
J
L
MA
B
AV
Vehicle Width and Distance Guiding Line CorrectionBKS00282
DESCRIPTION
CONSULT-II is used to modify the guiding lines of the width of vehicle and the distance from rear end of vehi-
cle on the rear view monitor when these lines are derated from the actual width and/or distance, because of
rear view camera replacement, etc.
VEHICLE WIDTH AND DISTANCE GUIDING LINE CORRECTION PROCEDURE
1. Create a correction line to modify the guiding lines inside moni-
tors. Draw lines on the rearward area of the vehicle passing
through the following points: 250 mm (9.84 in) from both sides of
the vehicle, and 0.5 m (1.64 ft), 1 m (3.28 ft), 2 m (6.56 ft), and 3
m (9.84 ft) from the rear end of the bumper.
2. Connect CONSULT-II and CONSULT-II CONVERTER, and then
touch “REARVIEW CAMERA” on “SELECT SYSTEM” screen.
WARNING:
Correct the guiding line with the engine stopped for safety.
3. Shift selector lever to R position.
SKIB4106E
BCIA0030E
SKIA6103E
Page 624 of 3502

AV-96
INTEGRATED COLOR DISPLAY SYSTEM
4. Touch “ADJ GUIDELINE POSITION” on “SELECT WORK
ITEM” screen.
NOTE:
When starting “ADJ GUIDELINE POSITION” mode, vehicle
width guiding lines may move horizontally. It is normal.
5. Touch “X UP”, “X DOWN”, “Y UP”, and “Y DOWN” so as to align
with a correction line created, and then adjust the guiding lines.
6. If the guiding lines align with the correction lines, touch “SAVE”
so as to fix the lines, and then end the correction by touching
“END”. GO TO 7 if the guiding lines do not align with the correc-
tion lines.
7. Touch “SELECT GUIDELINE PATTERN” on SELECT WORK
ITEM screen.
8. Change the pattern of the guiding lines by touching “UP” or
“DOWN”. [Select from among 2 patterns (“PATTERN NO. 0 or
1”) of the guiding lines.]
9. Fix the pattern of the guiding lines by touching “SAVE”.
10. End the correction by touching “END”.
NOTE:
If the setting value is changed on “SELECT GUIDELINE PAT-
TERN” and “ADJ GUIDELINE POSITION”, the change is not
reflected at the next starting if “SAVE” is not touched.
SKIA5638E
Adjustment direction ADJUST MONITOR
LEFT/RIGHT X VALUE ADJ –8 - 8
UP/DOWN Y VALUE ADJ –8 - 8
SKIB0841E
SKIA5638E
SKIB0842E
