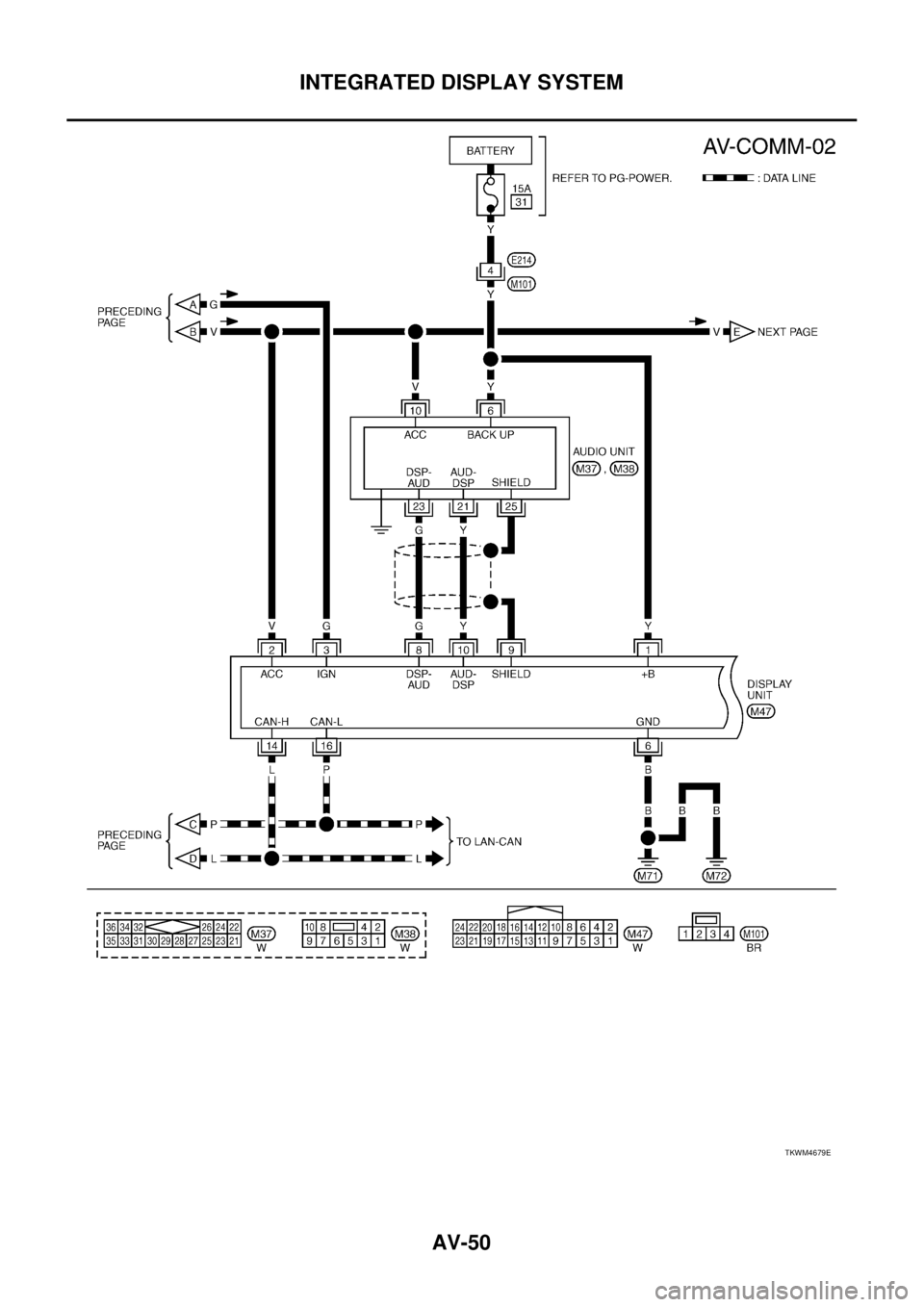

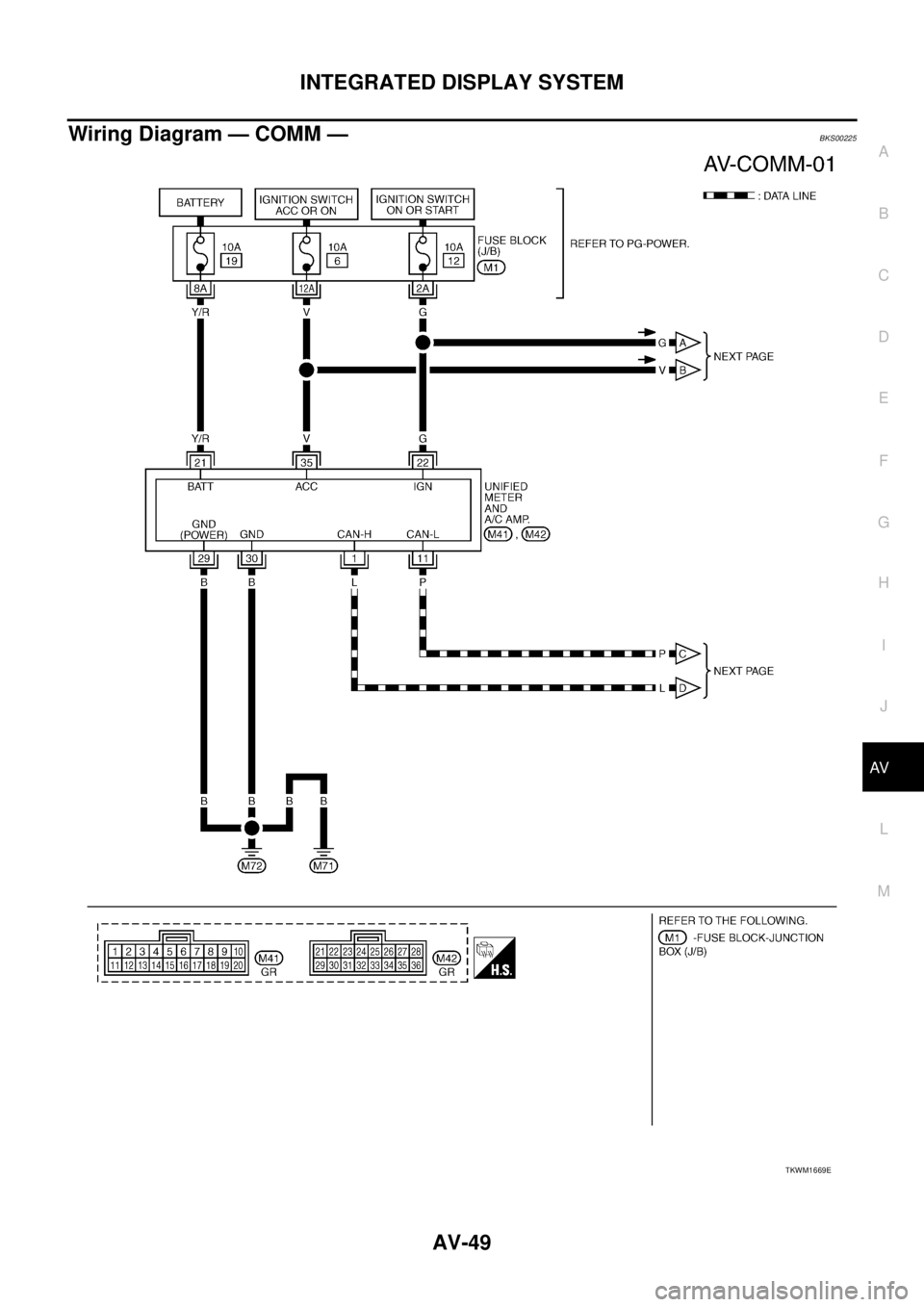

NISSAN TEANA 2003 Service Manual INTEGRATED DISPLAY SYSTEM AV-49 C D E F G H I J L MA B AV Wiring Diagram — COMM —BKS00225 TKWM1669E

Page 578 of 3502

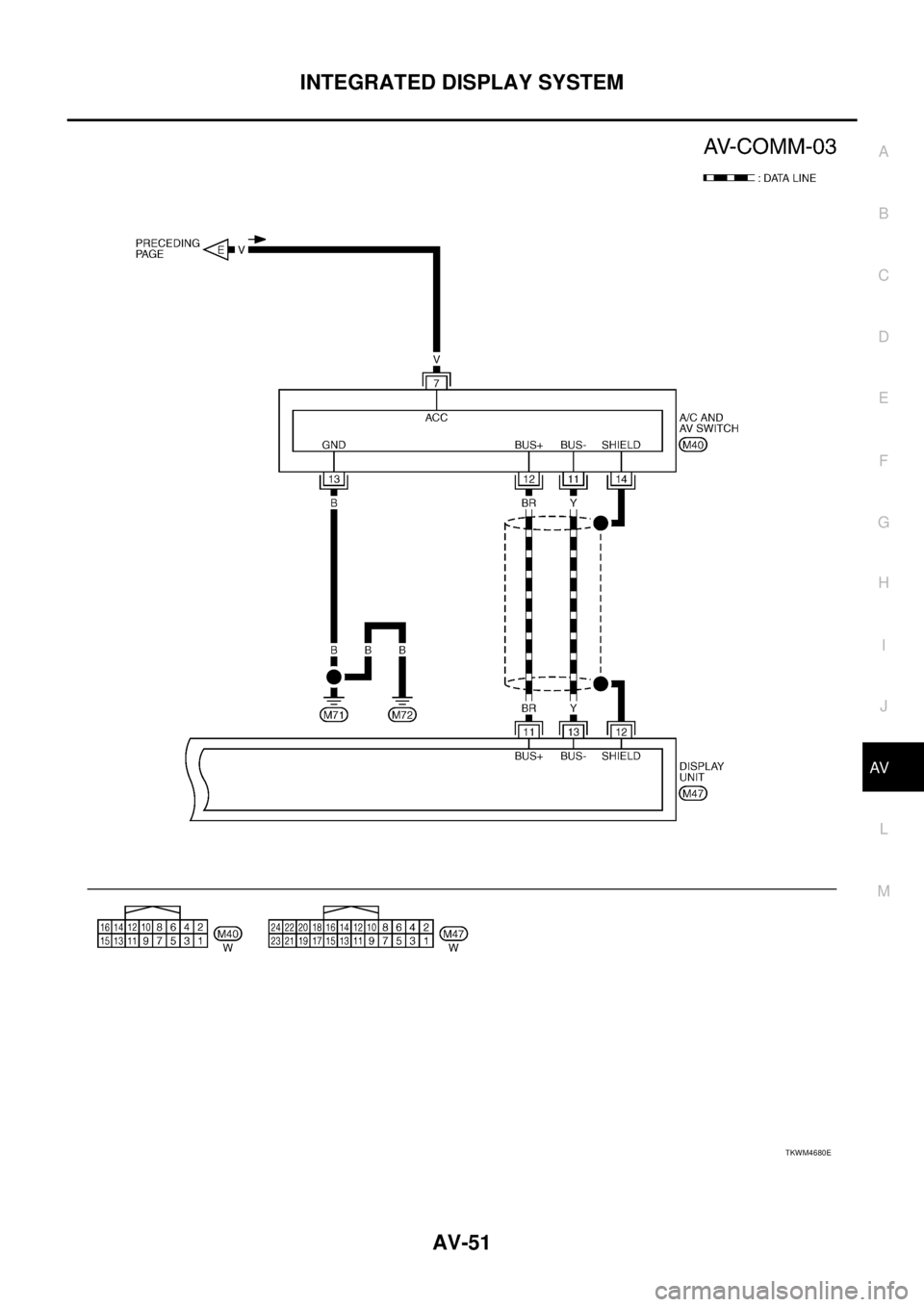

NISSAN TEANA 2003 Service Manual AV-50 INTEGRATED DISPLAY SYSTEM TKWM4679E

Page 579 of 3502

NISSAN TEANA 2003 Service Manual INTEGRATED DISPLAY SYSTEM AV-51 C D E F G H I J L MA B AV TKWM4680E

Page 580 of 3502

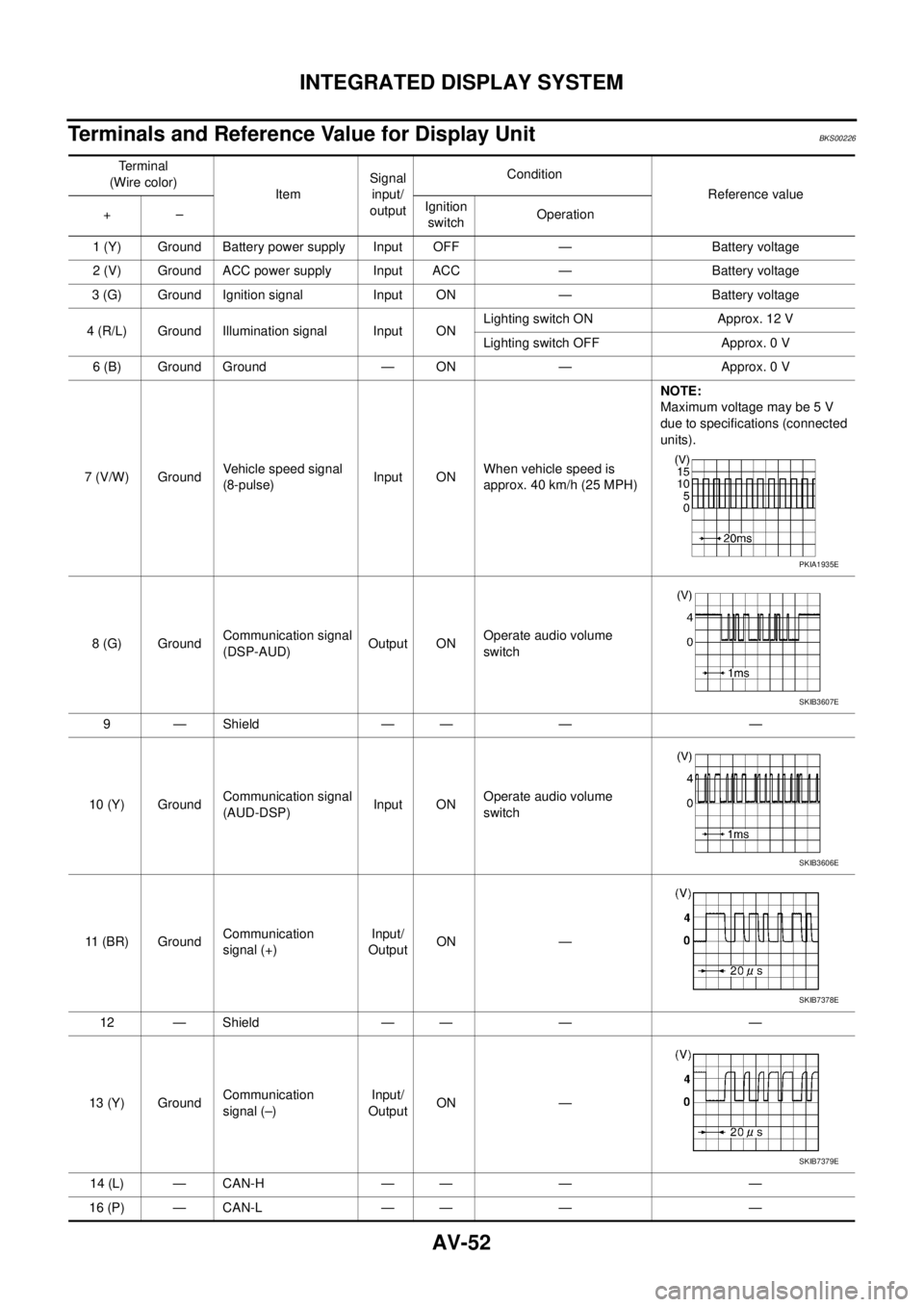

NISSAN TEANA 2003 Service Manual AV-52 INTEGRATED DISPLAY SYSTEM Terminals and Reference Value for Display UnitBKS00226 Te r m i n a l (Wire color) ItemSignal input/ outputCondition Reference value +–Ignition switchOperation 1

Page 581 of 3502

NISSAN TEANA 2003 Service Manual INTEGRATED DISPLAY SYSTEM AV-53 C D E F G H I J L MA B AV Terminals and Reference Value for A/C and AV SwitchBKS00227 Terminal (Wire color) ItemSignal input/ outputCondition Reference value +–Ign

Page 582 of 3502

NISSAN TEANA 2003 Service Manual AV-54 INTEGRATED DISPLAY SYSTEM A/C and AV Switch Self-Diagnosis FunctionBKS0022A Performing self-diagnosis makes it possible to check operation of A/C and AV switch indicator (LED) and other switch

Page 583 of 3502

NISSAN TEANA 2003 Service Manual INTEGRATED DISPLAY SYSTEM AV-55 C D E F G H I J L MA B AV On Board Self-Diagnosis FunctionBKS00228 DESCRIPTION When performing self-diagnosis mode, the following menu is displayed. DIAGNOSIS ITEM Se

Page 584 of 3502

NISSAN TEANA 2003 Service Manual AV-56 INTEGRATED DISPLAY SYSTEM HVAC DIAG Self-diagnosis of air conditioner system is performed. Refer to AT C - 46, "Self-diagnosis Function" . VERSION Software version of display unit, A/C and AV
