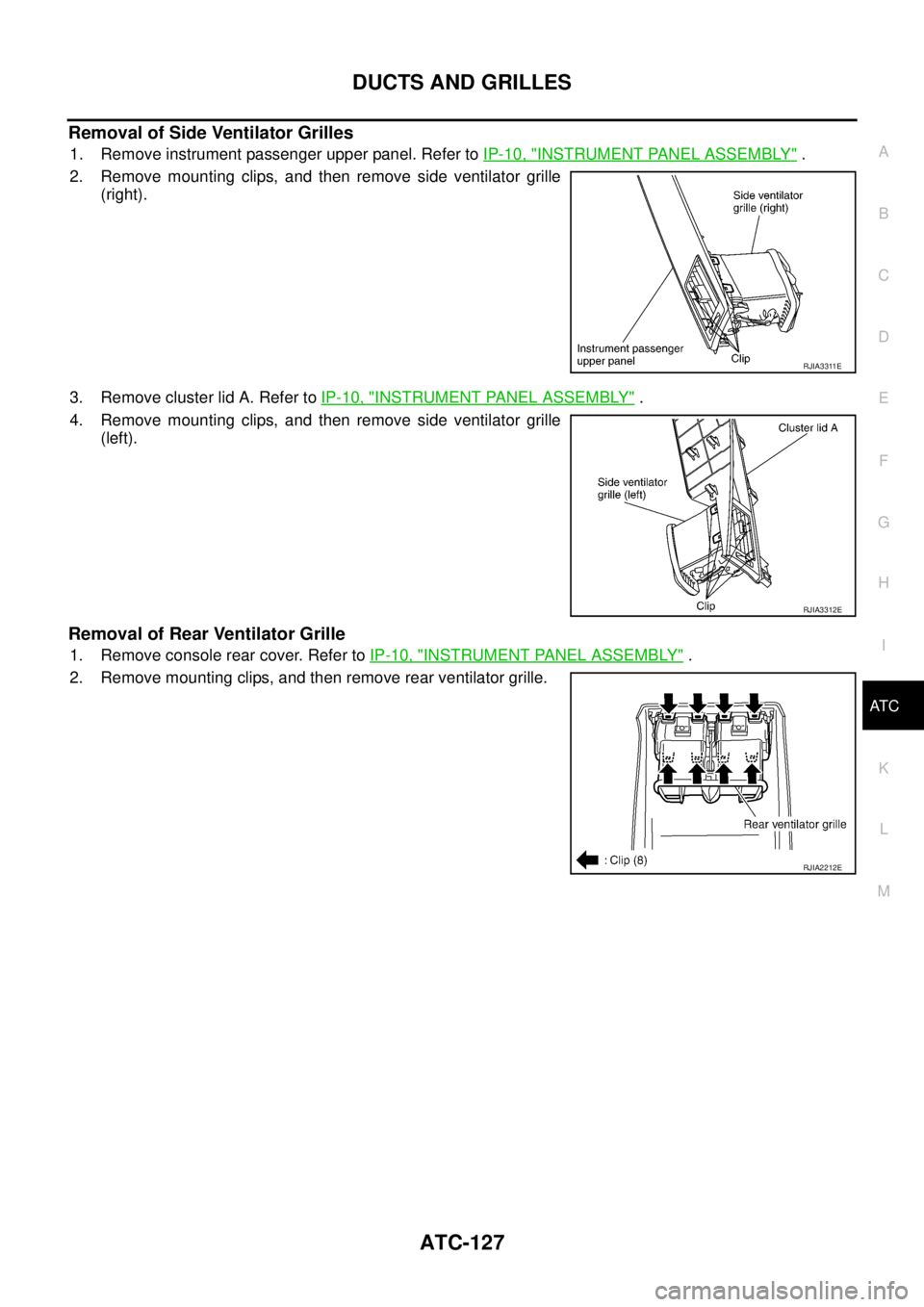

Removal of Side Ventilator Grilles
1. Remove instrument passenger upper panel. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove mounting clips, and then remove side ventilator grille
(right).
3. Remove cluster lid A. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
4. Remove mounting clips, and then remove side ventilator grille
(left).
Removal of Rear Ventilator Grille
1. Remove console rear cover. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove mounting clips, and then remove rear ventilator grille.
RJIA3311E
RJIA3312E
RJIA2212E
Page 506 of 3502
ATC-128
DUCTS AND GRILLES

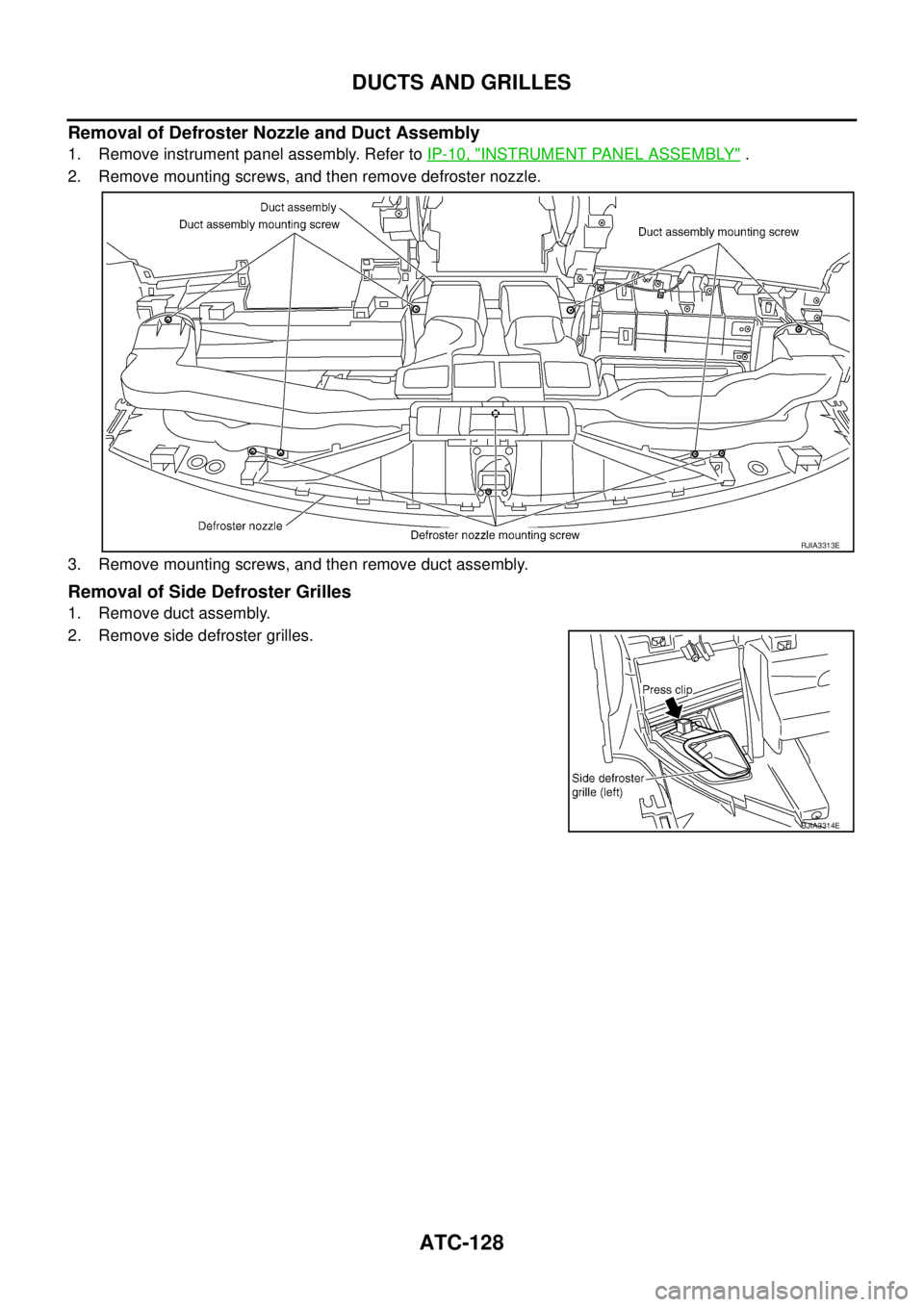

Removal of Defroster Nozzle and Duct Assembly
1. Remove instrument panel assembly. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove mounting screws, and then remove defroster nozzle.
3. Remove mounting screws, and then remove duct assembly.
Removal of Side Defroster Grilles
1. Remove duct assembly.
2. Remove side defroster grilles.
RJIA3313E
RJIA3314E
Page 507 of 3502
DUCTS AND GRILLES
ATC-129
C
D
E
F
G
H
I
K
L
MA
B
AT C
Removal of Rear Ventilator Ducts
1. Remove center console. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove mounting clips, and then remove rear ventilator duct 2.
3. Remove mounting clips and screw, and then remove rear venti-
lator duct 1.
Removal of Foot Ducts
1. Remove instrument driver lower panel. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove instrument lower cover (driver side)
3. Remove mounting screws, and then remove foot duct (left).
4. Remove blower unit. Refer to AT C - 11 3 , "
BLOWER UNIT" .
5. Remove intake sensor connector from foot duct.
6. Remove mounting screws, and then remove foot duct (right).
RJIA3315E
RJIA3316E
RJIA3317E
RJIA3318E
Page 508 of 3502
ATC-130
DUCTS AND GRILLES

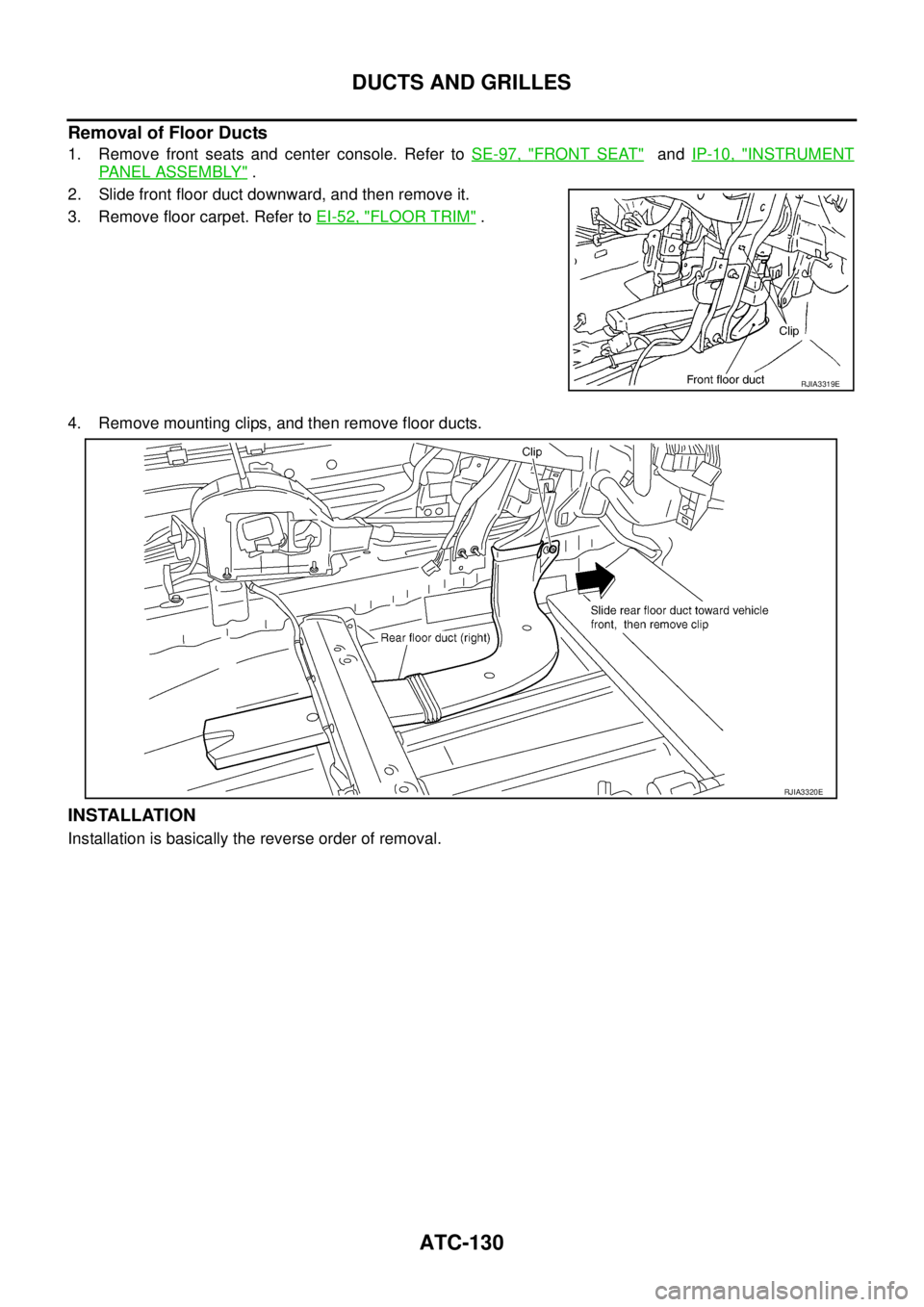

Removal of Floor Ducts
1. Remove front seats and center console. Refer to SE-97, "FRONT SEAT" and IP-10, "INSTRUMENT
PANEL ASSEMBLY" .
2. Slide front floor duct downward, and then remove it.
3. Remove floor carpet. Refer to EI-52, "
FLOOR TRIM" .
4. Remove mounting clips, and then remove floor ducts.
INSTALLATION
Installation is basically the reverse order of removal.
RJIA3319E
RJIA3320E
Page 509 of 3502
REFRIGERANT LINES
ATC-131
C
D
E
F
G
H
I
K
L
MA
B
AT C
REFRIGERANT LINESPFP:92600
HFC-134a (R-134a) Service ProcedureBJS000HN
SETTING OF SERVICE TOOLS AND EQUIPMENT
Discharging Refrigerant
WARNING:
Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and
throat. Use only approved recovery/recycling equipment to discharge HFC-134a (R-134a) refrigerant. If
accidental system discharge occurs, ventilate work area before resuming service. Additional health
and safety information may be obtained from refrigerant and lubricant manufacturers.

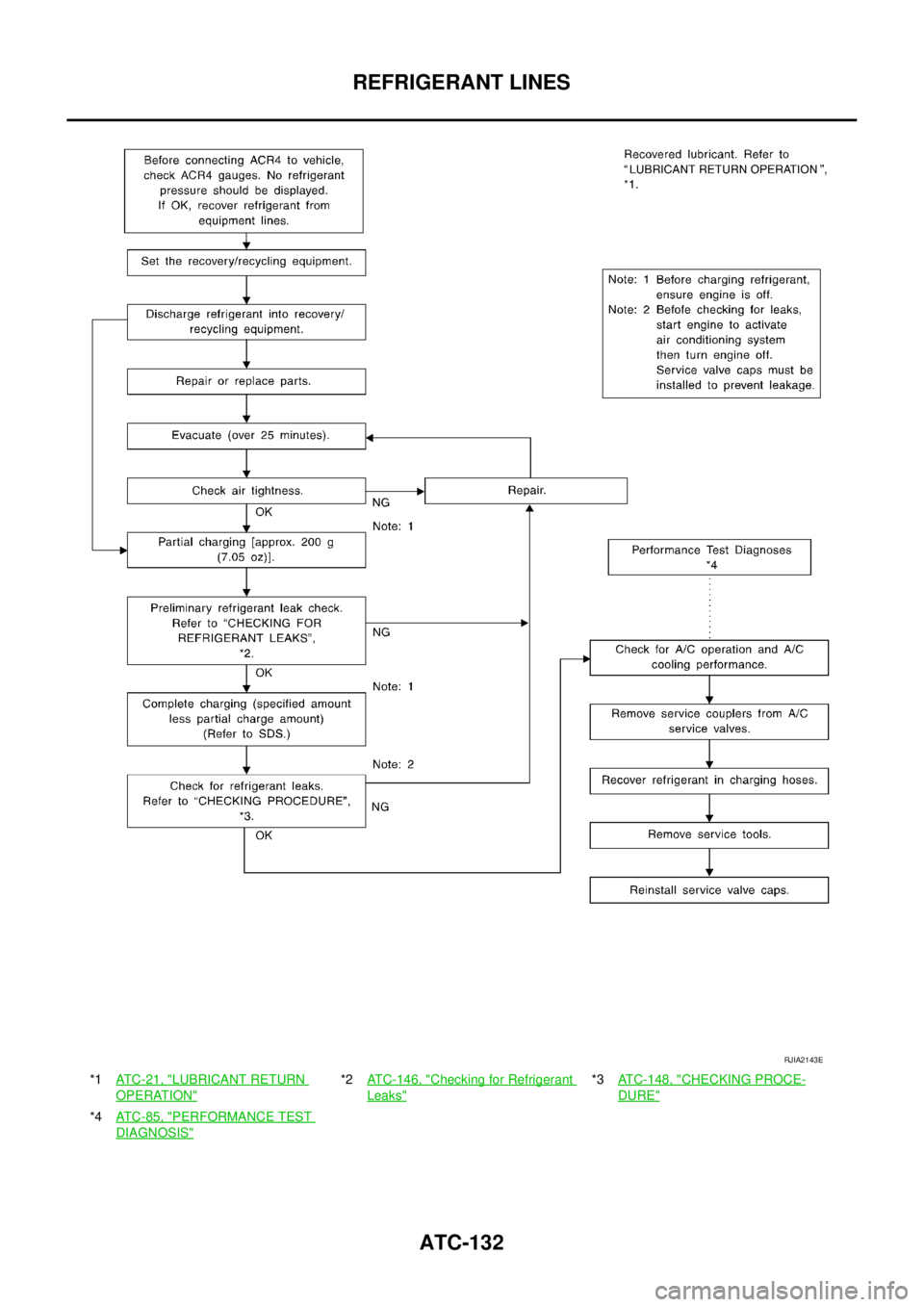

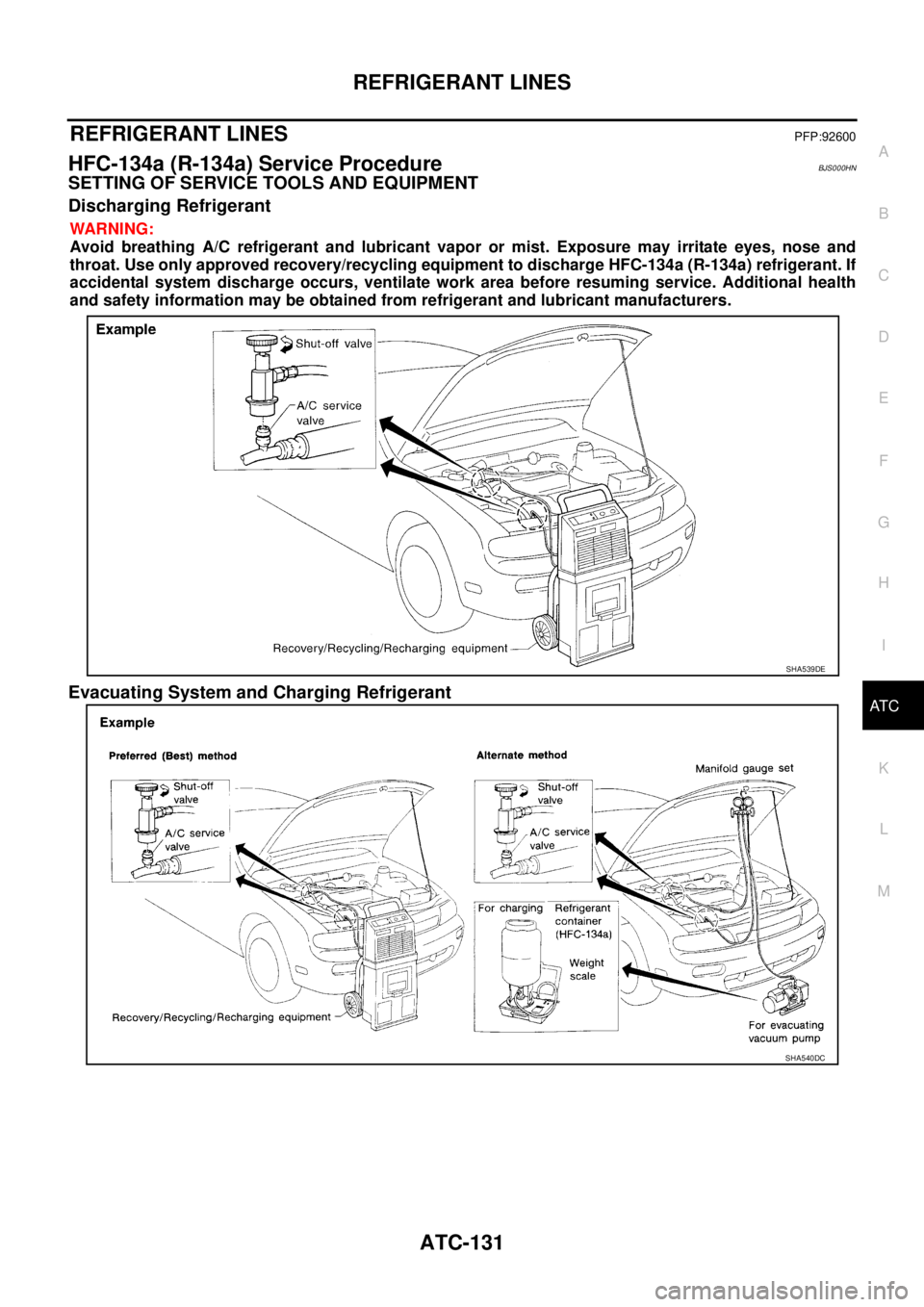

Evacuating System and Charging Refrigerant
SHA539DE
SHA540DC
Page 510 of 3502
ATC-132
REFRIGERANT LINES
*1ATC-21, "LUBRICANT RETURN
OPERATION"
*2ATC-146, "Checking for Refrigerant
Leaks"
*3ATC-148, "CHECKING PROCE-
DURE"
*4ATC-85, "PERFORMANCE TEST
DIAGNOSIS"
RJIA2143E
Page 511 of 3502
REFRIGERANT LINES
ATC-133
C
D
E
F
G
H
I
K
L
MA
B
AT C
ComponentsBJS000HO
Refer to AT C - 6 , "Precautions for Refrigerant Connection" .
QR ENGINE
SJIA1654E
Page 512 of 3502
ATC-134
REFRIGERANT LINES
VQ ENGINE
Removal and Installation of CompressorBJS000HP
REMOVAL
QR Engine
SJIA1655E
SJIA1576E
