Page 3185 of 3502

NISSAN TEANA 2003 Service Manual SUNROOF RF-21 C D E F G H J K L MA B RF Wind Deflector InspectionBIS00112 Make sure the wind deflector is properly function by manual. If a mal- function is detected, remove and visually check it. I

Page 3186 of 3502

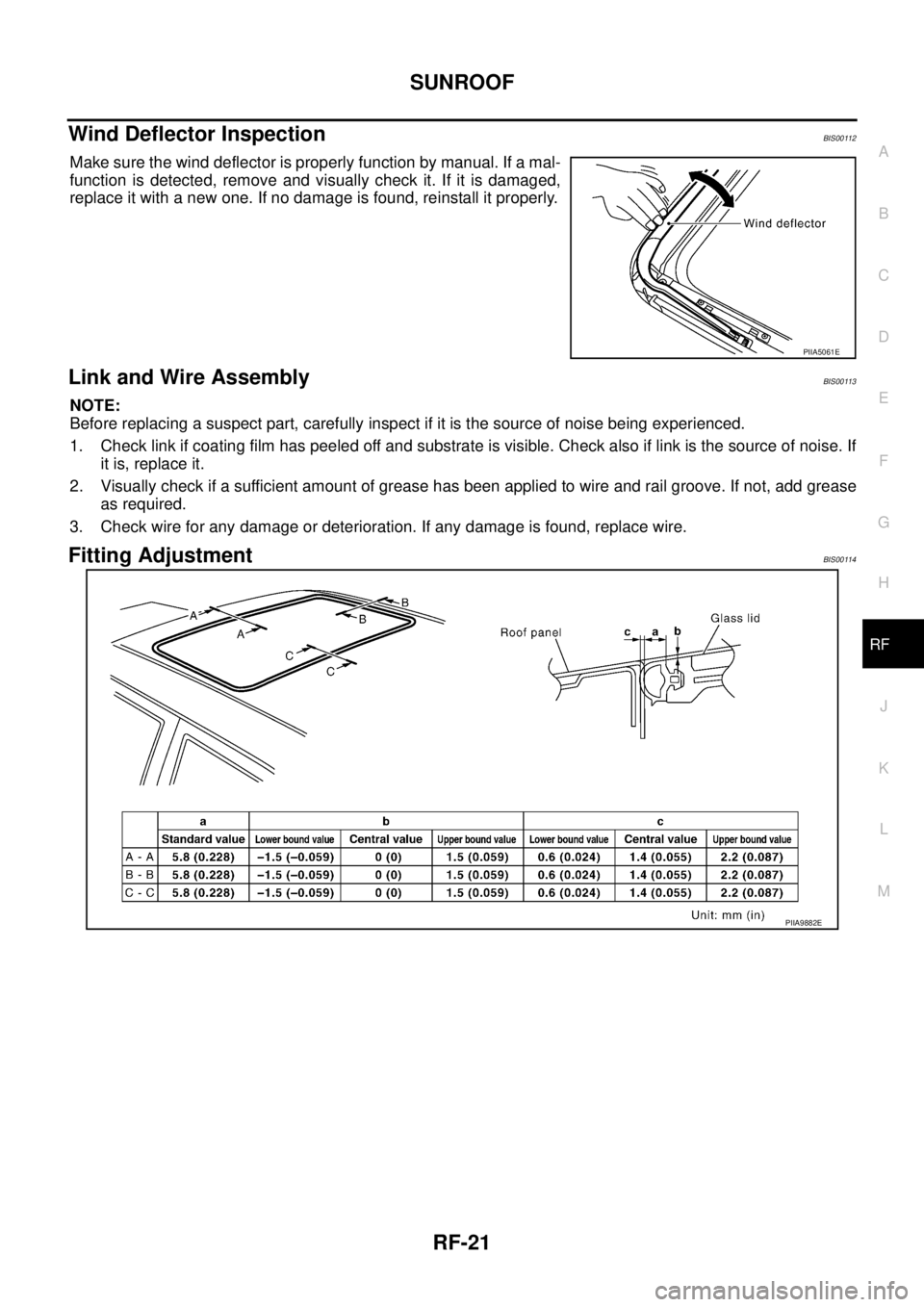

NISSAN TEANA 2003 Service Manual RF-22 SUNROOF LID WEATHERSTRIP OVERLAP ADJUSTMENT AND SURFACE FLASHNESS ADJUSTMENT 1. Tilt up glass lid. 2. After loosening glass lid TORX bolts (T25) (left and right), tilt down glass lid. 3. Adjus

Page 3187 of 3502

NISSAN TEANA 2003 Service Manual SUNROOF RF-23 C D E F G H J K L MA B RF 1. Glass lid 2. TORX bolt 3. Washer 4. Link assembly RH 5. Wire assembly RH 6. Rear sunroof bracket RH PIIB1346E

Page 3188 of 3502

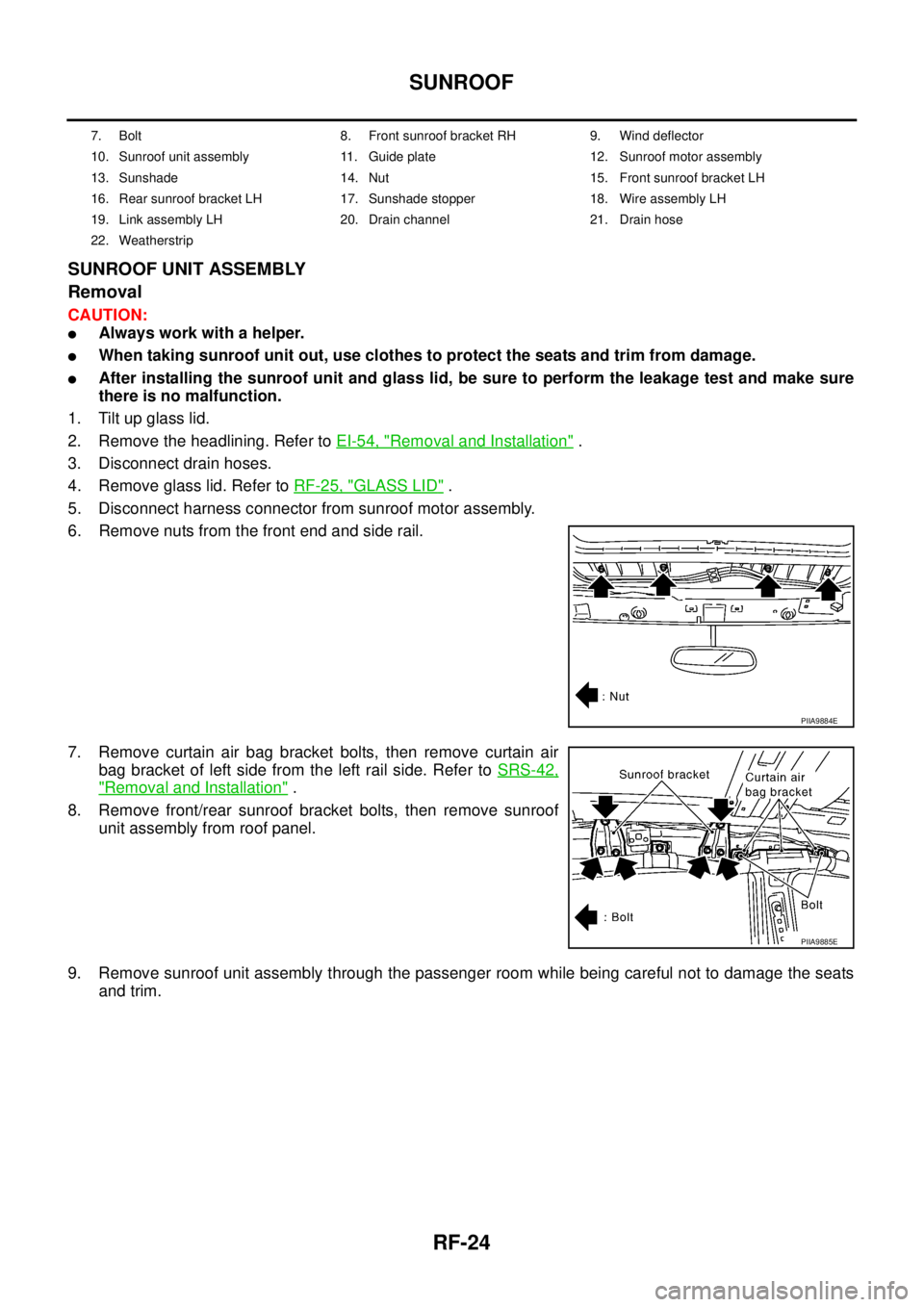

NISSAN TEANA 2003 Service Manual RF-24 SUNROOF SUNROOF UNIT ASSEMBLY Removal CAUTION: Always work with a helper. When taking sunroof unit out, use clothes to protect the seats and trim from damage. After installing the sunroof u

Page 3189 of 3502

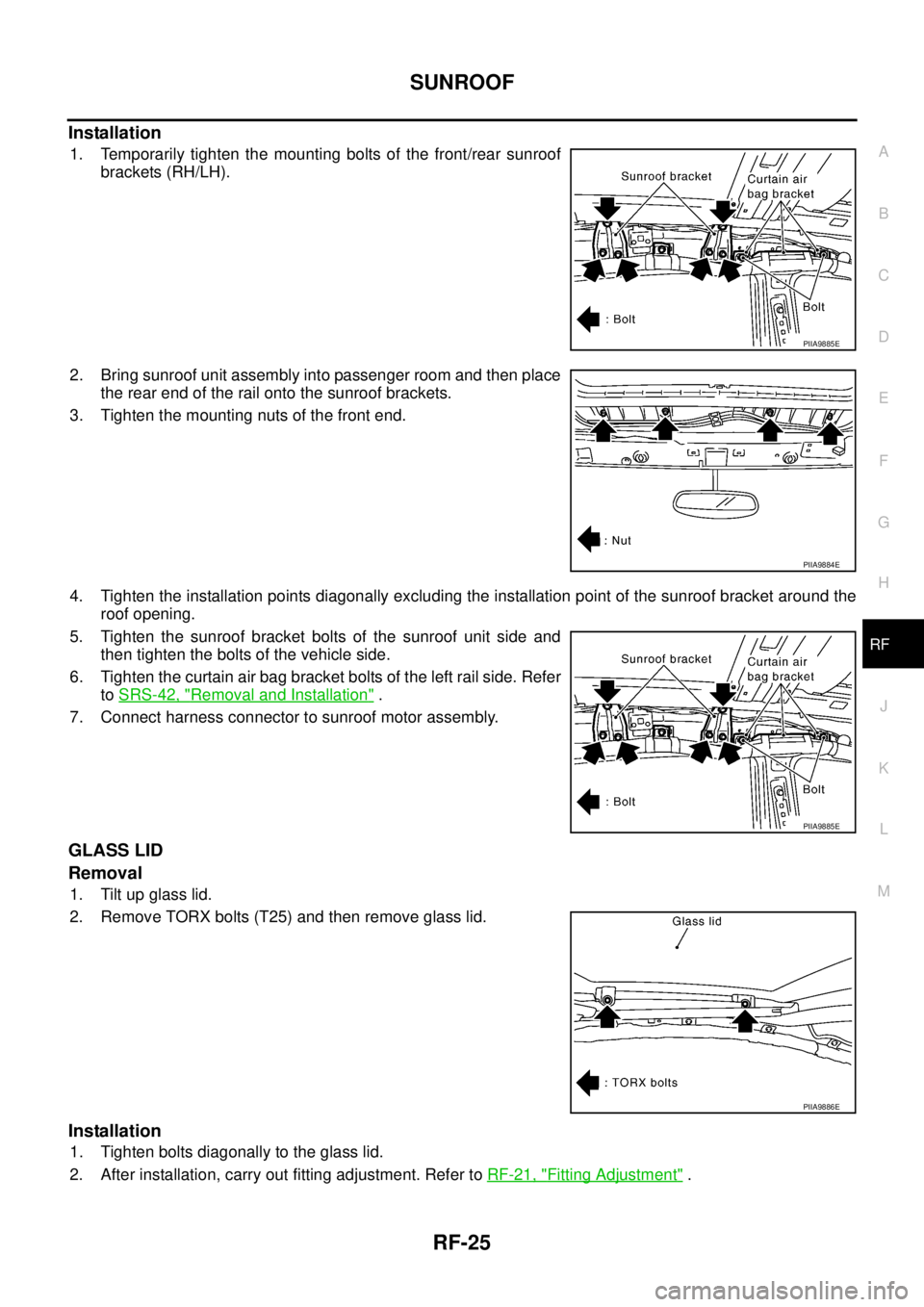

NISSAN TEANA 2003 Service Manual SUNROOF RF-25 C D E F G H J K L MA B RF Installation 1. Temporarily tighten the mounting bolts of the front/rear sunroof brackets (RH/LH). 2. Bring sunroof unit assembly into passenger room and then

Page 3190 of 3502

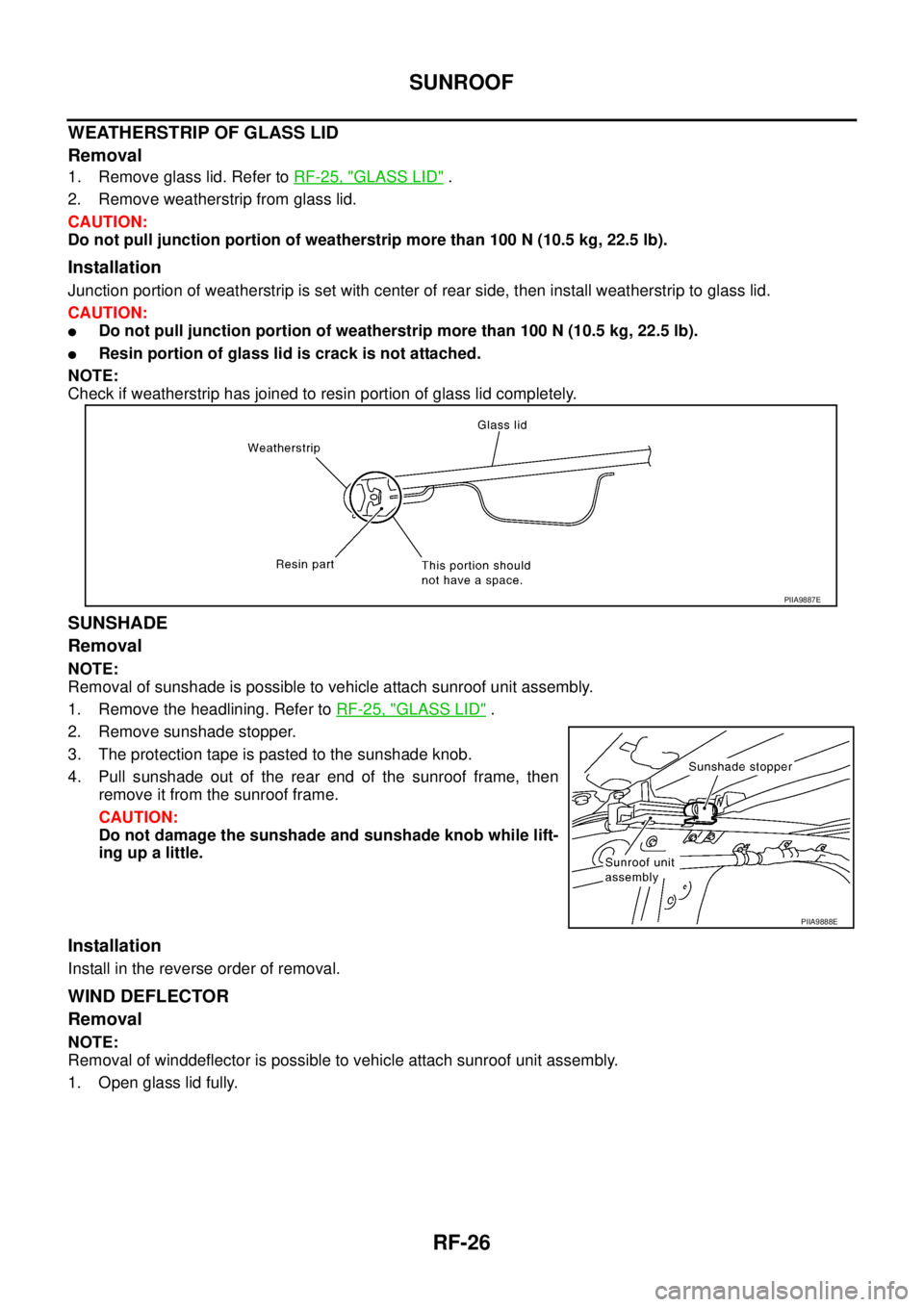

NISSAN TEANA 2003 Service Manual RF-26 SUNROOF WEATHERSTRIP OF GLASS LID Removal 1. Remove glass lid. Refer to RF-25, "GLASS LID" . 2. Remove weatherstrip from glass lid. CAUTION: Do not pull junction portion of weatherstrip more t

Page 3191 of 3502

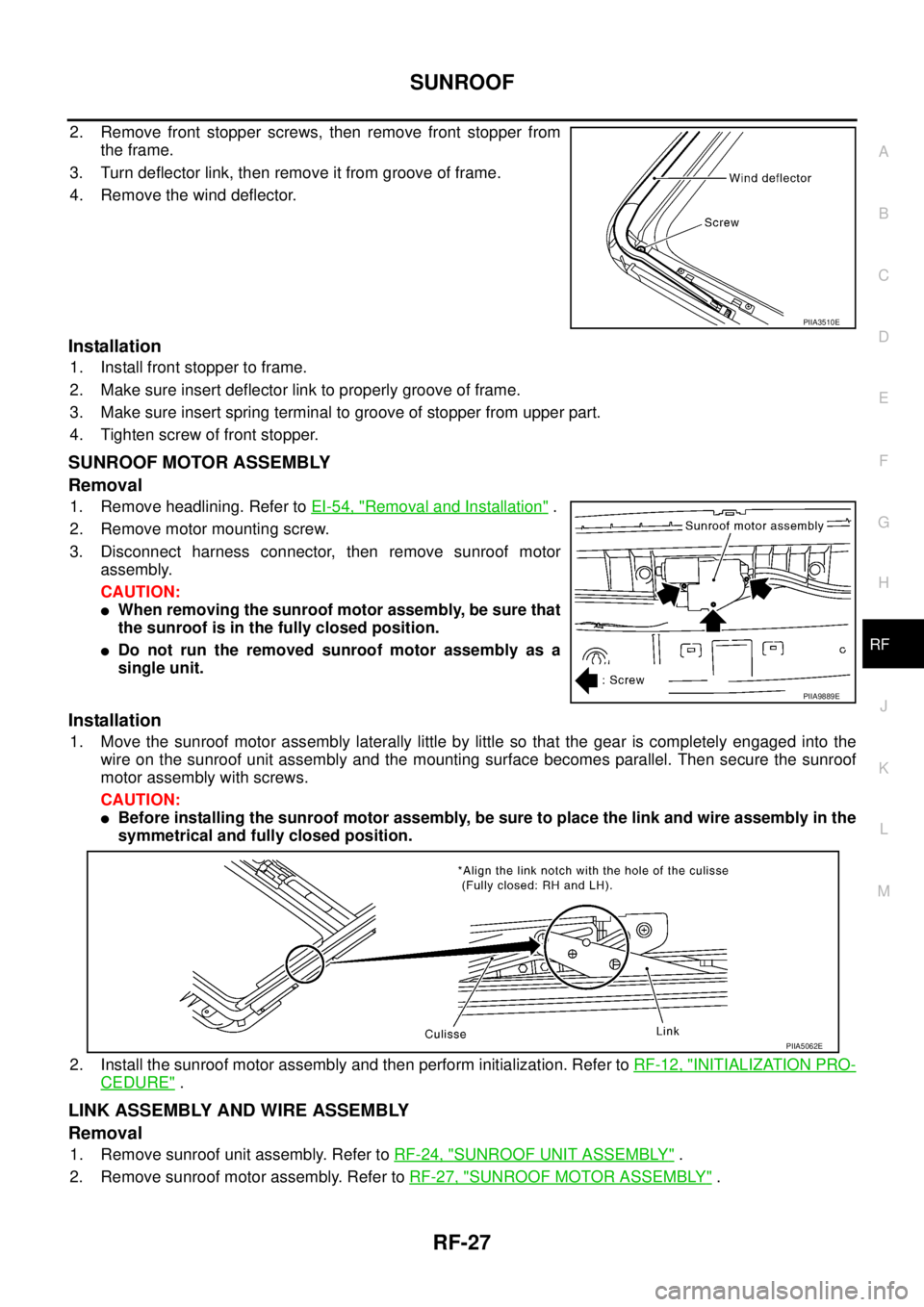

NISSAN TEANA 2003 Service Manual SUNROOF RF-27 C D E F G H J K L MA B RF 2. Remove front stopper screws, then remove front stopper from the frame. 3. Turn deflector link, then remove it from groove of frame. 4. Remove the wind defl

Page 3192 of 3502

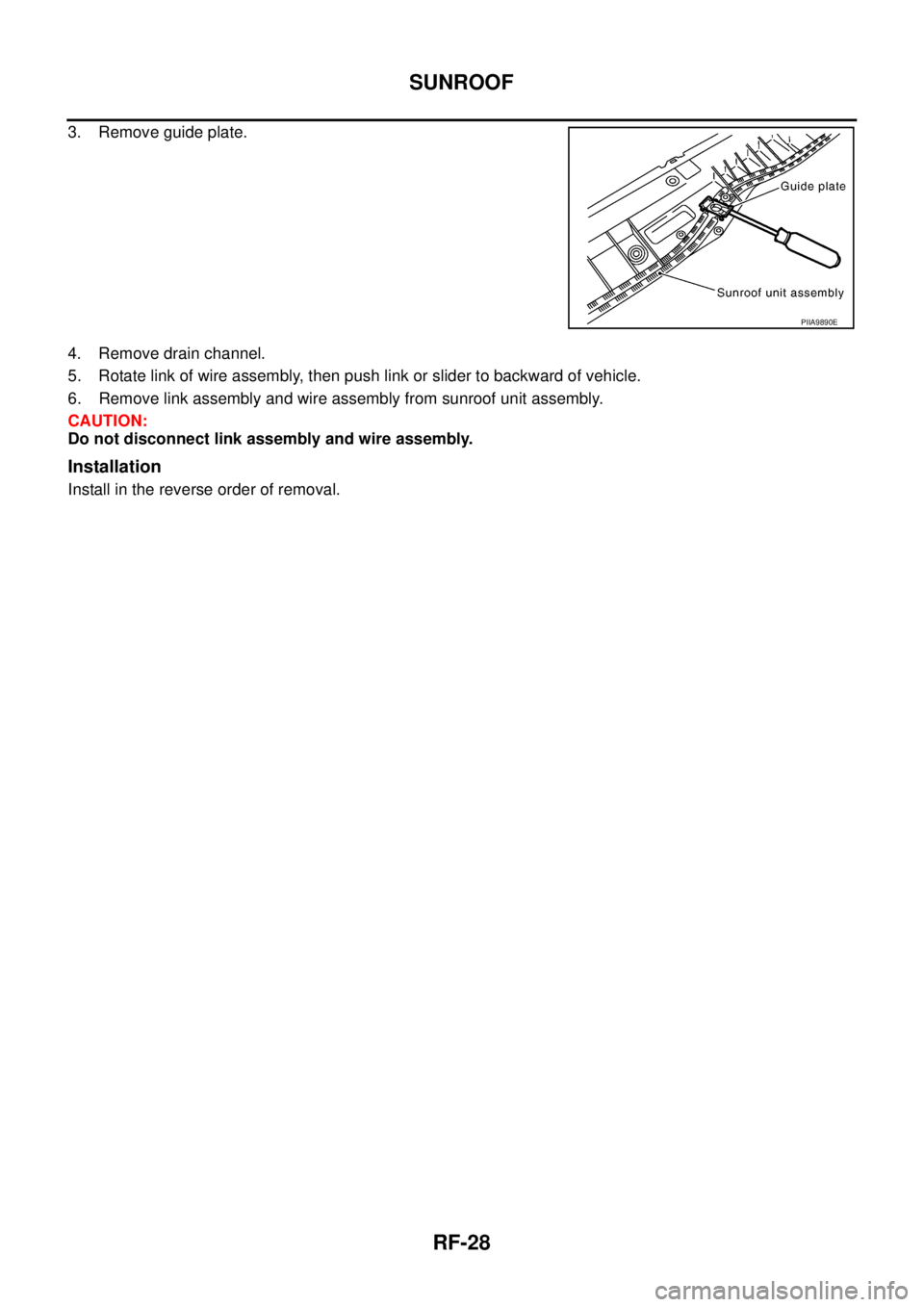

NISSAN TEANA 2003 Service Manual RF-28 SUNROOF 3. Remove guide plate. 4. Remove drain channel. 5. Rotate link of wire assembly, then push link or slider to backward of vehicle. 6. Remove link assembly and wire assembly from sunroof
