HEADLINING
EI-57
C
D
E
F
G
H
J
K
L
MA
B
EI

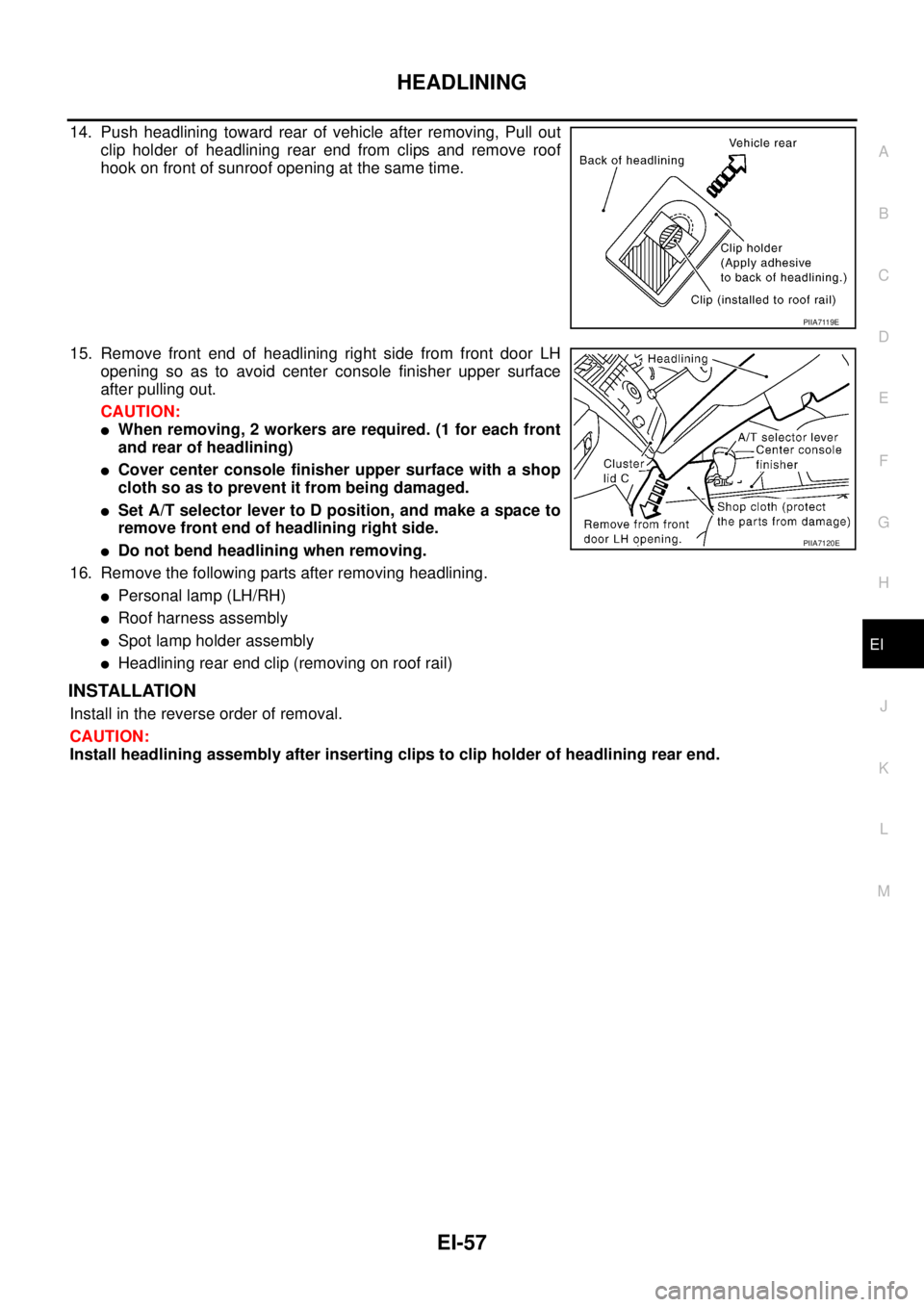

14. Push headlining toward rear of vehicle after removing, Pull out
clip holder of headlining rear end from clips and remove roof
hook on front of sunroof opening at the same time.
15. Remove front end of headlining right side from front door LH
opening so as to avoid center console finisher upper surface
after pulling out.
CAUTION:
When removing, 2 workers are required. (1 for each front
and rear of headlining)
Cover center console finisher upper surface with a shop
cloth so as to prevent it from being damaged.
Set A/T selector lever to D position, and make a space to
remove front end of headlining right side.
Do not bend headlining when removing.
16. Remove the following parts after removing headlining.
Personal lamp (LH/RH)
Roof harness assembly
Spot lamp holder assembly
Headlining rear end clip (removing on roof rail)
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Install headlining assembly after inserting clips to clip holder of headlining rear end.
PIIA7119E
PIIA7120E
Page 2106 of 3502
EI-58
TRUNK ROOM TRIM & TRUNK LID FINISHER
TRUNK ROOM TRIM & TRUNK LID FINISHERPFP:84920
Removal and Installation for Trunk Room TrimBIS0011Z
REMOVAL
1. Fully open trunk lid assembly.
2. Remove trunk lid weatherstrip.
3. Remove trunk floor carpet.
4. Remove trunk box assembly.
5. Remove trunk floor spacer (LH/RH).

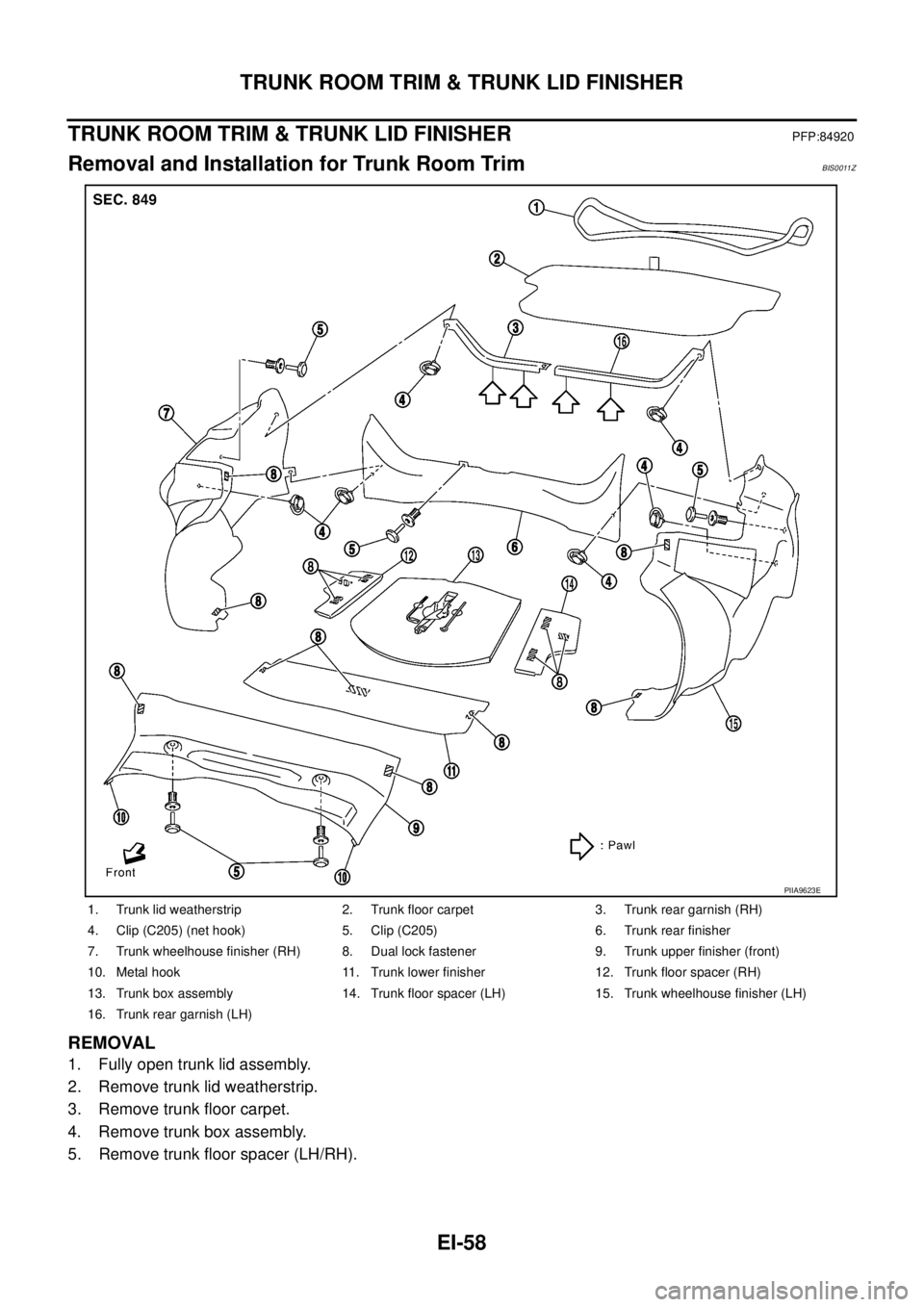

1. Trunk lid weatherstrip 2. Trunk floor carpet 3. Trunk rear garnish (RH)
4. Clip (C205) (net hook) 5. Clip (C205) 6. Trunk rear finisher
7. Trunk wheelhouse finisher (RH) 8. Dual lock fastener 9. Trunk upper finisher (front)
10. Metal hook 11. Trunk lower finisher 12. Trunk floor spacer (RH)
13. Trunk box assembly 14. Trunk floor spacer (LH) 15. Trunk wheelhouse finisher (LH)
16. Trunk rear garnish (LH)
PIIA9623E
Page 2107 of 3502
TRUNK ROOM TRIM & TRUNK LID FINISHER
EI-59
C
D
E
F
G
H
J
K
L
MA
B
EI
6. Remove trunk rear garnish mounting clips (net hook), and the
remove trunk rear garnish (LH/RH).
7. Remove trunk rear finisher mounting clips, and the remove trunk rear finisher.
8. Remove dual-lock fastener from back of trunk lower finisher, and then remove trunk lower finisher.
9. Disengage trunk upper finisher mounting clips and hooks, and remove trunk upper finisher.
10. Remove trunk wheelhouse finisher mounting clips, and the remove trunk wheelhouse finisher (LH/RH).
INSTALLATION
Install in the reverse order of removal.
REMOVAL AND INSTALLATION FOR TRUNK LID FINISHER INNER
Removal
1. Fully open trunk lid assembly.
2. Remove clips of trunk lid finisher inner.
3. Remove trunk lid finisher.
Installation
Install in the reverse order of removal.
NOTE:

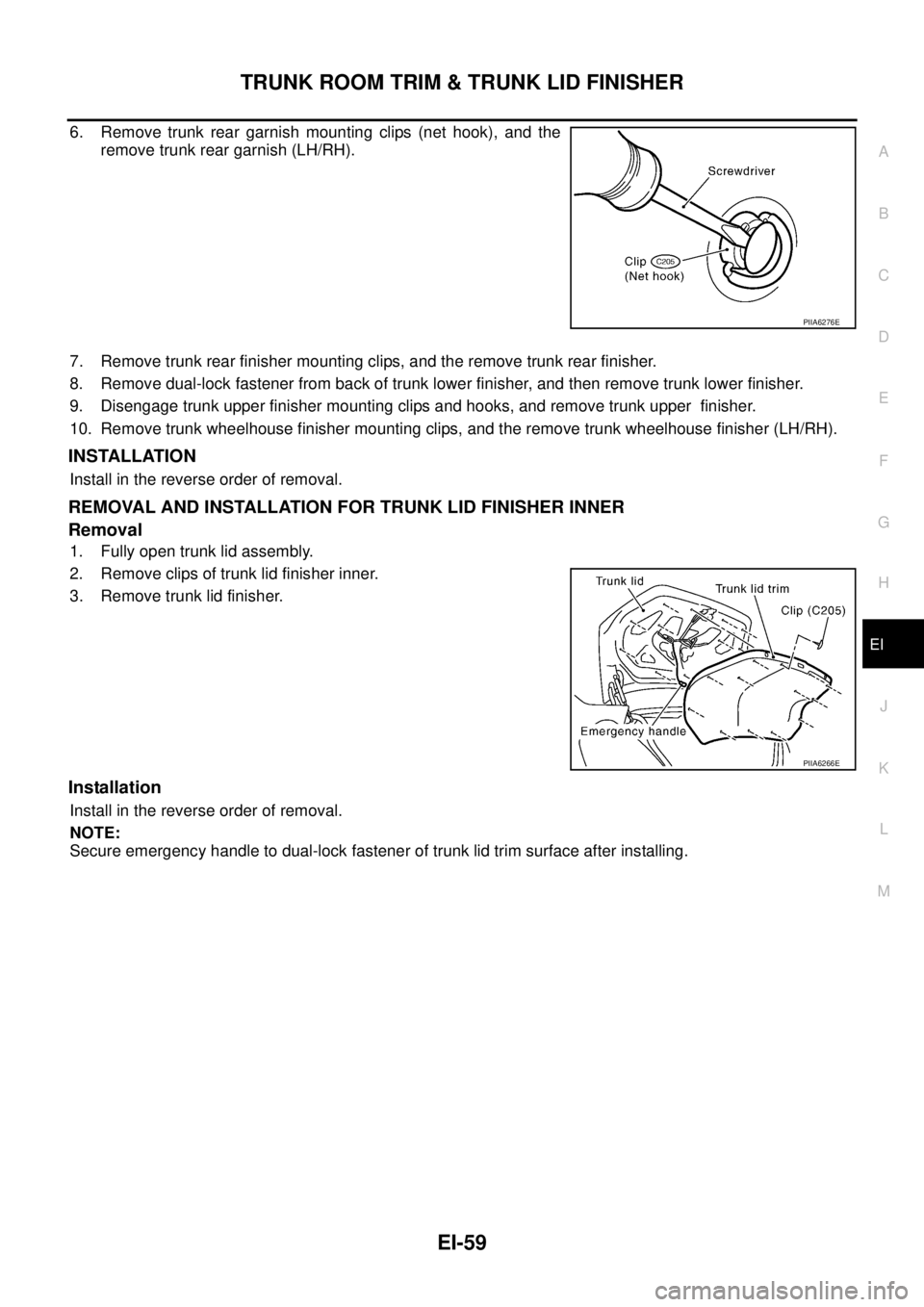

Secure emergency handle to dual-lock fastener of trunk lid trim surface after installing.
PIIA6276E
PIIA6266E
