Page 3449 of 3502
FRONT WIPER AND WASHER SYSTEM
WW-11
C
D
E
F
G
H
I
J
L
MA
B
WW

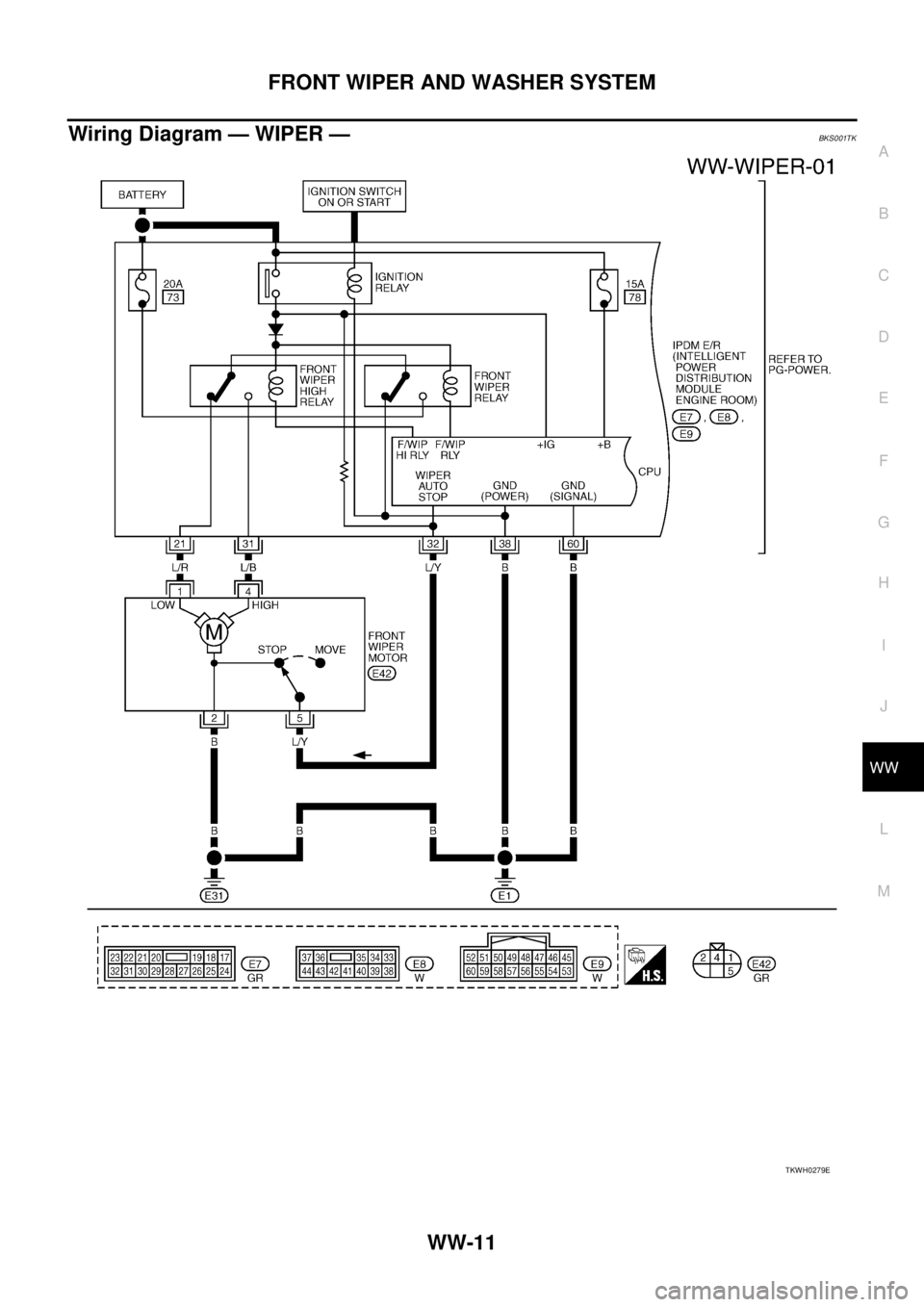

Wiring Diagram — WIPER —BKS001TK
TKWH0279E
Page 3450 of 3502
WW-12
FRONT WIPER AND WASHER SYSTEM

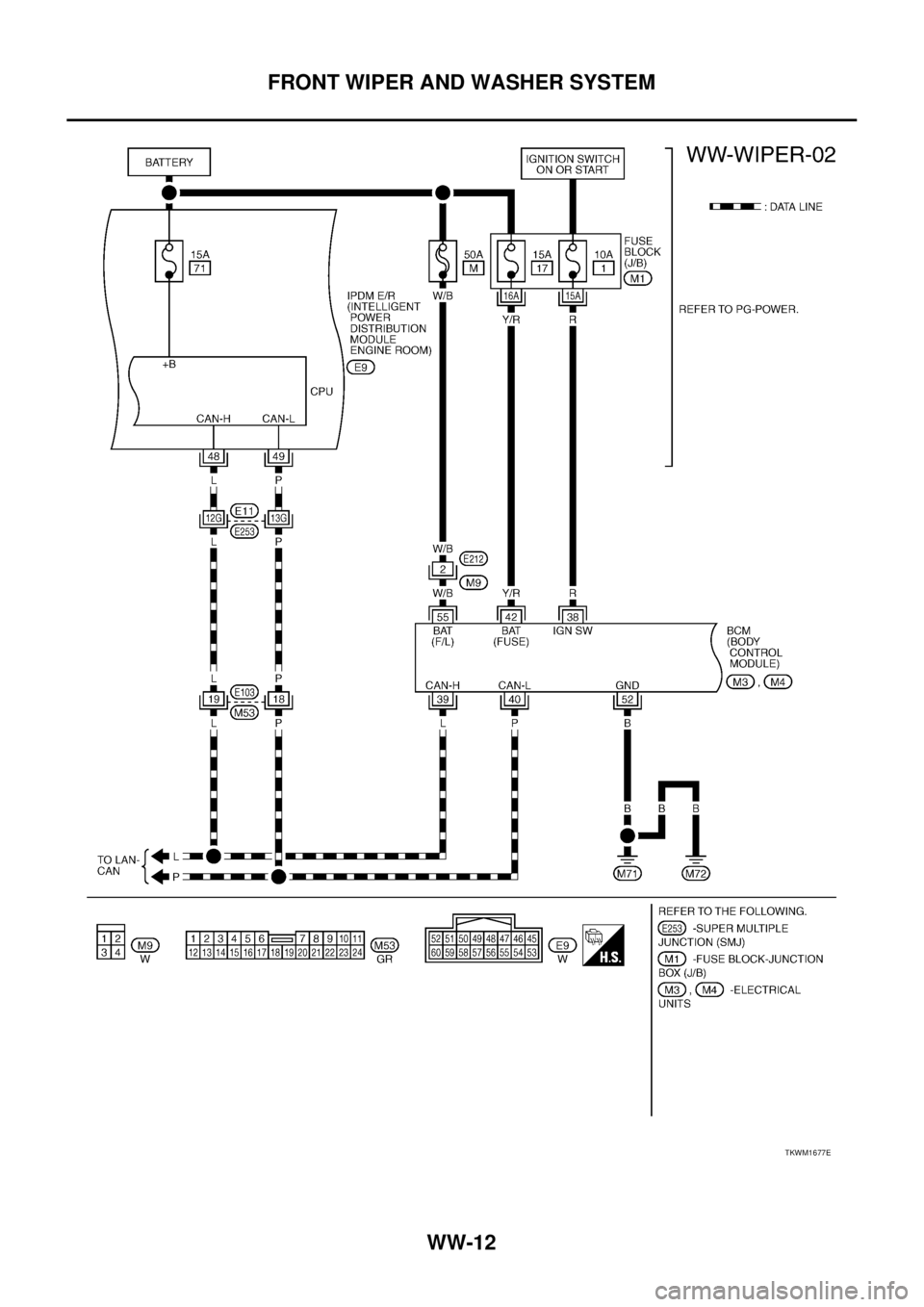

TKWM1677E
Page 3451 of 3502
FRONT WIPER AND WASHER SYSTEM
WW-13
C
D
E
F
G
H
I
J
L
MA
B
WW

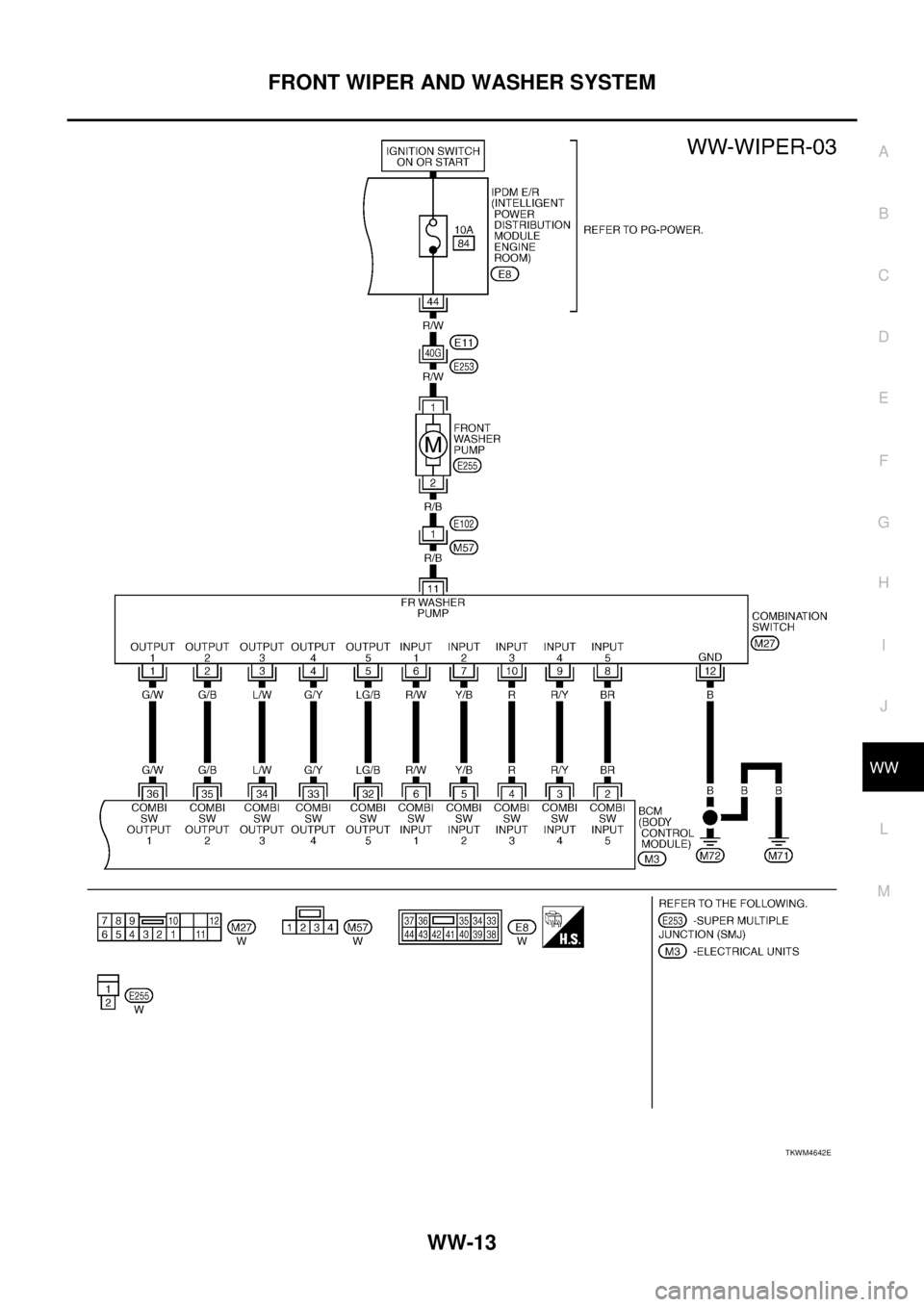

TKWM4642E
Page 3452 of 3502

WW-14
FRONT WIPER AND WASHER SYSTEM
Terminals and Reference Values for BCMBKS001TL
CAUTION:
Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.
Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper inter-
mittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-II. Refer to
WW-19, "
DATA MONITOR" .
Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
4RCombination
switch input 3ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF Approx. 0 V
Any of the conditions below
Front wiper switch MIST position
Front wiper switch INT position
Front wiper switch LO position
Approx. 1.0 V
5Y/BCombination
switch input 2ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)Approx. 0 V
Any of the conditions below
Front washer switch ON position
(Wiper intermittent dial position 4)
Wiper intermittent dial position 1
Wiper intermittent dial position 5
Wiper intermittent dial position 6
Approx. 1.0 V
PKIB4959J
PKIB4959J
Page 3453 of 3502

FRONT WIPER AND WASHER SYSTEM
WW-15
C
D
E
F
G
H
I
J
L
MA
B
WW
6R/WCombination
switch input 1ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)Approx. 0 V
Any of the conditions below
Front wiper switch HI position
(Wiper intermittent dial position 4)
Wiper intermittent dial position 3
Approx. 1.0 V
Any of the conditions below
Wiper intermittent dial position 1
Wiper intermittent dial position 2
Approx. 1.7 V
Any of the conditions below
Wiper intermittent dial position 6
Wiper intermittent dial position 7
Approx. 0.8 V
32 LG/BCombination
switch output 5ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below
Wiper intermittent dial position 1
Wiper intermittent dial position 2
Wiper intermittent dial position 6
Wiper intermittent dial position 7
Approx. 1.0 V Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4959J
PKIB4952J
PKIB4955J
PKIB4960J
PKIB4956J
Page 3454 of 3502
WW-16
FRONT WIPER AND WASHER SYSTEM
33 G/YCombination
switch output 4ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below
Wiper intermittent dial position 1
Wiper intermittent dial position 5
Wiper intermittent dial position 6
Approx. 1.2 V
34 L/WCombination
switch output 3ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below
Wiper intermittent dial position 1
Wiper intermittent dial position 2
Wiper intermittent dial position 3
Approx. 1.2 V
35 G/BCombination
switch output 2ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below
Front wiper switch INT position
Front wiper switch HI position
Approx. 1.2 V Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
Page 3455 of 3502

FRONT WIPER AND WASHER SYSTEM
WW-17
C
D
E
F
G
H
I
J
L
MA
B
WW
Terminals and Reference Values for IPDM E/RBKS001TM
36 G/WCombination
switch output 1ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below
Front wiper switch MIST position
Front wiper switch LO position
Front washer switch position
Approx. 1.2 V
38 RIgnition switch
(ON)ON — Battery voltage
39 L CAN-H — — —
40 P CAN-L — — —
42 Y/RBattery power
supplyOFF — Battery voltage
52 B Ground ON — Approx. 0 V
55 W/BBattery power
supplyOFF — Battery voltage Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4958J
Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
21 L/R Low speed signal ONFront wiper switch
positionOFF Approx. 0 V
LO Battery voltage
31 L/B High speed signal ONFront wiper switch
positionOFF Approx. 0 V
HI Battery voltage
32 L/Y Front wiper motor auto-stop signal ONFront wiper operating Battery voltage
Front wiper stopped Approx. 0 V
38 B Ground — — Approx. 0 V
44 R/W Front washer pump power supply ON — Battery voltage
48 L CAN-H — — —
49 P CAN-L — — —
60 B Ground — — Approx. 0 V
Page 3456 of 3502

WW-18
FRONT WIPER AND WASHER SYSTEM
How to Perform Trouble DiagnosesBKS001TN
1. Confirm the symptoms and customer complaint.
2. Understand operation description and function description. Refer to WW-4, "
System Description" .
3. Perform the Preliminary Check. Refer to WW-18, "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the front wiper and washer operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckBKS001TO
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
Refer to WW-11, "Wiring Diagram — WIPER —" .
OK or NG
OK >> GO TO 2
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connectors.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
Unit Power source Fuse and fusible link No.
BCMBatteryM
17
Ignition switch ON or START 1
Front wiper motor, front wiper relay, front wiper high relay Battery 73
Front washer pump Ignition switch ON or START 84
Terminals Ignition switch position
(+)
(−)OFF ON
BCM connector Terminal
M3 38
GroundApprox. 0 V Battery voltage
M442 Battery voltage Battery voltage
55 Battery voltage Battery voltage
PKIA7520E
