TROUBLE DIAGNOSIS
CVT-43
D
E
F
G
H
I
J
K
L
MA
B
CVT
CONSULT-II Function (TRANSMISSION)BCS001GQ
CONSULT-II can display each diagnostic item using the diagnostic test modes shown below.
FUNCTION
CONSULT-II REFERENCE VALUE
Diagnostic test mode Function Reference page
Work supportThis mode enables a technician to adjust some devices faster and more accurately by
following the indications on CONSULT-II.CVT-45
Self-diagnostic results Self-diagnostic results can be read and erased quickly.CVT-47
Data monitor Input/Output data in the TCM can be read.CVT-50
CAN diagnostic support
monitorThe results of transmit/receive diagnosis of CAN communication can be read.CVT-52
CALIB dataCharacteristic information for TCM and CVT assembly can be read. Do not use, but
displayed.—
Function testPerformed by CONSULT-II instead of a technician to determine whether each system
is “OK” or “NG”.—
ECU part number TCM part number can be read. —
Item name Condition Display value (Approx.)
VSP SENSOR
During drivingApproximately matches the speedometer
reading
ESTM VSP SIG
PRI SPEED SEN During driving (lock-up ON) Approximately matches the engine speed
ENG SPEED SIG Engine running Closely matches the tachometer reading
SEC HYDR SEN “N” position idle 1.0 V
PRI HYDR SEN “N” position idle 0.7 - 3.5 V
ATF TEMP SENWhen CVT fluid temperature is 20°C (68°F) 2.0 V
When CVT fluid temperature is 80°C (176°F) 1.0 V
VIGN SEN Ignition switch: ON Battery voltage
VEHICLE SPEED During drivingApproximately matches the speedometer
reading
PRI SPEED During driving (lock-up ON) Approximately matches the engine speed
SEC SPEED During driving45 X Approximately matches the speed-
ometer reading
ENG SPEED Engine running Closely matches the tachometer reading
GEAR RATIO During driving 2.37 - 0.43
ACC PEDAL OPENReleased accelerator pedal - Fully depressed
accelerator pedal0.0/8 - 8.0/8
SEC PRESS “N” position idle 0.5 MPa
PRI PRESS “N” position idle 0.3 - 0.7 MPa
STM STEP During driving−20 step - 190 step
ISOLT1Lock-up “OFF” 0.0 A
Lock-up “ON” 0.7 A
ISOLT2Release your foot from the accelerator pedal 0.8 A
Press the accelerator pedal all the way down 0.0 A
ISOLT3Secondary pressure low - Secondary pressure
high0.8 - 0.0 A
SOLMON1Lock-up “OFF” 0.0 A
Lock-up “ON” 0.6 - 0.7 A
Page 1050 of 3502

CVT-44
TROUBLE DIAGNOSIS
SOLMON2“N” position idle 0.8 A
When stalled 0.3 - 0.6 A
SOLMON3“N” position idle 0.6 - 0.7 A
When stalled 0.4 - 0.6 A
INH SW3MSelector lever in “D” position ON
Selector lever in “P”, “R” and “N” positions OFF
INH SW4Selector lever in “R”, “D” positions ON
Selector lever in “P”, “N” positions OFF
INH SW3Selector lever in “D“ position ON
Selector lever in “P”, “R” and “N” positions OFF
INH SW2Selector lever in “N”, “D” positions ON
Selector lever in “P”, “R” positions OFF
INH SW1Selector lever in “R”, “N” and “D” positions ON
Selector lever in “P” position OFF
BRAKE SWDepressed brake pedal ON
Released brake pedal OFF
FULL SWFully depressed accelerator pedal ON
Released accelerator pedal OFF
IDLE SWReleased accelerator pedal ON
Fully depressed accelerator pedal OFF
DOWNLVRSelector lever: - side ON
Other than the above OFF
UPLVRSelector lever: + side ON
Other than the above OFF
NON MMODEManual shift gate position (neutral, +side, -side) OFF
Other than the above ON
MMODEManual shift gate position (neutral) ON
Other than the above OFF
SMCOIL D
During driving Changes ON ⇔ OFF SMCOIL C
SMCOIL B
SMCOIL A
LUSEL SOL OUTSelector lever in “P”, “N” positions ON
Wait at least for 5 seconds with the selector
lever in “R” or “D” positionOFF
STRTR RLY OUTSelector lever in “P”, “N” positions ON
Selector lever in other positions OFF
STRTR RLY MONSelector lever in “P”, “N” positions ON
Selector lever in other positions OFF
VDC ONESP operate ON
Other conditions OFF
TCS ONTCS operate ON
Other conditions OFF
ABS ONABS operate ON
Other conditions OFF Item name Condition Display value (Approx.)
Page 1051 of 3502
TROUBLE DIAGNOSIS
CVT-45
D
E
F
G
H
I
J
K
L
MA
B
CVT
CONSULT-II SETTING PROCEDURE
Refer to GI-34, "CONSULT-II Start Procedure" .
WORK SUPPORT MODE
Display Item List
Engine Brake Adjustment
1. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
2. Touch “ENGINE BRAKE ADJ.”.
3. Touch “START”.
RANGESelector lever in “N” or “P” position N·P
Selector lever in “R” position R
Selector lever in “D” position D
M GEAR POS During driving 1, 2, 3, 4, 5, 6 Item name Condition Display value (Approx.)
Item name Description
ENGINE BRAKE ADJ. The engine brake level setting can be canceled.
CONFORM CVTF DETERIORTN The CVT fluid deterioration level can be checked.
BCIA0031E
SCIA4287E
SCIA4288E
Page 1052 of 3502
CVT-46
TROUBLE DIAGNOSIS
4. Set “ENGINE BRAKE LEVEL” by touching “UP” or “DOWN”.
5. Turn ignition switch OFF, wait at least 5 seconds and then turn
ignition switch ON.
6. Engine brake level set is completed.
CAUTION:
Mode of “+1” “0” “-1” “-2” “OFF” can be selected by press-
ing the “UP” “DOWN” on CONSULT-II screen. However, do not select mode other than “0” and
“OFF”. If the “+1” or “-1” or “-2” is selected, that might cause the irregular driveability.
Check CVT Fluid Deterioration Date
1. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
2. Touch “CONFORM CVTF DETERIORTN”.
3. Check “CVTF DETERIORATION DATE”“ENGINE BRAKE LEVEL”
0: Initial set value (Engine brake level control is
activated)
OFF: Engine brake level control is deactivated.
SAT934J
BCIA0031E
SCIA4287E
“CVTF DETERIORATION DATE”
More than 210000:
It is necessary to change CVT fluid.
Less than 210000:
It is not necessary to change CVT fluid.
SCIA4289E
Page 1053 of 3502

TROUBLE DIAGNOSIS
CVT-47
D
E
F
G
H
I
J
K
L
MA
B
CVT
CAUTION:
Touch “CLEAR” after changing CVT fluid, and then erase
“CVTF DETERIORATION DATE”.

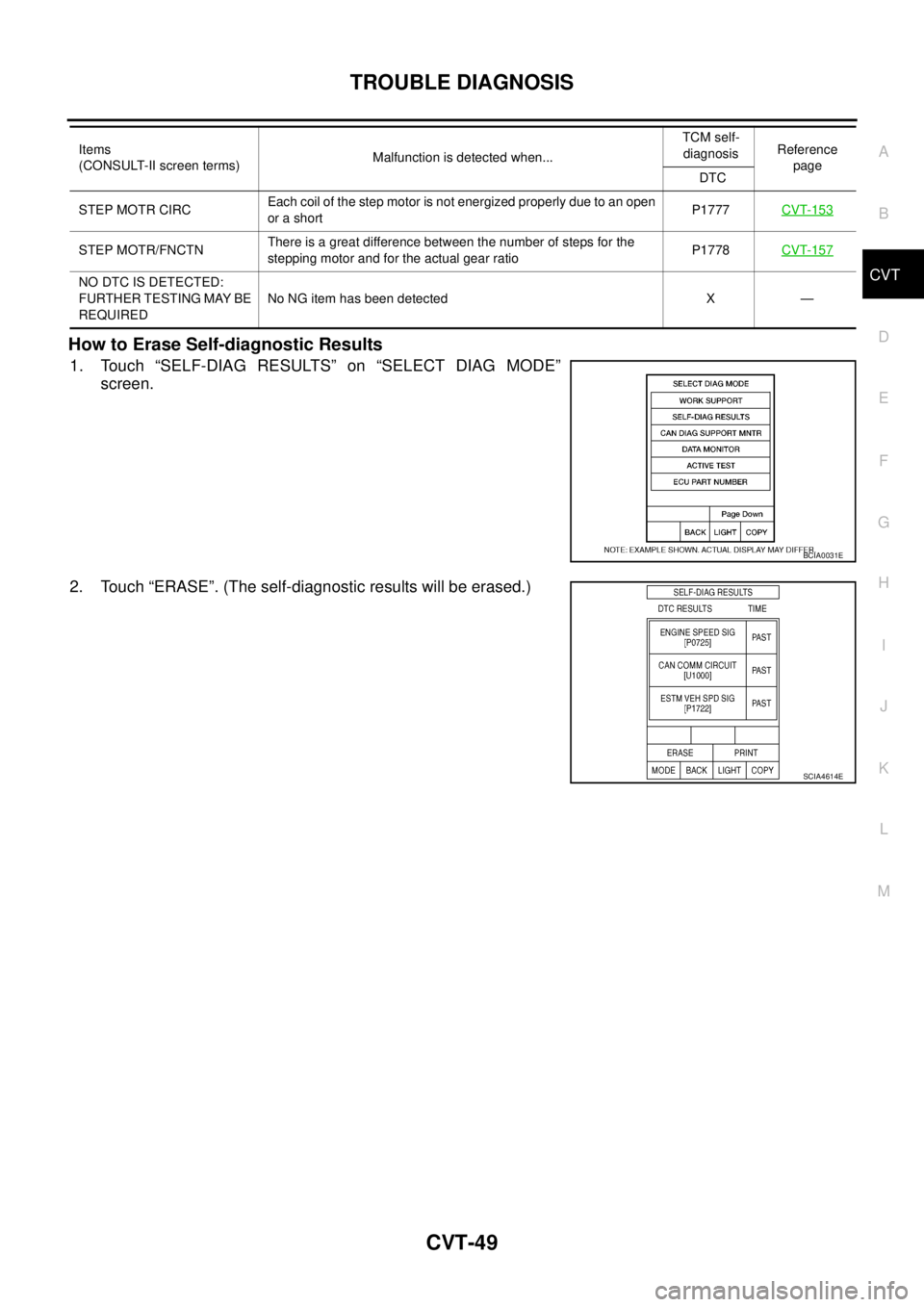

SELF-DIAGNOSTIC RESULT MODE
After performing self-diagnosis, place check marks for results on the CVT-27, "DIAGNOSTIC WORKSHEET" .
Reference pages are provided following the items.
Operation Procedure
1. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE”
screen.
Display shows malfunction experienced since the last erasing
operation.
Display Items List
X: Applicable —: Not applicable
SCIA4290E
BCIA0031E
Items
(CONSULT-II screen terms)Malfunction is detected when...TCM self-
diagnosisReference
page
DTC
CAN COMM CIRCUITWhen a TCM is not transmitting or receiving CAN communication
signal for 2 seconds or moreU1000CVT-53
STARTER RELAY/CIRCIf this signal is ON other than in “P” or “N” position, this is judged to
be a malfunction
(And if it is OFF in “P” or “N” position, this is judged to be a malfunc-
tion too)P0615CVT-56
BRAKE SW/CIRC When the brake switch does not switch to ON or OFF P0703CVT-60
PNP SW/CIRCPNP switch 1-4 signals input with impossible pattern
PNP switch 3 monitor terminal open or short circuitP0705CVT-62
ATF TEMP SEN/CIRCDuring running, the CVT fluid temperature sensor signal voltage is
excessively high or lowP0710CVT-69
INPUT SPD SEN/CIRC
Input speed sensor (primary speed sensor) signal is not input due
to an open circuit
An unexpected signal is input when vehicle is being drivenP0715CVT-74
VEH SPD SEN/CIR AT
Signal from vehicle speed sensor CVT [Output speed sensor
(Secondary speed sensor)] not input due to open or short circuit
Unexpected signal input during runningP0720CVT-79
ENGINE SPEED SIG
TCM does not receive the CAN communication signal from the
ECM
Engine speed is too low while drivingP0725CVT-85
BELT DAMG Unexpected gear ratio detected P0730CVT-87
TCC SOLENOID/CIRC Normal voltage not applied to solenoid due to open or short circuit P0740CVT-89
Page 1054 of 3502

CVT-48
TROUBLE DIAGNOSIS
A/T TCC S/V FNCTN
There is a big difference engine speed and primary speed when
TCM lock-up signal is on
CVT cannot perform lock-up even if electrical circuit is good
TCM detects as irregular by comparing difference value with slip
rotationP0744CVT-94
L/PRESS SOL/CIRC
Normal voltage not applied to solenoid due to open or short cir-
cuit
TCM detects as irregular by comparing target value with monitor
valueP0745CVT-97
PRS CNT SOL/A FCTNUnexpected gear ratio was detected in the LOW side due to exces-
sively low line pressureP0746CVT-102
PRS CNT SOL/B FCTNSecondary pressure is too high or too low compared with the com-
manded value while drivingP0776CVT-105
PRS CNT SOL/B CIRC
Normal voltage not applied to solenoid due to cut line, short, or
the like
TCM detects as irregular by comparing target value with monitor
valueP0778CVT-108
MANUAL MODE SWITCHWhen an impossible pattern of switch signals is detected, a mal-
function is detectedP0826CVT-113
TR PRS SENS/A CIRCSignal voltage of the transmission fluid pressure sensor A (second-
ary pressure sensor) is too high or too low while drivingP0840CVT-118
PRESS SEN/FNCTNCorrelation between the values of the transmission fluid pressure
sensor A (secondary pressure sensor) and the transmission fluid
pressure sensor B (primary pressure sensor) is out of specificationP0841CVT-123
TR PRS SENS/B CIRCSignal voltage of the transmission fluid pressure sensor B (primary
pressure sensor) is too high or too low while drivingP0845CVT-126
SEC/PRESS DOWNSecondary fluid pressure is too low compared with the commanded
value while drivingP0868CVT-131
TCM-POWER SUPPLY
When the power supply to the TCM is cut OFF, for example
because the battery is removed, and the self-diagnosis memory
function stops
This is not a malfunction message (Whenever shutting OFF a
power supply to the TCM, this message appears on the screen)P1701CVT-134
TP SEN/CIRC A/TTCM does not receive the proper accelerator pedal position signals
(input by CAN communication) from ECMP1705CVT-139
ESTM VEH SPD SIG
CAN communication with the ABS actuator and the electric unit
(control unit) is malfunctioning
There is a great difference between the vehicle speed signal from
the ABS actuator and the electric unit (control unit), and the vehi-
cle speed sensor signalP1722CVT-141
CVT SPD SEN/FNCTNA rotation sensor error is detected because the gear does not
change in accordance with the position of the stepping motor
CAUTION:
One of the “P0720 VEH SPD SEN/CIR AT”, the “P0715 INPUT
SPD SEN/CIRC” or the “P0725 ENGINE SPEED SIG” is dis-
played with the DTC at the same timeP1723CVT-143
ELEC TH CONTROL The electronically controlled throttle for ECM is malfunctioning P1726CVT-145
LU-SLCT SOL/CIRC
Normal voltage not applied to solenoid due to cut line, short, or
the like
TCM detects as irregular by comparing target value with monitor
valueP1740CVT-147
L/PRESS CONTROL TCM detects the unexpected line pressure P1745CVT-152
Items
(CONSULT-II screen terms)Malfunction is detected when...TCM self-
diagnosisReference
page
DTC
Page 1055 of 3502
TROUBLE DIAGNOSIS
CVT-49
D
E
F
G
H
I
J
K
L
MA
B
CVT
How to Erase Self-diagnostic Results
1. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE”
screen.
2. Touch “ERASE”. (The self-diagnostic results will be erased.)
STEP MOTR CIRCEach coil of the step motor is not energized properly due to an open
or a shortP1777CVT-153
STEP MOTR/FNCTNThere is a great difference between the number of steps for the
stepping motor and for the actual gear ratioP1778CVT-157
NO DTC IS DETECTED:
FURTHER TESTING MAY BE
REQUIREDNo NG item has been detected X — Items
(CONSULT-II screen terms)Malfunction is detected when...TCM self-
diagnosisReference
page
DTC
BCIA0031E
SCIA4614E
Page 1056 of 3502

CVT-50
TROUBLE DIAGNOSIS
DATA MONITOR MODE
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
NOTE:
When malfunction is detected, CONSULT-II performs
“REAL-TIME DIAGNOSIS”. Also, any malfunction detected
while in this mode will be displayed at real time.
Display Items List
X: Standard, —: Not applicable, : Option
BCIA0031E
Monitored item (Unit)Monitor item selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU
VSP SENSOR (km/h) X — Output speed sensor (secondary speed sensor)
ESTM VSP SIG (km/h) X —
PRI SPEED SEN (rpm) X —
ENG SPEED SIG (rpm) X —
SEC HYDR SEN (V) X —
PRI HYDR SEN (V) X —
ATF TEMP SEN (V) X — CVT fluid temperature sensor
VIGN SEN (V) X —
VEHICLE SPEED (km/h) — X Vehicle speed recognized by the TCM
PRI SPEED (rpm) — X Primary pulley speed
SEC SPEED (rpm) — — Secondary pulley speed
ENG SPEED (rpm) — X
SLIP REV (rpm) — XDifference between engine speed and primary
pulley speed
GEAR RATIO — X
G SPEED (G) — —
ACC PEDAL OPEN (0.0/8) X XDegree of opening for accelerator recognized by
the TCM
For fail-safe operation, the specific value used
for control is displayed
TRQ RTO — —
SEC PRESS (MPa) — X
PRI PRESS (MPa) — X
ATF TEMP — X
DSR REV (rpm) — —
DGEAR RATIO — —
