PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BHS0003U
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” ServiceBHS0003V
Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
Before servicing the SRS, turn ignition switch OFF, and disconnect both battery cables. Then wait at least
3 minutes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.
Diagnosis sensor unit must always be installed with their arrow marks “⇐” pointing towards the front of the
vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformations or rust before
installation and replace if required.
The spiral cable must be set to the neutral position since its rotations are limited. Do not attempt to turn
steering wheel or column, if steering gear was disconnected from the column shaft.
Handle air bag module carefully. Always put a driver air bag module with the pad side facing upward.
Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
After an air bag is deployed, the front instrument panel assembly should be replaced if damaged.
Always replace instrument panel pad following front passenger air bag deployment.
Page 3378 of 3502

SRS-4
PREPARATION
PREPARATIONPFP:00002
Special Service ToolsBHS0003X
Commercial Service ToolsBHS0003Y
Tool number
Tool nameDescription
KV99105300
Air bag module bracketAnchoring air bag module
KV99106400
Deployment toolDisposing of air bag module and front seat
belt pre-tensioner
KV99109700
Deployment tool adapter for
driver air bag module
Deployment tool adapter for side
curtain air bag module
Deployment tool adapter for pre-
tensioner seat belt
Connecting between the deployment tool
and driver air bag module
Connecting between the deployment tool
and side curtain air bag module
Connecting between the deployment tool
and pre-tensioner seat belt
KV99108300
Deployment tool adapter for front
passenger air bag moduleConnecting between the deployment tool
and front passenger air bag module
KV99109000
Deployment tool adapter for front
side air bag moduleConnecting between the deployment tool
and front side air bag module
S-NT354
S-NT357
SHIA0038J
ZZA1166D
ZZA1190D
Tool name Description
Tamper resistant TORX bit Size: T30
S-NT757
Page 3379 of 3502
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
SRS-5
C
D
E
F
G
I
J
K
L
MA
B
SRS
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)PFP:28556
SRS ConfigurationBHS0003Z
The air bag deploys if the diagnosis sensor unit activates while the ignition switch is in the ON or START posi-
tion.
The collision modes for which supplemental restraint systems are activated are different among the SRS sys-
tems. For example, the driver air bag module and front passenger air bag module are activated in a frontal col-
lision but not in a side collision.
SRS configurations which are activated for some collision modes are as follows:
PHIA0775E
SRS configuration Frontal collision Left side collision Right side collision
Driver air bag module×——
Front passenger air bag module×——
Front LH seat belt pre-tensioner×——
Front RH seat belt pre-tensioner×——
Front LH side air bag module —×—
Front RH side air bag module — —×
LH side curtain air bag module —×—
RH side curtain air bag module — —×
Page 3380 of 3502

SRS-6
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Front Seat Belt Pre-Tensioner with 2 Stage Load LimiterBHS00040
The seat belt pre-tensioner system with 2 stage load limiter is
installed for both the driver's seat and the front passenger's seat. It
operates simultaneously with the SRS air bag system in the event of
a frontal collision with an impact exceeding a specified level.
When the frontal collision with an impact exceeding a specified level
occurs, seat belt slack resulting from clothing or other factors is
immediately taken up by the pre-tensioner. Vehicle passengers are
securely restrained.
When passengers in a vehicle are thrown forward in a collision and
the restraining force of the seat belt exceeds a specified level, the 2
stage load limiter permits the specified extension of the seat belt by
the twisting of the ELR shaft, and a relaxation of the chest-area seat
belt webbing tension while maintaining force.
Front Side Air BagBHS00041
Front side air bag is built-in type.
The front seatbacks with built-in type side air bag have the labels as
shown.
Side Curtain Air BagBHS00042
The side curtain air bags have the labels as shown.
PHIA0113E
PHIA0590E
BF-2006D
Page 3381 of 3502

TROUBLE DIAGNOSIS
SRS-7
C
D
E
F
G
I
J
K
L
MA
B
SRS
TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionBHS00043
CAUTION:
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Do not attempt to repair, splice or modify the SRS wiring harness. If the harness is damaged,
replace it with a new one.
Keep ground portion clean.
DIAGNOSIS FUNCTION
The SRS self-diagnosis results can be read by using “AIR BAG” warning lamp and/or CONSULT-II.
The User mode is exclusively prepared for the customer (driver). This mode warns the driver of a system mal-
function through the operation of the “AIR BAG” warning lamp.
The Diagnosis mode allows the technician to locate and inspect the malfunctioning part.
The mode applications for the “AIR BAG” warning lamp and CONSULT-II are as follows:
HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.
Information from Customer
WHAT..... Vehicle model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms
Preliminary Check
Check that the following parts are in good order.
Battery (Refer to SC-4, "How to Handle Battery" .)
Fuse (Refer to SRS-11, "Wiring Diagram — SRS —" .)
System component-to-harness connections
User mode Diagnosis mode Display type
“AIR BAG” warning lamp X X ON-OFF operation
CONSULT-II — X Monitoring
Page 3382 of 3502
SRS-8
TROUBLE DIAGNOSIS
WORK FLOW
PHIA0217E
*1:SRS-7, "Preliminary Check".*2:SRS-16, "SRS Operation Check".*3:SRS-18, "DIAGNOSTIC PROCE-
DURE 2".
*4:SRS-29, "
DIAGNOSTIC PROCE-
DURE 6".*5:SRS-22, "
DIAGNOSTIC PROCEDURE 3".*6:SRS-29, "DIAGNOSTIC PROCE-
DURE 6".
Page 3383 of 3502
TROUBLE DIAGNOSIS
SRS-9
C
D
E
F
G
I
J
K
L
MA
B
SRS
Component Parts LocationBHS00044
PHIA1340E
1. Driver air bag module 2. Spiral cable 3. Front passenger air bag module
4. Front side air bag modules 5. Seat belt pre-tensioner (LH/RH) 6. Diagnosis sensor unit
7.Side air bag (Satellite) sensor (LH/
RH)8. Side curtain air bag modules 9. Crash zone sensor
Page 3384 of 3502
SRS-10
TROUBLE DIAGNOSIS

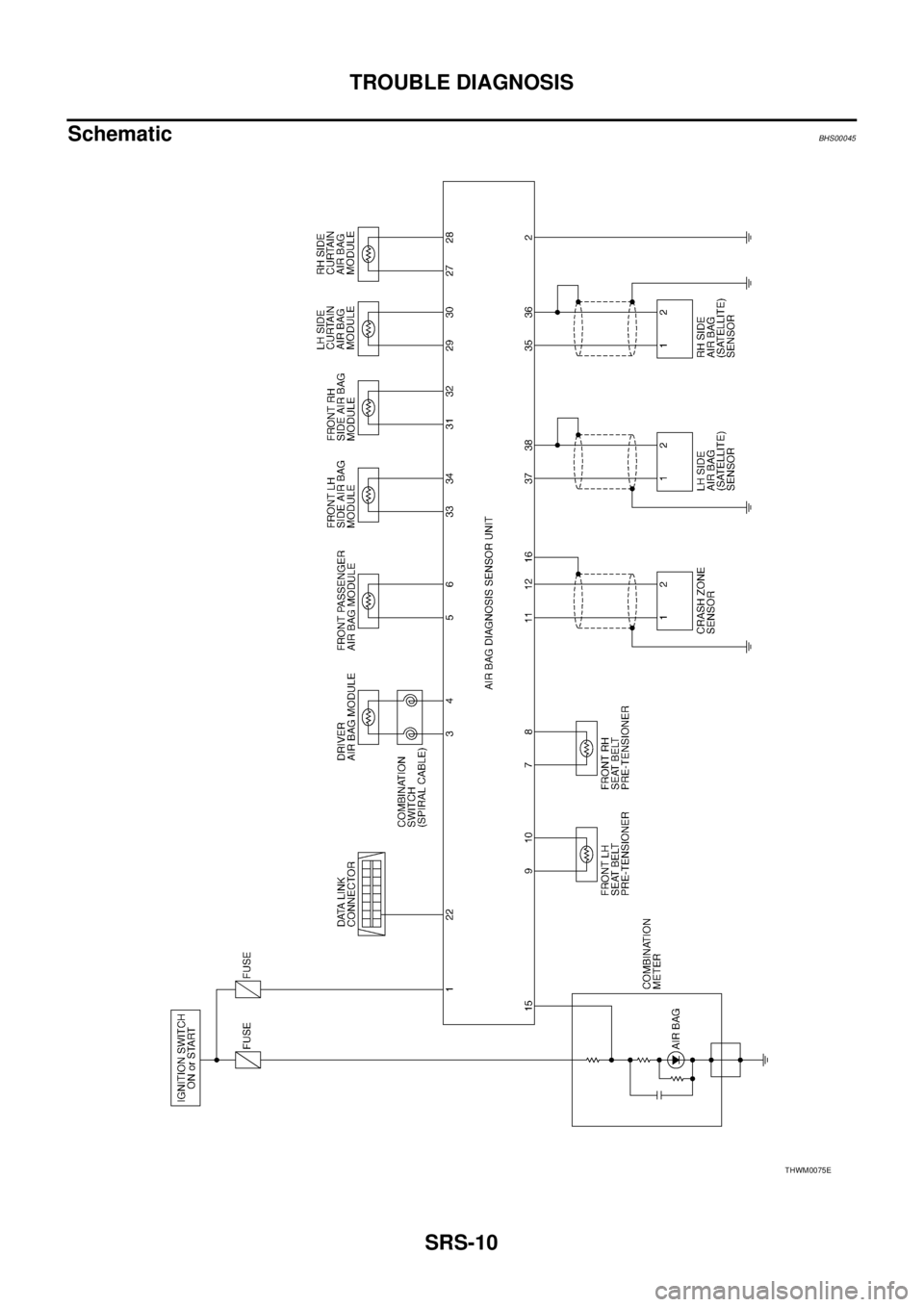

SchematicBHS00045
THWM0075E
